DuraStar Threaded Stem Thermoplastic Rubber Casters · Up to 315 lb · 3"–5"

Diameter: 3, 3-1/2, 4, 5 inTread: 1-1/4 inCapacity: up to 315 lbStem: threaded

Rubber casters here serve finished floors and quiet institutional carts. Typical builds show wheel diameters 3, 3-1/2, 4, 5 in, rubber treads, and threaded-stem frames. Replace worn corners in matched sets when possible so the cart tracks straight under load. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete. These light-duty options cover everyday finished floors and quiet institutional carts without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

TieredPricing

Durastar 5" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster - 315 lb Capacity Durastar

Ships in 1-3 Business Days

5" x 1-1/4" FX Thermoplastic Rubber Swivel Caster – 315 lb · Model 24-S-514-FX-35-41-43-47

Part # 24-S-514-FX-35-41-43-47

from $24.00

Volume pricing available

Gray RubberThreaded Stem

Load rating

315 lbs

Diameter 5"

Capacity 315 lbs

Wheel Gray Rubber

Mount Threaded Stem

More Details Less Details

Width 1-1/4"

Height 5-1/8"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 5" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster – 315 lb...

TieredPricing

Durastar 4" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster - 300 lb Capacity Durastar

Ships in 1-3 Business Days

4" x 1-1/4" FX Thermoplastic Rubber Swivel Caster – 300 lb · Model 24-S-414-FX-35-41-43-47

Part # 24-S-414-FX-35-41-43-47

from $18.00

Volume pricing available

Gray RubberThreaded Stem

Load rating

300 lbs

Diameter 4"

Capacity 300 lbs

Wheel Gray Rubber

Mount Threaded Stem

More Details Less Details

Width 1-1/4"

Height 5-1/8"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 4" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster – 300 lb...

TieredPricing

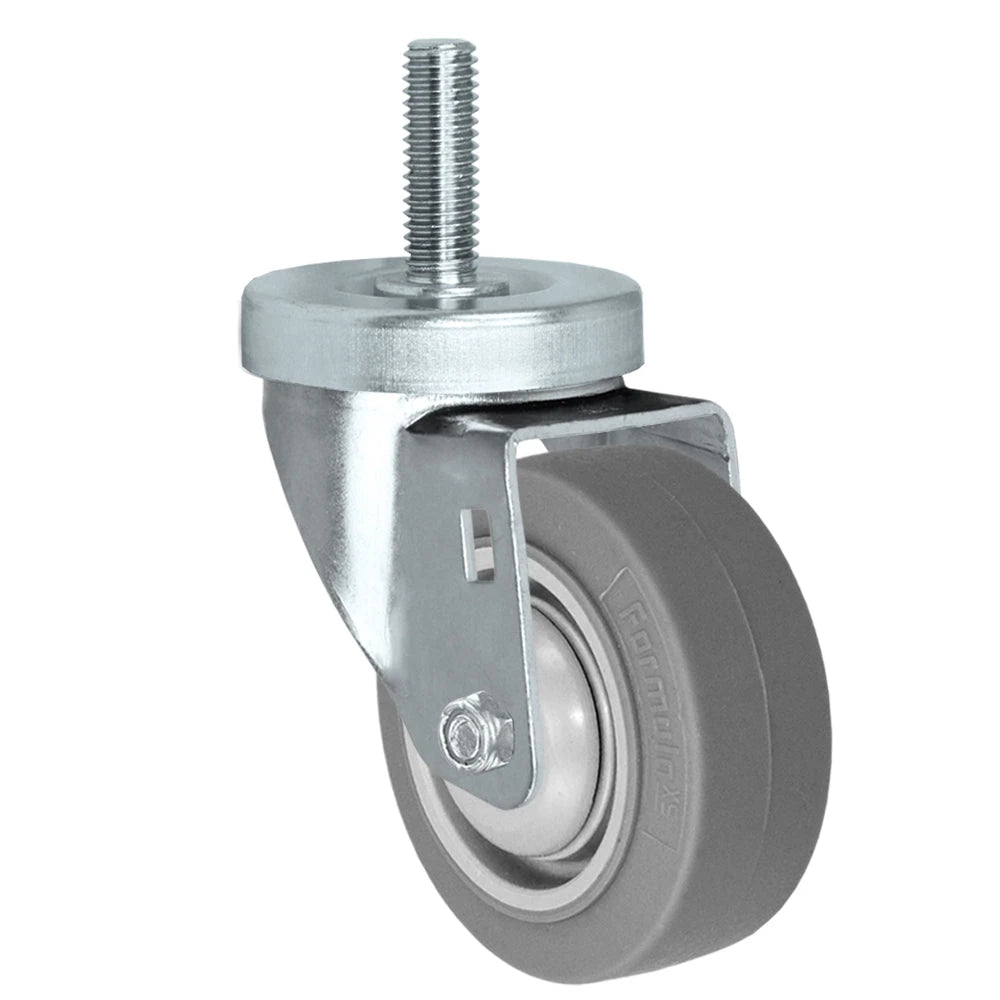

Durastar 3-1/2" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster - 230 lb Capacity Durastar

Ships in 1-3 Business Days

3-1/2" x 1-1/4" Thermoplastic Rubber Swivel Caster – 230 lb

Part # 24-S-3514-FX-35-41-43-47

from $13.00

Volume pricing available

Gray RubberThreaded Stem

Load rating

230 lbs

Diameter 3-1/2"

Capacity 230 lbs

Wheel Gray Rubber

Mount Threaded Stem

More Details Less Details

Width 1-1/4"

Height 4-5/8"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 3-1/2" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster – 230 lb...

TieredPricing

Durastar 3" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster - 225 lb Capacity Durastar

Ships in 1-3 Business Days

3" x 1-1/4" FX Thermoplastic Rubber Swivel Caster – 225 lb · Model 24-S-314-FX-35-41-43-47

Part # 24-S-314-FX-35-41-43-47

from $10.00

Volume pricing available

Gray RubberThreaded Stem

Load rating

225 lbs

Diameter 3"

Capacity 225 lbs

Wheel Gray Rubber

Mount Threaded Stem

More Details Less Details

Width 1-1/4"

Height 4-3/16"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 3" x 1-1/4" FX Thermoplastic Rubber Swivel Threaded Stem Caster – 225 lb...
