2" x 13/16" Rubber Casters

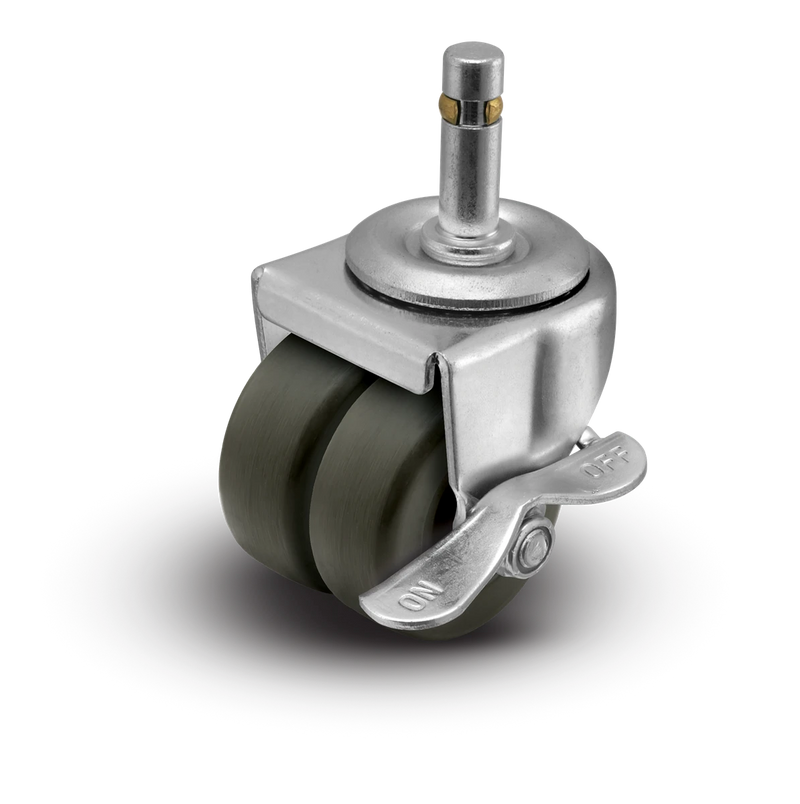

These Shepherd 00 Series grip ring casters fit light carts, racks, and stands. Casters in this collection range from 180 to 300 lb per caster. Wheels are 2 in polyolefin, TPR, and rubber dual wheel in swivel and brake models. Polyolefin is light, low cost, and resists water and many chemicals. It is hard, so it is loud on rough floors. Soft rubber or TPR tread is the better pick when the floor has chips or grit. Common uses include food service, bakeries, hospitals, schools, laboratories, and material handling carts. Threaded stem, grip-ring, and expanding rubber stems for round and square tubing all appear on light-duty builds. Match the stem size and thread before you order. Choose swivel casters when the cart must turn in place, rigid casters for straight travel, and add a brake when the cart needs to stay put. Polyolefin aisle: polyolefin casters. Light duty hub: light duty casters.

Shepherd 2 x 13/16 in rubber casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Rubber Polyolefin 2 in 180 to 225 lb cushioned and quiet on finished floors
Polyolefin 2 in 225 to 300 lb wet and chemical areas, light to medium loads

Ratings are for single casters of Shepherd 2 x 13/16 in rubber casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated
2 x 13/16 in rubber and polyolefin 180 to 225 lb
2 x 1-13/16 in polyolefin 300 lb

Choosing Shepherd 2 x 13/16 in rubber casters

  1. Load: plan on three casters carrying a four-caster cart [S2]; at 225 lb each, a common rating here, that is about 675 lb, and the 300 lb top rating covers about 900 lb.
  2. Stem: the most common stem on Shepherd 2 x 13/16 in rubber casters is 7/16 x 1-3/8 in; 13/16 x 2 in also appear; check the old stem with calipers before ordering.
  3. Floor: on Shepherd 2 x 13/16 in rubber casters, rubber is kinder to tile and finished floors; polyolefin rolls easier under heavy loads on smooth concrete.
  4. Rig: swivel Shepherd 2 x 13/16 in rubber casters are listed, with side lock brake options.

Shepherd 2 x 13/16 in rubber casters questions

How much weight can Shepherd 2 x 13/16 in rubber casters carry?

Single Shepherd 2 x 13/16 in rubber casters are rated 180 to 300 lb; most fall between 180 and 225 lb.

What stem do Shepherd 2 x 13/16 in rubber casters use?

Most Shepherd 2 x 13/16 in rubber casters list 7/16 x 1-3/8 in. Others: 13/16 x 2 in.

What wheel material is most common on Shepherd 2 x 13/16 in rubber casters?

Rubber leads on Shepherd 2 x 13/16 in rubber casters, rated 180 to 225 lb per caster. Among Shepherd 2 x 13/16 in rubber casters, polyolefin is next at 225 to 300 lb.

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
