DuraStar S30 Series Stainless Steel Casters · Up to 1,200 lb · 4"–8" · Polyolefin

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,200 lb

30 Series polyolefin, steel, and stainless casters sized for heavy warehouse carts, die carts, and plant fixtures. Expect top plates around 4 x 4-1/2, wheel diameters 4, 5, 6, 8 in, and polyolefin, steel, and stainless treads. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. Larger plates spread bolt stress on thick frames under continuous tow abuse.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 6" x 2" Heavy Duty Polyolefin Swivel Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyolefin Swivel Stainless Caster – 1000 lb

Part # S30-S-620-HPO-03

from $96.00

Volume pricing available

PolyolefinPlate

Load rating

1000 lbs

Diameter 6"

Capacity 1000 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 6" x 2" Heavy Duty Polyolefin Swivel...

Shop Product

1200 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 8" x 2" Heavy Duty Polyolefin Swivel Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Polyolefin Swivel Stainless Caster – 1200 lb · DuraStar S30 Series

Part # S30-S-820-HPO-03

from $58.00

Volume pricing available

PolyolefinPlate

Load rating

1200 lbs

Diameter 8"

Capacity 1200 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 8" x 2" Polyolefin Swivel Caster with...

Shop Product

900 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 5" x 2" Heavy Duty Polyolefin Swivel Caster - 900 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyolefin Swivel Stainless Caster – 900 lb · DuraStar S30 Series

Part # S30-S-520-HPO-03

from $54.00

Volume pricing available

PolyolefinPlate

Load rating

900 lbs

Diameter 5"

Capacity 900 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 5" x 2" Heavy Duty Polyolefin Swivel...

Shop Product

700 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 4" x 2" Heavy Duty Polyolefin Swivel Caster - 700 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyolefin Swivel Stainless Caster – 700 lb

Part # S30-S-420-HPO-03

from $52.00

Volume pricing available

PolyolefinPlate

Load rating

700 lbs

Diameter 4"

Capacity 700 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 4" x 2" Heavy Duty Polyolefin Swivel...

Shop Product

1200 lbs

TieredPricing

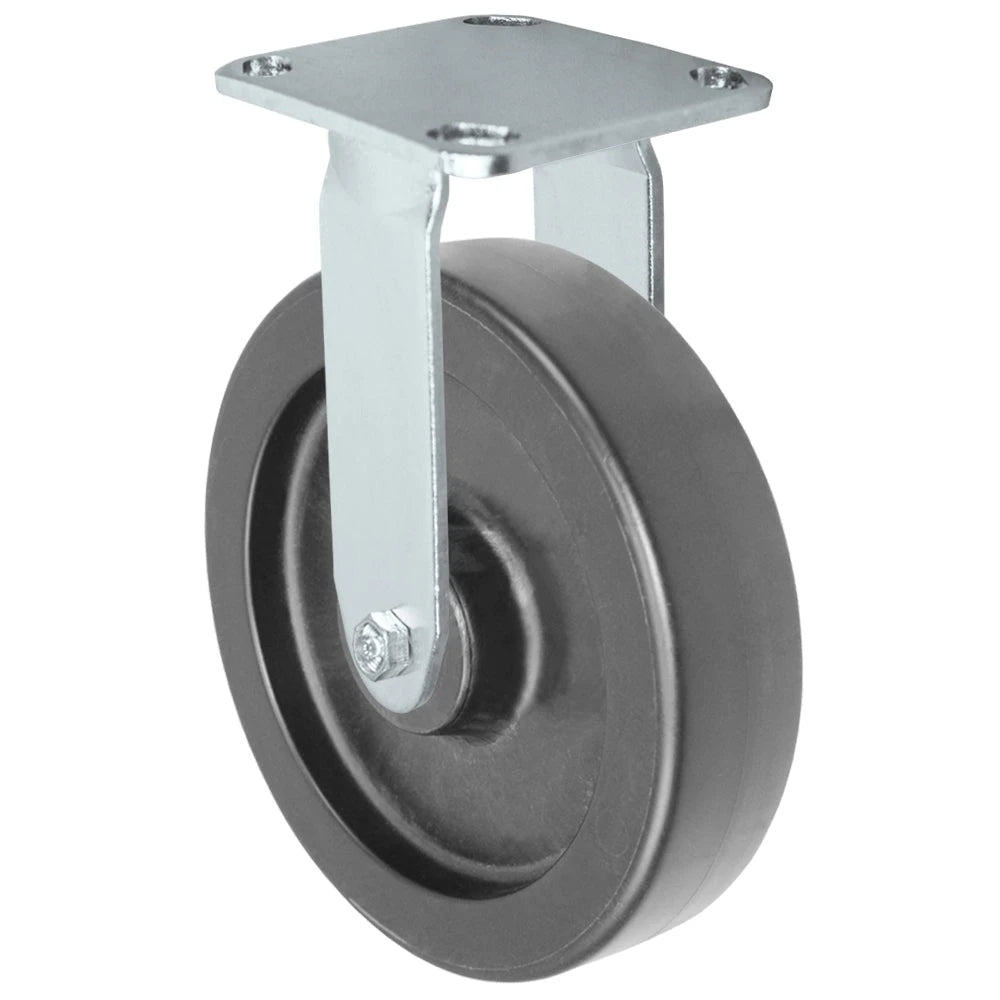

Durastar Medium Heavy Duty S30 Series - 8" x 2" Heavy Duty Polyolefin Rigid Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Polyolefin Rigid Stainless Caster – 1200 lb · DuraStar S30 Series · Model S30-R-820-HPO-03

Part # S30-R-820-HPO-03

from $55.00

Volume pricing available

PolyolefinPlate

Load rating

1200 lbs

Diameter 8"

Capacity 1200 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 8" x 2" Polyolefin Rigid Caster with...

Shop Product

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 6" x 2" Heavy Duty Polyolefin Rigid Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyolefin Rigid Stainless Caster – 1000 lb · DuraStar S30 Series · Model S30-R-620-HPO-03

Part # S30-R-620-HPO-03

from $53.00

Volume pricing available

PolyolefinPlate

Load rating

1000 lbs

Diameter 6"

Capacity 1000 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 6" x 2" Heavy Duty Polyolefin Rigid...

Shop Product

900 lbs

TieredPricing

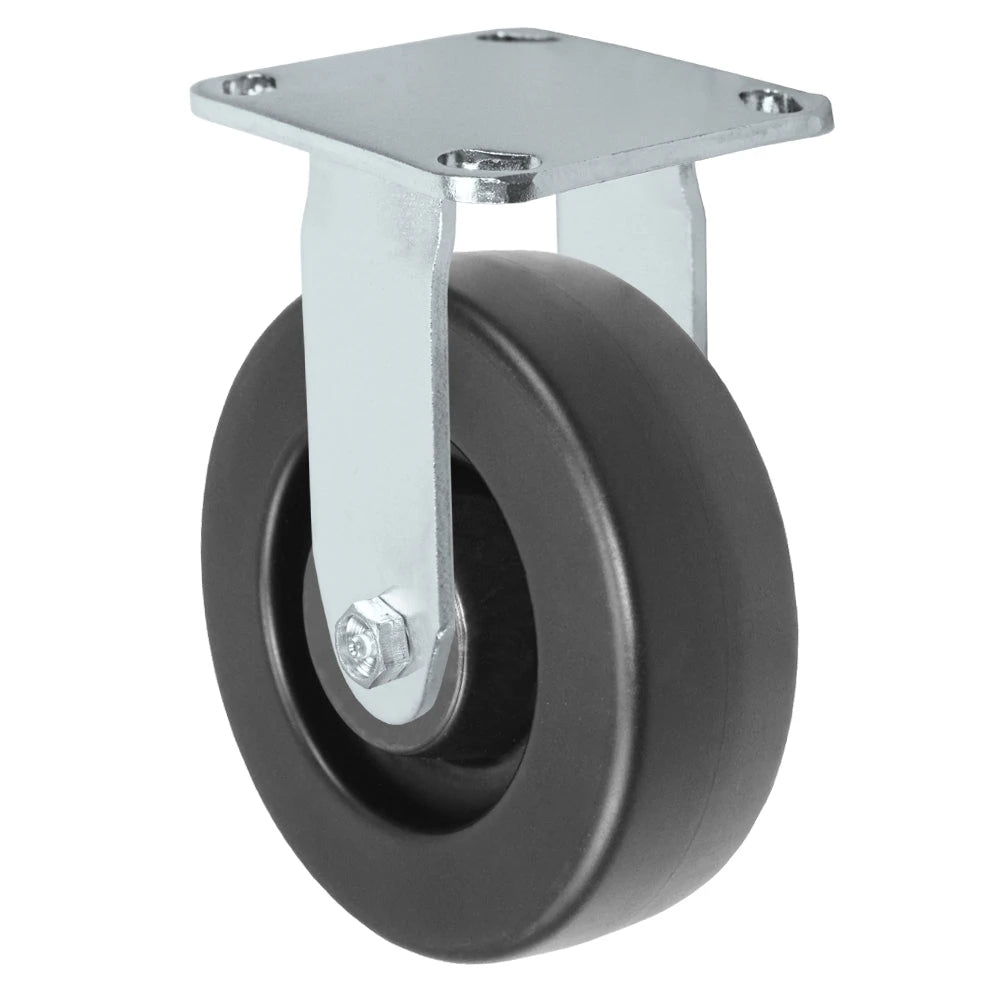

Durastar Medium Heavy Duty S30 Series - 5" x 2" Heavy Duty Polyolefin Rigid Caster - 900 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyolefin Rigid Caster – 900 lb

Part # S30-R-520-HPO-03

from $52.00

Volume pricing available

PolyolefinPlate

Load rating

900 lbs

Diameter 5"

Capacity 900 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 5" x 2" Heavy Duty Polyolefin Rigid...

Shop Product

700 lbs

TieredPricing

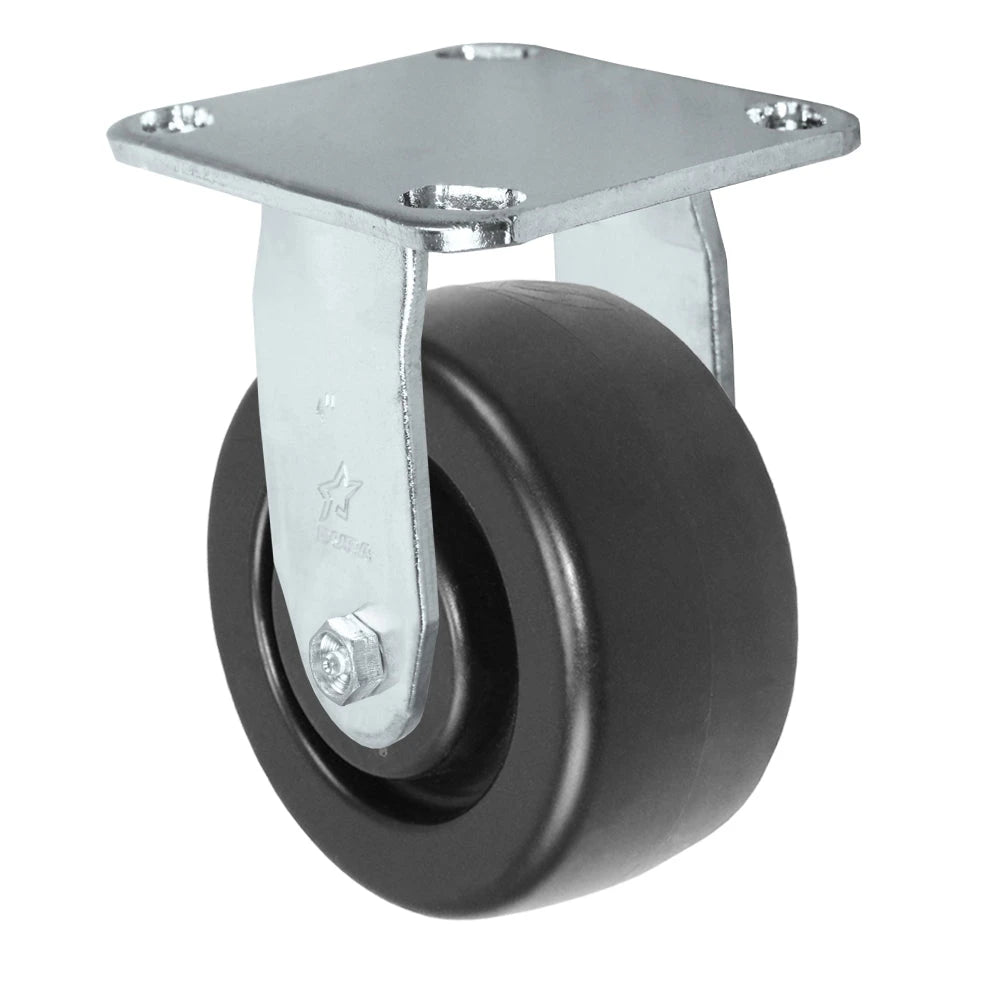

Durastar Medium Heavy Duty S30 Series - 4" x 2" Heavy Duty Polyolefin Rigid Caster - 700 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyolefin Rigid Stainless Caster – 700 lb · DuraStar S30 Series

Part # S30-R-420-HPO-03

from $49.00

Volume pricing available

PolyolefinPlate

Load rating

700 lbs

Diameter 4"

Capacity 700 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 4" x 2" Heavy Duty Polyolefin Rigid...

Shop Product

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
