DuraStar Stainless Steel Casters · 2 Inch Wide Stainless Steel Casters 1250 lb · 4"–8" · Polyolefin · 8 Styles · Ref 6

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,200 lb

Casters on the 4 x 4-1/2 plate pattern suit heavy warehouse carts, die carts, and plant fixtures. You will see wheel diameters 4, 5, 6, 8 in, polyolefin, steel, and stainless treads, and capacities 700 to 1,200 lb across the SKUs listed below. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. These heavy-duty options cover everyday heavy warehouse carts, die carts, and plant fixtures without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1200 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 8" x 2" Heavy Duty Polyolefin Swivel Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Polyolefin Swivel Stainless Caster – 1200 lb

Part # S34-S-820-HPO-03

from $60.00

Volume pricing available

PolyolefinPlate

Load rating

1200 lbs

Diameter 8"

Capacity 1200 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 8" x 2" Heavy Duty Polyolefin Swivel...

Shop Product

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 6" x 2" Heavy Duty Polyolefin Swivel Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyolefin Swivel Stainless Caster – 1000 lb

Part # S34-S-620-HPO-03

from $56.00

Volume pricing available

PolyolefinPlate

Load rating

1000 lbs

Diameter 6"

Capacity 1000 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 6" x 2" Polyolefin Swivel Caster -...

Shop Product

900 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 5" x 2" Heavy Duty Polyolefin Swivel Caster - 900 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyolefin Swivel Stainless Caster – 900 lb · DuraStar S34 Series

Part # S34-S-520-HPO-03

from $52.00

Volume pricing available

PolyolefinPlate

Load rating

900 lbs

Diameter 5"

Capacity 900 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 5" x 2" Heavy Duty Polyolefin Swivel...

Shop Product

700 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 4" x 2" Heavy Duty Polyolefin Swivel Caster - 700 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyolefin Swivel Stainless Caster – 700 lb

Part # S34-S-420-HPO-03

from $48.00

Volume pricing available

PolyolefinPlate

Load rating

700 lbs

Diameter 4"

Capacity 700 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 4" x 2" Polyolefin Swivel Caster -...

Shop Product

1200 lbs

TieredPricing

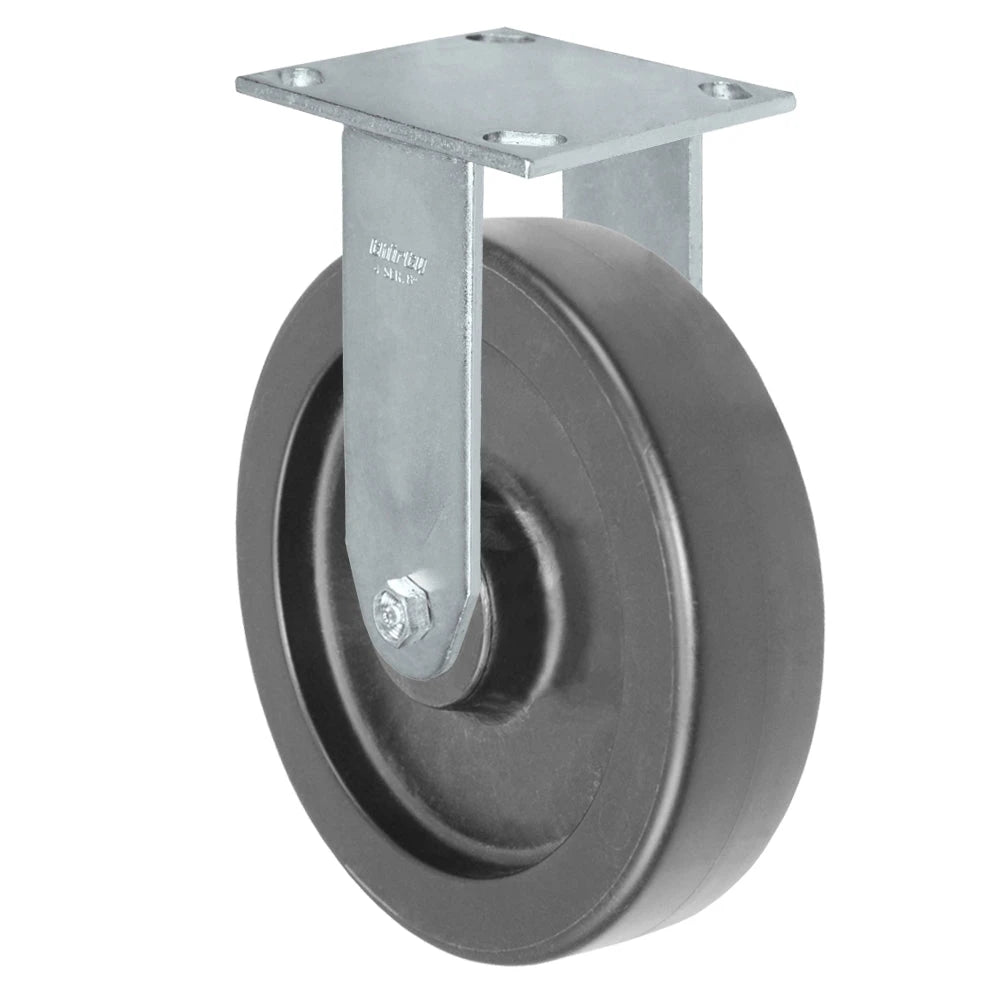

Durastar Medium Heavy Duty S34 Series - 8" x 2" Heavy Duty Polyolefin Rigid Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Polyolefin Rigid Stainless Caster – 1200 lb · DuraStar S34 Series · Model S34-R-820-HPO-03

Part # S34-R-820-HPO-03

from $48.00

Volume pricing available

PolyolefinPlate

Load rating

1200 lbs

Diameter 8"

Capacity 1200 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 8" x 2" Heavy Duty Polyolefin Rigid...

Shop Product

1000 lbs

TieredPricing

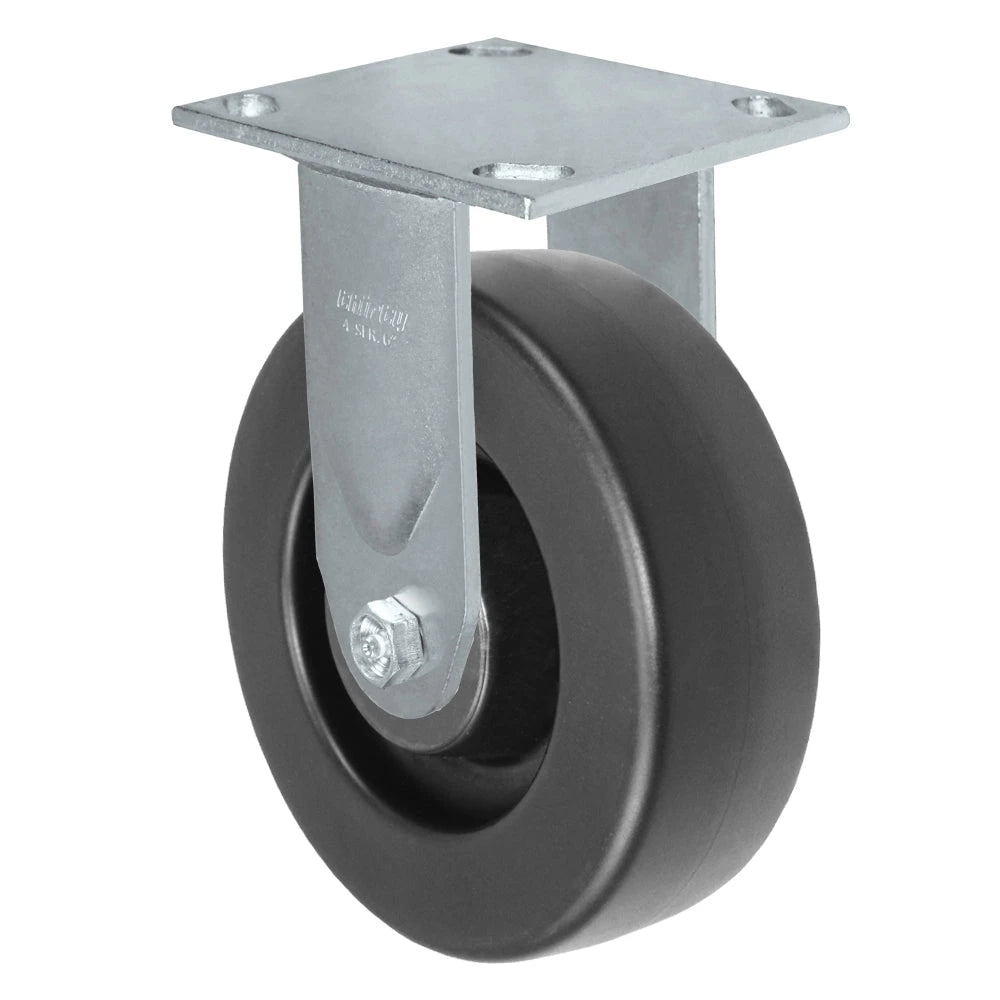

Durastar Medium Heavy Duty S34 Series - 6" x 2" Heavy Duty Polyolefin Rigid Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyolefin Rigid Stainless Caster – 1000 lb · DuraStar S34 Series · Model S34-R-620-HPO-03

Part # S34-R-620-HPO-03

from $40.00

Volume pricing available

PolyolefinPlate

Load rating

1000 lbs

Diameter 6"

Capacity 1000 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 6" x 2" Polyolefin Rigid Caster -...

Shop Product

900 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 5" x 2" Heavy Duty Polyolefin Rigid Caster - 900 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyolefin Rigid Caster – 900 lb

Part # S34-R-520-HPO-03

from $40.00

Volume pricing available

PolyolefinPlate

Load rating

900 lbs

Diameter 5"

Capacity 900 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 5" x 2" Heavy Duty Polyolefin Rigid...

Shop Product

700 lbs

TieredPricing

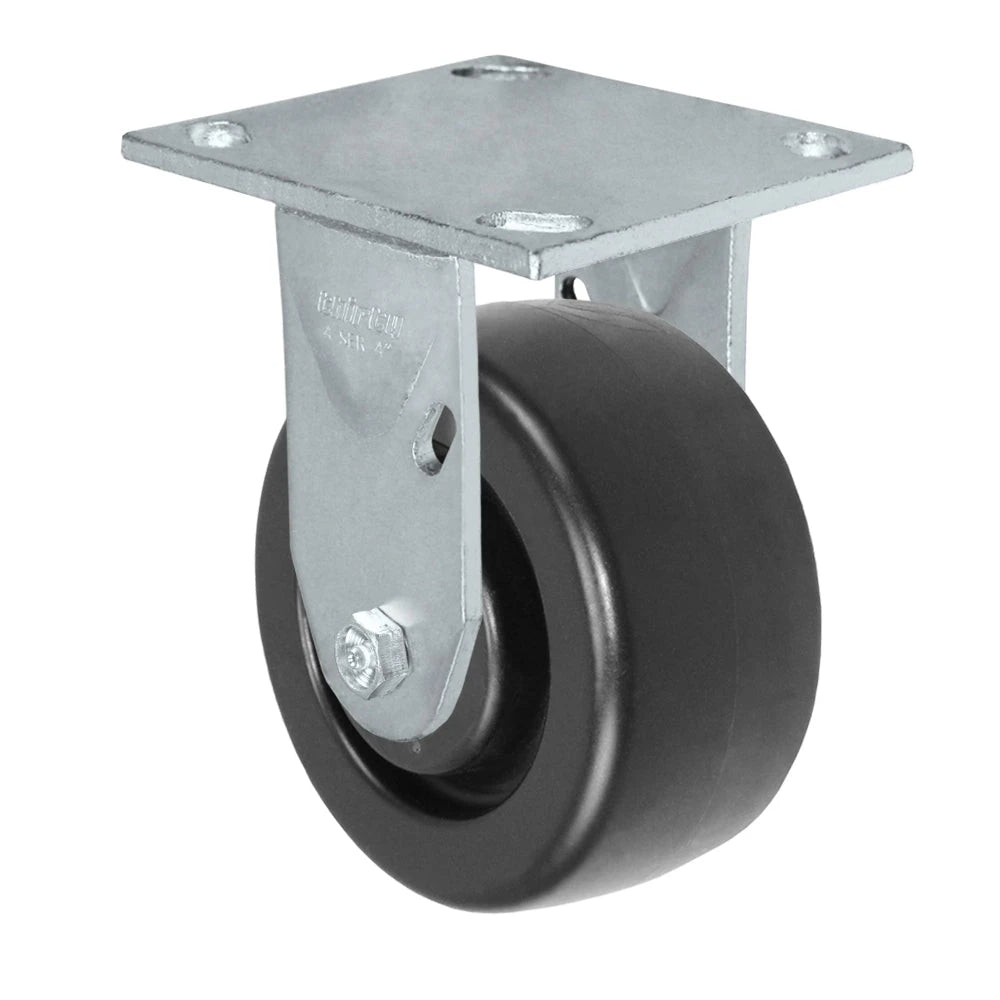

Durastar Medium Heavy Duty S34 Series - 4" x 2" Heavy Duty Polyolefin Rigid Caster - 700 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyolefin Rigid Stainless Caster – 700 lb · DuraStar S34 Series

Part # S34-R-420-HPO-03

from $38.00

Volume pricing available

PolyolefinPlate

Load rating

700 lbs

Diameter 4"

Capacity 700 lbs

Wheel Polyolefin

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 4" x 2" Polyolefin Rigid Caster -...

Shop Product

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
