Durastar hard rubber wheels

This collection holds HR with rubber treads, made to replace worn wheels on carts, dollies, racks, and equipment. Wheels in this collection range from 100 to 325 lb per wheel. Wheels in this category range from 2 up to 5 inches in diameter with 1 to 7 in tread widths. Rubber wheels are quiet, cushion the load, and protect floors. Soft rubber or TPR is the better pick when the floor has chips or grit. Common uses include food service, bakeries, hospitals, schools, laboratories, and material handling carts. Match the bore, hub length, diameter, and tread width before you order. Order the axle and spacers if the old ones are worn. Read the listing for the exact wheel size, overall height, and mount shown. Confirm the load rating printed on the title before you order. Measure the old wheel or caster before you buy. Rubber aisle: rubber casters. Caster hub: heavy duty casters.

Shop by wheel type

5 types

Wheel = wheel diameter · capacity is per wheel.

Durastar hard rubber wheels by tread

Tread Core Wheel sizes Rated per wheel Listed temperature Where it fits
Rubber 2, 2-1/2, 3, 4 and 5 in 100 to 325 lb -40°F to 160°F cushioned and quiet on finished floors

Ratings are for single wheels of Durastar hard rubber wheels, from product fields [S1].

Wheel sizes

Wheel Treads Rated
2 x 7/8 in rubber 100 lb
2-1/2 x 7/8 in rubber 100 lb
3 x 7/8 in rubber 100 lb
3 x 1 in rubber 125 lb
3 x 1-1/4 in rubber 275 lb
4 x 1-1/4 in rubber 300 lb

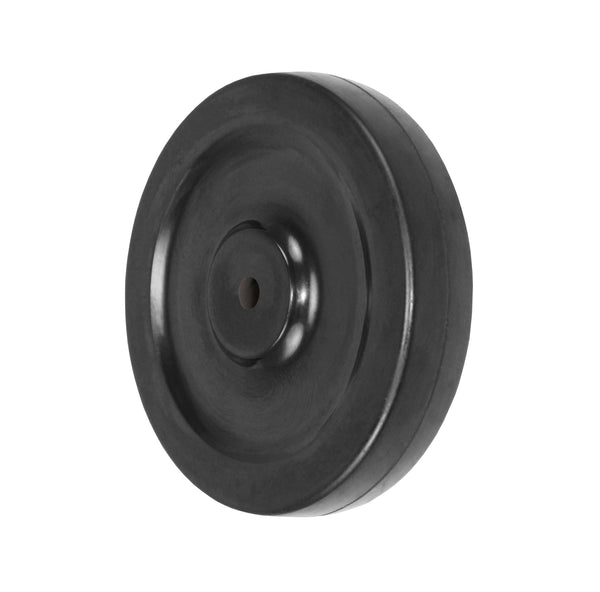

5 x 1 in rubber 145 lb
5 x 1-1/4 in rubber 325 lb

Choosing Durastar hard rubber wheels

  1. Load: divide the loaded weight by three for a four-wheel cart [S2]. Among Durastar hard rubber wheels, a 275 lb wheel then suits about 825 lb, and the strongest at 325 lb about 975 lb.
  2. Floor: on Durastar hard rubber wheels, rubber protects finished floors and runs quietly; check the rating if the cart also crosses rough concrete.

Durastar hard rubber wheels questions

How much weight can Durastar hard rubber wheels carry?

Single Durastar hard rubber wheels are rated 100 to 325 lb; most fall between 100 and 275 lb.

What wheel material is most common on Durastar hard rubber wheels?

Rubber leads on Durastar hard rubber wheels, rated 100 to 325 lb per wheel.

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
