Manner Twist Series

Diameter: 2.95 to 4.92 inTread: 0.59 and 0.79 inPlate: 3.03 x 2.64 (77 x 67 mm) in
This page lists Manner twist series casters with polyurethane treads.
Manner Twist TW-S-100 GP/K-13 H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-100 GP/K-13 H Swivel castors — 100mm
Part # MNR-305537
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size3.94" (100 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 4.65" (118 mm)
Bolt Pattern 13 mm bolt hole · 89 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-100 GP/K-13 H is a 100 mm (3.94") swivel castors from...
Request Quote
Manner Twist TWL-S-75 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-S-75 GP/K H Swivel castors — 75mm
Part # MNR-305301
Quote on Request
Polyamide hub / Polyurethane treadRectangular top plate
Size2.95" (75 mm) x 0.59" (15 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel
More Details Less Details
Width 0.59" (15 mm)
Height 3.5" (89 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
The Manner Twist TWL-S-75 GP/K H is a 75 mm (2.95") swivel castors from...
Request Quote

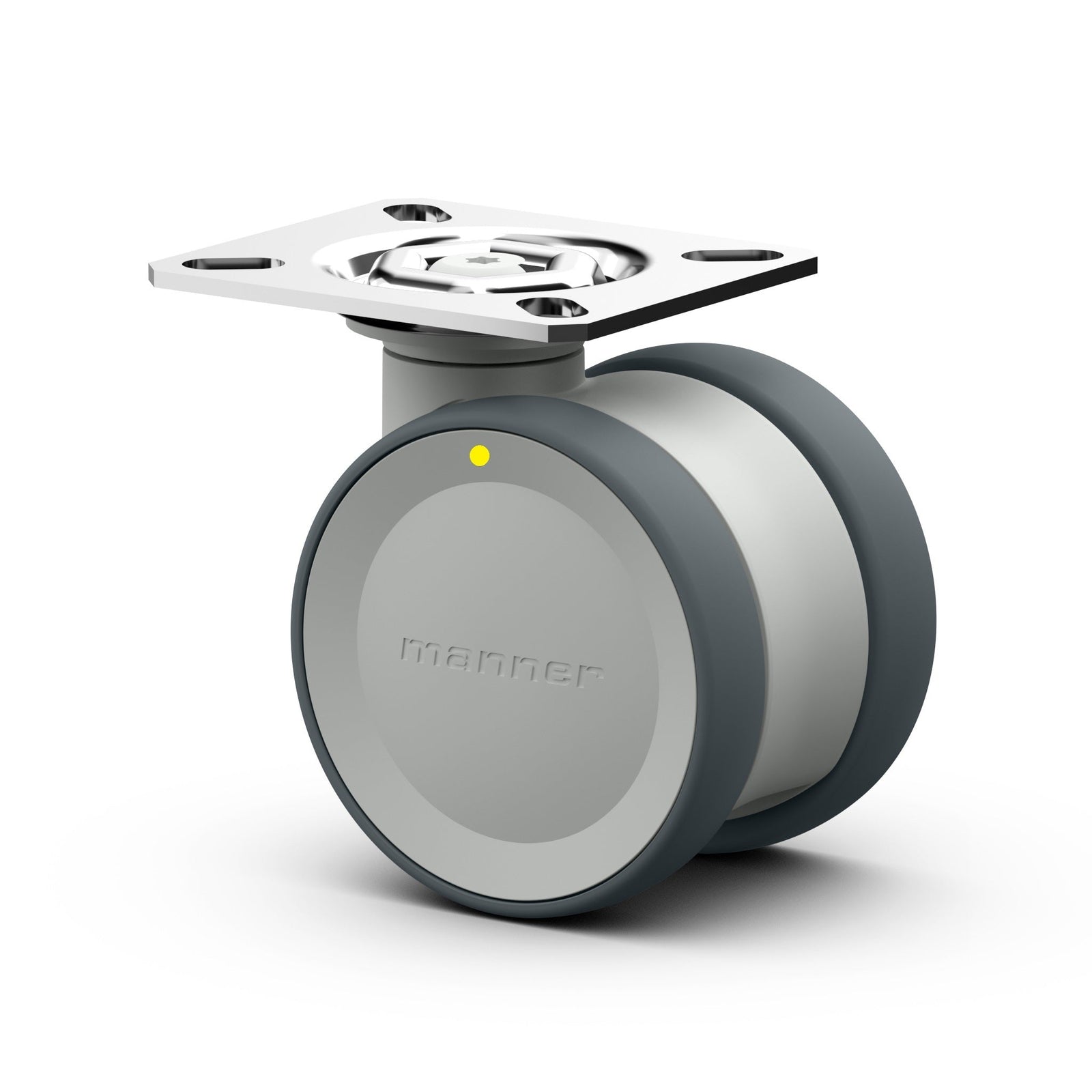

Manner Twist TWL-S-75 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-S-75 GP/K H A Swivel castors — 75mm
Part # MNR-305323
Quote on Request
Full specifications — view product
Request Quote
Manner Twist TWL-S-125 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-S-125 GP/K H Swivel castors — 125mm
Part # MNR-305281
Quote on Request
Polyamide hub / Polyurethane treadRectangular top plate
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.98" (152 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
The Manner Twist TWL-S-125 GP/K H is a 125 mm (4.92") swivel castors from...
Request Quote

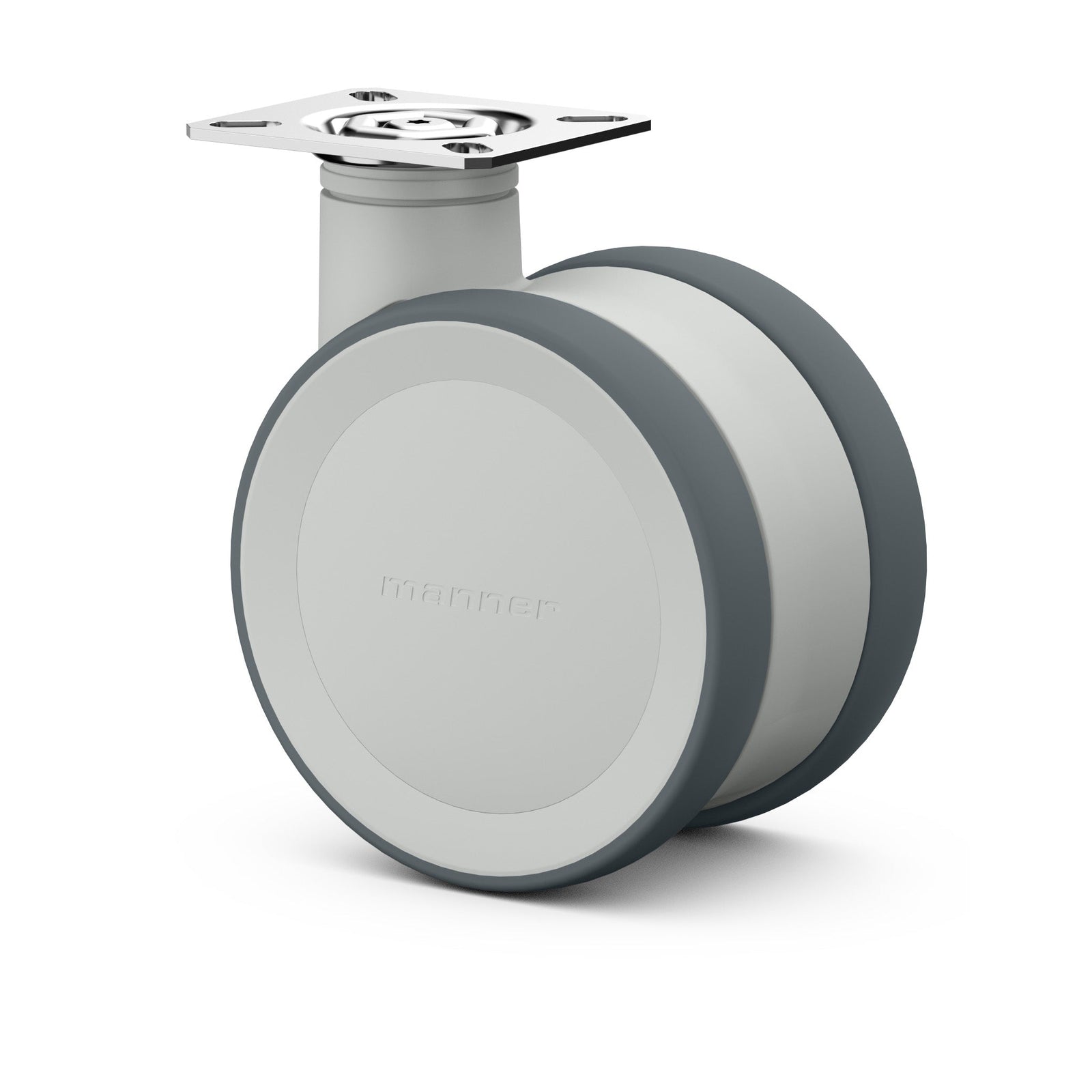

Manner Twist TWL-S-100 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-S-100 GP/K H Swivel castors — 100mm
Part # MNR-305271
Quote on Request
Polyamide hub / Polyurethane treadRectangular top plate
Size3.94" (100 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.0" (127 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
The Manner Twist TWL-S-100 GP/K H is a 100 mm (3.94") swivel castors from...
Request Quote
Manner Twist TWL-S-100 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-S-100 GP/K H A Swivel castors — 100mm
Part # MNR-305275
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadRectangular top plate
Size3.94" (100 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.0" (127 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Conductive polyamide
Rig Type Swivel
The Manner Twist TWL-S-100 GP/K H A is a 100 mm (3.94") swivel castors...
Request Quote

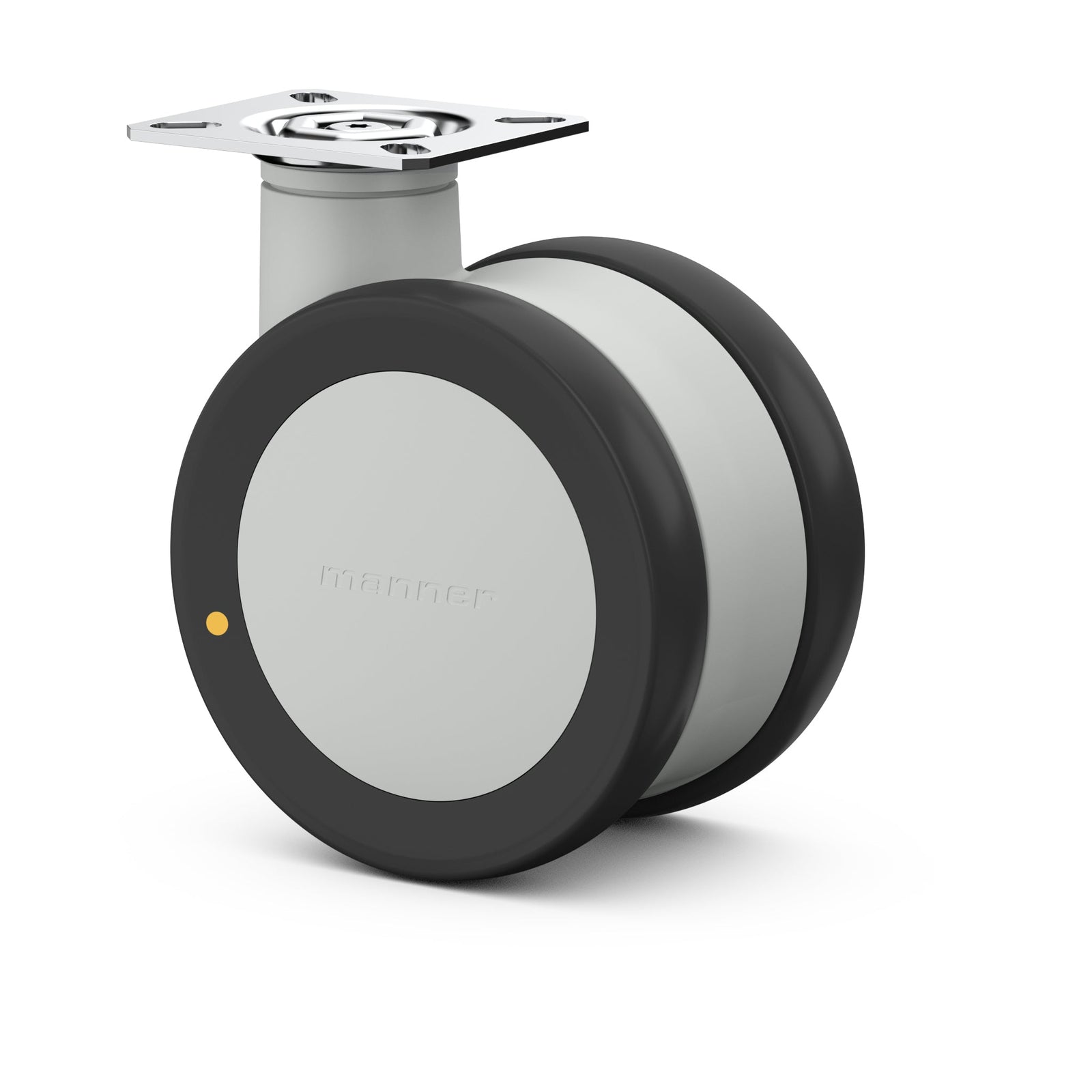

Manner Twist TWL-S-125 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-S-125 GP/K H A Swivel castors — 125mm
Part # MNR-305287
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadRectangular top plate
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.98" (152 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Conductive polyamide
Rig Type Swivel
The Manner Twist TWL-S-125 GP/K H A is a 125 mm (4.92") swivel castors...
Request Quote

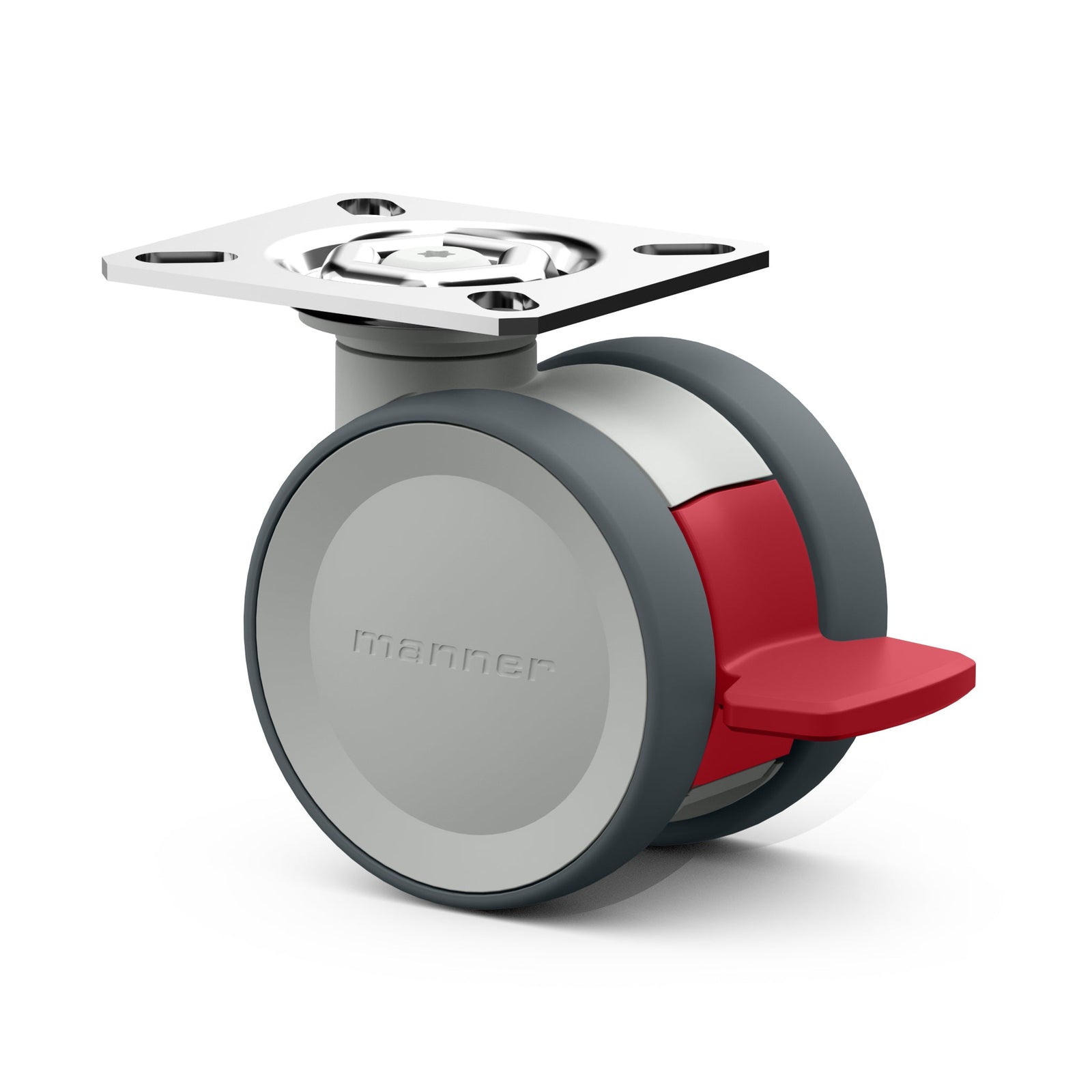

Manner Twist TWL-J-S-75 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-J-S-75 GP/K H Swivel castors with brake — 75mm
Part # MNR-305302
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size2.95" (75 mm) x 0.59" (15 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel · Single action brake
More Details Less Details
Width 0.59" (15 mm)
Height 3.5" (89 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
Brake Single action brake
The Manner Twist TWL-J-S-75 GP/K H is a 75 mm (2.95") swivel castors with...
Request Quote
Manner Twist TWL-J-S-75 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-J-S-75 GP/K H A Swivel castors with brake — 75mm
Part # MNR-305324
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size2.95" (75 mm) x 0.59" (15 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel · Single action brake
More Details Less Details
Width 0.59" (15 mm)
Height 3.5" (89 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
Brake Single action brake
The Manner Twist TWL-J-S-75 GP/K H A is a 75 mm (2.95") swivel castors...
Request Quote

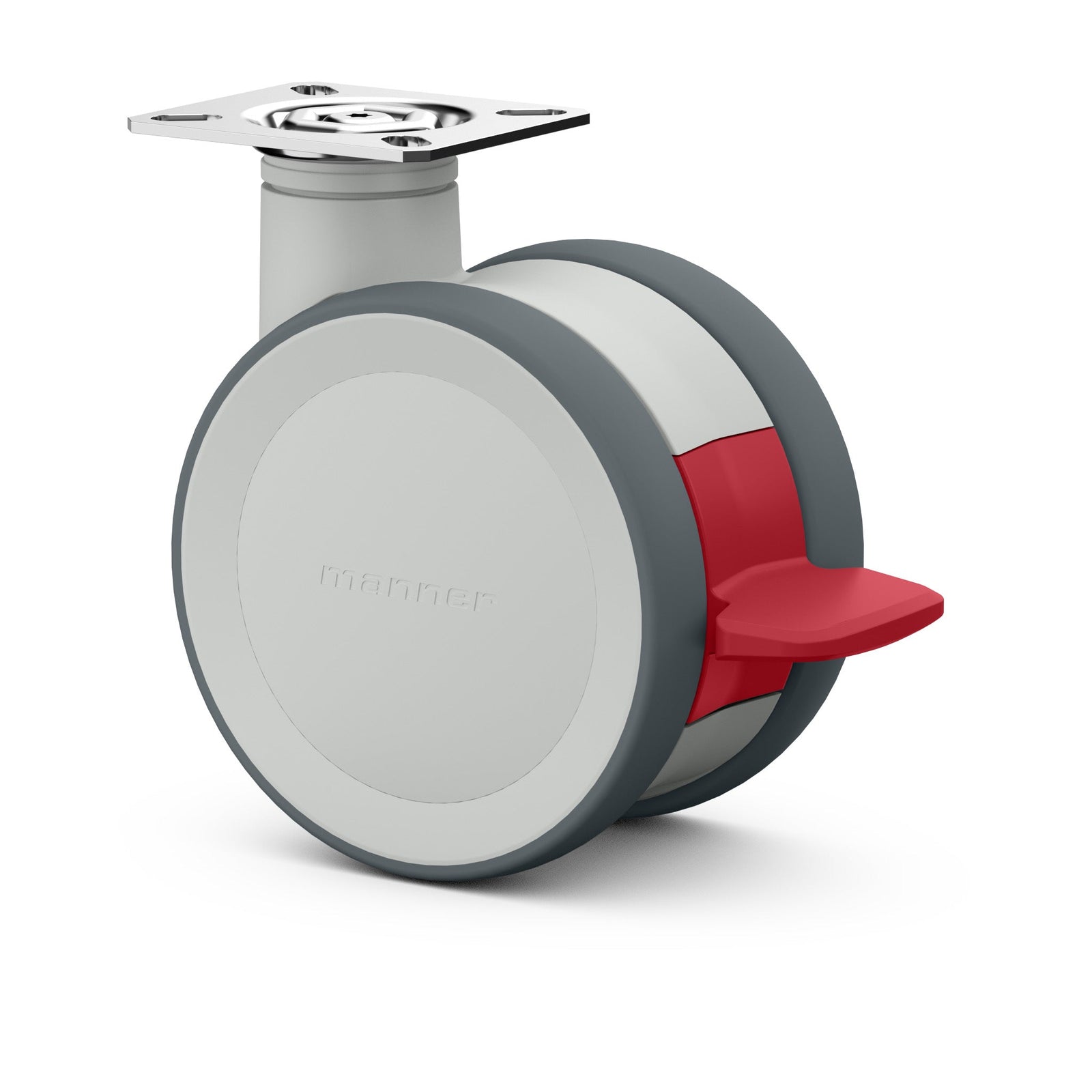

Manner Twist TWL-J-S-125 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-J-S-125 GP/K H Swivel castors with brake — 125mm
Part # MNR-305282
Quote on Request
Polyamide hub / Polyurethane treadRectangular top plate
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel · Total Lock Brake
More Details Less Details
Width 0.79" (20 mm)
Height 5.98" (152 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
Brake Total Lock Brake
The Manner Twist TWL-J-S-125 GP/K H is a 125 mm (4.92") swivel castors with...
Request Quote

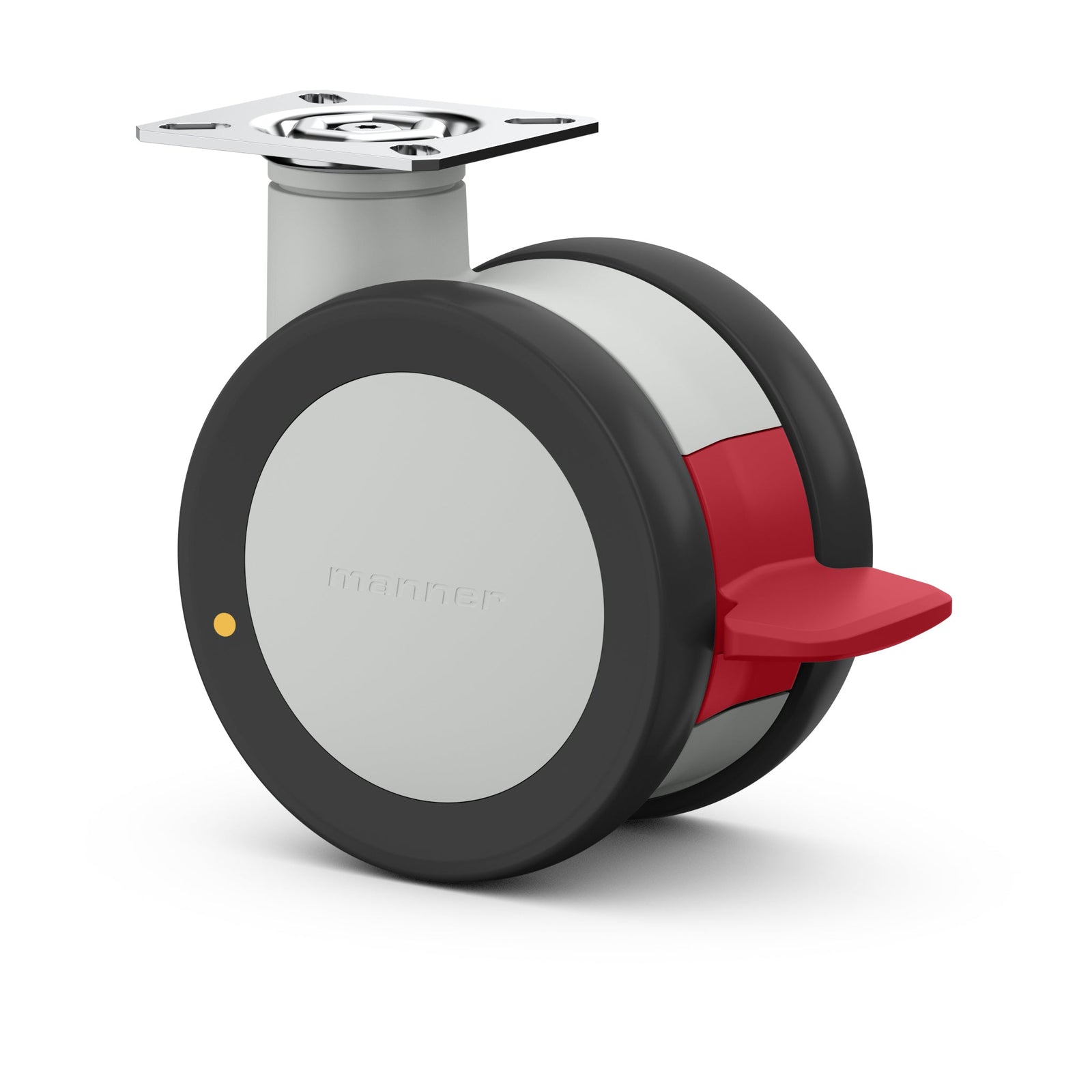

Manner Twist TWL-J-S-100 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-J-S-100 GP/K H A Swivel castors with brake — 100mm
Part # MNR-305277
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadBolt hole
Size3.94" (100 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountBolt hole
TypeSwivel · Total Lock Brake
More Details Less Details
Width 0.79" (20 mm)
Height 5.0" (127 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Conductive polyamide
Rig Type Swivel
Brake Total Lock Brake
The Manner Twist TWL-J-S-100 GP/K H A is a 100 mm (3.94") swivel castors...
Request Quote
Manner Twist TWL-J-S-100 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TWL-J-S-100 GP/K H Swivel castors with brake — 100mm
Part # MNR-305272
Quote on Request
Polyamide hub / Polyurethane treadRectangular top plate
Size3.94" (100 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountPlate 3.03" x 2.64" (77 x 67 mm)
TypeSwivel · Total Lock Brake
More Details Less Details
Width 0.79" (20 mm)
Height 5.0" (127 mm)
Bolt Pattern 2.40" x 1.97" (61 x 50 mm) and 2.01" x 1.65" (51 x 42 mm)
Core Polyamide
Rig Type Swivel
Brake Total Lock Brake
The Manner Twist TWL-J-S-100 GP/K H is a 100 mm (3.94") swivel castors with...
Request Quote
Manner Twist TW-S-75 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-75 GP/K H Swivel castors — 75mm
Part # MNR-305294
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size2.95" (75 mm) x 0.59" (15 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.59" (15 mm)
Height 3.15" (80 mm)
Bolt Pattern 10 mm bolt hole · 61 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-75 GP/K H is a 75 mm (2.95") swivel castors from...
Request Quote

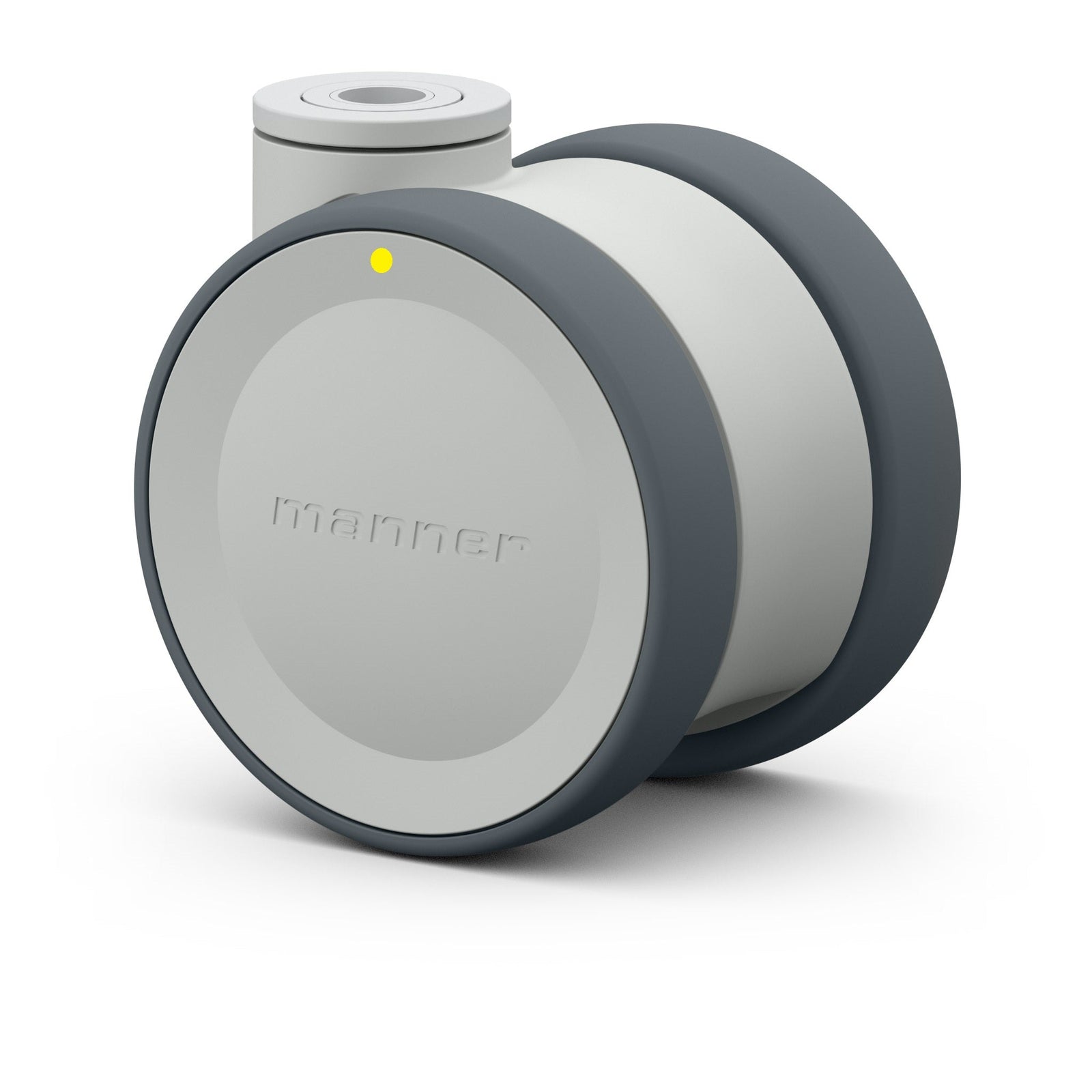

Manner Twist TW-S-75 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-75 GP/K H A Swivel castors — 75mm
Part # MNR-305321
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size2.95" (75 mm) x 0.59" (15 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.59" (15 mm)
Height 3.15" (80 mm)
Bolt Pattern 10 mm bolt hole · 61 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-75 GP/K H A is a 75 mm (2.95") swivel castors...
Request Quote
Manner Twist TW-S-125 GP/K LOW H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW H Swivel castors — 125mm
Part # MNR-305014
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 10 mm bolt hole · 102 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW H is a 125 mm (4.92") swivel castors...
Request Quote

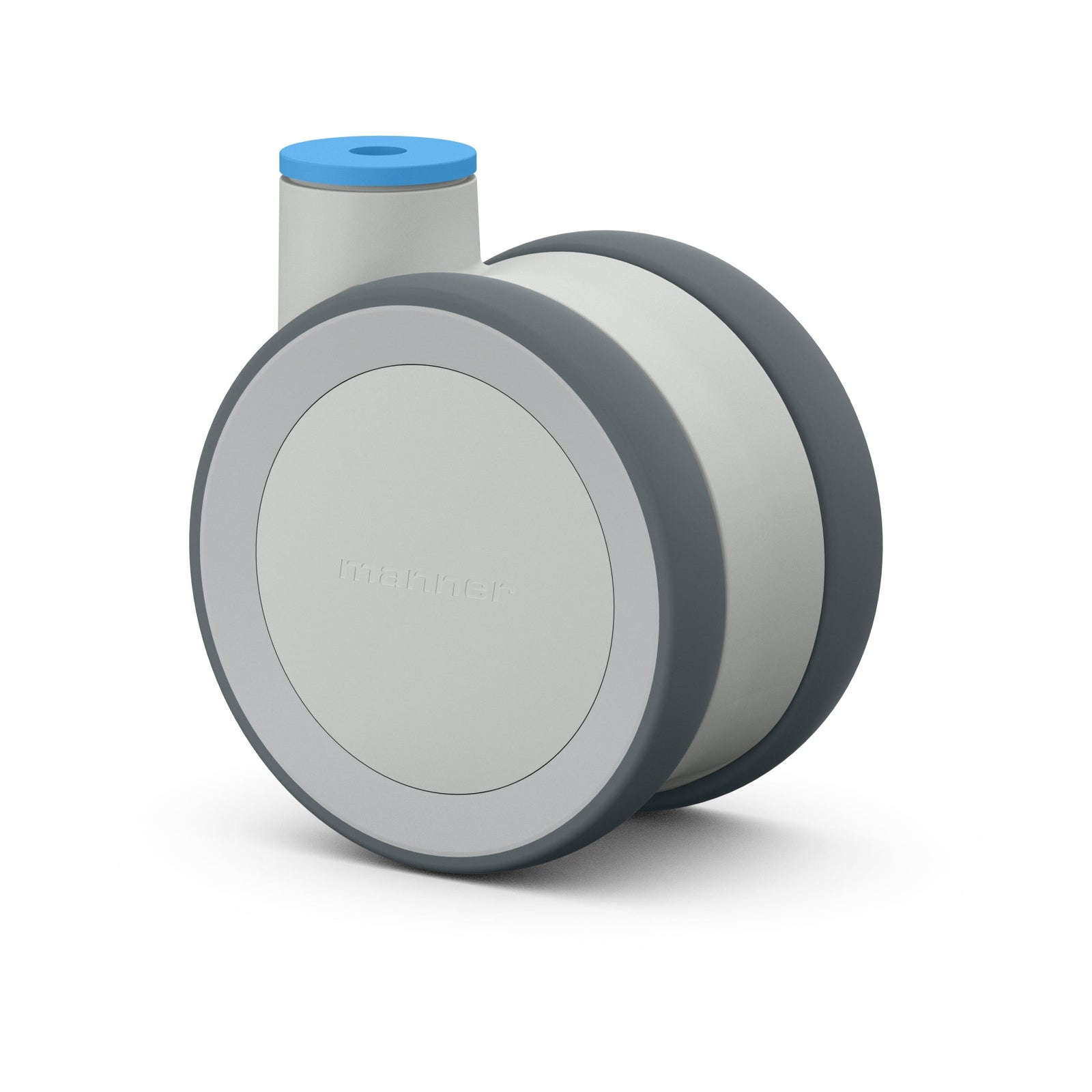

Manner Twist TW-S-125 GP/K LOW H IX medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW H IX Swivel castors — 125mm
Part # MNR-305234
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 10 mm bolt hole · 102 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW H IX is a 125 mm (4.92") swivel...
Request Quote

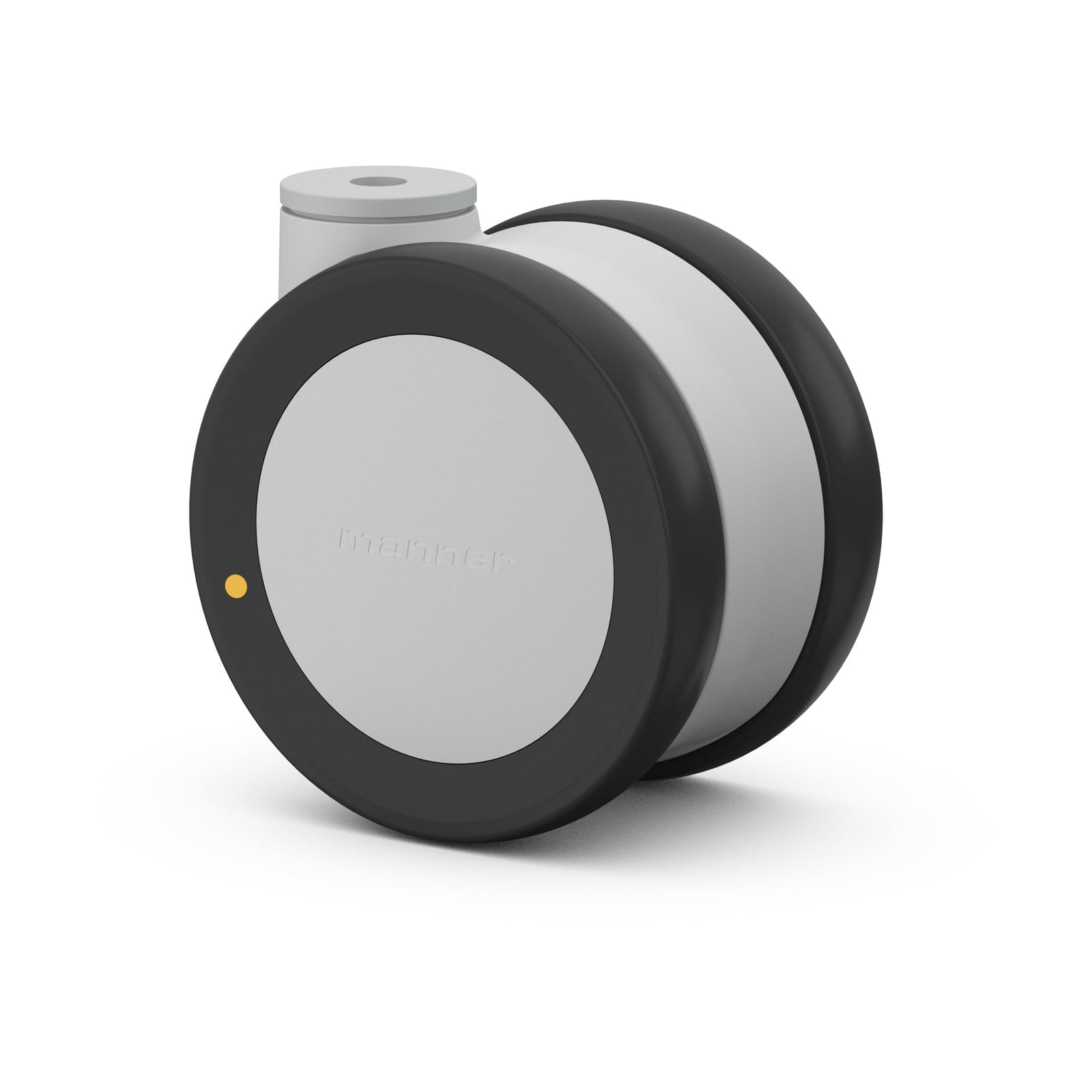

Manner Twist TW-S-125 GP/K LOW H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW H A Swivel castors — 125mm
Part # MNR-305159
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 10 mm bolt hole · 102 mm swivel radius
Core Conductive polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW H A is a 125 mm (4.92") swivel...
Request Quote
Manner Twist TW-S-125 GP/K LOW-13 H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW-13 H Swivel castors — 125mm
Part # MNR-305578
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 13 mm bolt hole · 102 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW-13 H is a 125 mm (4.92") swivel castors...
Request Quote

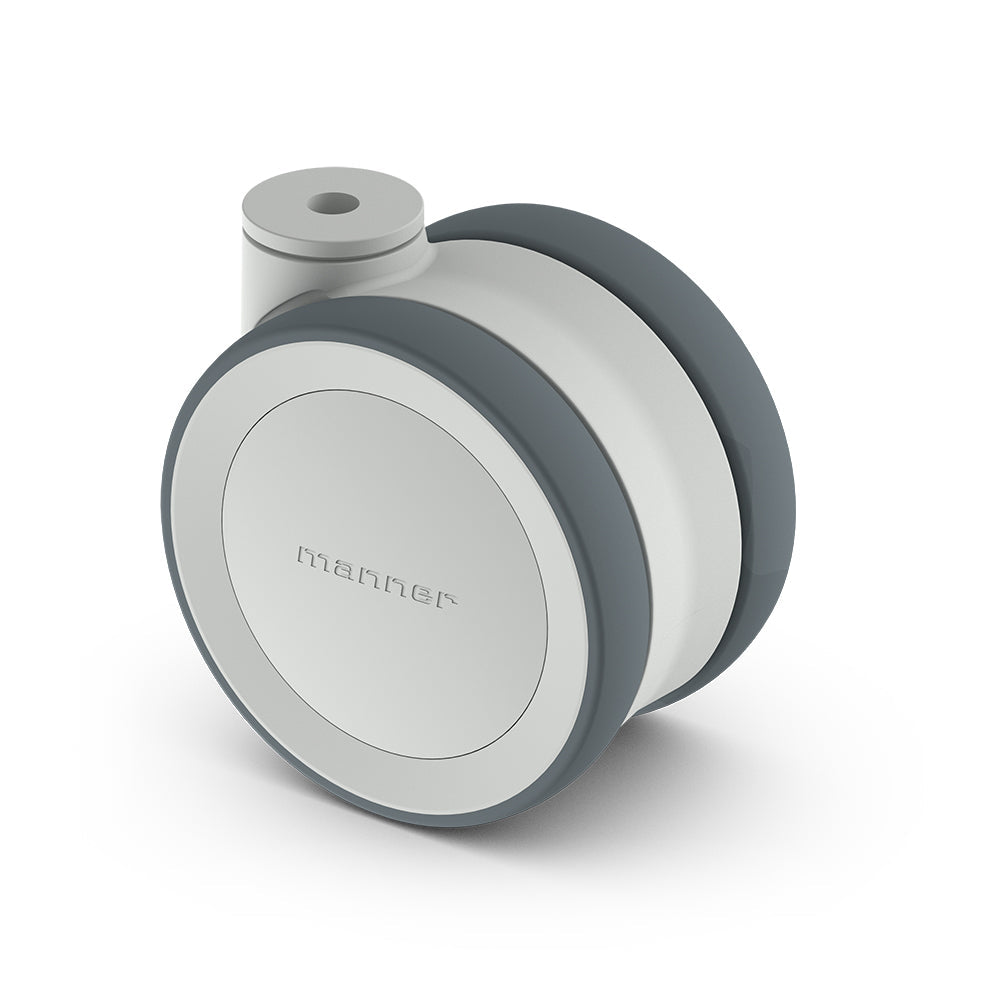

Manner Twist TW-S-125 GP/K LOW-12 H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW-12 H Swivel castors — 125mm
Part # MNR-305033
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 12 mm bolt hole · 102 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW-12 H is a 125 mm (4.92") swivel castors...
Request Quote
Manner Twist TW-S-125 GP/K LOW-13 H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW-13 H A Swivel castors — 125mm
Part # MNR-305585
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 13 mm bolt hole · 102 mm swivel radius
Core Conductive polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW-13 H A is a 125 mm (4.92") swivel...
Request Quote
Manner Twist TW-S-125 GP/K LOW-12 H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K LOW-12 H A Swivel castors — 125mm
Part # MNR-305245
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.12" (130 mm)
Bolt Pattern 12 mm bolt hole · 102 mm swivel radius
Core Conductive polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K LOW-12 H A is a 125 mm (4.92") swivel...
Request Quote
Manner Twist TW-S-125 GP/K H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K H Swivel castors — 125mm
Part # MNR-305010
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.63" (143 mm)
Bolt Pattern 10 mm bolt hole · 102 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K H is a 125 mm (4.92") swivel castors from...
Request Quote

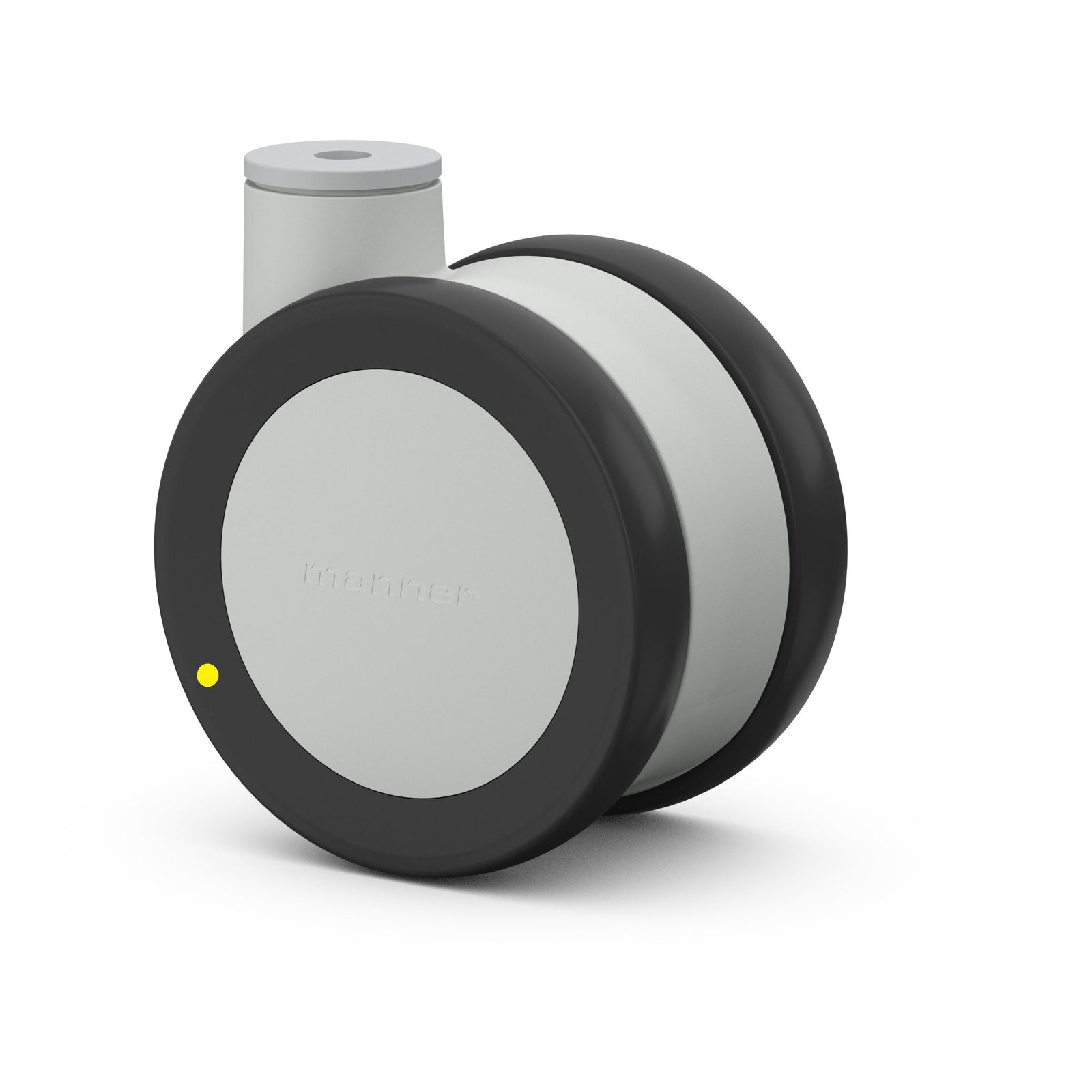

Manner Twist TW-S-125 GP/K H A medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K H A Swivel castors — 125mm
Part # MNR-305089
Quote on Request
Conductive polyamide hub / Conductive polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelConductive polyamide hub / Conductive polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.63" (143 mm)
Bolt Pattern 10 mm bolt hole · 102 mm swivel radius
Core Conductive polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K H A is a 125 mm (4.92") swivel castors...
Request Quote
Manner Twist TW-S-125 GP/K 80-12 H medical caster
Ships in 7-14 Business Days
MANNER-CASTERS
Manner Twist TW-S-125 GP/K 80-12 H Swivel castors — 125mm
Part # MNR-305414
Quote on Request
Polyamide hub / Polyurethane treadBolt hole
Size4.92" (125 mm) x 0.79" (20 mm)
Capacity—
WheelPolyamide hub / Polyurethane tread
MountBolt hole
TypeSwivel
More Details Less Details
Width 0.79" (20 mm)
Height 5.63" (143 mm)
Bolt Pattern 12 mm bolt hole · 102 mm swivel radius
Core Polyamide
Rig Type Swivel
Frame Plastic
The Manner Twist TW-S-125 GP/K 80-12 H is a 125 mm (4.92") swivel castors...
Request Quote

Manner twist series casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Polyurethane Polyamide and Conductive Polyamide 2.95, 3.94 and 4.92 in Not listed quiet, floor-friendly and long wearing

Ratings are for single casters of Manner twist series casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated
2.95 x 0.59 in polyurethane
3.94 x 0.79 in polyurethane
4.92 x 0.79 in polyurethane

Choosing Manner twist series casters

  1. Mount: most Manner twist series casters use a 3.03 x 2.64 (77 x 67 mm) in top plate; match the bolt holes on your frame to the plate before ordering.
  2. Floor: on Manner twist series casters, polyurethane protects finished floors and runs quietly; check the rating if the cart also crosses rough concrete.
  3. Rig: swivel Manner twist series casters are listed, with total lock brake, single action brake and directional lock options.

Manner twist series casters questions

What top plate do Manner twist series casters use?

Most Manner twist series casters use 3.03 x 2.64 (77 x 67 mm) in.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.

Search
