Parts & Accessories · 2-3/8"–6-1/4"

Available Configurations

TieredPricing
4" x 4-1/2" Unplated Weld-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
4" x 4-1/2" Weld-On Top Plate Shim WTP-44045-UN Unplated Steel
Part # WTP-44045-UN
$12.00
Volume pricing available
Plate
Diameter 4"
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 4-1/2"
Bolt Pattern 2-5/8" x 3-3/8" slotted to 3" x 3"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 4" x 4-1/2" Weld-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing
Zinc 3/8" Tee Nut with 4 Prongs - Easy Install for Furniture Casters CasterHQ
In Stock · Same/Next Day
3/8" 4-Prong Zinc Tee Nut for 3/8" Threaded Stem Casters
Part # TNUT-ZN38-4P
$3.00
Volume pricing available
Threaded Stem
Mount Threaded Stem
More Details Less Details
Frame Zinc Plated Steel
Zinc 3/8" Tee Nut - Secure Your Casters with 4-Prong Stability (1-Piece)Experience seamless mobility...
Shop Product
TieredPricing
4" x 4-1/2" Zinc Plated Bolt-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
4" x 4-1/2" Zinc Plated Bolt-On Top Plate Shim WTP-44045-ZP
Part # WTP-44045-ZP
$12.00
Volume pricing available
Plate
Diameter 4"
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 4-1/2"
Bolt Pattern 2-5/8" x 3-3/8" slotted to 3" x 3"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 4" x 4-1/2" Bolt-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing
2-3/8" x 3-5/8" Unplated Weld-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
2-3/8" x 3-5/8" Weld-On Top Plate Shim WTP-2383625-UN
Part # WTP-2383625-UN
$9.00
Volume pricing available
Plate
Diameter 2-3/8"
Mount Plate
More Details Less Details
Width 3-5/8"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 2-3/8" x 3-5/8" Weld-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing

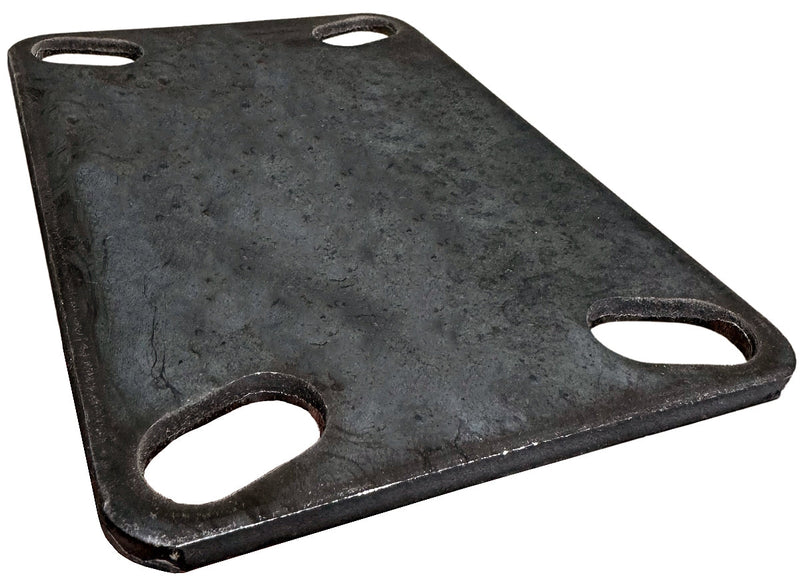

4-1/2" x 6-1/4" Unplated Weld-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
4-1/2" x 6-1/4" Unplated Weld-On Top Plate Shim WTP-44045-UN
Part # WTP-451625-UN
$25.00
Volume pricing available
Plate
Diameter 4-1/2"
Mount Plate
Plate Size 4-1/2" x 6-1/4"
More Details Less Details
Width 6-1/4"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 4-1/2" x 6-1/4" Weld-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing

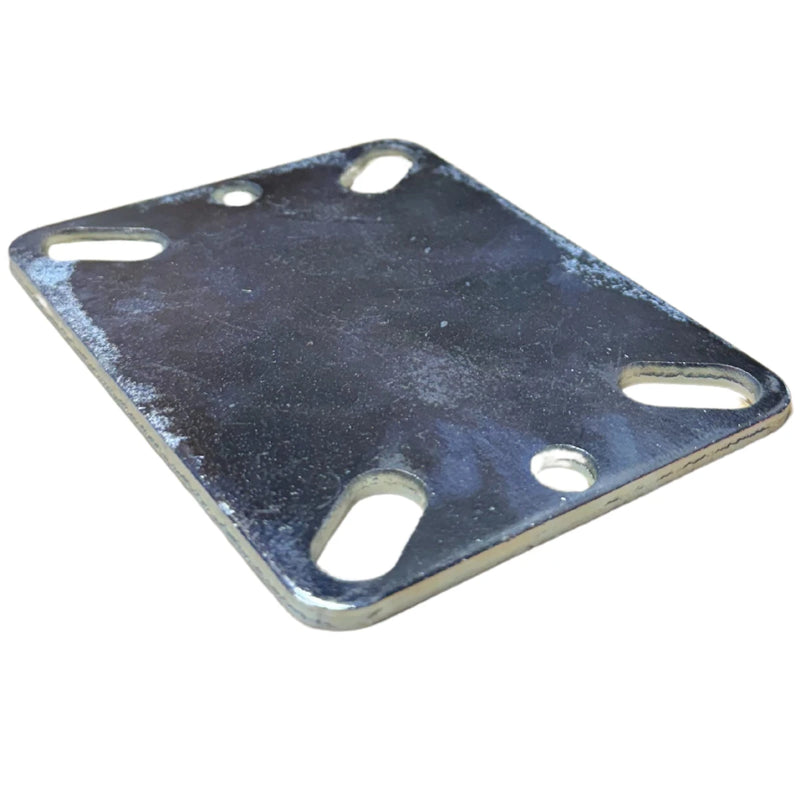

3-1/8" x 4-1/8" Zinc Plated Bolt-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
3-1/8" x 4-1/8" Bolt-On Top Plate Shim Zinc Plated WTP-318418-ZP
Part # WTP-318418-ZP
$10.00
Volume pricing available
Plate
Diameter 3-1/8"
Mount Plate
Plate Size 3-1/8" x 4-1/8"
More Details Less Details
Width 4-1/8"
Bolt Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 3-1/8" x 4-1/8" Bolt-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing

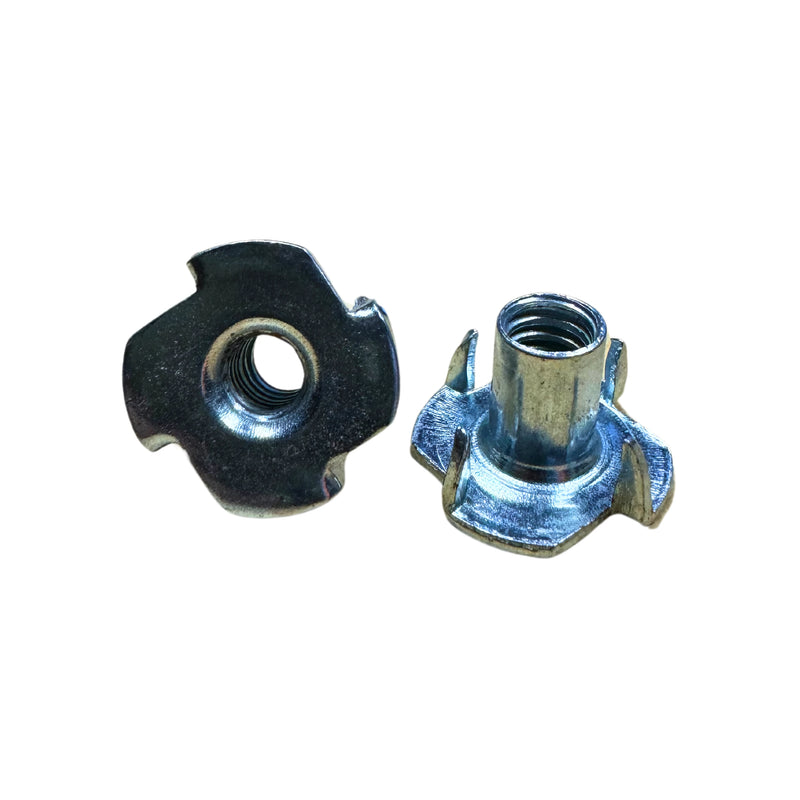

Zinc 5/16" Tee Nut with 4 Prongs - Easy Install for Furniture Casters CasterHQ
In Stock · Same/Next Day
5/16" 4-Prong Zinc Tee Nut for Threaded Stem Casters
Part # TNUT-ZN516-4P
$2.00
Volume pricing available
Threaded Stem
Mount Threaded Stem
More Details Less Details
Frame Zinc Plated Steel
Zinc 5/16" Tee Nut - Secure Your Casters with 4-Prong Stability (1-Piece)Experience seamless mobility...
Shop Product
TieredPricing

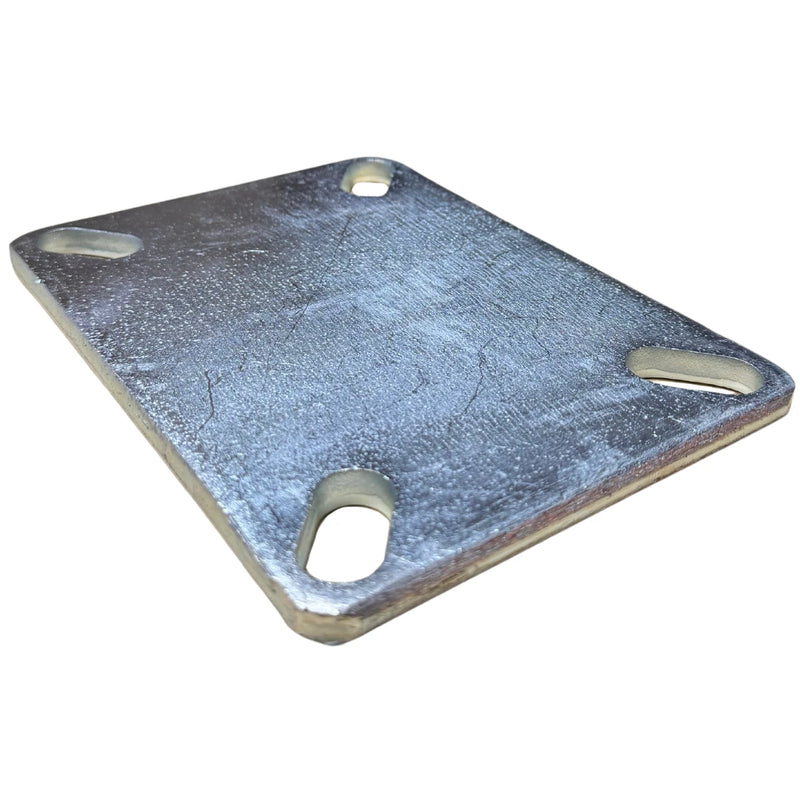

5-1/4" x 7-1/4" Zinc Plated Bolt-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
5-1/4" x 7-1/4" Bolt-On Top Plate Shim Zinc Plated WTP-514714-ZP
Part # WTP-514714-ZP
$27.00
Volume pricing available
Plate
Diameter 5-1/4"
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 7-1/4"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 5-1/4" x 7-1/4" Bolt-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing

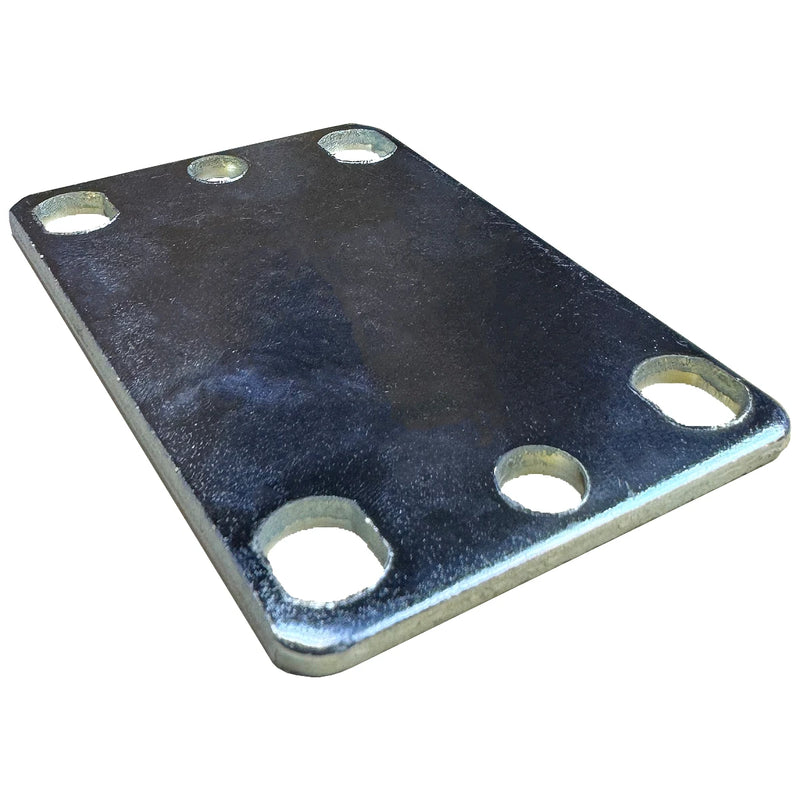

2-3/8" x 3-5/8" Zinc Plated Bolt-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
2-3/8" x 3-5/8" Zinc Plated Weld-On Top Plate Shim WTP-2383625-ZP
Part # WTP-2383625-ZP
$9.00
Volume pricing available
Plate
Diameter 2-3/8"
Mount Plate
More Details Less Details
Width 3-5/8"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 2-3/8" x 3-5/8" Weld-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing

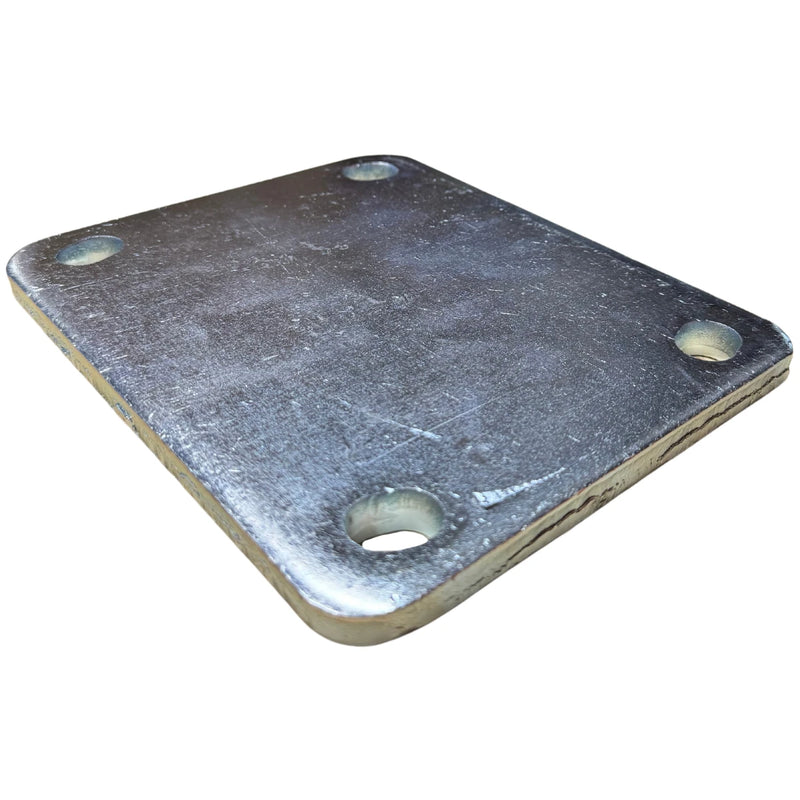

6-1/4" X 7-1/2" Zinc Plated Bolt-On Top Plate/Shim for Easy Caster Installation CasterHQ
In Stock · Same/Next Day
6-1/4" x 7-1/2" Zinc Plated Bolt-On Top Plate Shim WTP-614712-ZP
Part # WTP-614712-ZP
$63.00
Volume pricing available
Plate
Diameter 6-1/4"
Mount Plate
Plate Size 6-1/4" x 7-1/2"
More Details Less Details
Width 7-1/2"
Frame Zinc Plated Steel
Streamline Your Equipment Upgrades: 6-1/4" X 7-1/2" Bolt-On Top Plate/Shim GuideMaximize your equipment's functionality...
Shop Product
TieredPricing

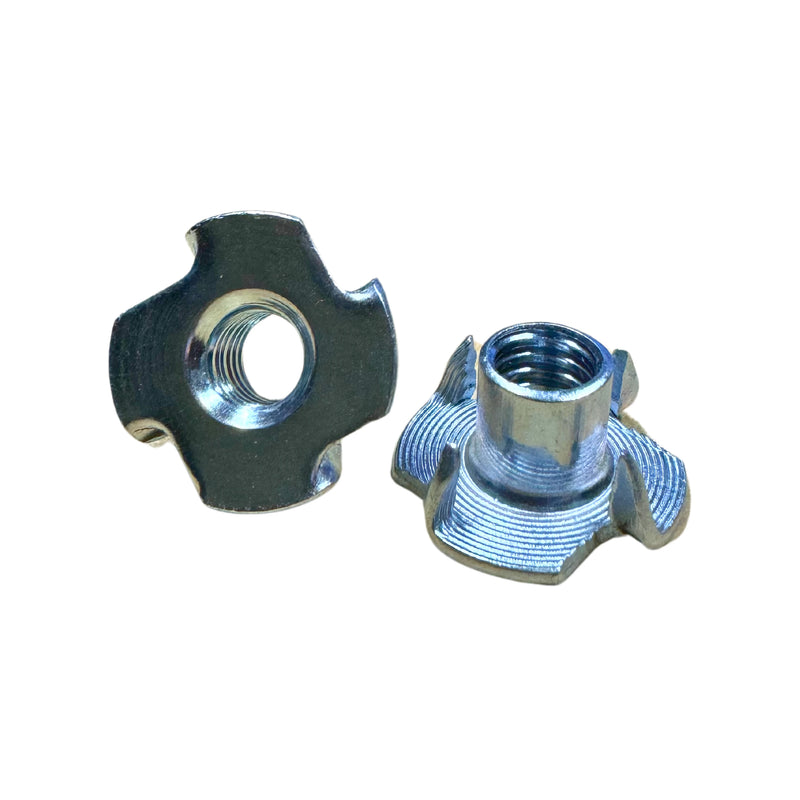

Zinc 1/4" Tee Nut with 4 Prongs - Easy Install for Furniture Casters CasterHQ
In Stock · Same/Next Day
1/4" 4-Prong Zinc Tee Nut for Threaded Stem Casters
Part # TNUT-ZN14-4P
$2.00
Volume pricing available
Threaded Stem
Mount Threaded Stem
More Details Less Details
Frame Zinc Plated Steel
Zinc 1/4" Tee Nut - Secure Your Casters with 4-Prong Stability (1-Piece)Experience seamless mobility...
Shop Product
