All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.


















| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| TPR | Polyolefin | 2.95 and 3.94 in | 200 to 220 lb | non-marking, quiet on finished floors |

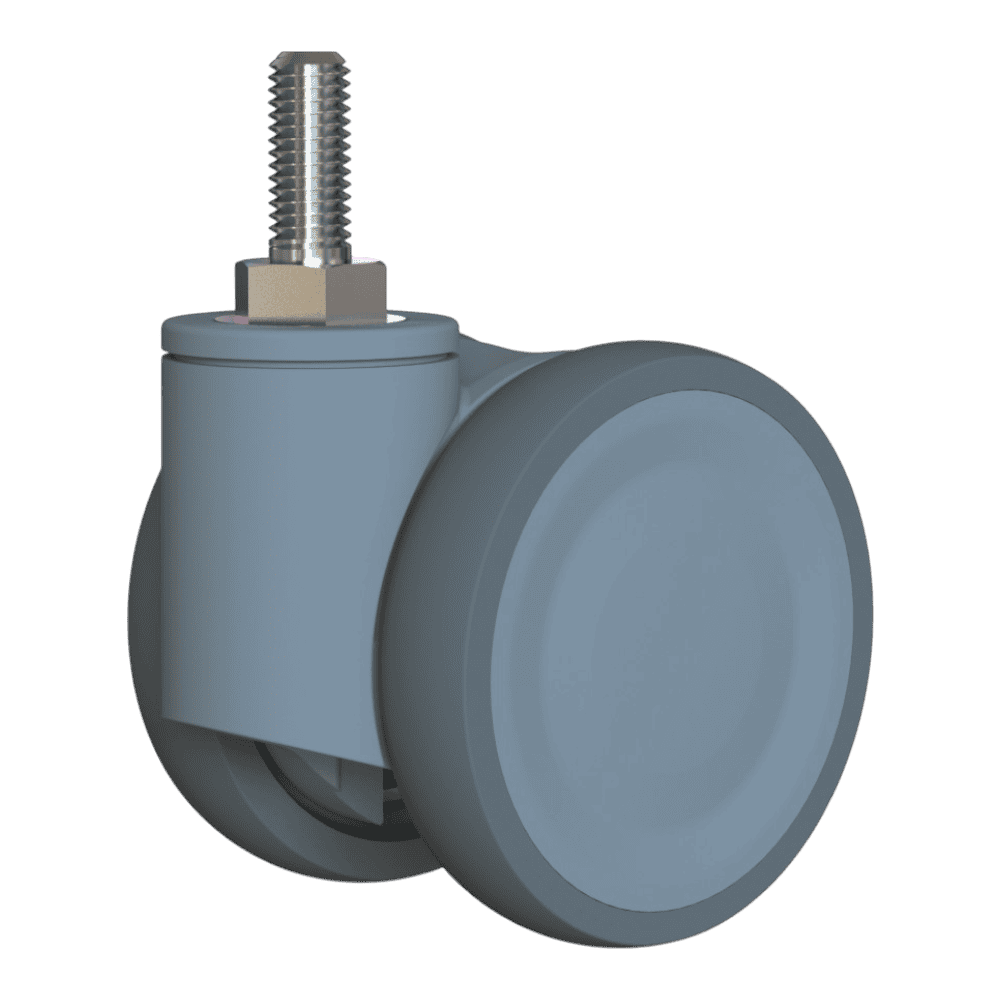

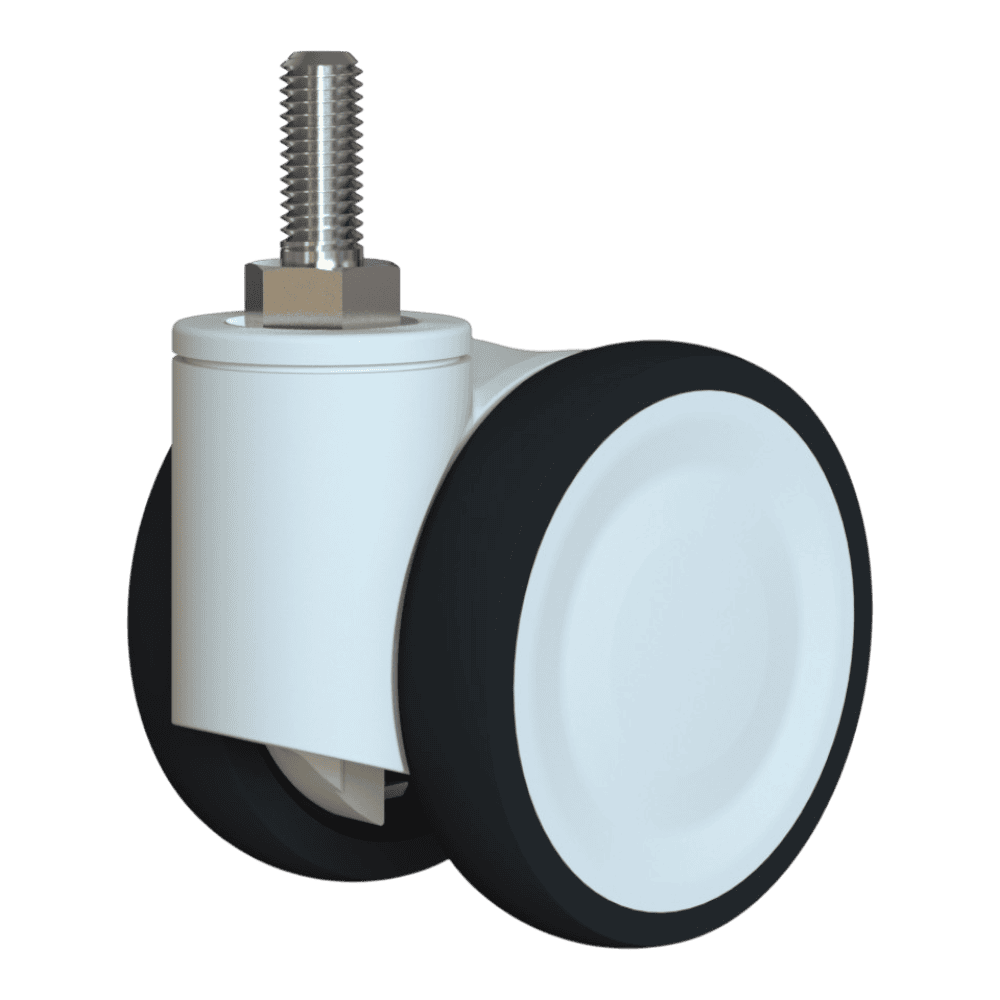

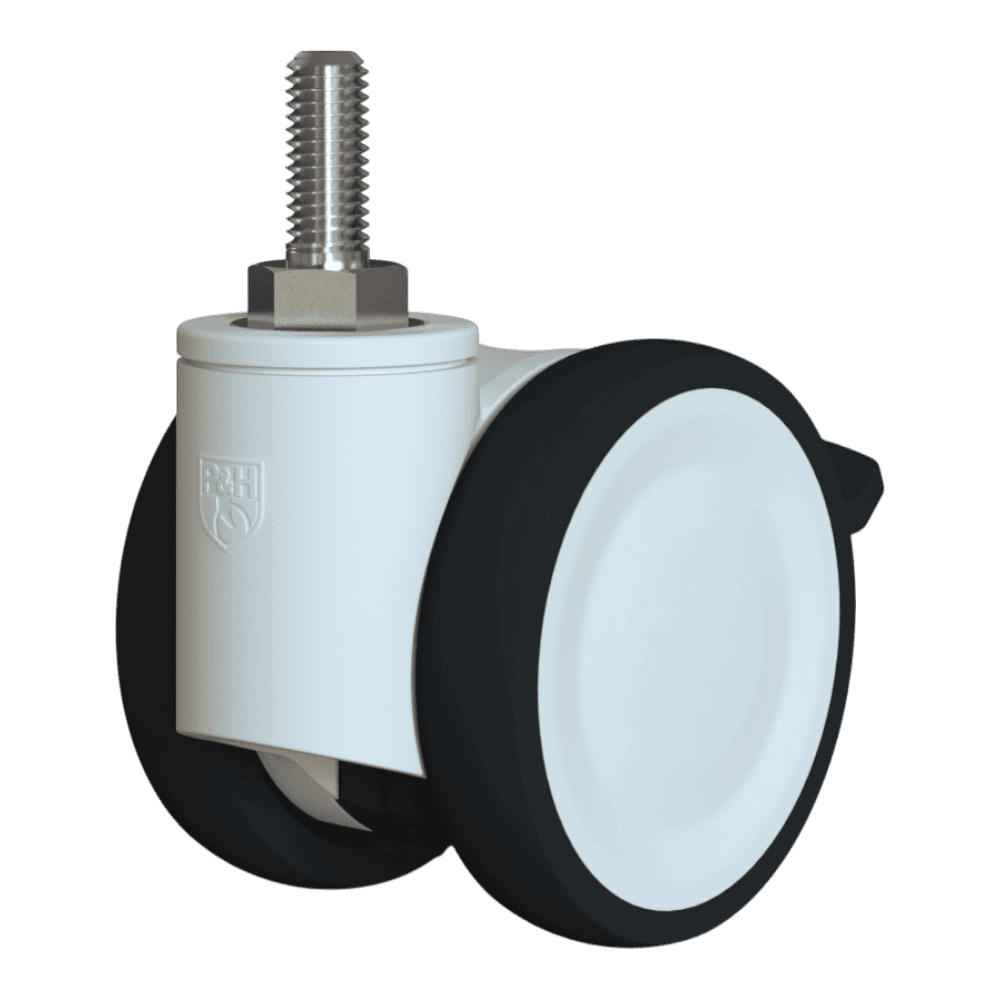

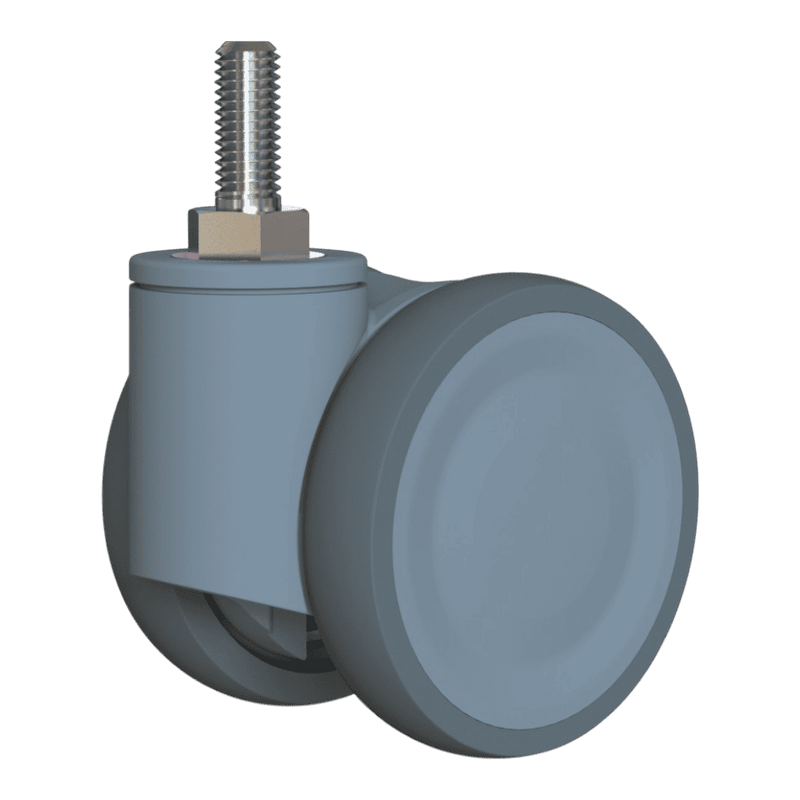

Ratings are for single casters of P&H Tandem low height casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 2.95 x 0.59 in | TPR | 200 lb |
| 3.94 x 0.59 in | TPR | 220 lb |
Single P&H Tandem low height casters are rated 200 to 220 lb; most fall between 200 and 220 lb.
TPR leads on P&H Tandem low height casters, rated 200 to 220 lb per caster.
