Phenolic Casters · 800–1,250 lb

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-5/8Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,250 lb
Casters on the 4 x 4-1/2 plate pattern suit bake carts, metalworking fixtures, and debris-heavy floors. Typical builds show wheel diameters 4, 5, 6, 8 in, phenolic treads, and capacities 800 to 1,250 lb. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete. Replace worn corners in matched sets when possible so the cart tracks straight under load. These medium-duty options cover everyday bake carts, metalworking fixtures, and debris-heavy floors without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1250 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 8" x 2" Phenolic Swivel Caster - 1250 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
8" x 2" Phenolic Swivel Caster – 1250 lb
Part # 30-S-820-PH-03
from $50.00
Volume pricing available
PhenolicPlate
Load rating
1250 lbs
Diameter 8"
Capacity 1250 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 8" x 2" Phenolic Swivel Caster -...
Shop Product
1200 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 6" x 2" Phenolic Swivel Caster - 1200 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
6" x 2" Phenolic Swivel Caster – 1200 lb
Part # 30-S-620-PH-03
from $49.00
Volume pricing available
PhenolicPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 6" x 2" Phenolic Swivel Caster Product...
Shop Product
1000 lbs
TieredPricing

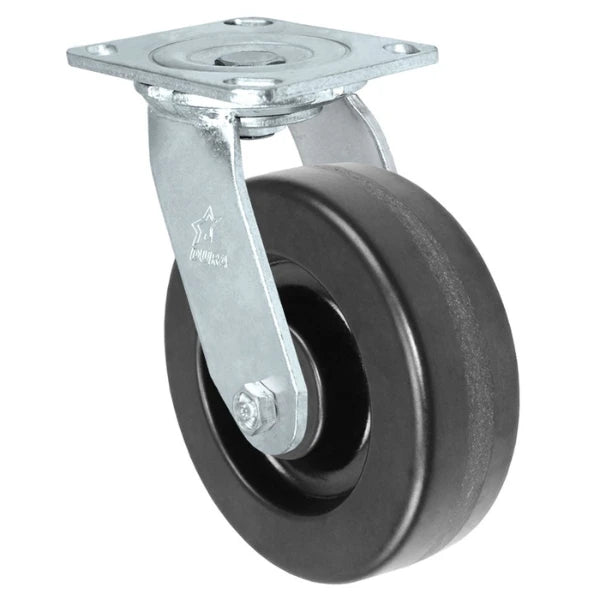

Durastar Medium Heavy Duty 30 Series - 5" x 2" Phenolic Swivel Caster - 1000 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
5" x 2" Phenolic Swivel Caster – 1000 lb
Part # 30-S-520-PH-03
from $46.00
Volume pricing available
PhenolicPlate
Load rating
1000 lbs
Diameter 5"
Capacity 1000 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 5" x 2" Phenolic Swivel Caster Product...
Shop Product
800 lbs
TieredPricing

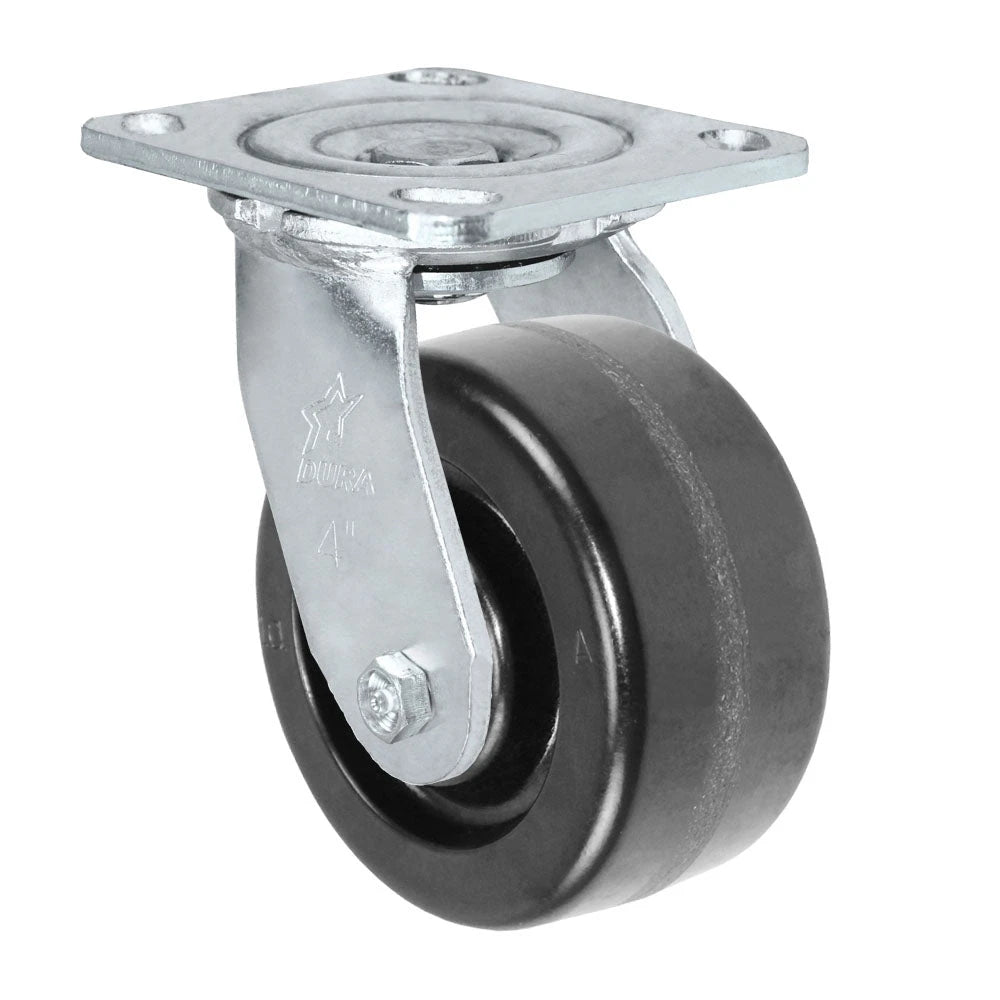

Durastar Medium Heavy Duty 30 Series - 4" x 2" Phenolic Swivel Caster - 800 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
4" x 2" Phenolic Swivel Caster – 800 lb
Part # 30-S-420-PH-03
from $41.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 4" x 2" Phenolic Swivel Caster Product...
Shop Product
1250 lbs
TieredPricing

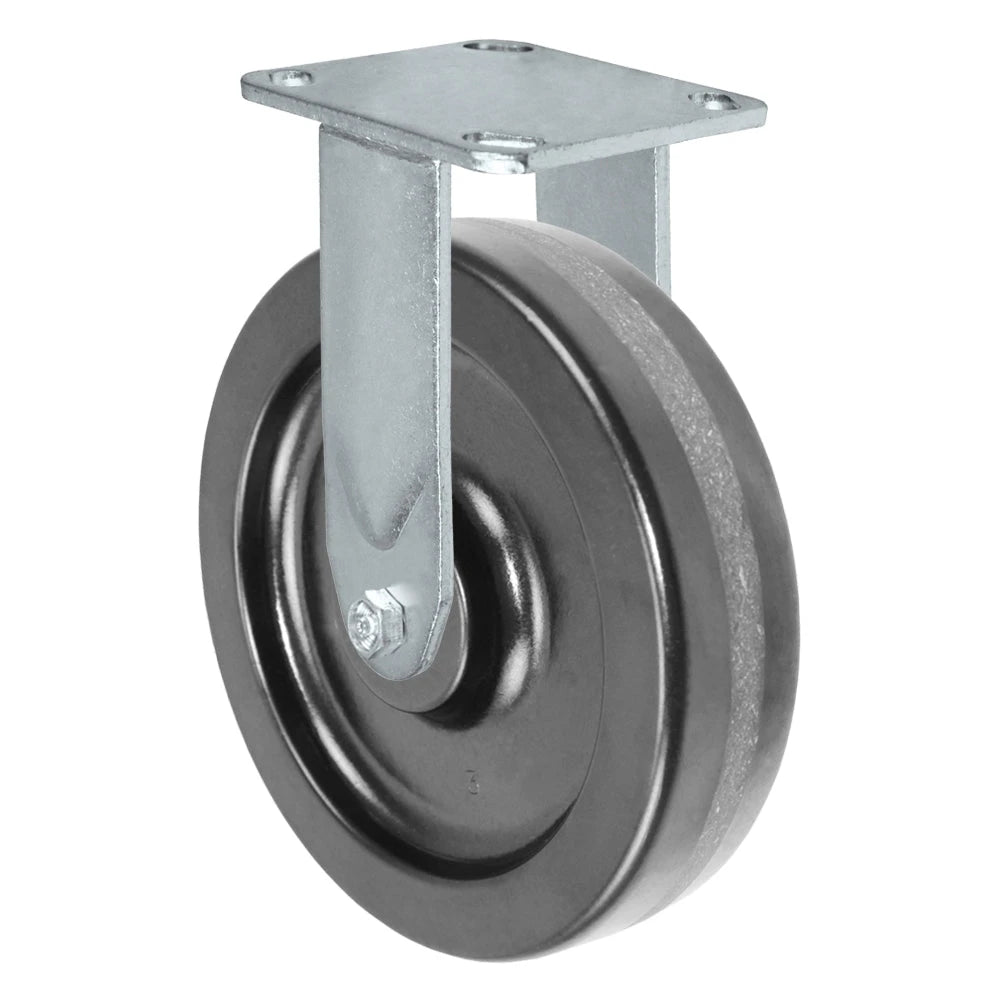

Durastar Medium Heavy Duty 30 Series - 8" x 2" Phenolic Rigid Caster - 1250 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
8" x 2" Phenolic Rigid Caster – 1250 lb
Part # 30-R-820-PH-03
from $49.00
Volume pricing available
PhenolicPlate
Load rating
1250 lbs
Diameter 8"
Capacity 1250 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 8" x 2" Phenolic Rigid Caster -...
Shop Product
1200 lbs
TieredPricing

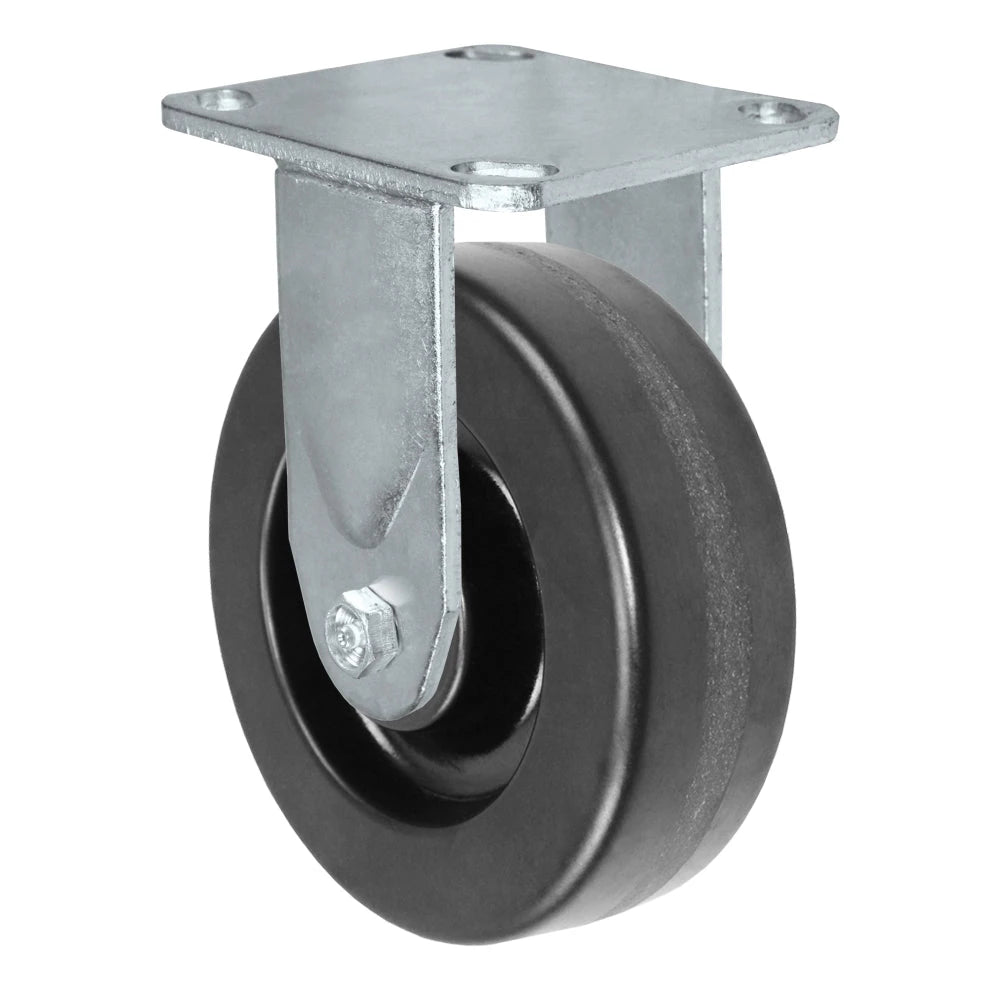

Durastar Medium Heavy Duty 30 Series - 6" x 2" Phenolic Rigid Caster - 1200 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
6" x 2" Phenolic Rigid Caster – 1200 lb
Part # 30-R-620-PH-03
from $48.00
Volume pricing available
PhenolicPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 6" x 2" Phenolic Rigid Caster Product...
Shop Product
1000 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 5" x 2" Phenolic Rigid Caster - 1000 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
5" x 2" Phenolic Rigid Caster – 1000 lb
Part # 30-R-520-PH-03
from $45.00
Volume pricing available
PhenolicPlate
Load rating
1000 lbs
Diameter 5"
Capacity 1000 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 5" x 2" Phenolic Rigid Caster Product...
Shop Product
800 lbs
TieredPricing

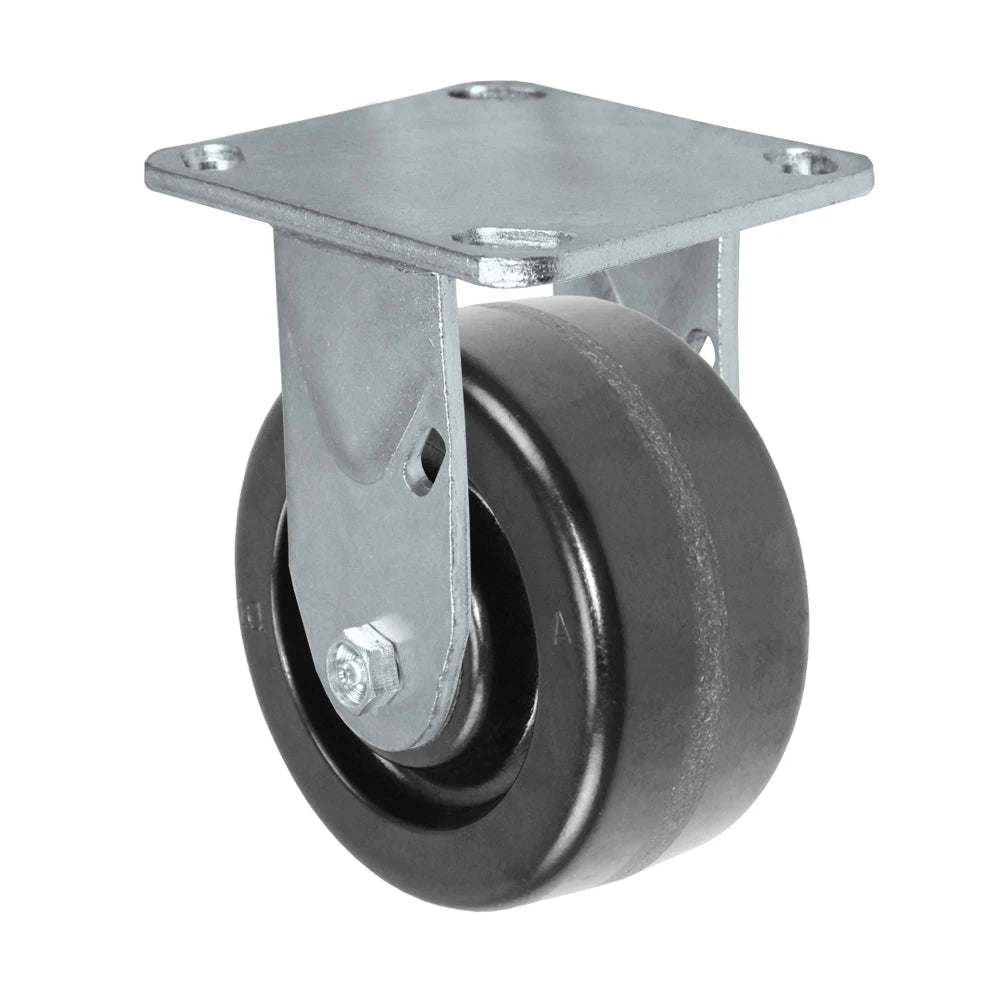

Durastar Medium Heavy Duty 30 Series - 4" x 2" Phenolic Rigid Caster - 800 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
4" x 2" Phenolic Rigid Caster – 800 lb
Part # 30-R-420-PH-03
from $40.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 4" x 2" Phenolic Rigid Caster Product...
Shop Product
