DuraStar S30 Series Phenolic Casters · Up to 1,250 lb · 4"–8"

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,250 lb

30 Series phenolic and stainless casters sized for bake carts, metalworking fixtures, and debris-heavy floors. You will see top plates around 4 x 4-1/2, wheel diameters 4, 5, 6, 8 in, and phenolic and stainless treads across the SKUs listed below. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1250 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 8" x 2" Phenolic Swivel Caster - 1250 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Phenolic Swivel Stainless Caster – 1250 lb

Part # S30-S-820-PH-03

from $58.00

Volume pricing available

PhenolicPlate

Load rating

1250 lbs

Diameter 8"

Capacity 1250 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 8" x 2" Phenolic Swivel Caster -...

Shop Product

1200 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 6" x 2" Phenolic Swivel Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Phenolic Swivel Stainless Caster – 1200 lb

Part # S30-S-620-PH-03

from $55.00

Volume pricing available

PhenolicPlate

Load rating

1200 lbs

Diameter 6"

Capacity 1200 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 6" x 2" Phenolic Swivel Caster -...

Shop Product

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 5" x 2" Phenolic Swivel Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Phenolic Swivel Stainless Caster – 1000 lb

Part # S30-S-520-PH-03

from $54.00

Volume pricing available

PhenolicPlate

Load rating

1000 lbs

Diameter 5"

Capacity 1000 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 5" x 2" Phenolic Swivel Caster -...

Shop Product

800 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 4" x 2" Phenolic Swivel Caster - 800 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Phenolic Swivel Stainless Caster – 800 lb · DuraStar S30 Series

Part # S30-S-420-PH-03

from $52.00

Volume pricing available

PhenolicPlate

Load rating

800 lbs

Diameter 4"

Capacity 800 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 4" x 2" Phenolic Swivel Caster -...

Shop Product

1250 lbs

TieredPricing

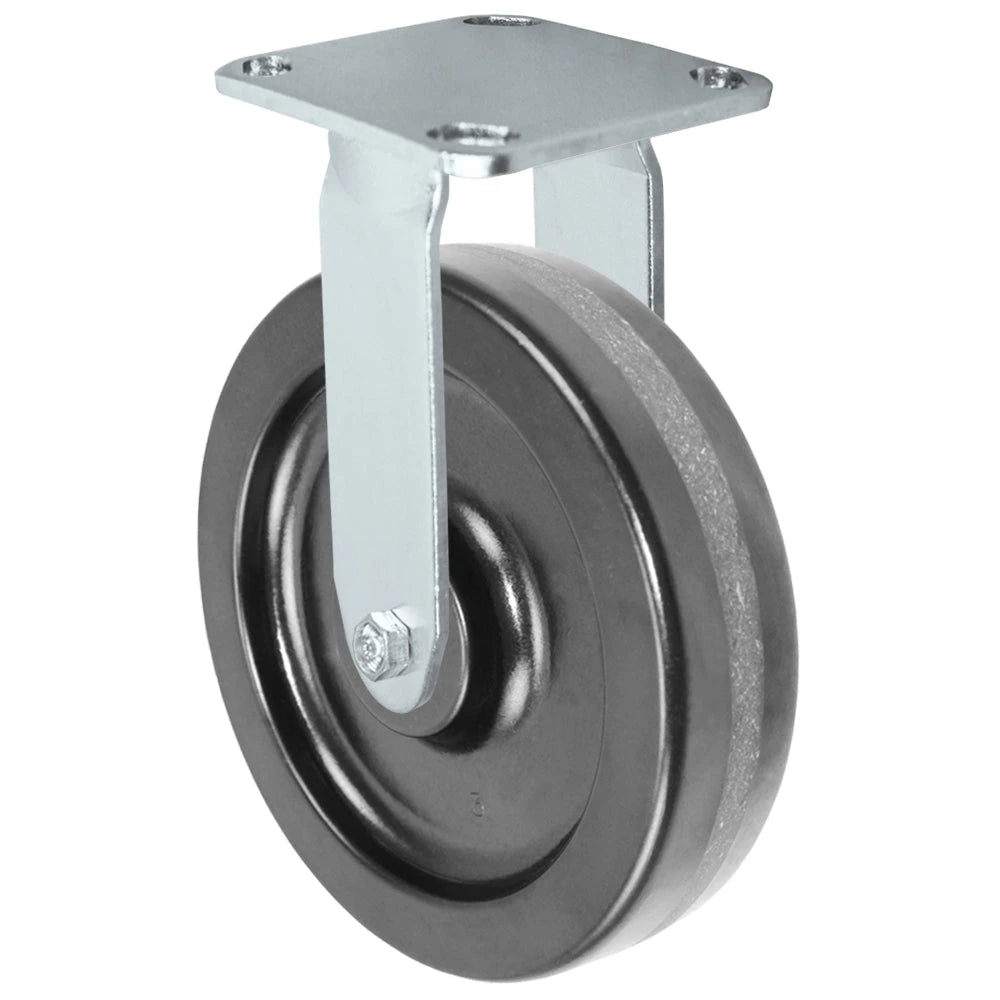

Durastar Medium Heavy Duty S30 Series - 8" x 2" Phenolic Rigid Caster - 1250 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Phenolic Rigid Stainless Caster – 1250 lb

Part # S30-R-820-PH-03

from $55.00

Volume pricing available

PhenolicPlate

Load rating

1250 lbs

Diameter 8"

Capacity 1250 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 8" x 2" Phenolic Rigid Caster -...

Shop Product

1200 lbs

TieredPricing

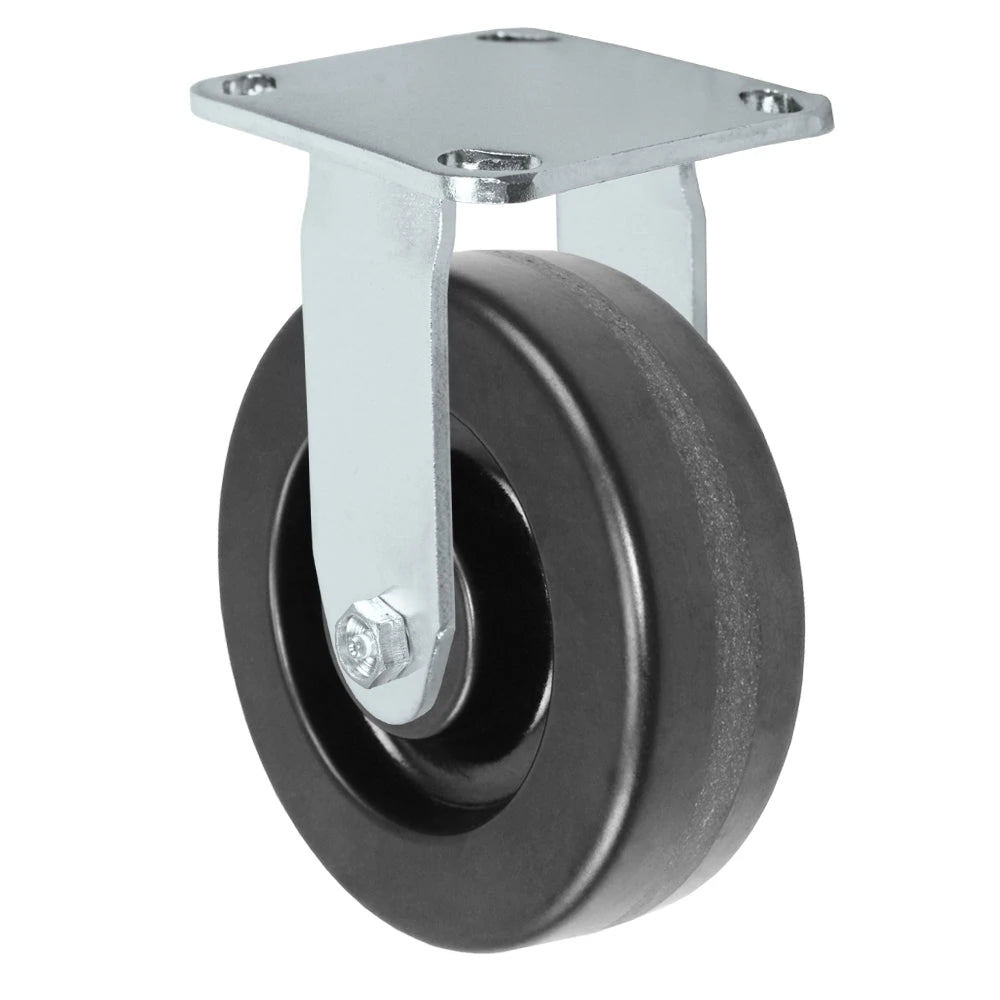

Durastar Medium Heavy Duty S30 Series - 6" x 2" Phenolic Rigid Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Phenolic Rigid Stainless Caster – 1200 lb · DuraStar S30 Series

Part # S30-R-620-PH-03

from $53.00

Volume pricing available

PhenolicPlate

Load rating

1200 lbs

Diameter 6"

Capacity 1200 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 6" x 2" Phenolic Rigid Caster -...

Shop Product

1000 lbs

TieredPricing

Durastar Medium Heavy Duty S30 Series - 5" x 2" Phenolic Rigid Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Phenolic Rigid Stainless Caster – 1000 lb

Part # S30-R-520-PH-03

from $52.00

Volume pricing available

PhenolicPlate

Load rating

1000 lbs

Diameter 5"

Capacity 1000 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 5" x 2" Phenolic Rigid Caster -...

Shop Product

800 lbs

TieredPricing

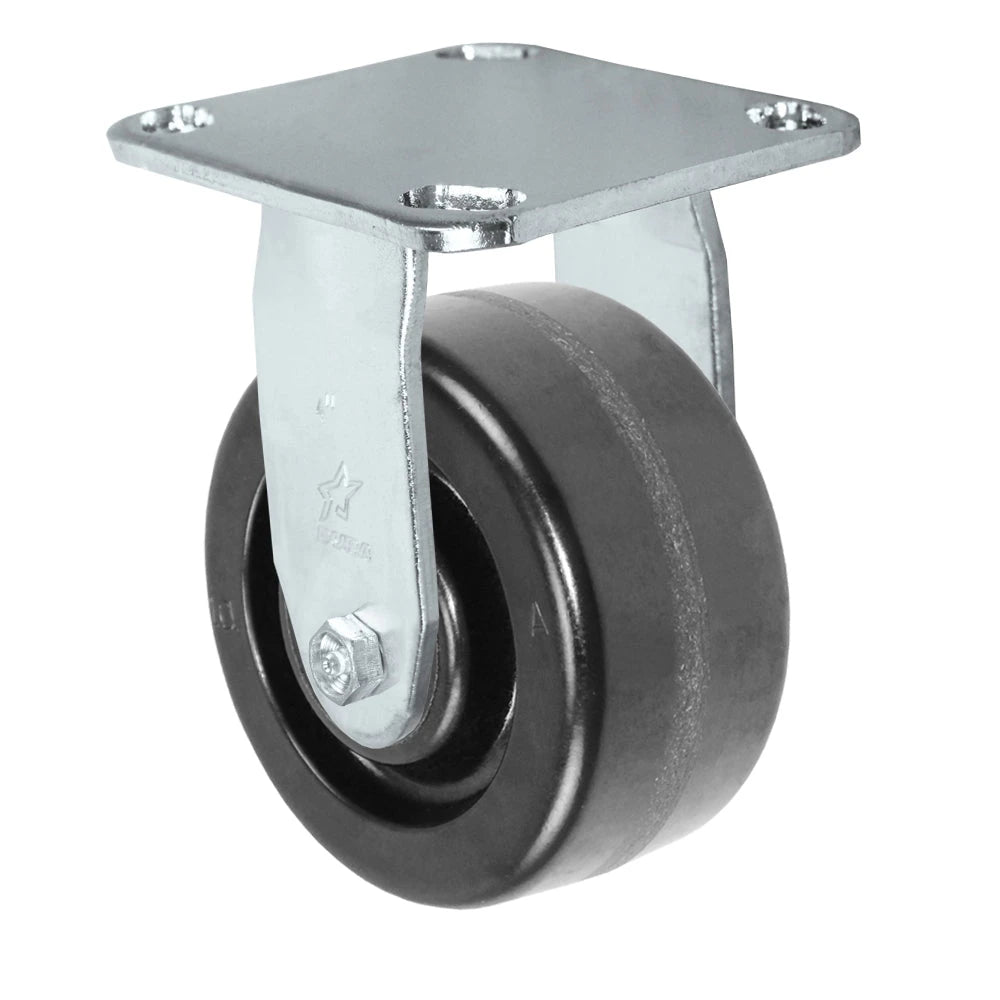

Durastar Medium Heavy Duty S30 Series - 4" x 2" Phenolic Rigid Caster - 800 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Phenolic Rigid Stainless Caster – 800 lb

Part # S30-R-420-PH-03

from $49.00

Volume pricing available

PhenolicPlate

Load rating

800 lbs

Diameter 4"

Capacity 800 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S30 Series - 4" x 2" Phenolic Rigid Caster -...

Shop Product
