DuraStar Phenolic Casters · 2 Inch Wide Stainless Steel Casters 1250 lb · 4"–8"

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3; 2-5/8 x 3-5/8Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,250 lb

34 Series (Medium-Heavy Duty) casters for bake carts, metalworking fixtures, and debris-heavy floors. Catalog chips cover top plates around 4 x 4-1/2, wheel diameters 4, 5, 6, 8 in, and phenolic, steel, and stainless treads. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. Replace worn corners in matched sets when possible so the cart tracks straight under load.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1200 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 6" x 2" Phenolic Swivel Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Phenolic Swivel Stainless Caster – 1200 lb

Part # S34-S-620-PH-03

from $96.00

Volume pricing available

PhenolicPlate

Load rating

1200 lbs

Diameter 6"

Capacity 1200 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 6" x 2" Phenolic Swivel Caster -...

Shop Product

1250 lbs

TieredPricing

Ships in 1-3 Business Days

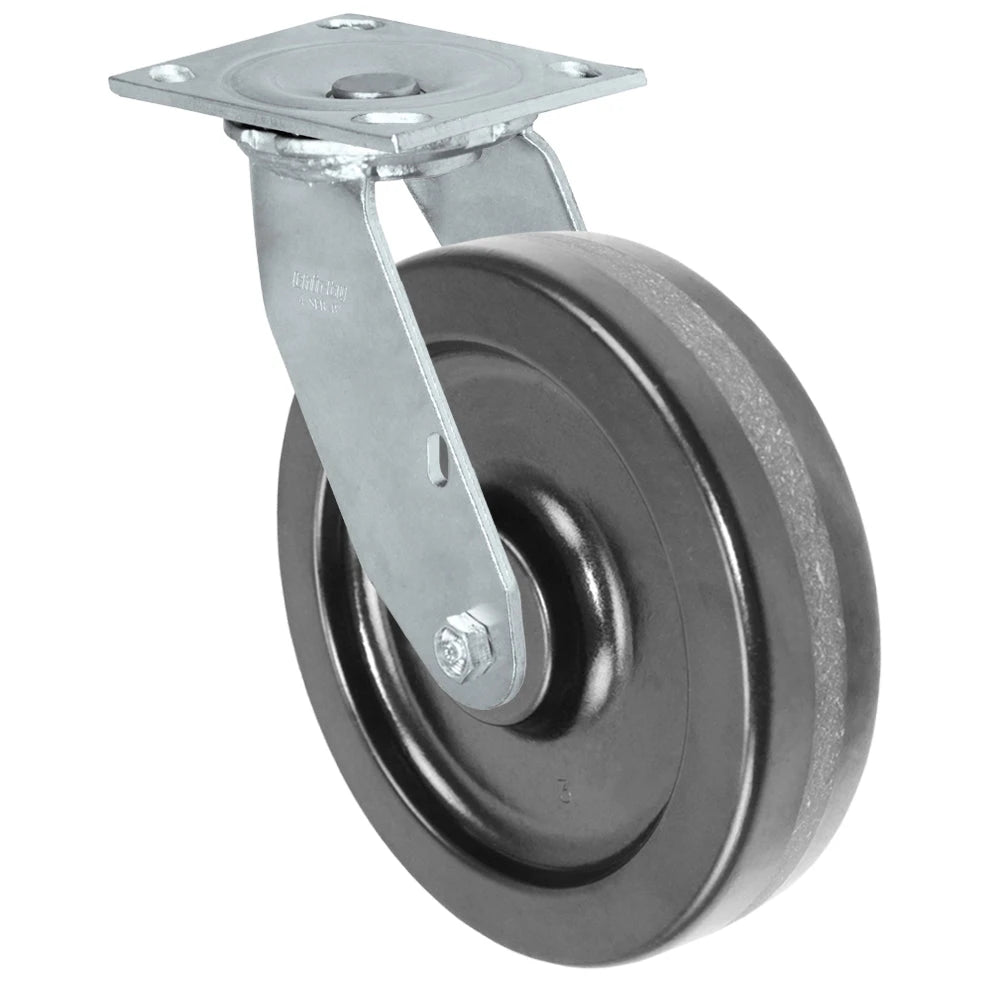

8" x 2" Phenolic Caster – 1250 lb

Part # S34-S-820-PH-03

from $84.00

Volume pricing available

PhenolicPlate

Load rating

1250 lbs

Diameter 8"

Capacity 1250 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Frame Zinc Plated Steel

8" x 2" Phenolic Heavy-Duty Caster Wheel 1250 lbs Load Capacity | 34 SeriesRobust...

Shop Product

1000 lbs

TieredPricing

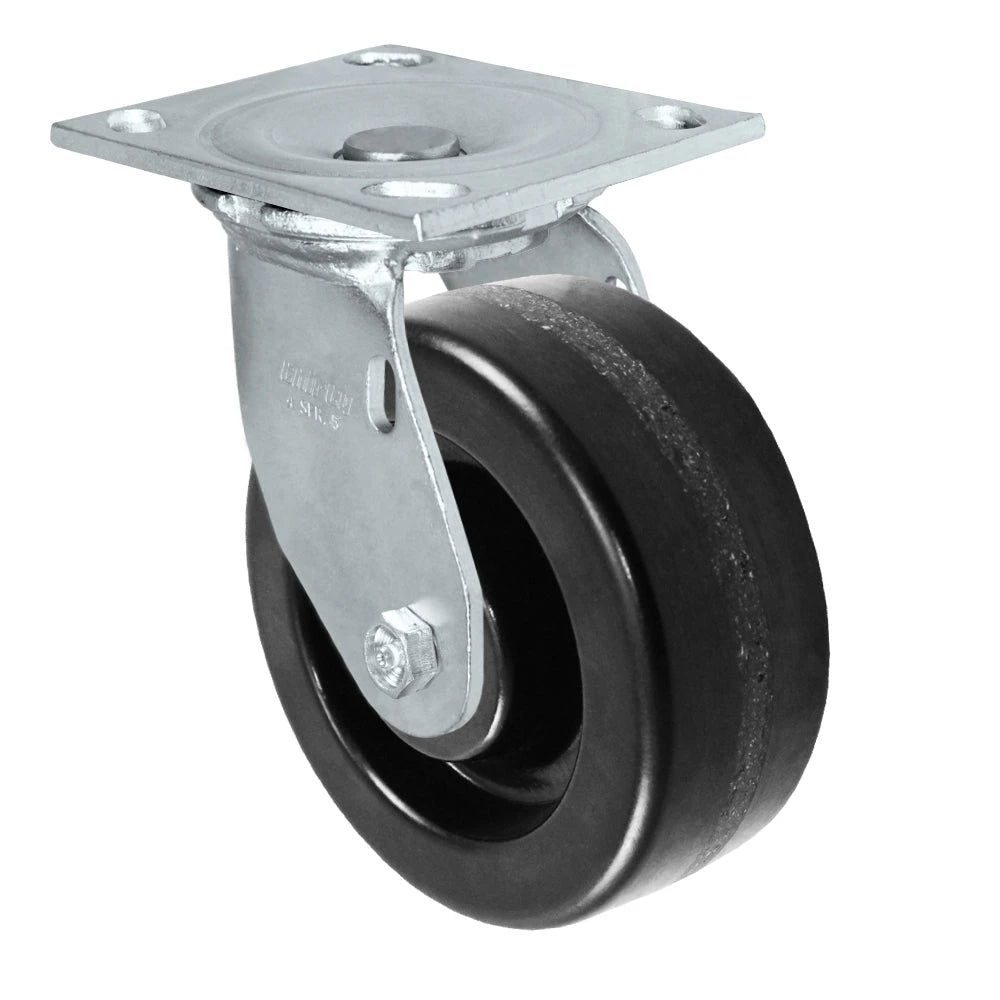

Durastar Medium Heavy Duty S34 Series - 5" x 2" Phenolic Swivel Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Phenolic Swivel Stainless Caster – 1000 lb · DuraStar S34 Series

Part # S34-S-520-PH-03

from $73.00

Volume pricing available

PhenolicPlate

Load rating

1000 lbs

Diameter 5"

Capacity 1000 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 5" x 2" Phenolic Swivel Caster -...

Shop Product

800 lbs

TieredPricing

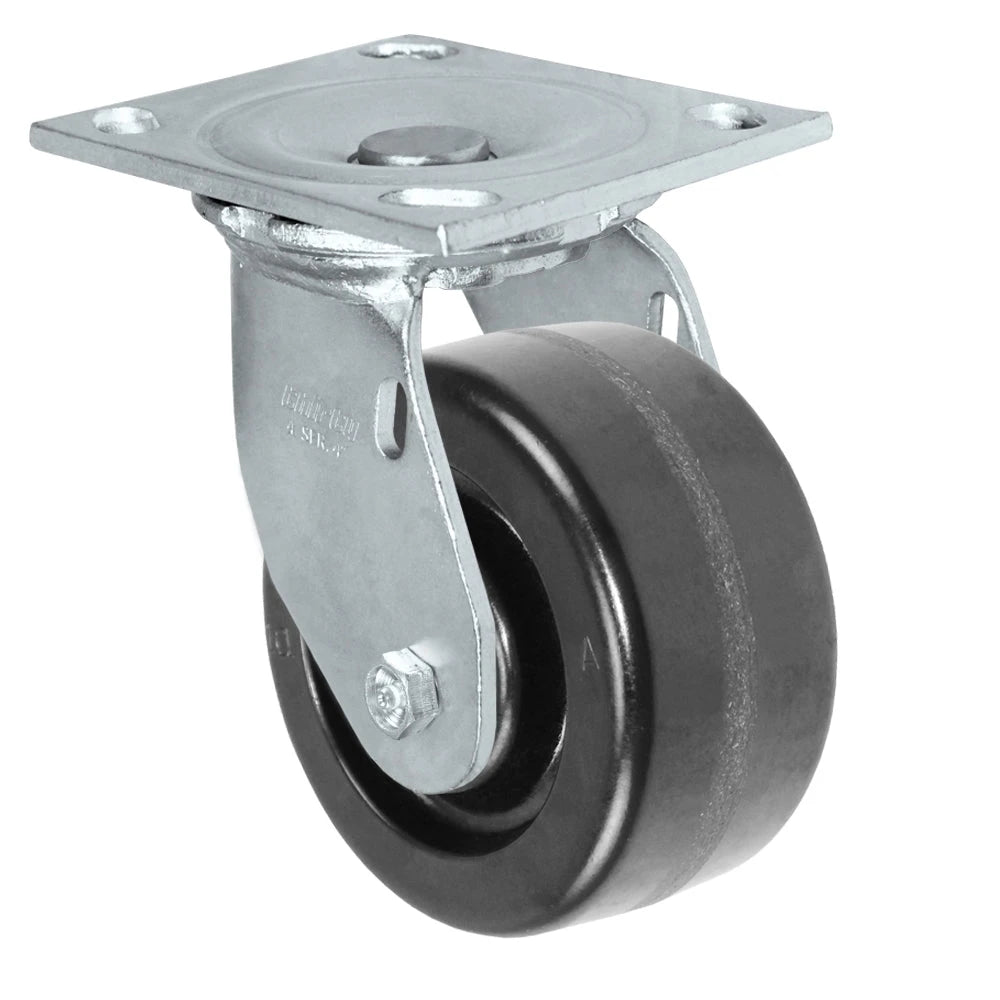

Durastar Medium Heavy Duty S34 Series - 4" x 2" Phenolic Swivel Caster - 800 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Phenolic Swivel Stainless Caster – 800 lb · DuraStar S34 Series

Part # S34-S-420-PH-03

from $81.00

Volume pricing available

PhenolicPlate

Load rating

800 lbs

Diameter 4"

Capacity 800 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 4" x 2" Phenolic Swivel Caster -...

Shop Product

1250 lbs

TieredPricing

Ships in 1-3 Business Days

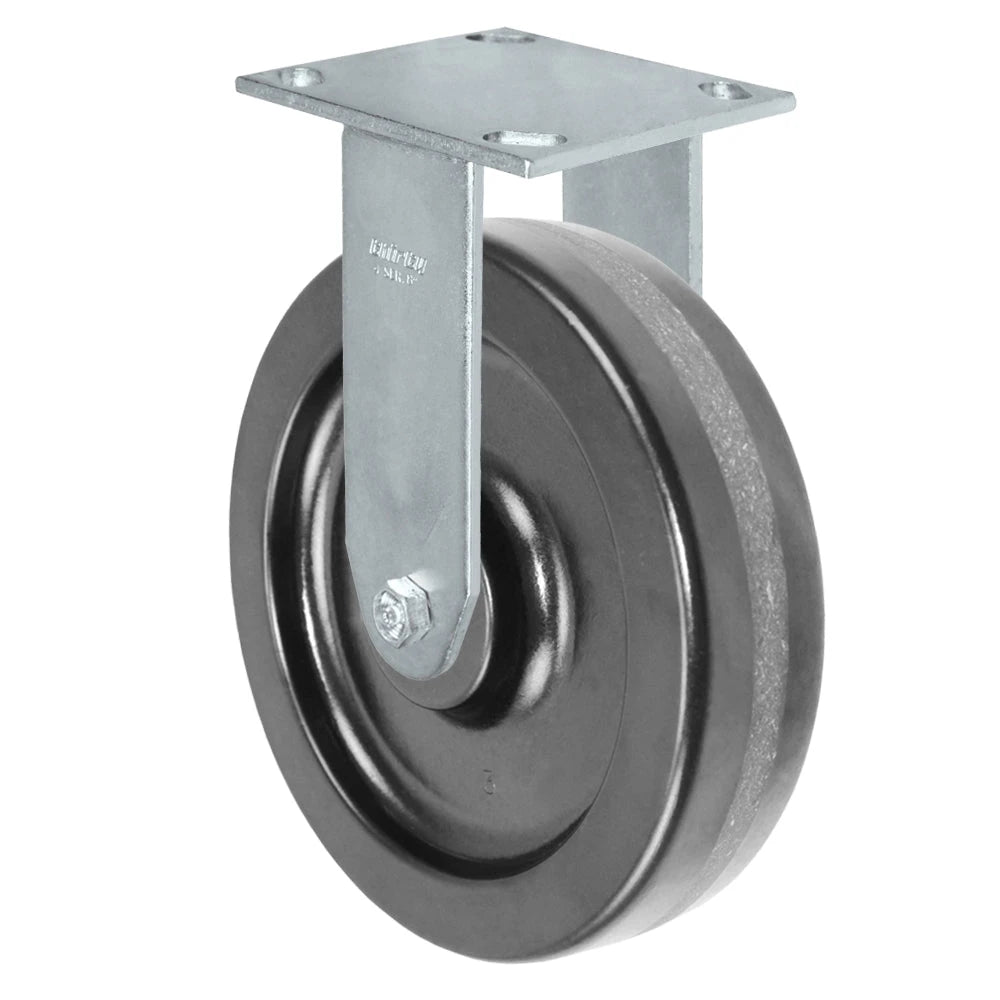

8" x 2" Phenolic Caster – 1250 lb

Part # S34-R-820-PH-03

from $57.00

Volume pricing available

PhenolicPlate

Load rating

1250 lbs

Diameter 8"

Capacity 1250 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Frame Zinc Plated Steel

8" x 2" Phenolic Heavy-Duty Caster Wheel 1250 lbs Load Capacity | 34 SeriesRobust...

Shop Product

1200 lbs

TieredPricing

Durastar Medium Heavy Duty S34 Series - 6" x 2" Phenolic Rigid Caster - 1200 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Phenolic Rigid Stainless Caster – 1200 lb · DuraStar S34 Series

Part # S34-R-620-PH-03

from $49.00

Volume pricing available

PhenolicPlate

Load rating

1200 lbs

Diameter 6"

Capacity 1200 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 6" x 2" Phenolic Rigid Caster -...

Shop Product

1000 lbs

TieredPricing

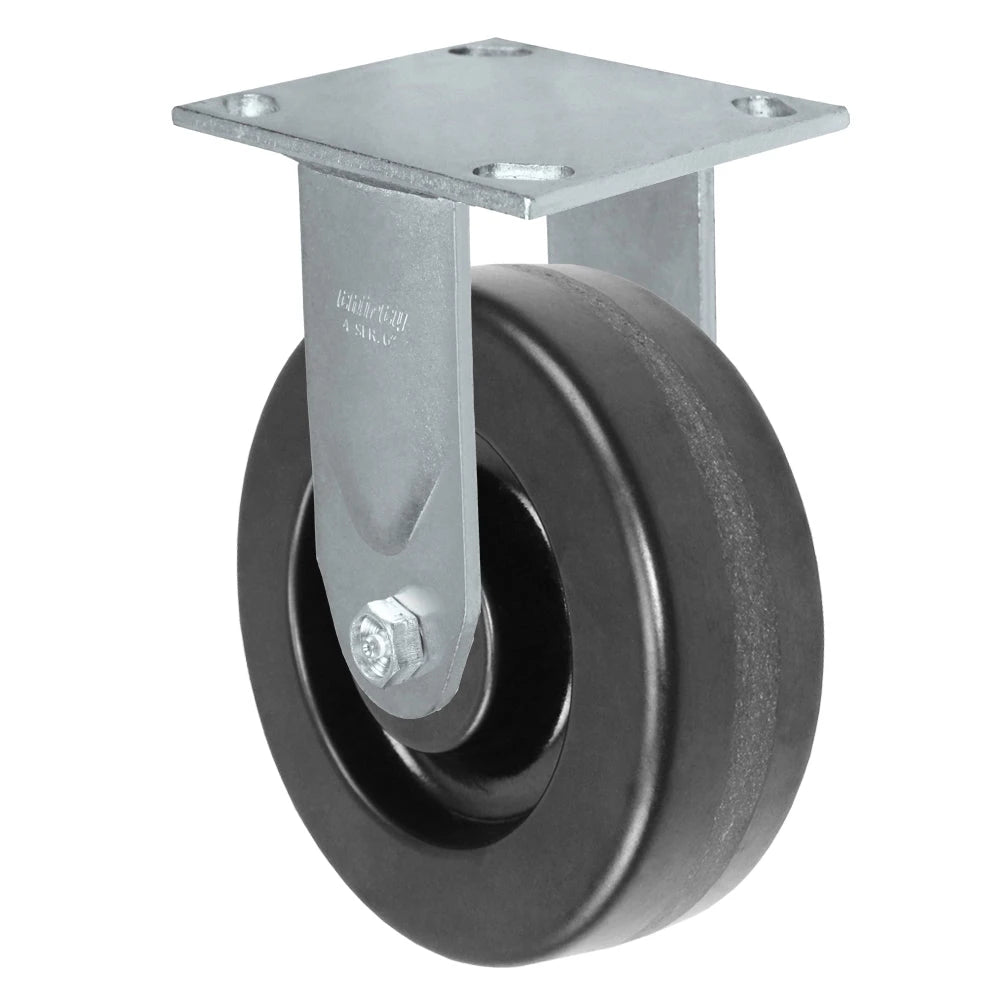

Durastar Medium Heavy Duty S34 Series - 5" x 2" Phenolic Rigid Caster - 1000 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Phenolic Rigid Stainless Caster – 1000 lb

Part # S34-R-520-PH-03

from $42.00

Volume pricing available

PhenolicPlate

Load rating

1000 lbs

Diameter 5"

Capacity 1000 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 5" x 2" Phenolic Rigid Caster -...

Shop Product

800 lbs

TieredPricing

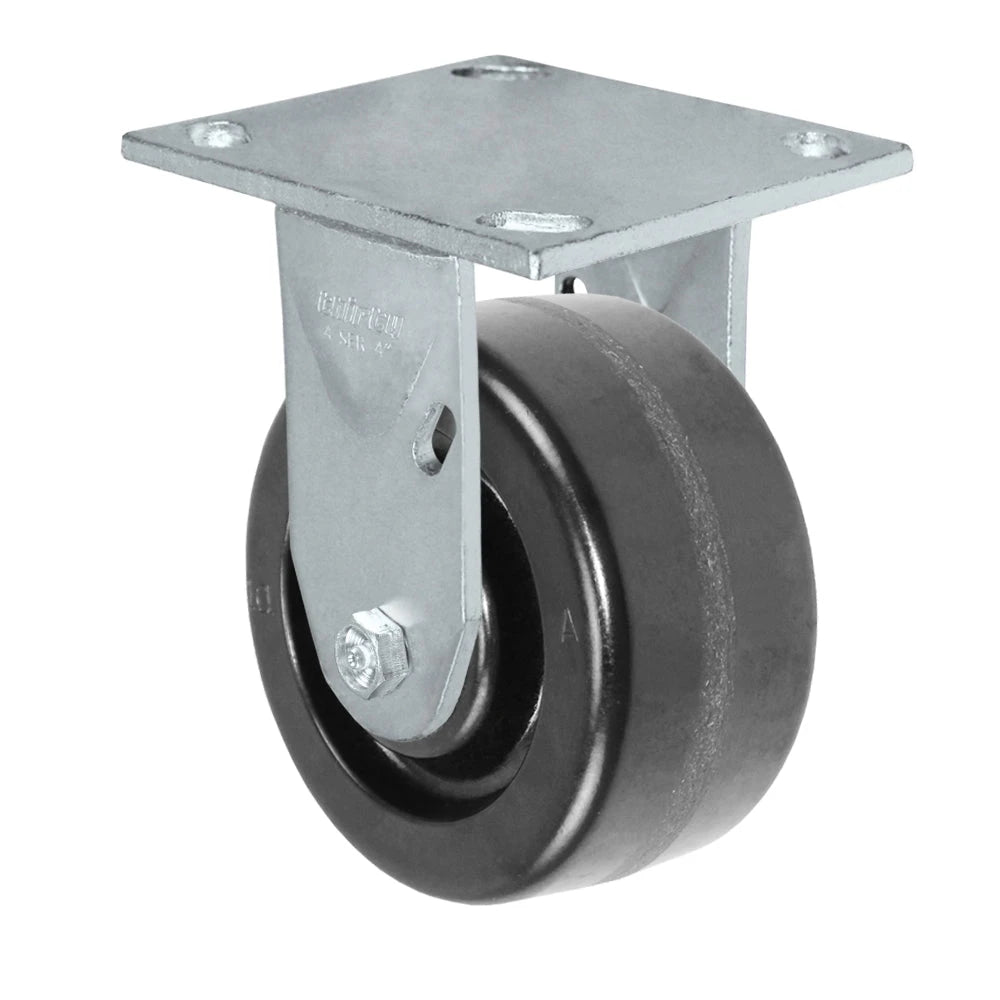

Durastar Medium Heavy Duty S34 Series - 4" x 2" Phenolic Rigid Caster - 800 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Phenolic Rigid Stainless Caster – 800 lb

Part # S34-R-420-PH-03

from $49.00

Volume pricing available

PhenolicPlate

Load rating

800 lbs

Diameter 4"

Capacity 800 lbs

Wheel Phenolic

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty S34 Series - 4" x 2" Phenolic Rigid Caster -...

Shop Product

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
