Up to 350 lbs
Up to 7,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
Shock absorbing
Outdoor / rough terrain
View All Specialty Casters
Browse all specialty caster types
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per caster.










| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Pneumatic | 8 and 10 in | 250 to 300 lb | -40°F to 160°F | rough ground, outdoors, fragile loads | |
| Rubber | 6 in | 250 lb | -40°F to 160°F | cushioned and quiet on finished floors |
Ratings are for single casters of Durastar pneumatic and flat-free casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 6 x 2 in | rubber | 250 lb |

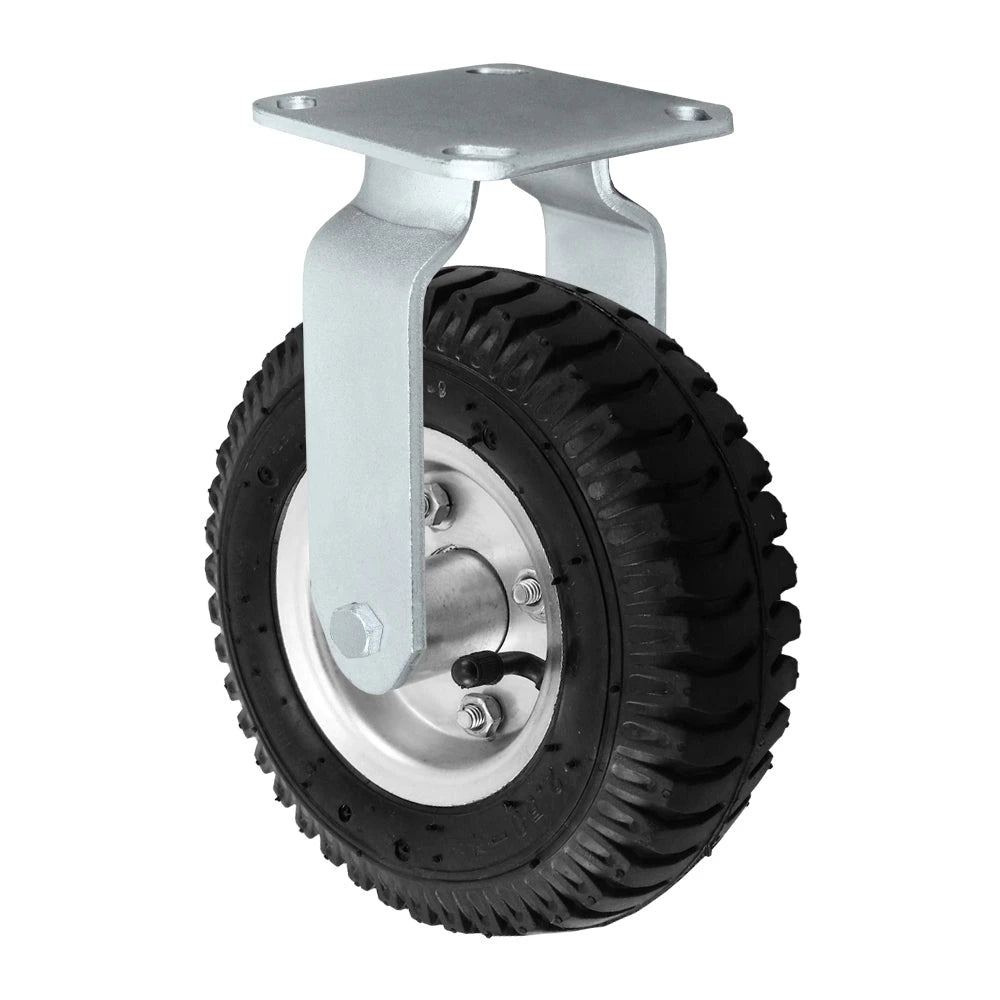

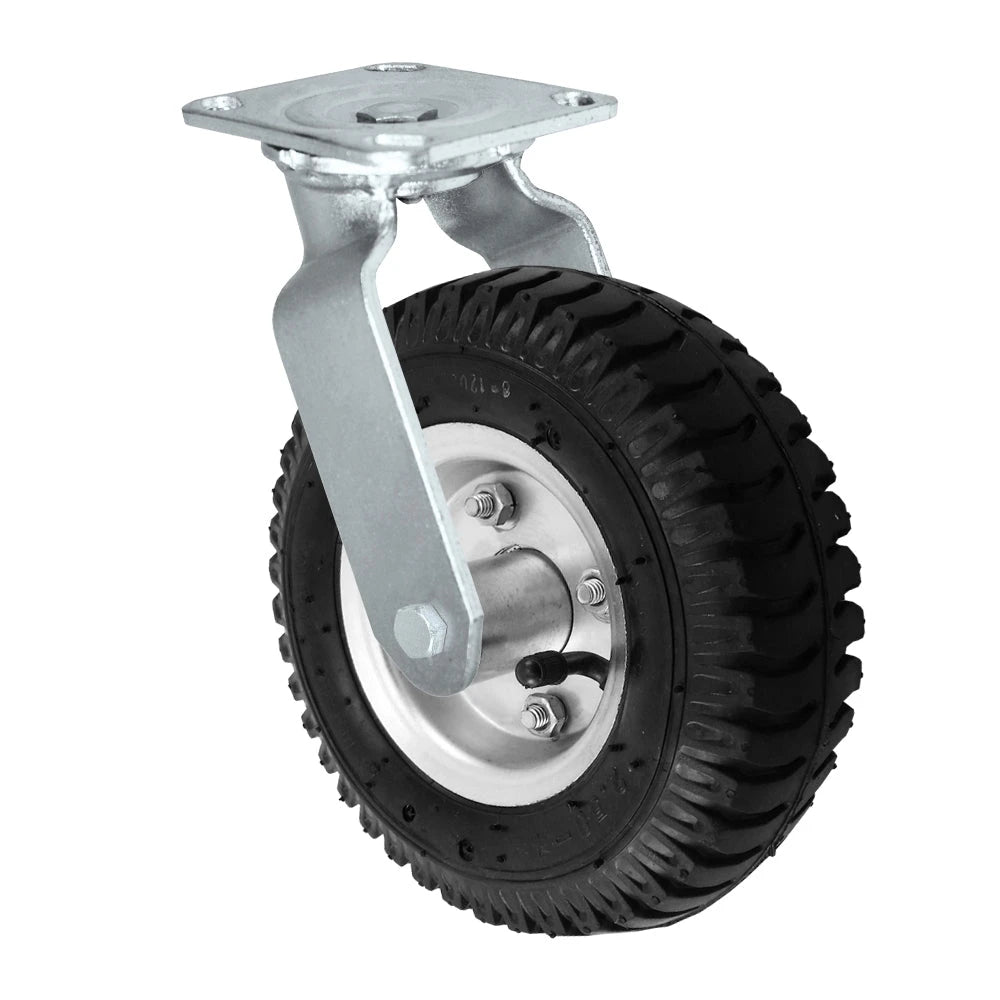

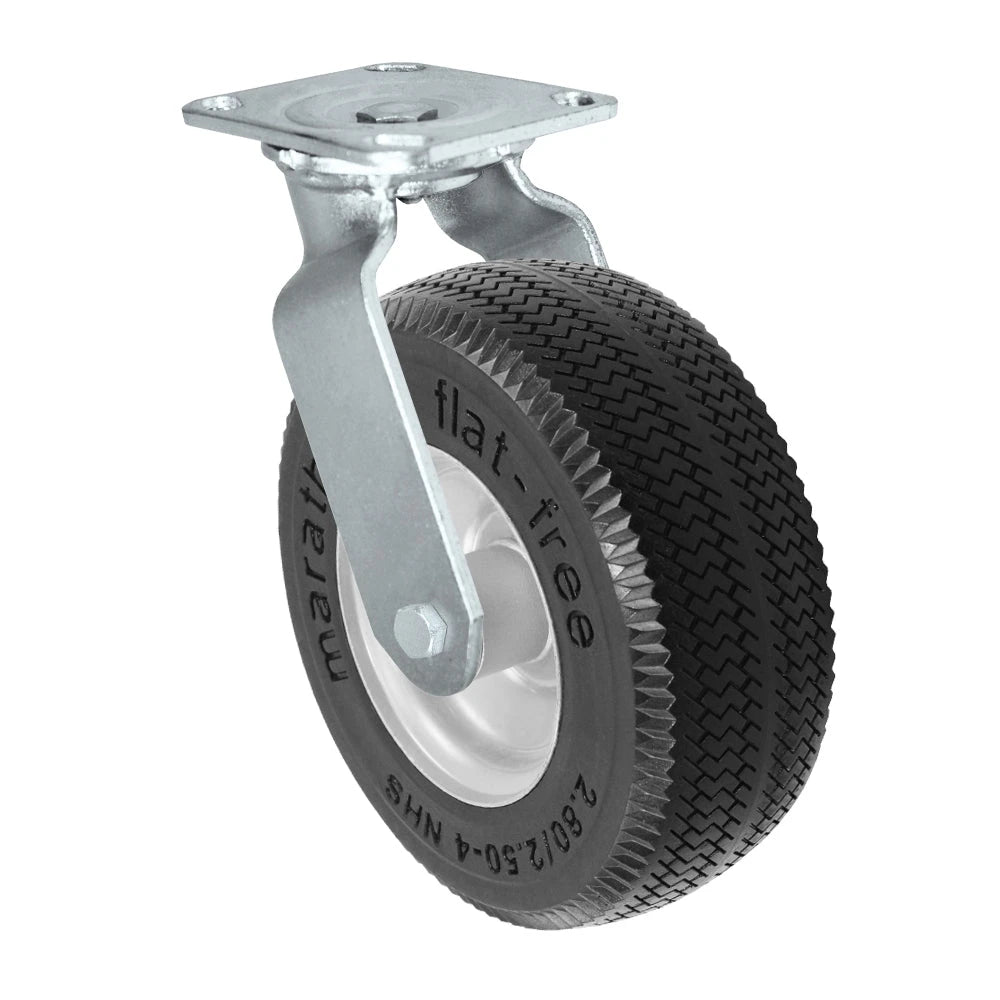

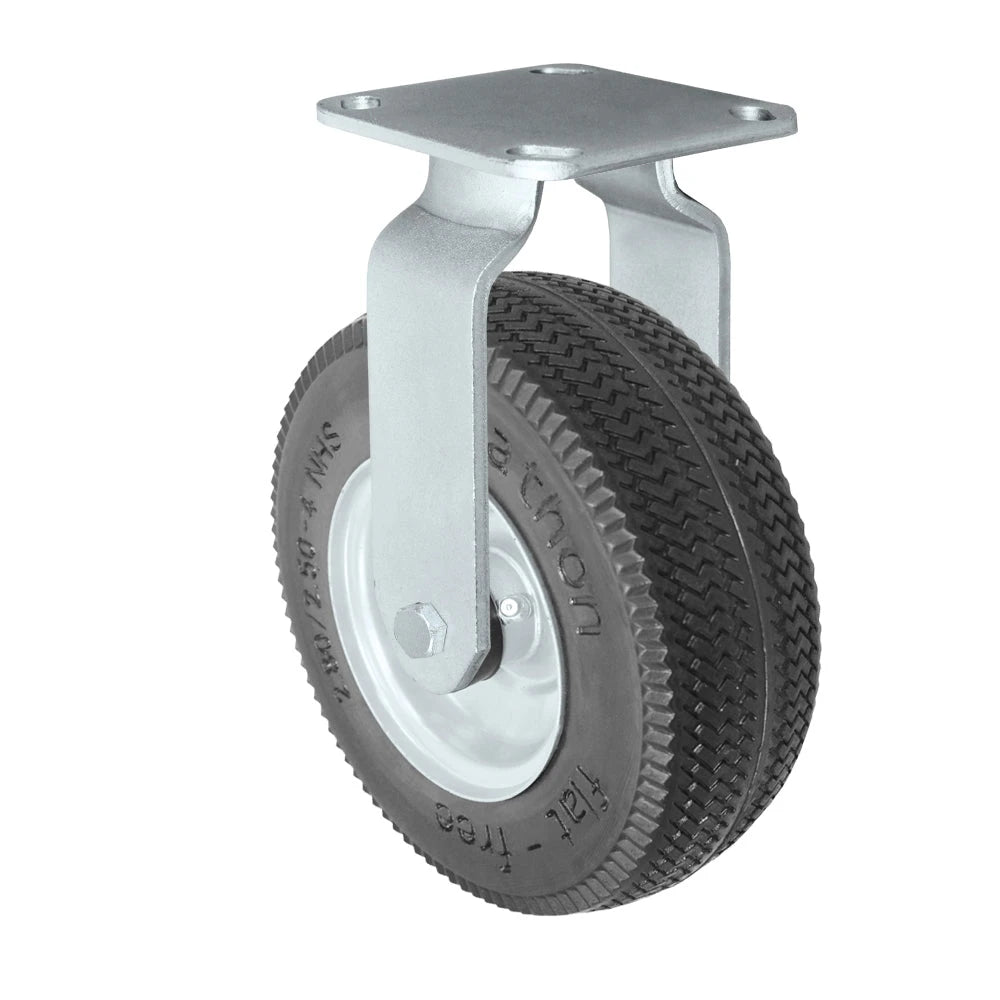

| 8 x 3 in | pneumatic | 250 to 275 lb |

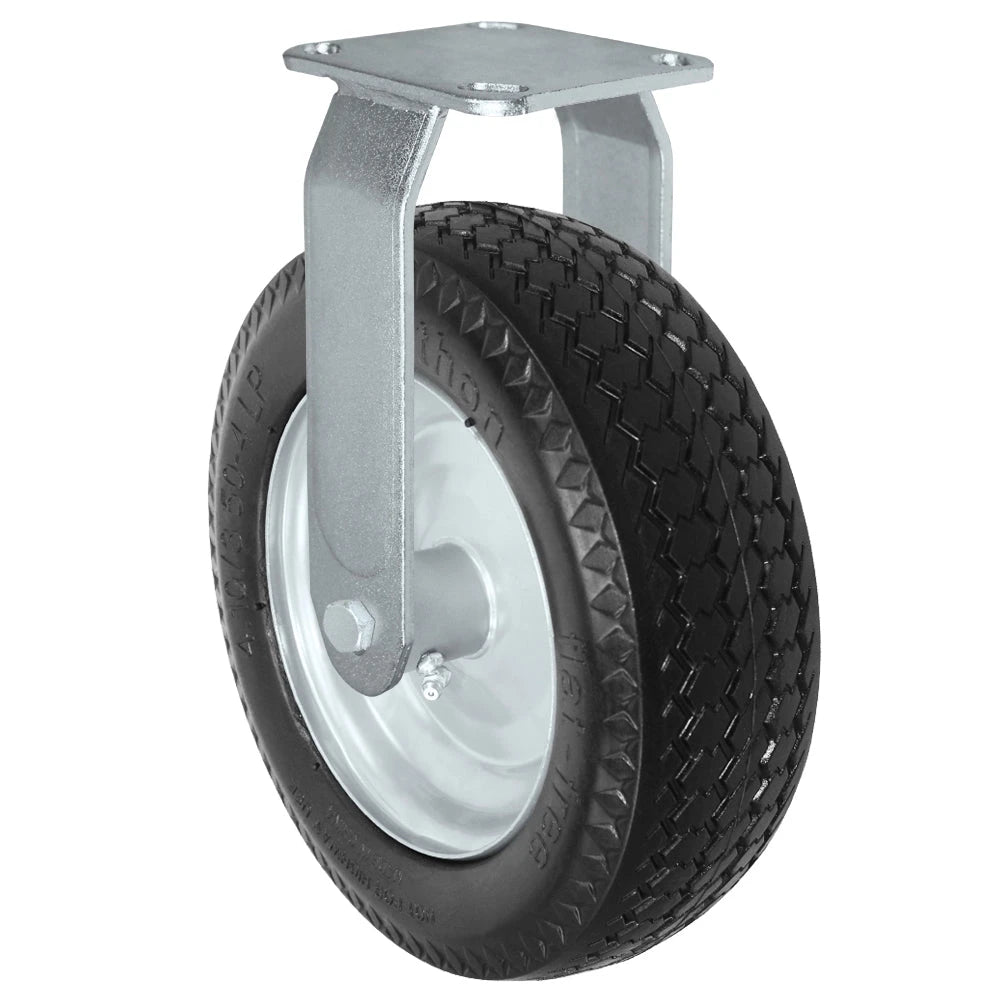

| 10 x 3-1/2 in | pneumatic | 300 lb |
Related to Durastar pneumatic and flat-free casters: industrial casters, flat-free and pneumatic.
Single Durastar pneumatic and flat-free casters are rated 250 to 300 lb; most fall between 250 and 300 lb.
Most Durastar pneumatic and flat-free casters use 4 x 4-1/2 in.
Pneumatic leads on Durastar pneumatic and flat-free casters, rated 250 to 300 lb per caster. Among Durastar pneumatic and flat-free casters, rubber is next at 250 lb.
Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com
