3" x 1-1/4" Polyolefin Casters · 250-325 lb

Diameter: 3, 4, 5 inTread: 1-1/4 inCapacity: up to 325 lb
3" x 1-1/4" Polyolefin Casters for light institutional and furniture-grade frames. Catalog chips cover wheel diameters 3, 4, 5 in, polyolefin treads, and plate-mount frames. Replace worn corners in matched sets when possible so the cart tracks straight under load. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. These light-duty options cover everyday light institutional and furniture-grade frames without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

250 lbs
TieredPricing
Durastar 3" x 1-1/4" Polyolefin Rigid Caster - 250 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyolefin Rigid Caster – 250 lb
Part # 21-R-314-PO-82
from $20.00
Volume pricing available
PolyolefinPlate
Load rating
250 lbs
Diameter 3"
Capacity 250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Temp Range 40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar 3" x 1-1/4" Polyolefin Rigid Caster - 250 lb Capacity Product Overview The...
Shop Product
325 lbs
TieredPricing
Durastar 5" x 1-1/4" Polyolefin Swivel Caster - 325 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyolefin Swivel Caster – 325 lb
Part # 21-S-514-PO-82
from $27.00
Volume pricing available
PolyolefinPlate
Load rating
325 lbs
Diameter 5"
Capacity 325 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar 5" x 1-1/4" Polyolefin Swivel Caster - 325 lb Capacity Product Overview The...
Shop Product
300 lbs
TieredPricing
Durastar 4" x 1-1/4" Polyolefin Swivel Caster - 300 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Polyolefin Swivel Caster – 300 lb · Model 21-S-414-PO-82
Part # 21-S-414-PO-82
from $25.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Diameter 4"
Capacity 300 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar 4" x 1-1/4" Polyolefin Swivel Caster - 300 lb Capacity Product Overview The...
Shop Product
250 lbs
TieredPricing
Durastar 3" x 1-1/4" Polyolefin Swivel Caster - 250 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyolefin Swivel Caster Top Plate – 250 lb · Model 21-S-314-PO-82
Part # 21-S-314-PO-82
from $21.00
Volume pricing available
PolyolefinPlate
Load rating
250 lbs
Diameter 3"
Capacity 250 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Temp Range 40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar 3" x 1-1/4" Polyolefin Swivel Caster - 250 lb Capacity Product Overview The...
Shop Product
325 lbs
TieredPricing

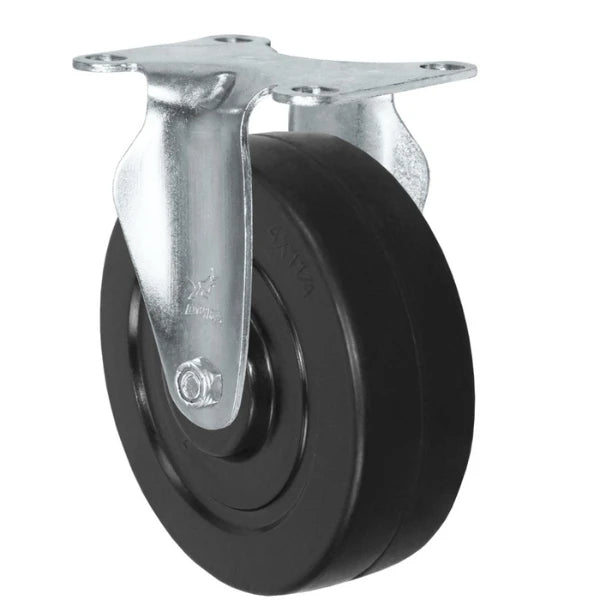

Durastar 5" x 1-1/4" Polyolefin Rigid Caster - 325 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyolefin Rigid Caster – 325 lb · Model 21-R-514-PO-82
Part # 21-R-514-PO-82
from $25.00
Volume pricing available
PolyolefinPlate
Load rating
325 lbs
Diameter 5"
Capacity 325 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Temp Range -45°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar 5" x 1-1/4" Polyolefin Rigid Caster - 325 lb Capacity Product Overview The...
Shop Product
300 lbs
TieredPricing

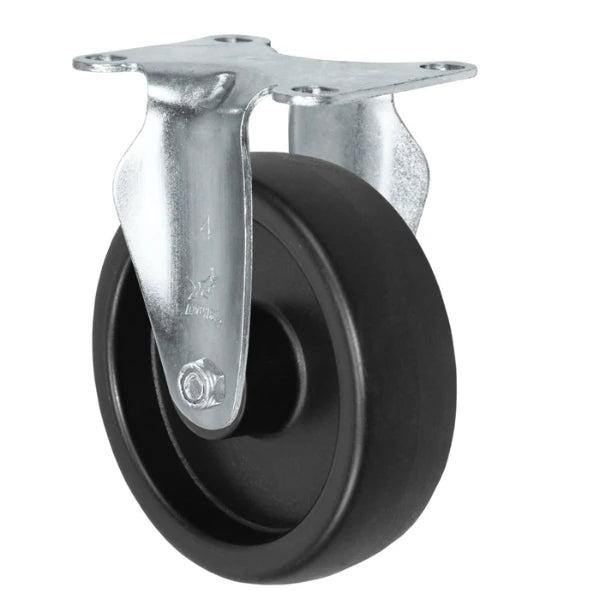

Durastar 4" x 1-1/4" Polyolefin Rigid Caster - 300 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Polyolefin Rigid Caster – 300 lb · Model 21-R-414-PO-82
Part # 21-R-414-PO-82
from $23.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Diameter 4"
Capacity 300 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Temp Range -45°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar 4" x 1-1/4" Polyolefin Rigid Caster - 300 lb Capacity Product Overview The...
Shop Product
