8" x 3" Polyurethane Casters · 2,000-3,000 lb · 5-1/4" x 7-1/4" Plate · Nylon

Plate sizes: 5-1/4 x 7-1/4Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8Diameter: 6, 8, 10 inTread: 3 inCapacity: up to 3,000 lb
Casters on the 5-1/4 x 7-1/4 plate pattern suit chemical, food-contact, and washdown carts. Catalog chips cover wheel diameters 6, 8, 10 in, polyurethane and nylon treads, and capacities 2,000 to 3,000 lb. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. Larger plates spread bolt stress on thick frames under continuous tow abuse. These heavy-duty options cover everyday chemical, food-contact, and washdown carts without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

2500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Glass-filled Nylon - MX (23mm Thick Tread) Swivel Caster - 2500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
8" x 3" Polyurethane Swivel Caster – 2500 lb
Part # 90-S-830-MX-06
from $523.00
Volume pricing available
NylonPlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Nylon
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Glass-filled Nylon...
Shop Product
2000 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Glass-filled Nylon - MX (23mm Thick Tread) Swivel Caster - 2000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
6" x 3" Polyurethane on Nylon Swivel Caster – 2000 lb
Part # 90-S-630-MX-06
from $357.00
Volume pricing available
NylonPlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Nylon
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Glass-filled Nylon...
Shop Product
3000 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Glass-filled Nylon - MX (23mm Thick Tread) Swivel Caster - 3000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
10" x 3" Polyurethane Swivel Caster – 3000 lb
Part # 90-S-1030-MX
from $624.00
Volume pricing available
NylonPlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Nylon
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Glass-filled Nylon...
Shop Product
2500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Glass-filled Nylon - MX (23mm Thick Tread) Rigid Caster - 2500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
8" x 3" Polyurethane on Nylon Rigid Caster – 2500 lb · DuraStar 90 Series
Part # 90-R-830-MX-06
from $353.00
Volume pricing available
NylonPlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Nylon
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Glass-filled Nylon...
Shop Product
2000 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Glass-filled Nylon - MX (23mm Thick Tread) Rigid Caster - 2000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
6" x 3" Polyurethane Rigid Caster – 2000 lb
Part # 90-R-630-MX-06
from $257.00
Volume pricing available
NylonPlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Nylon
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Glass-filled Nylon...
Shop Product
3000 lbs
TieredPricing

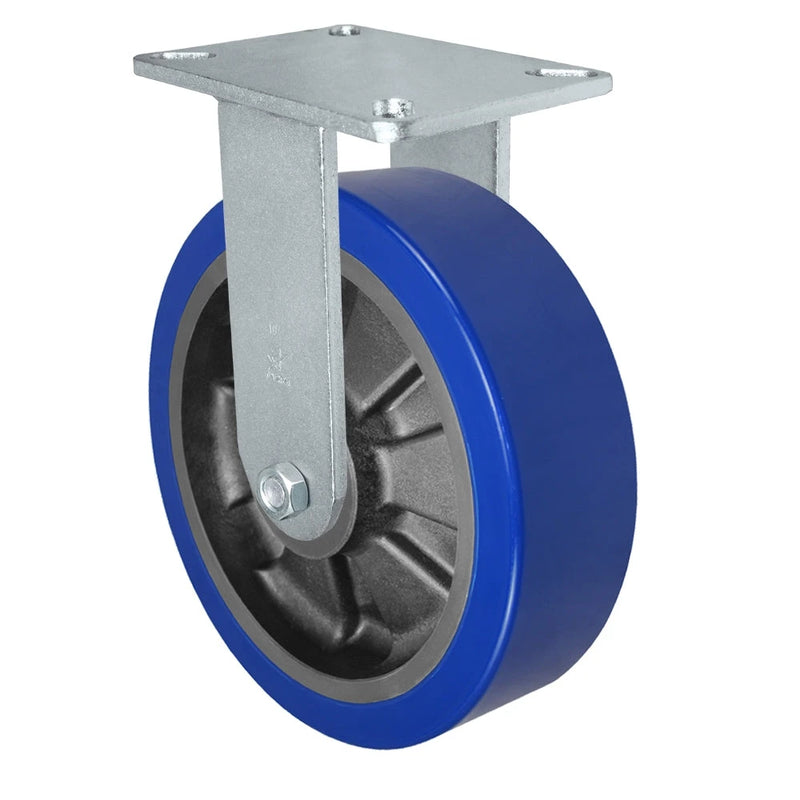

Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Glass-filled Nylon - MX (23mm Thick Tread) Rigid Caster - 3000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
10" x 3" Polyurethane on Nylon Rigid Caster – 3000 lb
Part # 90-R-1030-MX
from $504.00
Volume pricing available
NylonPlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Nylon
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Glass-filled Nylon...
Shop Product
