2" x 7/8" Polyurethane Casters · 100-125 lb

Plate sizes: 2-3/8 x 3-5/8Bolt holes: 1-3/4 x 2-7/8Diameter: 2, 2-1/2, 3 inTread: 7/8, 1 inCapacity: up to 125 lb

Casters on the 2-3/8 x 3-5/8 plate pattern suit warehouse carts on epoxy and smooth concrete. Expect wheel diameters 2, 2-1/2, 3 in, polyurethane and polyolefin treads, and capacities 100 to 125 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. These light-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

2 types

Wheel = wheel diameter · capacity is per caster.

100 lbs

TieredPricing

Durastar 2" x 7/8" Polyurethane on Polyolefin Swivel Caster - 100 lb Capacity, 1-1/4" x 2-1/16" Top Plate Durastar

Ships in 1-3 Business Days

2" x 7/8" Polyurethane Swivel Caster – 100 lb

Part # 01-S-278-PPU80-00

from $35.00

Volume pricing available

PolyurethanePlate

Load rating

100 lbs

Diameter 2"

Capacity 100 lbs

Wheel Polyurethane

Mount Plate

Plate Size 1-1/4" x 2-1/16"

More Details Less Details

Width 7/8"

Bolt Pattern 13/16" x 1-9/16"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 2" Polyurethane Swivel Caster 100 lb Capacity | Compact DesignLightweight Powerhouse Experience unparalleled...

Shop Product

100 lbs

TieredPricing

Durastar 2" x 7/8" Polyurethane on Polyolefin Rigid Caster - 100 lb Capacity, 1-1/4" x 2-1/16" Top Plate Durastar

Ships in 1-3 Business Days

2" x 7/8" Polyurethane Rigid Caster – 100 lb

Part # 01-R-278-PPU80-00

$35.00

Volume pricing available

PolyurethanePlate

Load rating

100 lbs

Diameter 2"

Capacity 100 lbs

Wheel Polyurethane

Mount Plate

Plate Size 1-1/4" x 2-1/16"

More Details Less Details

Width 7/8"

Bolt Pattern 13/16" x 1-9/16"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar 2" Polyurethane Rigid Caster 100 lb Capacity | Compact DesignLightweight Powerhouse Experience unparalleled...

Shop Product

125 lbs

TieredPricing

Durastar 3" x 1" Polyurethane on Polyolefin Swivel Caster - 125 lb Capacity, 2-3/8 x 3-5/8 Top Plate Durastar

Ships in 1-3 Business Days

3" x 1" Polyurethane on Polyolefin Swivel Caster – 125 lb

Part # 06-S-310-PPU81-01

from $18.00

Volume pricing available

PolyurethanePlate

Load rating

125 lbs

Diameter 3"

Capacity 125 lbs

Wheel Polyurethane

Mount Plate

Plate Size 2-3/8" x 3-5/8"

More Details Less Details

Width 1"

Bolt Pattern 1-3/4" x 2-7/8"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 3" Swivel Caster: Robust Performance for Your Equipment 125 lb Capacity | Polyurethane...

Shop Product

100 lbs

TieredPricing

Durastar 3" x 7/8" Polyurethane on polyolefin Swivel Caster - 100 lb Capacity, 1-1/4" x 2-1/16" Top Plate Durastar

Ships in 1-3 Business Days

3" x 7/8" Polyurethane Swivel Caster – 100 lb

Part # 01-S-378-PPU80-00

from $35.00

Volume pricing available

PolyurethanePlate

Load rating

100 lbs

Diameter 3"

Capacity 100 lbs

Wheel Polyurethane

Mount Plate

Plate Size 1-1/4" x 2-1/16"

More Details Less Details

Width 7/8"

Bolt Pattern 13/16" x 1-9/16"

Core Polyolefin

Temp Range -40°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 3" Polyurethane Swivel Caster 100 lb Capacity | 1-1/4" x 2-1/16" Top PlatePremium...

Shop Product

100 lbs

TieredPricing

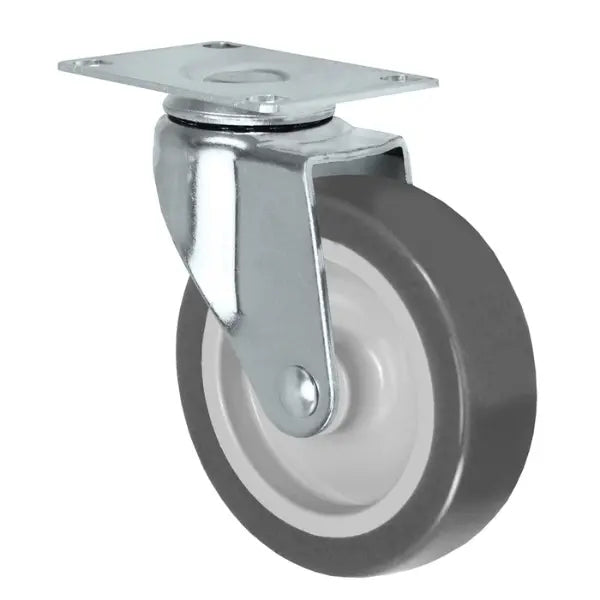

Durastar 2-1/2" x 7/8" Polyurethane on Polyolefin Swivel Caster - 100 lb Capacity, 1-1/4" x 2-1/16" Top Plate Durastar

Ships in 1-3 Business Days

2-1/2" x 7/8" Polyurethane Swivel Caster – 100 lb

Part # 01-S-2578-PPU80-00

from $35.00

Volume pricing available

PolyurethanePlate

Load rating

100 lbs

Diameter 2-1/2"

Capacity 100 lbs

Wheel Polyurethane

Mount Plate

Plate Size 1-1/4" x 2-1/16"

More Details Less Details

Width 7/8"

Height 3-1/8"

Bolt Pattern 13/16" x 1-9/16"

Core Polyolefin

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar 2-1/2" x 7/8" Polyurethane on Polyolefin Swivel Caster - 100 lb Capacity, 1-1/4"...

Shop Product

100 lbs

TieredPricing

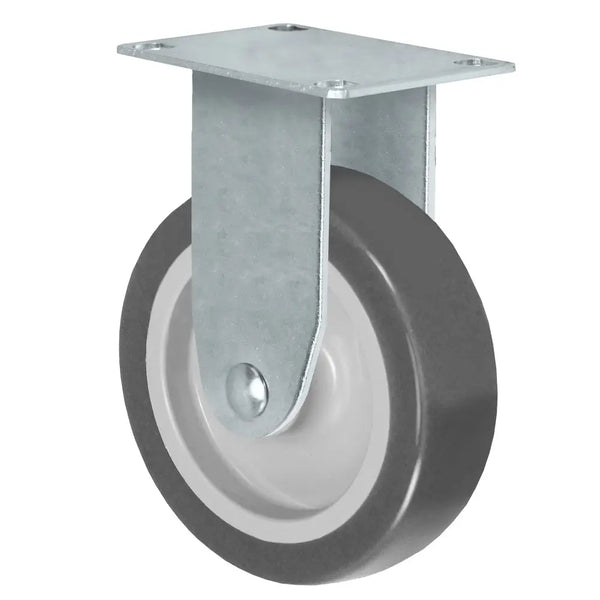

Durastar 3" x 7/8" Polyurethane on polyolefin Rigid Caster - 100 lb Capacity, 1-1/4" x 2-1/16" Top Plate Durastar

Ships in 1-3 Business Days

3" x 7/8" Polyurethane Rigid Caster – 100 lb

Part # 01-R-378-PPU80-00

$35.00

Volume pricing available

PolyurethanePlate

Load rating

100 lbs

Diameter 3"

Capacity 100 lbs

Wheel Polyurethane

Mount Plate

Plate Size 1-1/4" x 2-1/16"

More Details Less Details

Width 7/8"

Bolt Pattern 13/16" x 1-9/16"

Core Polyolefin

Temp Range -40°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar 3" Polyurethane Rigid Caster 100 lb Capacity | 1-1/4" x 2-1/16" Top PlatePremium...

Shop Product

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes
