Polyurethane Casters - Stainless Rigid

Diameter: 3, 3-1/2, 4, 5 inTread: 1-1/4 inCapacity: up to 325 lb
Polyurethane Casters - Stainless Rigid for warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 3, 3-1/2, 4, 5 in, polyurethane, polyolefin, and stainless treads, and plate-mount frames. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Replace worn corners in matched sets when possible so the cart tracks straight under load. These light-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

325 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Polyurethane on Polyolefin - 325 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyurethane Polyolefin Stainless Caster – 325 lb
Part # S24-S-514-PPU-56
from $76.00
Volume pricing available
PolyurethanePlate
Load rating
325 lbs
Diameter 5"
Capacity 325 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Polyurethane on Polyolefin Caster...
Shop Product
300 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 4" x 1-1/4" Polyurethane on Polyolefin - 300 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Polyurethane Stainless Caster – 300 lb
Part # S24-S-414-PPU-56
from $73.00
Volume pricing available
PolyurethanePlate
Load rating
300 lbs
Diameter 4"
Capacity 300 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar S24 Series - Light Medium Duty 4" Polyurethane Caster with Stainless Top Plate...
Shop Product
275 lbs
TieredPricing

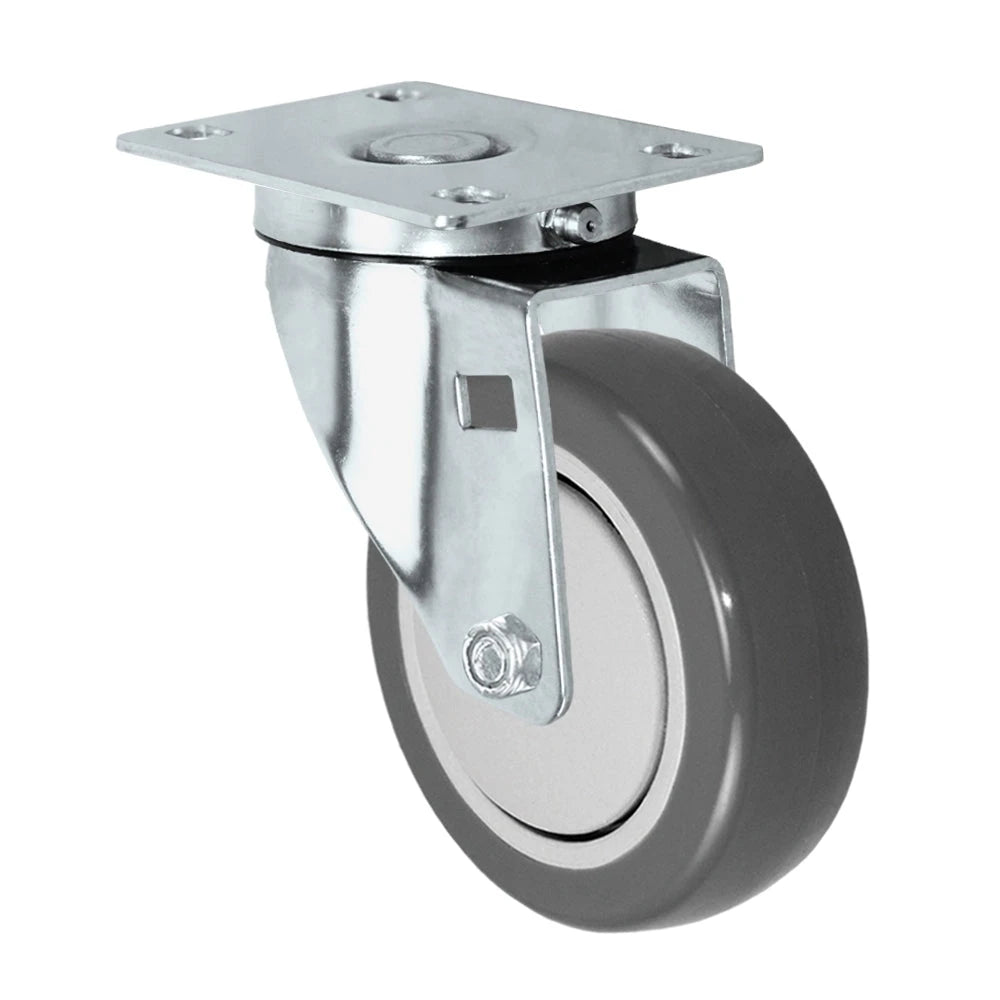

Durastar Light Medium Duty S24 Series - 3-1/2" x 1-1/4" Polyurethane on Polyolefin - 275 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
S24 3-1/2" x 1-1/4" Polyurethane Polyolefin Stainless Caster – 275 lb
Part # S24-S-3514-PPU-56
from $69.00
Volume pricing available
PolyurethanePlate
Load rating
275 lbs
Diameter 3-1/2"
Capacity 275 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-5/8"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 3-1/2" x 1-1/4" Polyurethane on Polyolefin Caster...
Shop Product
250 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Polyurethane on Polyolefin Caster - 250 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyurethane Polyolefin Stainless Caster – 250 lb
Part # S24-S-314-PPU-56
from $68.00
Volume pricing available
PolyurethanePlate
Load rating
250 lbs
Diameter 3"
Capacity 250 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Polyurethane on Polyolefin Caster...
Shop Product
325 lbs
TieredPricing

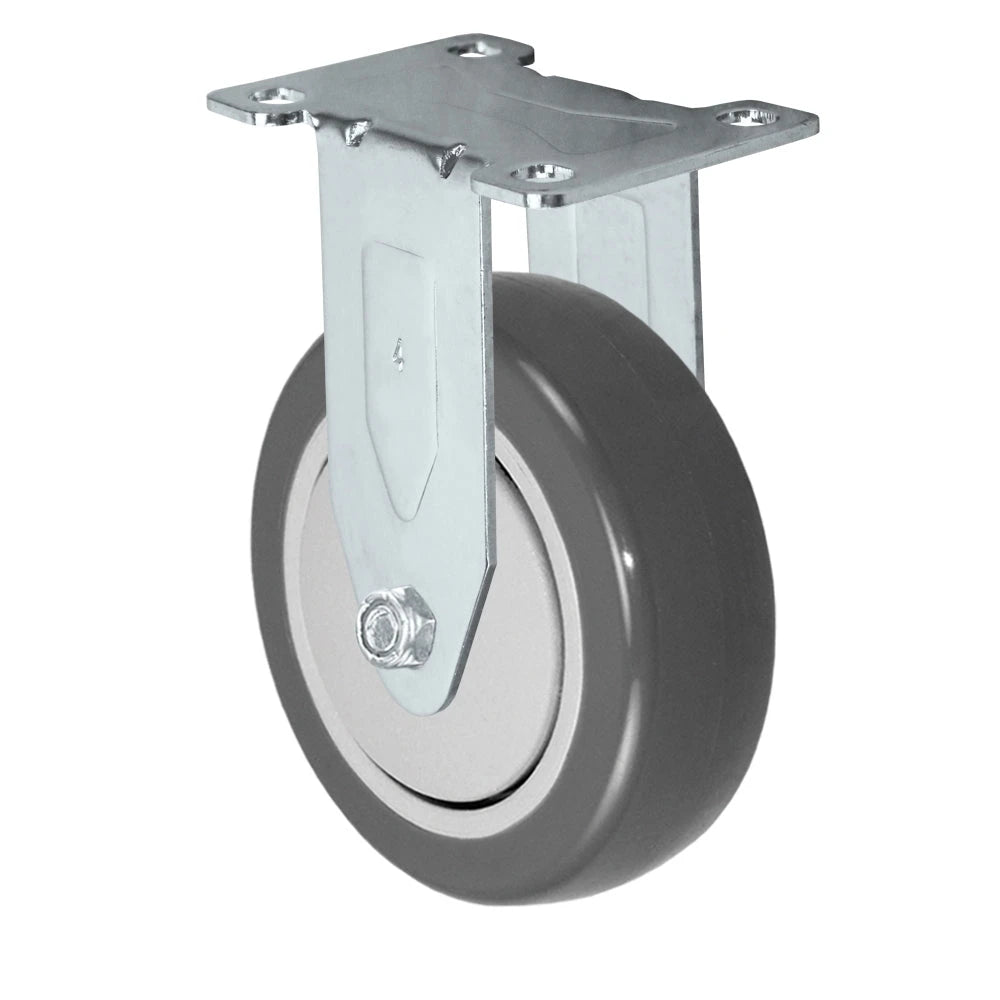

Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Polyurethane on Polyolefin Rigid Caster - 325 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyurethane Rigid Stainless Caster – 325 lb
Part # S24-R-514-PPU-56
from $75.00
Volume pricing available
PolyurethanePlate
Load rating
325 lbs
Diameter 5"
Capacity 325 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Polyurethane on Polyolefin Rigid...
Shop Product
300 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 4" x 1-1/4" Polyurethane on Polyolefin Rigid Caster - 300 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
S24 4" x 1-1/4" Polyurethane Rigid Stainless Caster – 300 lb
Part # S24-R-414-PPU-56
from $72.00
Volume pricing available
PolyurethanePlate
Load rating
300 lbs
Diameter 4"
Capacity 300 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar S24 Series - Light Medium Duty 4" Polyurethane Rigid Caster with Stainless Top...
Shop Product
275 lbs
TieredPricing

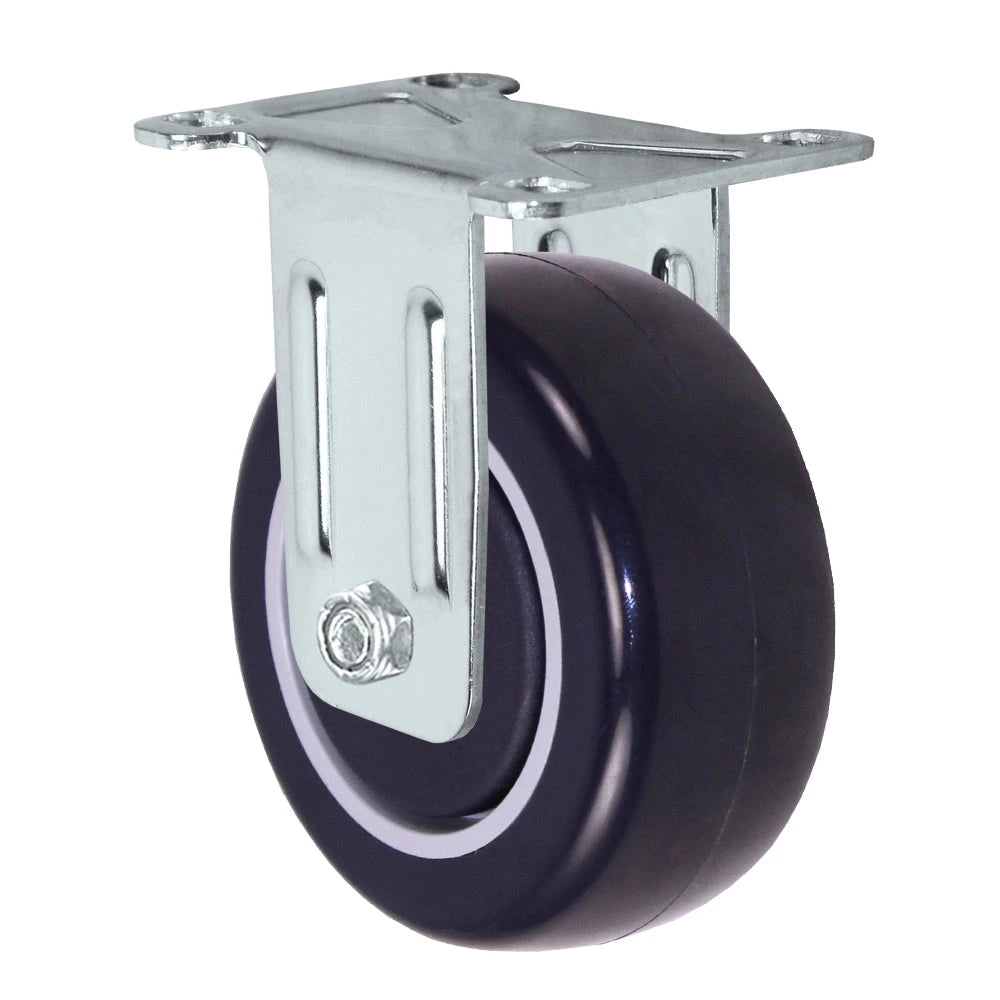

Durastar Light Medium Duty S24 Series - 3-1/2" x 1-1/4" Polyurethane on Polyolefin Rigid Caster - 275 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
3-1/2" x 1-1/4" Polyurethane Polyolefin Rigid Caster – 275 lb
Part # S24-R-3514-PPU-56
from $68.00
Volume pricing available
PolyurethanePlate
Load rating
275 lbs
Diameter 3-1/2"
Capacity 275 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-5/8"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 3-1/2" x 1-1/4" Polyurethane on Polyolefin Rigid...
Shop Product
250 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Polyurethane on Polyolefin Rigid Caster - 250 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyurethane Rigid Stainless Caster – 250 lb
Part # S24-R-314-PPU-56
from $67.00
Volume pricing available
PolyurethanePlate
Load rating
250 lbs
Diameter 3"
Capacity 250 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Polyurethane on Polyolefin Rigid...
Shop Product
