Polyurethane Casters — Swivel · 2,000–3,500 lb · 5-1/4" x 7-1/4" Plate

Plate sizes: 5-1/4 x 7-1/4Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8Diameter: 6, 8, 10, 12 inTread: 3 inCapacity: up to 3,500 lb
Casters on the 5-1/4 x 7-1/4 plate pattern suit warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 6, 8, 10, 12 in, polyurethane and steel treads, and capacities 2,000 to 3,500 lb. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete. Larger plates spread bolt stress on thick frames under continuous tow abuse. These heavy-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Steel Swivel Caster - 2500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
8" x 3" Polyurethane on Steel Swivel Caster – 2500 lb · DuraStar 90 Series
Part # 90-S-830-PU-06
from $523.00
Volume pricing available
PolyurethanePlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Steel Swivel...
Shop Product
2000 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Steel Swivel Caster - 2000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
6" x 3" Polyurethane on Steel Swivel Caster – 2000 lb · DuraStar 90 Series
Part # 90-S-630-PU-06
from $357.00
Volume pricing available
PolyurethanePlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Steel Swivel...
Shop Product
3500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Polyurethane on Steel Swivel Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
12" x 3" Polyurethane on Steel Swivel Caster – 3500 lb · DuraStar 90 Series
Part # 90-S-1230-PU-06
from $624.00
Volume pricing available
PolyurethanePlate
Load rating
3500 lbs
Diameter 12"
Capacity 3500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Polyurethane on Steel Swivel...
Shop Product
3000 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Steel Swivel Caster - 3000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
10" x 3" Polyurethane on Steel Swivel Caster – 3000 lb · DuraStar 90 Series
Part # 90-S-1030-PU
from $624.00
Volume pricing available
PolyurethanePlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Steel Swivel...
Shop Product
2500 lbs
TieredPricing

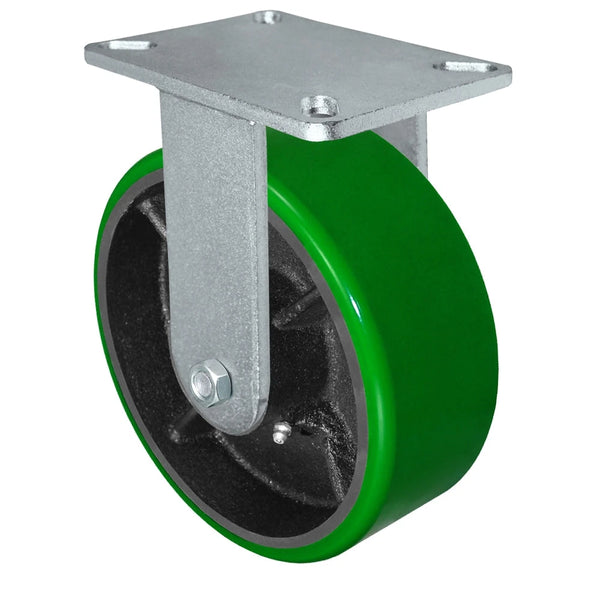

Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Steel Rigid Caster - 2500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
8" x 3" Polyurethane on Steel Rigid Caster – 2500 lb
Part # 90-R-830-PU-06
from $353.00
Volume pricing available
PolyurethanePlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Polyurethane on Steel Rigid...
Shop Product
2000 lbs
TieredPricing

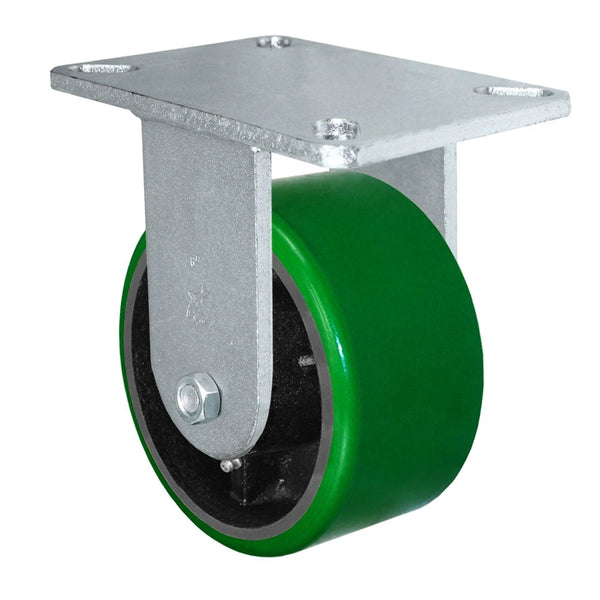

Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Steel Rigid Caster - 2000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
6" x 3" Polyurethane on Steel Rigid Caster – 2000 lb
Part # 90-R-630-PU-06
from $257.00
Volume pricing available
PolyurethanePlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Polyurethane on Steel Rigid...
Shop Product
3500 lbs
TieredPricing

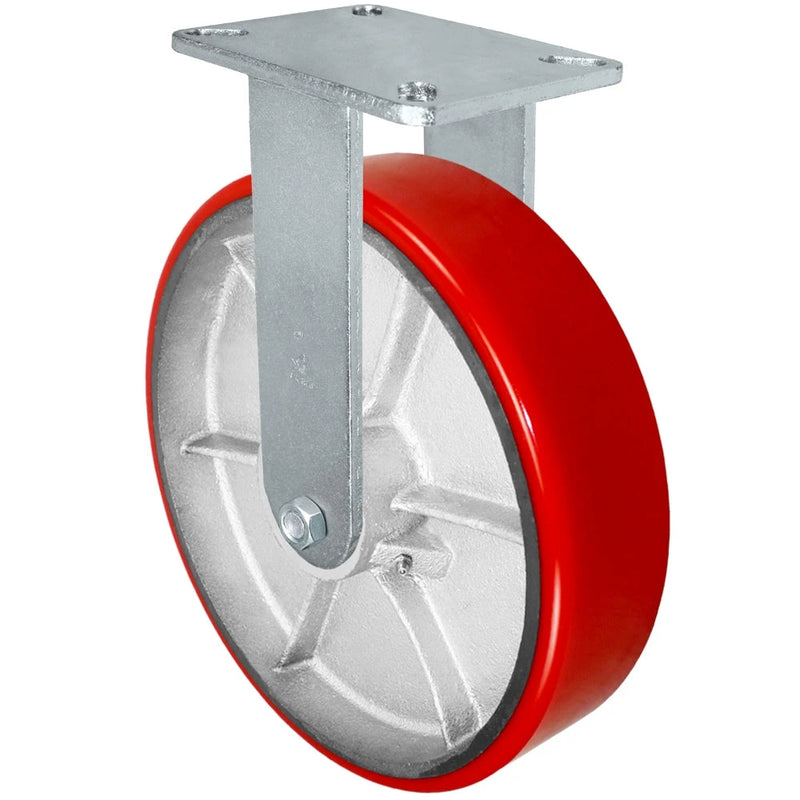

Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Polyurethane on Steel Rigid Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
12" x 3" Polyurethane on Steel Rigid Caster – 3500 lb · Model 90-R-1230-PU-06
Part # 90-R-1230-PU-06
from $504.00
Volume pricing available
PolyurethanePlate
Load rating
3500 lbs
Diameter 12"
Capacity 3500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Polyurethane on Steel Rigid...
Shop Product
3000 lbs
TieredPricing

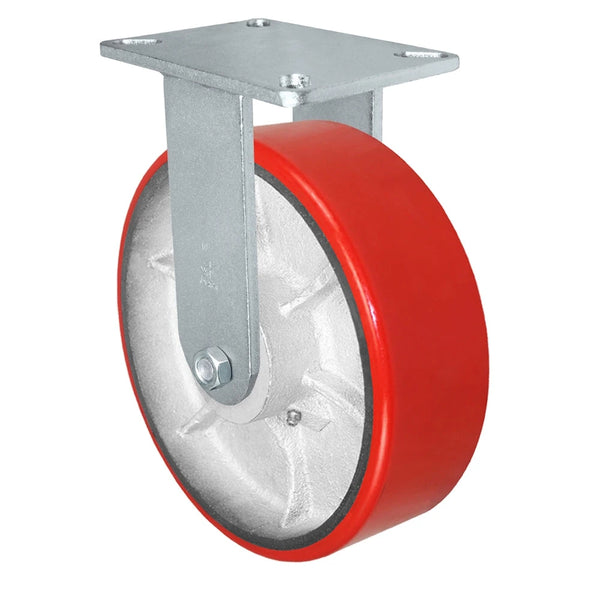

Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Steel Rigid Caster - 3000 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
10" x 3" Polyurethane on Steel Rigid Caster – 3000 lb
Part # 90-R-1030-PU
from $504.00
Volume pricing available
PolyurethanePlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Polyurethane on Steel Rigid...
Shop Product
