Rubber Casters

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-5/8Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 600 lb
4 x 4-1/2 inch top-plate casters for chemical, food-contact, and washdown carts. Expect wheel diameters 4, 5, 6, 8 in, nylon and rubber treads, and capacities 400 to 600 lb. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

600 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 8" x 2" Rubber on Glass-filled Nylon Swivel Caster - 600 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
8" x 2" Rubber on Glass-filled Nylon Swivel Caster – 600 lb · DuraStar 30 Series
Part # 30-S-820-RN-03
from $50.00
Volume pricing available
NylonPlate
Load rating
600 lbs
Diameter 8"
Capacity 600 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 8" x 2" Rubber on Glass-filled Nylon...
Shop Product
550 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 6" x 2" Rubber on Glass-filled Nylon Swivel Caster - 550 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
6" x 2" Rubber on Nylon Swivel Caster – 550 lb
Part # 30-S-620-RN-03
from $49.00
Volume pricing available
NylonPlate
Load rating
550 lbs
Diameter 6"
Capacity 550 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 6" x 2" Rubber on Glass-filled Nylon...
Shop Product
450 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 5" x 2" Rubber on Glass-filled Nylon Swivel Caster - 450 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
5" x 2" Rubber on Glass-filled Nylon Swivel Caster – 450 lb · DuraStar 30 Series
Part # 30-S-520-RN-03
from $46.00
Volume pricing available
NylonPlate
Load rating
450 lbs
Diameter 5"
Capacity 450 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 5" x 2" Rubber on Glass-filled Nylon...
Shop Product
400 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 4" x 2" Rubber on Glass-filled Nylon Swivel Caster - 400 lb Capacity, 4 x 4-1/2 Top Plate Durastar
Ships in 1-3 Business Days
4" x 2" Rubber on Glass-filled Nylon Swivel Caster – 400 lb · DuraStar 30 Series
Part # 30-S-420-RN-03
from $41.00
Volume pricing available
NylonPlate
Load rating
400 lbs
Diameter 4"
Capacity 400 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 4" x 2" Rubber on Glass-filled Nylon...
Shop Product
600 lbs
TieredPricing

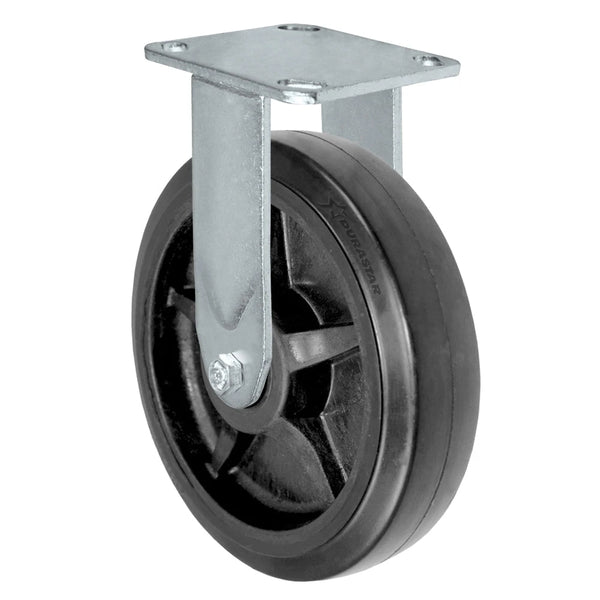

Durastar Medium Heavy Duty 30 Series - 8" x 2" Rubber on Glass-filled Nylon Rigid Caster - 600 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
8" x 2" Rubber on Glass-filled Nylon Rigid Caster – 600 lb
Part # 30-R-820-RN-03
from $49.00
Volume pricing available
NylonPlate
Load rating
600 lbs
Diameter 8"
Capacity 600 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 8" x 2" Rubber on Glass-filled Nylon...
Shop Product
550 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 6" x 2" Rubber on Glass-filled Nylon Rigid Caster - 550 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
6" x 2" Rubber on Nylon Rigid Caster – 550 lb
Part # 30-R-620-RN-03
from $48.00
Volume pricing available
NylonPlate
Load rating
550 lbs
Diameter 6"
Capacity 550 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 6" x 2" Rubber on Glass-filled Nylon...
Shop Product
450 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 5" x 2" Rubber on Glass-filled Nylon Rigid Caster - 450 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options Durastar
Ships in 1-3 Business Days
5" x 2" Rubber on Glass-filled Nylon Rigid Caster – 450 lb · DuraStar 30 Series
Part # 30-R-520-RN-03
from $46.00
Volume pricing available
NylonPlate
Load rating
450 lbs
Diameter 5"
Capacity 450 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 5" x 2" Rubber on Glass-filled Nylon...
Shop Product
400 lbs
TieredPricing
Durastar Medium Heavy Duty 30 Series - 4" x 2" Rubber on Glass-filled Nylon Rigid Caster - 400 lb Capacity, 4 x 4-1/2 Top Plate Durastar
Ships in 1-3 Business Days
4" x 2" Rubber on Glass-filled Nylon Rigid Caster – 400 lb · DuraStar 30 Series
Part # 30-R-420-RN-03
from $40.00
Volume pricing available
NylonPlate
Load rating
400 lbs
Diameter 4"
Capacity 400 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 30 Series - 4" x 2" Rubber on Glass-filled Nylon...
Shop Product
