DuraStar S30 Series Stainless Steel Casters · Up to 600 lb · 4"–8" · Nylon

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 600 lb
30 Series nylon, rubber, and steel casters sized for chemical, food-contact, and washdown carts. You will see top plates around 4 x 4-1/2, wheel diameters 4, 5, 6, 8 in, and nylon, rubber, and steel treads across the SKUs listed below. Replace worn corners in matched sets when possible so the cart tracks straight under load. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

600 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 8" x 2" Rubber on Glass-filled Nylon Swivel Caster - 600 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
8" x 2" Rubber on Nylon Swivel Stainless Caster – 600 lb · DuraStar S30 Series
Part # S30-S-820-RN-03
from $58.00
Volume pricing available
NylonPlate
Load rating
600 lbs
Diameter 8"
Capacity 600 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 8" x 2" Rubber on Glass-filled Nylon...
Shop Product
550 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 6" x 2" Rubber on Glass-filled Nylon Swivel Caster - 550 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
6" x 2" Rubber on Nylon Swivel Stainless Caster – 550 lb
Part # S30-S-620-RN-03
from $55.00
Volume pricing available
NylonPlate
Load rating
550 lbs
Diameter 6"
Capacity 550 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 6" x 2" Rubber on Glass-filled Nylon...
Shop Product
450 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 5" x 2" Rubber on Glass-filled Nylon Swivel Caster - 450 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
5" x 2" Rubber on Nylon Swivel Stainless Caster – 450 lb · DuraStar S30 Series
Part # S30-S-520-RN-03
from $54.00
Volume pricing available
NylonPlate
Load rating
450 lbs
Diameter 5"
Capacity 450 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 5" x 2" Rubber on Glass-filled Nylon...
Shop Product
400 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 4" x 2" Rubber on Glass-filled Nylon Swivel Caster - 400 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
4" x 2" Rubber on Nylon Swivel Stainless Caster – 400 lb · DuraStar S30 Series
Part # S30-S-420-RN-03
from $52.00
Volume pricing available
NylonPlate
Load rating
400 lbs
Diameter 4"
Capacity 400 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 4" x 2" Rubber on Glass-filled Nylon...
Shop Product
600 lbs
TieredPricing

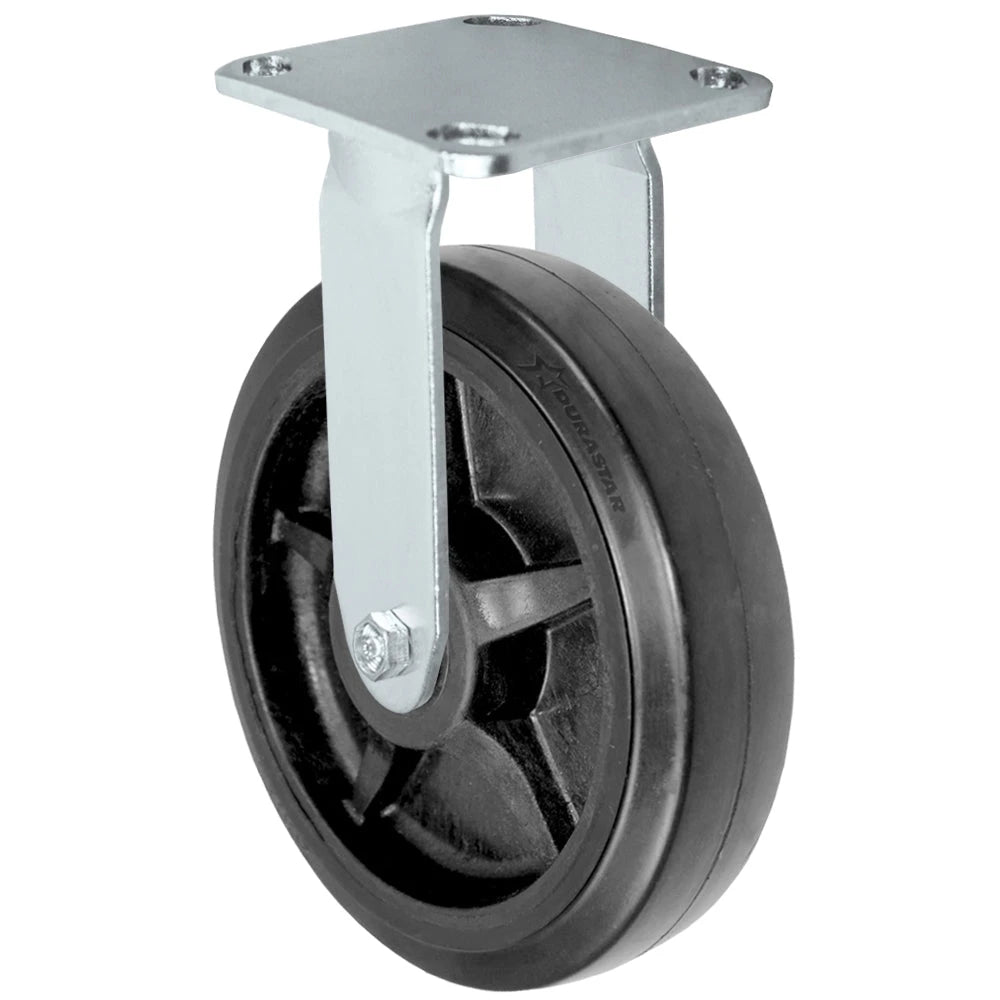

Durastar Medium Heavy Duty S30 Series - 8" x 2" Rubber on Glass-filled Nylon Rigid Caster - 600 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
8" x 2" Rubber on Nylon Rigid Stainless Caster – 600 lb · DuraStar S30 Series
Part # S30-R-820-RN-03
from $55.00
Volume pricing available
NylonPlate
Load rating
600 lbs
Diameter 8"
Capacity 600 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 8" x 2" Rubber on Glass-filled Nylon...
Shop Product
550 lbs
TieredPricing
Durastar Medium Heavy Duty S30 Series - 6" x 2" Rubber on Glass-filled Nylon Rigid Caster - 550 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
6" x 2" Rubber on Nylon Rigid Stainless Caster – 550 lb
Part # S30-R-620-RN-03
from $53.00
Volume pricing available
NylonPlate
Load rating
550 lbs
Diameter 6"
Capacity 550 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 6" x 2" Rubber on Glass-filled Nylon...
Shop Product
450 lbs
TieredPricing

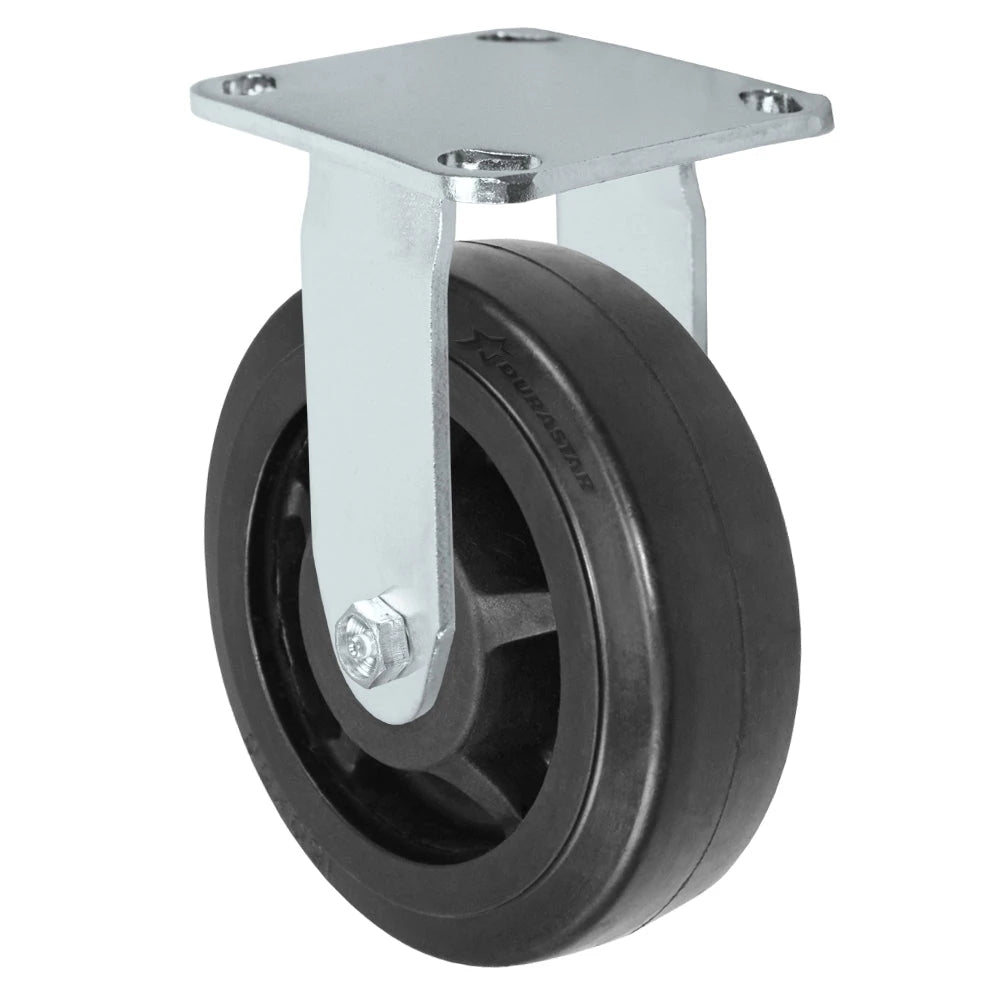

Durastar Medium Heavy Duty S30 Series - 5" x 2" Rubber on Glass-filled Nylon Rigid Caster - 450 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
5" x 2" Rubber on Nylon Rigid Stainless Caster – 450 lb · DuraStar S30 Series
Part # S30-R-520-RN-03
from $52.00
Volume pricing available
NylonPlate
Load rating
450 lbs
Diameter 5"
Capacity 450 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 5" x 2" Rubber on Glass-filled Nylon...
Shop Product
400 lbs
TieredPricing

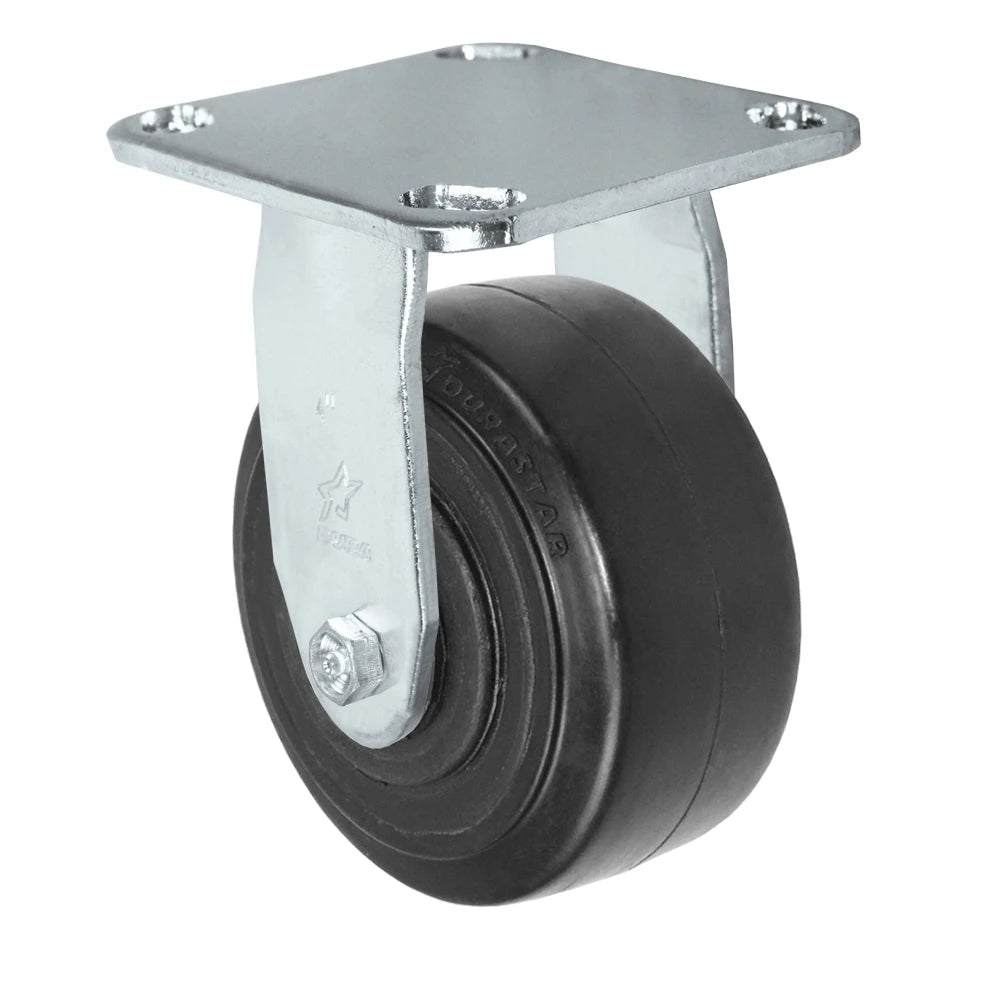

Durastar Medium Heavy Duty S30 Series - 4" x 2" Rubber on Glass-filled Nylon Rigid Caster - 400 lb Capacity, & 4" x 4-1/2" Stainless Top Plate Durastar
Ships in 1-3 Business Days
4" x 2" Rubber on Nylon Rigid Stainless Caster – 400 lb
Part # S30-R-420-RN-03
from $49.00
Volume pricing available
NylonPlate
Load rating
400 lbs
Diameter 4"
Capacity 400 lbs
Wheel Nylon
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty S30 Series - 4" x 2" Rubber on Glass-filled Nylon...
Shop Product
