Single-Flanged Track Wheels · 2,000 to 4,750 lb · Cast & Ductile Iron

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

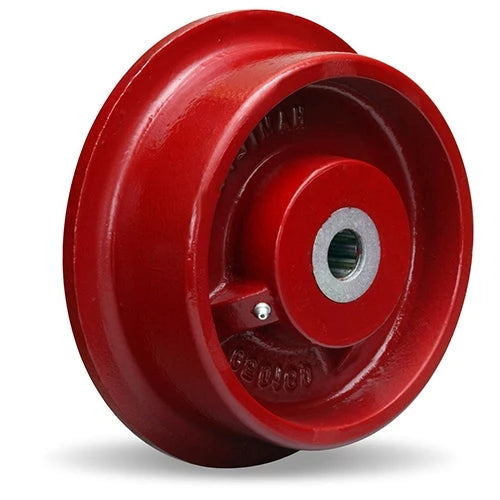

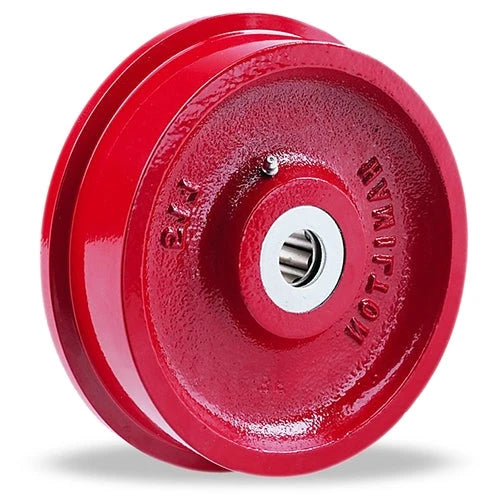

These single flanged track wheels ride on flat rail or angle track for transfer carts, gantries, doors, and rail guided equipment. Wheels in this collection range from 2,000 to 4,750 lb per wheel. Hamilton WFT models in cast iron and forged steel make up the aisle, with roller and tapered bearings. The single flange keeps the wheel on the rail on one side. Use these on rail only, not on open plant floor. Match tread width to the rail head, then match the bore, hub length, and flange height before you order. Forged steel holds up better under shock and heavy repeat loads. Capacities below are per wheel unless a listing says set. Confirm the load rating printed on the title before you order. Read the listing for the exact wheel size, overall height, and mount shown. Measure the old wheel or caster before you buy. Track aisle: track wheels. V-groove aisle: v-groove wheels.

Materials

Wheel	Listed ratings	Notes
Cast iron	2,500 to 3,750 lb	Hard and economical; listed -30 to 320°F or up to 800°F
Ductile iron	4,750 lb	Tougher than gray cast iron under impact
Forged steel	3,200 lb	Best for shock loads
Nylast nylon	2,000 lb	Quieter and easier on the rail

From Hamilton product titles and fields [S1].

Laying out single flange wheels

Each single flange wheel guides on one side of the rail. Set the wheels so the flanges sit on the inside or the outside of both rails, never one of each, or the car will bind. Allow a little side clearance between flange and rail so the car does not climb the rail in curves or uneven track.

Ordering

Match the bore to your axle. Bores here include 3/4, 7/8, 1, 1-1/4, 1-1/2 and 1-15/16 in.
Match tread width to the rail head and leave room for the flange.

All flanged wheels: flanged track wheels.

Single flanged wheel questions

What is a single flanged track wheel?

A wheel with one raised lip that guides it along one side of a flat rail.

How much do these wheels carry?

2,000 to 4,750 lb per wheel, depending on material and size.

What bores are available?

Listed bores include 3/4, 7/8, 1, 1-1/4, 1-1/2 and 1-15/16 in.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
