5" x 1-1/4" Polyurethane Casters - Stainless R

Diameter: 3, 4, 5 inTread: 1-1/4 inCapacity: up to 350 lb
5" x 1-1/4" Polyurethane Casters for warehouse carts on epoxy and smooth concrete. You will see wheel diameters 3, 4, 5 in, polyurethane and stainless treads, and plate-mount frames across the SKUs listed below. Harder poly rolls easier on smooth epoxy; softer poly cushions vibration on uneven slabs. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

350 lbs
TieredPricing

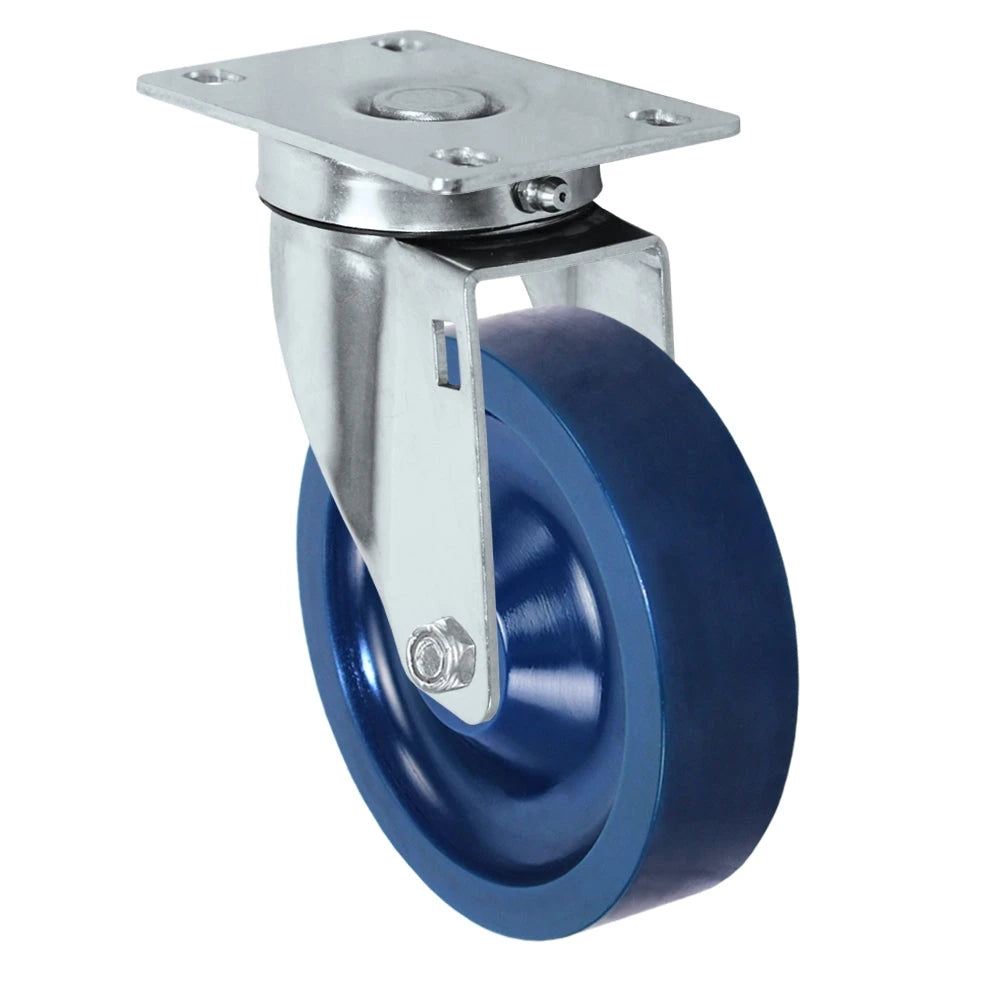

Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Solid Polyurethane Swivel Caster - 350 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Solid Polyurethane Swivel Stainless Caster – 350 lb
Part # S24-S-514-SPU-83
from $76.00
Volume pricing available
Solid PolyurethanePlate
Load rating
350 lbs
Diameter 5"
Capacity 350 lbs
Wheel Solid Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Solid Polyurethane - 350...
Shop Product
350 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 4" x 1-1/4" Solid Blue Polyurethane - 350 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
S24 4" x 1-1/4" Polyurethane Stainless Caster – 350 lb
Part # S24-S-414-SPU-83
from $73.00
Volume pricing available
PolyurethanePlate
Load rating
350 lbs
Diameter 4"
Capacity 350 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 4" x 1-1/4" Solid Blue Polyurethane Caster...
Shop Product
300 lbs
TieredPricing

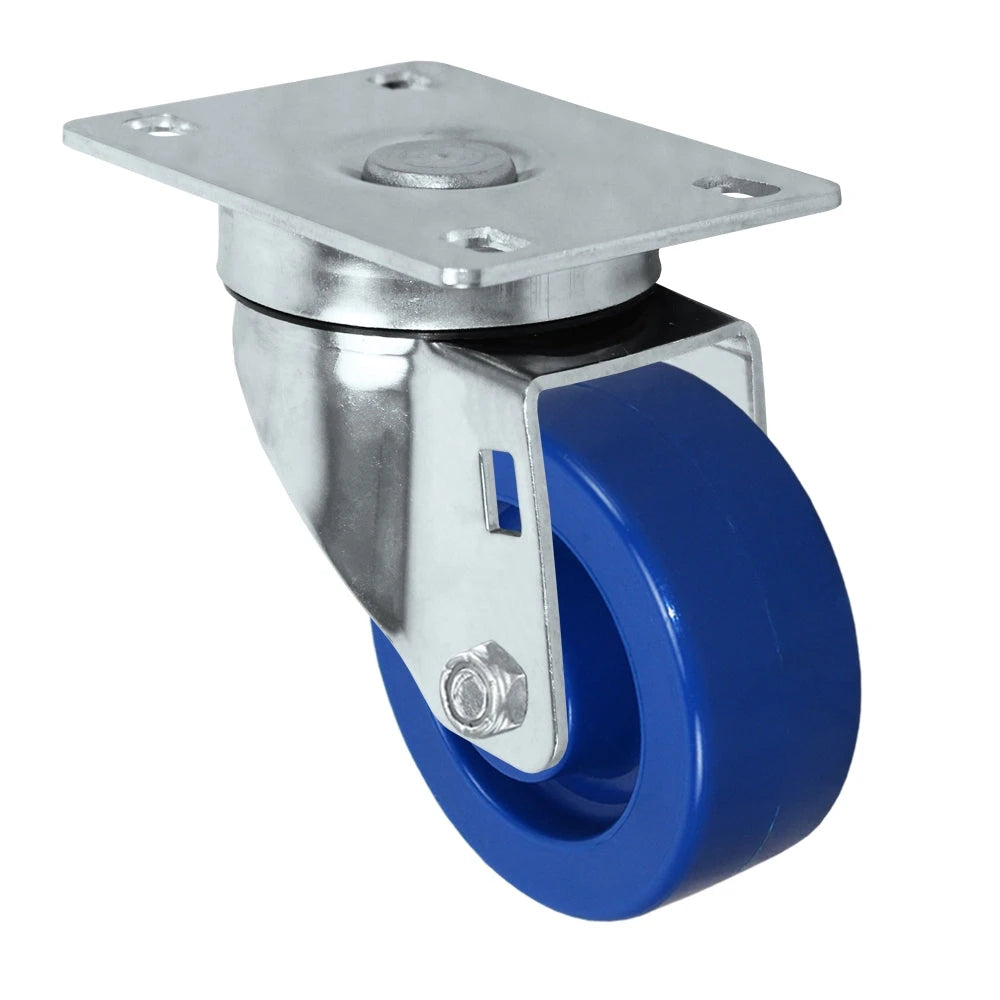

Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Solid Blue Polyurethane - 300 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Blue Polyurethane Stainless Caster – 300 lb
Part # S24-S-314-SPU-83
from $68.00
Volume pricing available
Solid PolyurethanePlate
Load rating
300 lbs
Diameter 3"
Capacity 300 lbs
Wheel Solid Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Solid Blue Polyurethane Caster...
Shop Product
350 lbs
TieredPricing

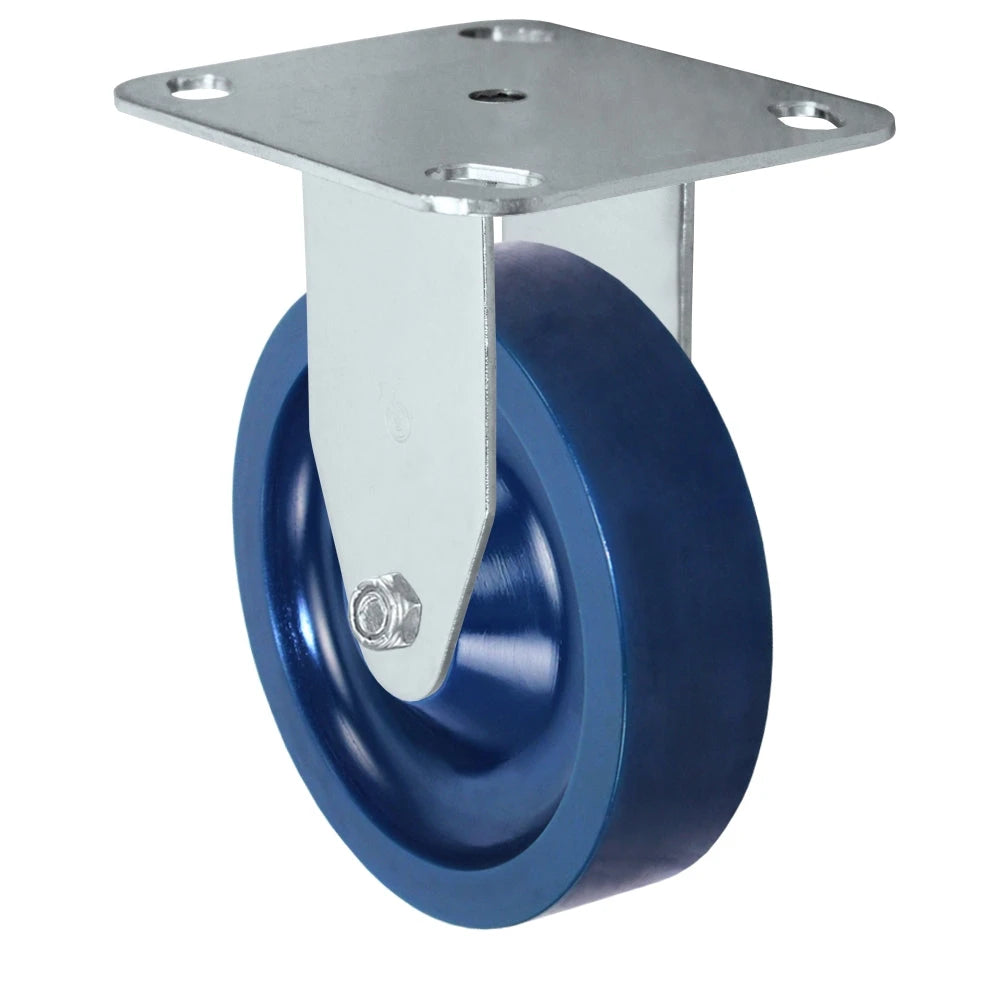

Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Solid Polyurethane Rigid Caster - 350 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Solid Polyurethane Rigid Stainless Caster – 350 lb
Part # S24-R-514-SPU-83
from $75.00
Volume pricing available
Solid PolyurethanePlate
Load rating
350 lbs
Diameter 5"
Capacity 350 lbs
Wheel Solid Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 5" x 1-1/4" Solid Polyurethane - 350...
Shop Product
350 lbs
TieredPricing

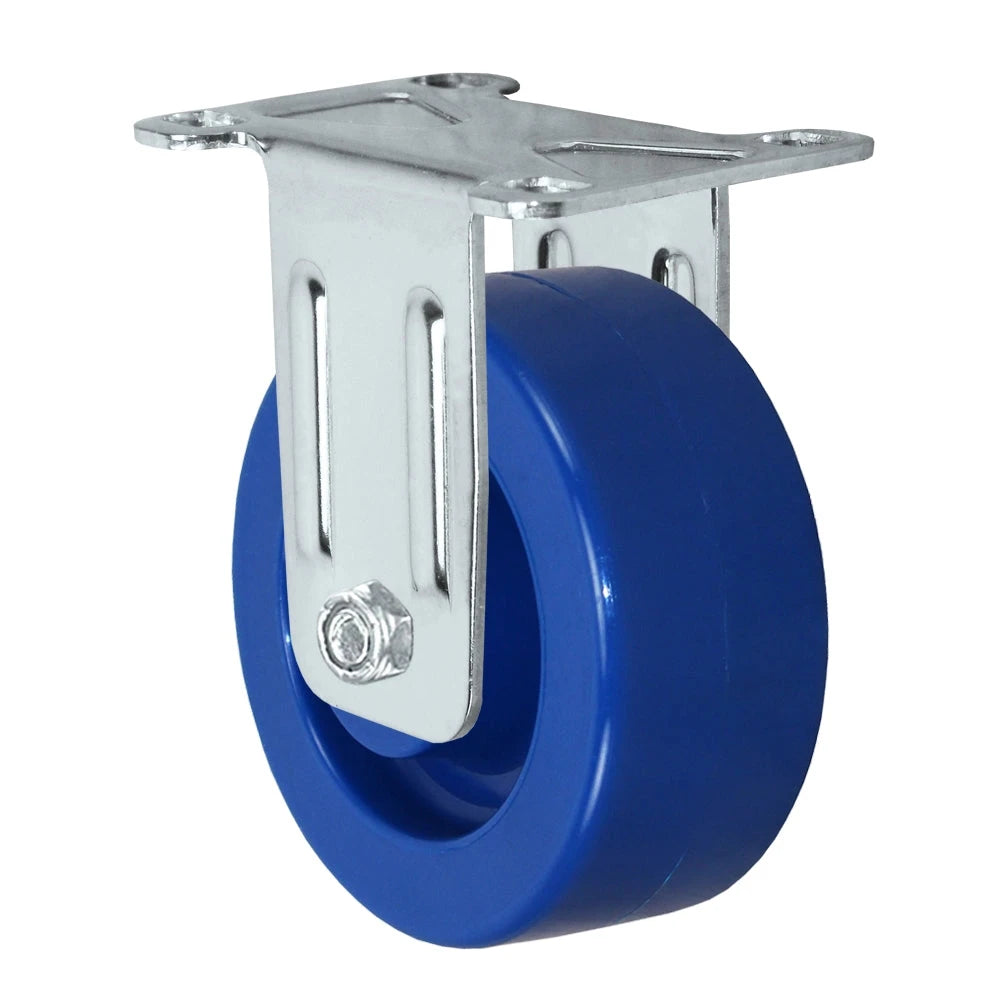

Durastar Light Medium Duty S24 Series - 4" x 1-1/4" Solid Blue Polyurethane Rigid Caster - 350 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
S24 4" x 1-1/4" Polyurethane Rigid Caster – 350 lb
Part # S24-R-414-SPU-83
from $72.00
Volume pricing available
PolyurethanePlate
Load rating
350 lbs
Diameter 4"
Capacity 350 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 4" x 1-1/4" Solid Blue Polyurethane Rigid...
Shop Product
300 lbs
TieredPricing
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Solid Blue Polyurethane Rigid Caster - 300 lb Capacity, Choose Stainless Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyurethane Rigid Stainless Caster – 300 lb
Part # S24-R-314-SPU-83
from $68.00
Volume pricing available
Solid PolyurethanePlate
Load rating
300 lbs
Diameter 3"
Capacity 300 lbs
Wheel Solid Polyurethane
Mount Plate
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty S24 Series - 3" x 1-1/4" Solid Blue Polyurethane Rigid...
