Hamilton Speed series casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

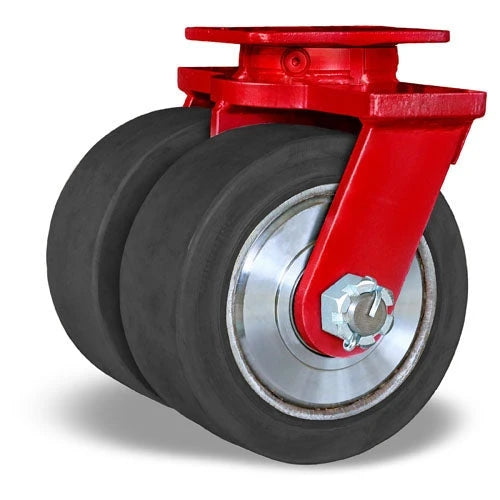

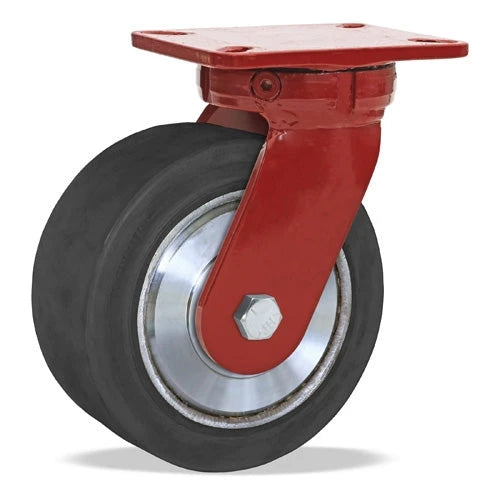

This collection holds Speed casters with polyurethane and rubber wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 2,600 to 15,000 lb per caster. Wheels in this category range from 9 up to 18 inches in diameter with 5 to 9 in tread widths. The collection includes swivel and rigid models. Kingpinless swivels hold up better under shock and repeat loads. Dual wheel casters split the load over two wheels and swivel with less effort under heavy loads. Polyurethane (poly or urethane) treads are quiet, floor safe, and resist water and many chemicals. Rubber wheels are quiet, cushion the load, and protect floors. Soft rubber or TPR is the better pick when the floor has chips or grit. Match plate size, bolt pattern, and overall height before you order. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Polyurethane aisle: polyurethane casters. Wheel hub: replacement wheels.

Hamilton Speed series casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits
Polyurethane	Steel and Cast iron	9 to 18 in	3,600 to 15,000 lb	-70°F to 175°F	quiet, floor-friendly and long wearing
Rubber	Steel	9 to 18 in	2,600 to 9,600 lb	0°F to 175°F	cushioned and quiet on finished floors

Ratings are for single casters of Hamilton Speed series casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated

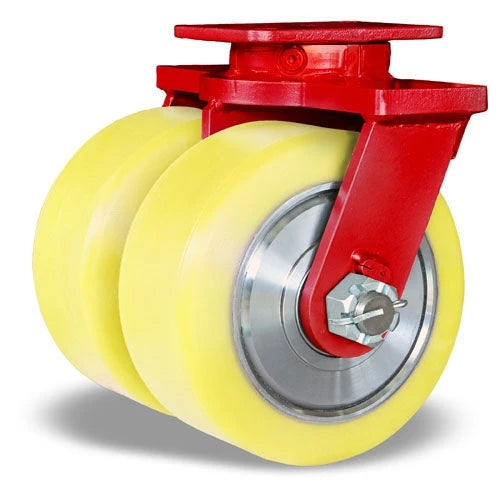

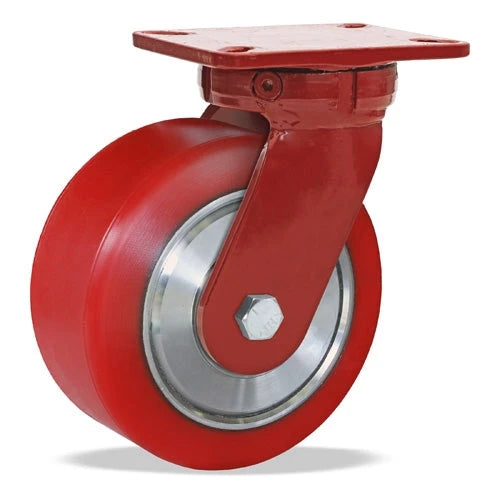

9 x 5 in	polyurethane and rubber	2,600 to 6,000 lb

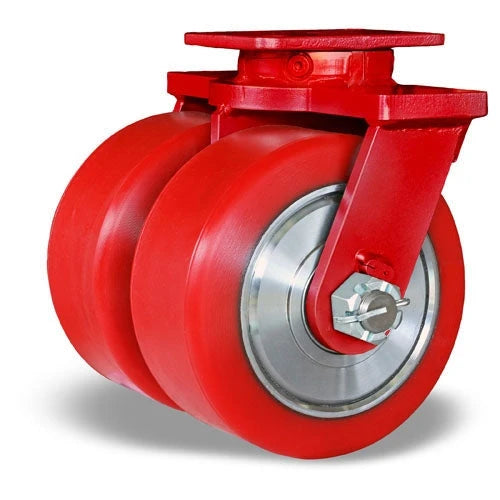

10 x 5 in	polyurethane and rubber	2,700 to 6,000 lb

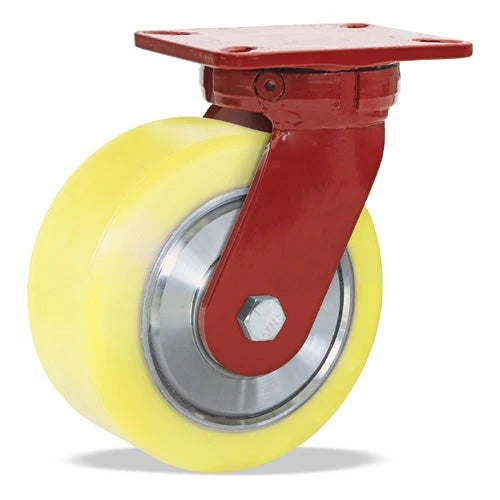

12 x 5-1/2 in	polyurethane and rubber	3,700 to 10,400 lb
13 x 5-1/2 in	polyurethane and rubber	4,000 to 11,300 lb
15 x 9 in	polyurethane and rubber	7,500 to 11,800 lb

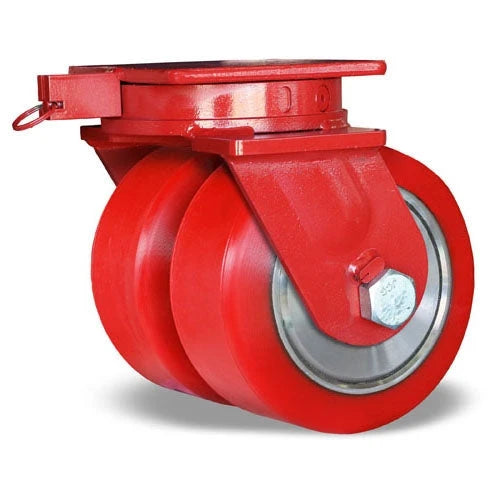

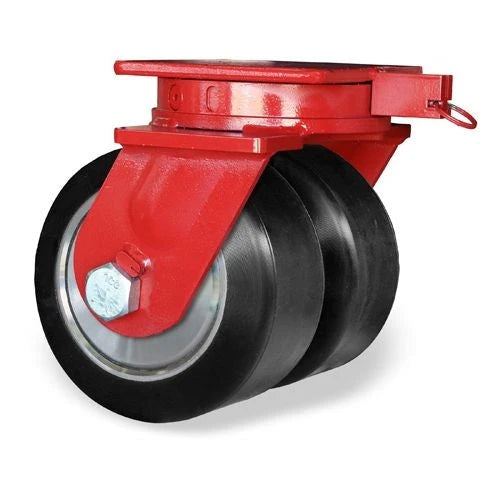

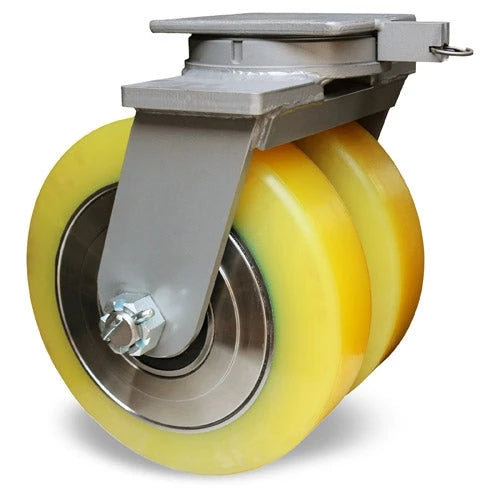

16 x 5 in	polyurethane and rubber	8,400 to 11,700 lb
16 x 7 in	polyurethane and rubber	6,200 to 9,800 lb

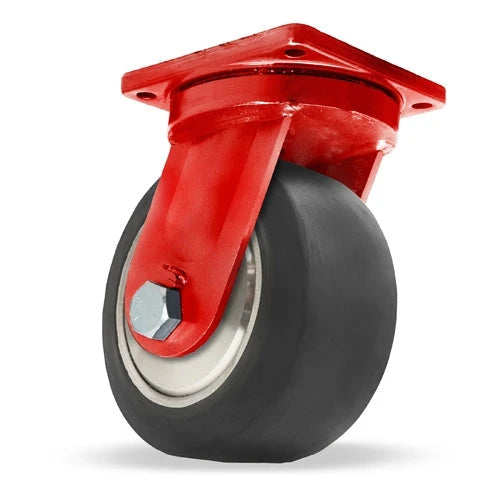

18 x 9 in	polyurethane and rubber	9,600 to 15,000 lb

Choosing Hamilton Speed series casters

Load: divide the loaded weight by three for a four-caster cart [S2]. Among Hamilton Speed series casters, a 9,600 lb caster then suits about 28,800 lb, and the strongest at 15,000 lb about 45,000 lb.
Mount: most Hamilton Speed series casters use a 8-1/2 x 8-1/2 in top plate; 5-1/4 x 7-1/4 in plates are listed too; match the bolt holes on your frame to the plate before ordering.
Floor: on Hamilton Speed series casters, polyurethane and rubber protect finished floors and run quietly; check the rating if the cart also crosses rough concrete.
Rig: rigid and swivel Hamilton Speed series casters are listed.

Related to Hamilton Speed series casters: industrial casters.

Hamilton Speed series casters questions

How much weight can Hamilton Speed series casters carry?

Single Hamilton Speed series casters are rated 2,600 to 15,000 lb; most fall between 4,800 and 9,600 lb.

What top plate do Hamilton Speed series casters use?

Most Hamilton Speed series casters use 8-1/2 x 8-1/2 in. Other plates on Hamilton Speed series casters: 5-1/4 x 7-1/4 in.

What wheel material is most common on Hamilton Speed series casters?

Polyurethane leads on Hamilton Speed series casters, rated 3,600 to 15,000 lb per caster. Among Hamilton Speed series casters, rubber is next at 2,600 to 9,600 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
