SPU

Diameter: 3 to 8 inTread: 1-1/4, 2 inCapacity: up to 1,400 lb
SPU covers bare polyurethane wheels sized for industrial caster forks. Typical builds show wheel diameters 3 to 8 in, polyurethane treads, and capacities 300 to 1,400 lb. Match bore, hub length, and overall wheel width to the fork before ordering a bare wheel. Keep diameter and tread width the same as the worn wheel to preserve overall height. These medium-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by wheel type

5 types

Wheel = wheel diameter · capacity is per wheel.

1400 lbs
TieredPricing
Durastar 8" x 2" Solid Polyurethane Wheel, 1400 lbs Capacity and 1-3/16" Plain Bore Durastar
Ships in 1-3 Business Days
8" x 2" Polyurethane Solid Wheel 1-3/16" Bore – 1400 lb
Part # 820-SPU-84
from $71.00
Volume pricing available
Solid Polyurethane
Load rating
1400 lbs
Diameter 8"
Capacity 1400 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 8" x 2" Solid Polyurethane Wheel – 1400 lbs Capacity | 1-3/16" Plain...
Shop Product
1200 lbs
TieredPricing

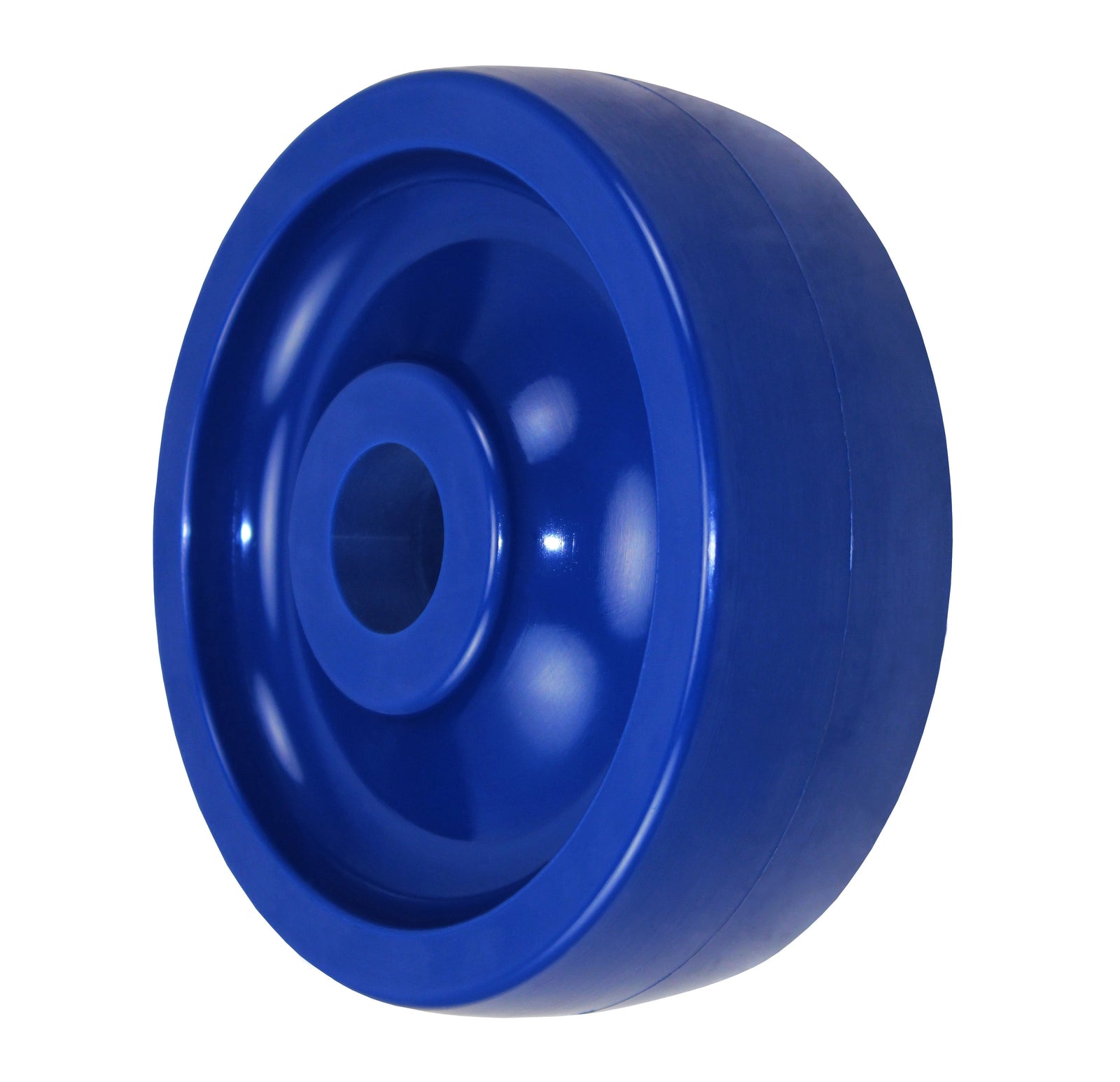

Durastar 6" x 2" Solid Polyurethane Wheel, 1200 lbs Capacity and 1-3/16" Plain Bore Durastar
Ships in 1-3 Business Days
6" x 2" Polyurethane Solid Industrial Replacement Wheel – 1200 lb
Part # 620-SPU-84
from $47.00
Volume pricing available
Solid Polyurethane
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 6" x 2" Solid Polyurethane Wheel – 1200 lbs Capacity, 1-3/16" Plain Bore...
Shop Product
1000 lbs
TieredPricing
Durastar 5" x 2" Solid Polyurethane Wheel, 1000 lbs Capacity and 1-3/16" Plain Bore Durastar
Ships in 1-3 Business Days
5" x 2" Polyurethane Solid Industrial Replacement Wheel – 1000 lb
Part # 520-SPU-84
from $46.00
Volume pricing available
Solid Polyurethane
Load rating
1000 lbs
Diameter 5"
Capacity 1000 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 5" x 2" Solid Polyurethane Wheel – 1000 lbs Capacity | 1-3/16" Plain...
Shop Product
700 lbs
TieredPricing

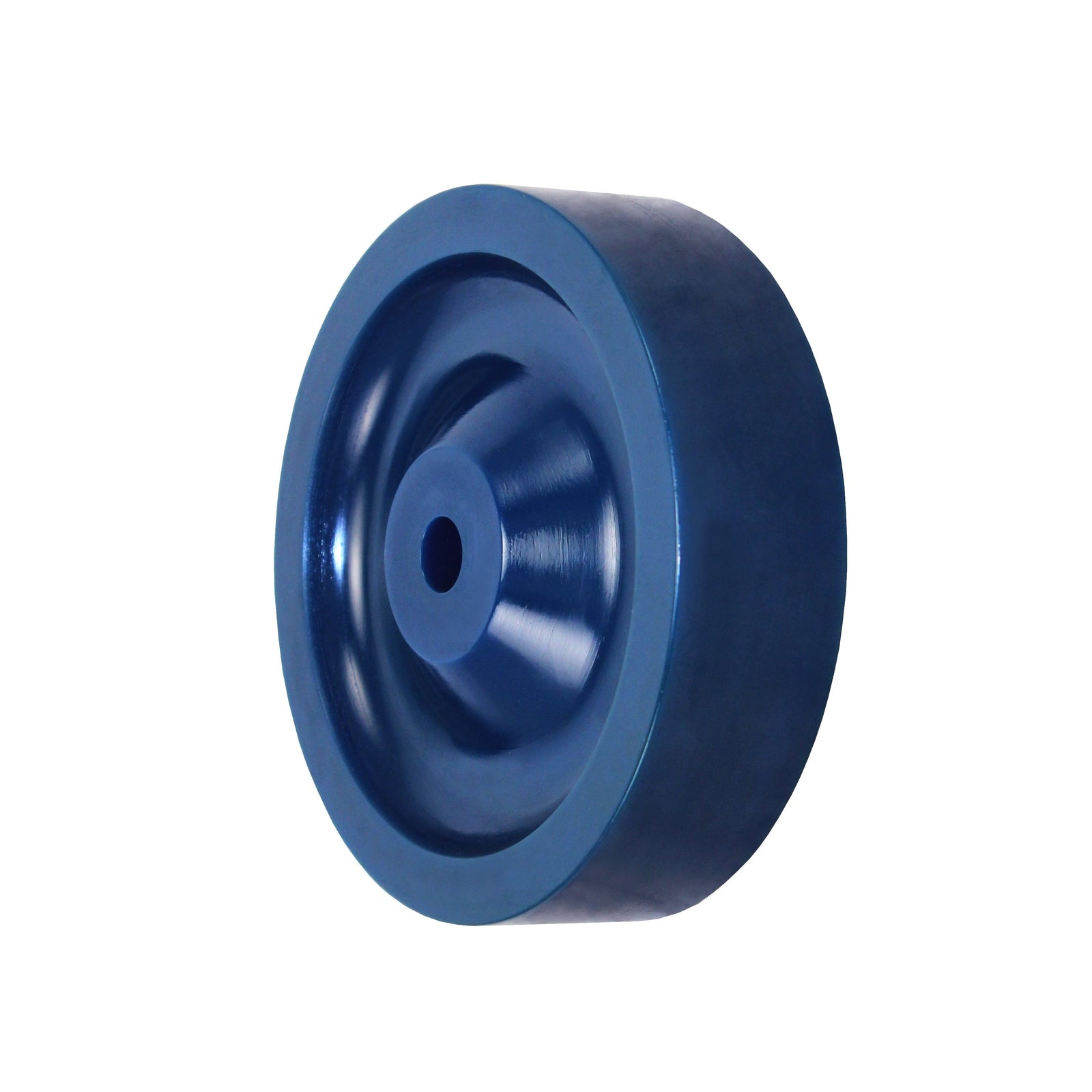

Durastar 5" x 1-1/4" Solid Polyurethane Wheel, 700 lbs Capacity and 1/2" Plain Bore Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyurethane Solid Industrial Replacement Wheel – 700 lb
Part # 514-SPU-83
from $32.00
Volume pricing available
Solid Polyurethane
Load rating
700 lbs
Diameter 5"
Capacity 700 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 1-1/4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 5" x 1-1/4" Solid Polyurethane Wheel – 700 lbs Capacity | 1/2" Plain...
Shop Product
800 lbs
TieredPricing

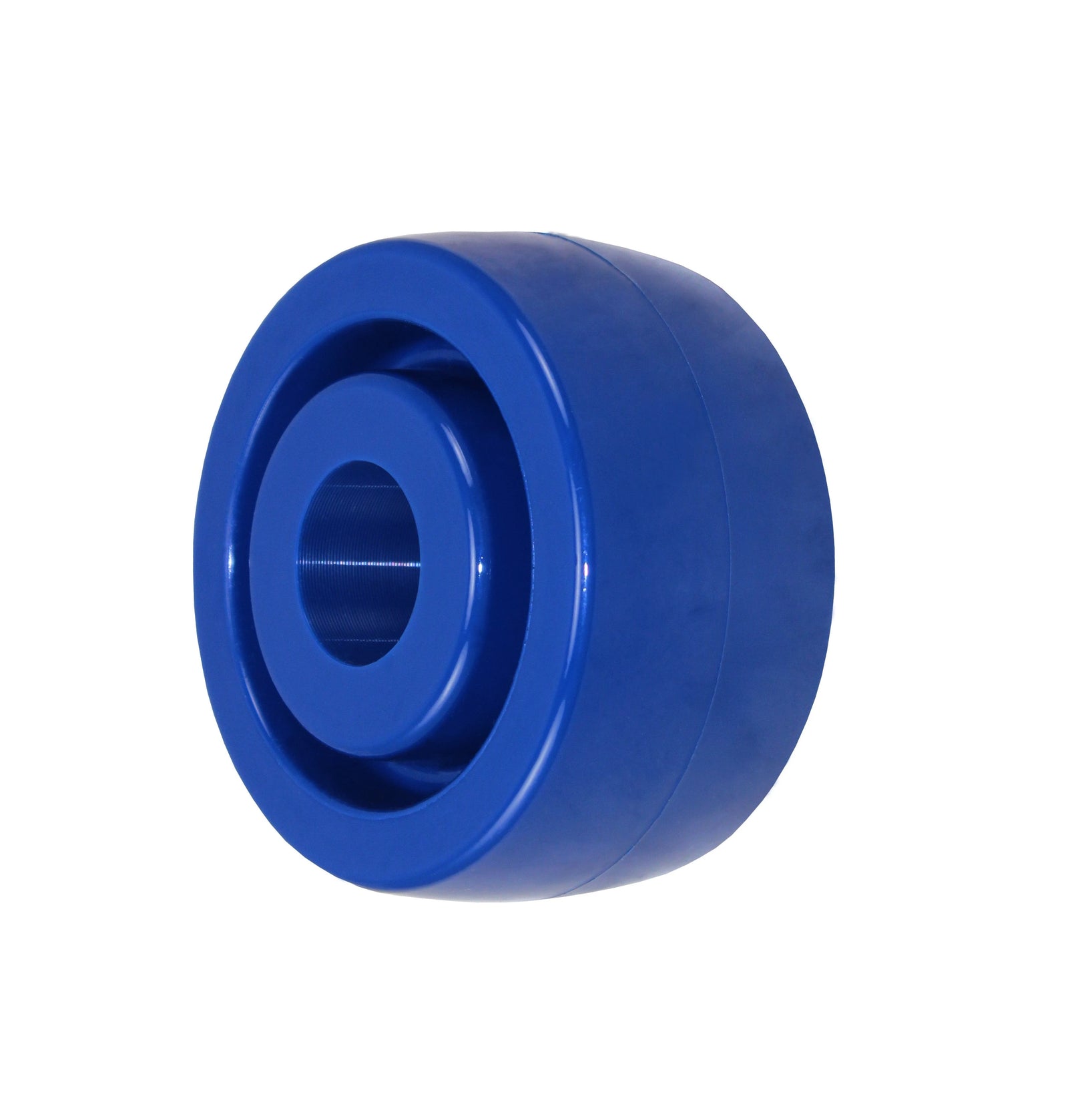

Durastar 4" x 2" Solid Polyurethane Wheel, 800 lbs Capacity and 1-3/16" Plain Bore Durastar
Ships in 1-3 Business Days
4" x 2" Polyurethane Solid Industrial Replacement Wheel – 800 lb
Part # 420-SPU-84
from $35.00
Volume pricing available
Solid Polyurethane
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 4" x 2" Solid Polyurethane Wheel – 800 lbs Capacity, 1-3/16" Plain Bore...
Shop Product
400 lbs
TieredPricing

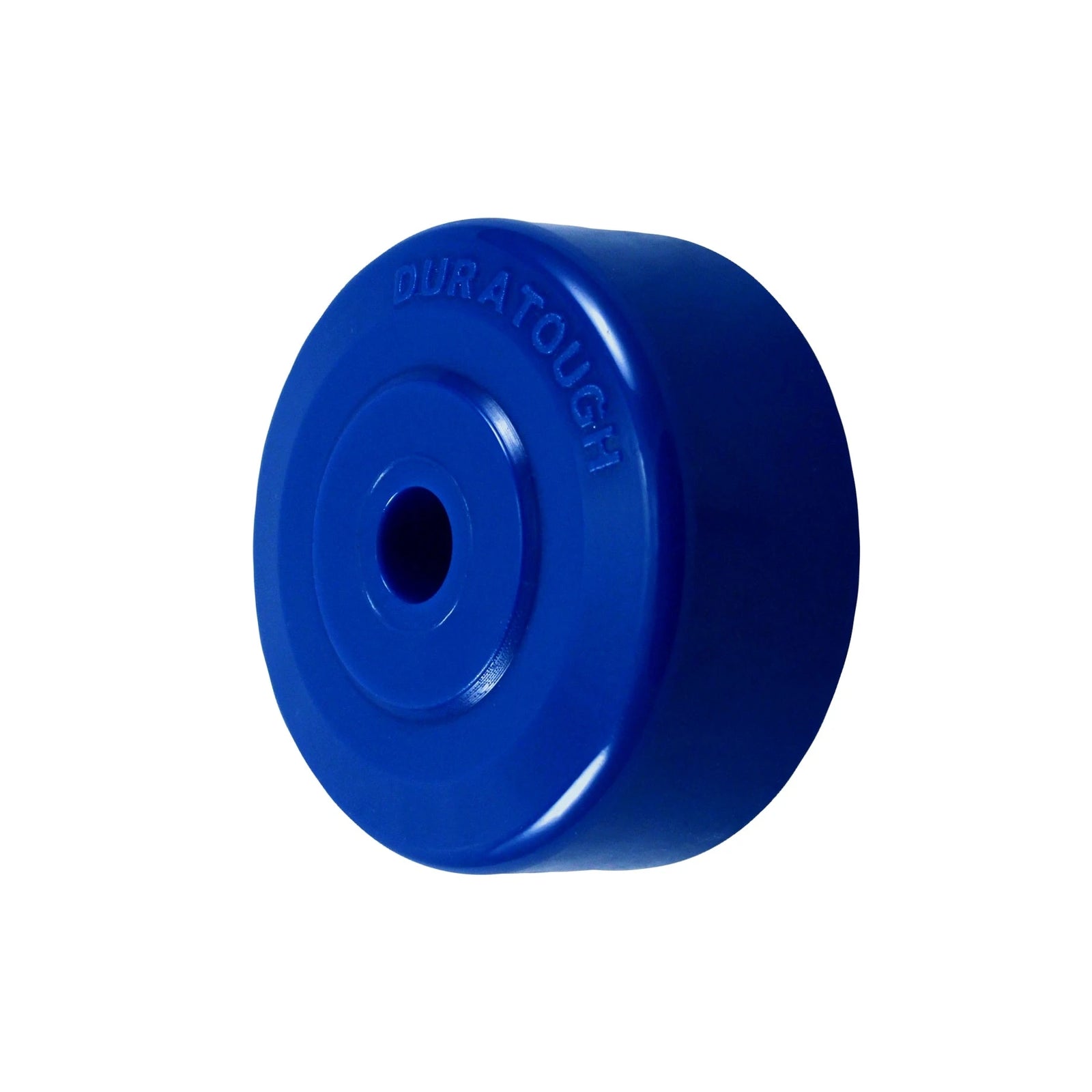

Durastar 4" x 1-1/4" Solid Polyurethane Wheel, 400 lbs Capacity and 1/2" Plain Bore Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Polyurethane Solid Wheel – 400 lb
Part # 414-SPU-83
from $24.00
Volume pricing available
Solid Polyurethane
Load rating
400 lbs
Diameter 4"
Capacity 400 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 1-1/4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 4" x 1-1/4" Solid Polyurethane Wheel – 400 lbs Capacity, 1/2" Plain Bore...
Shop Product
300 lbs
TieredPricing

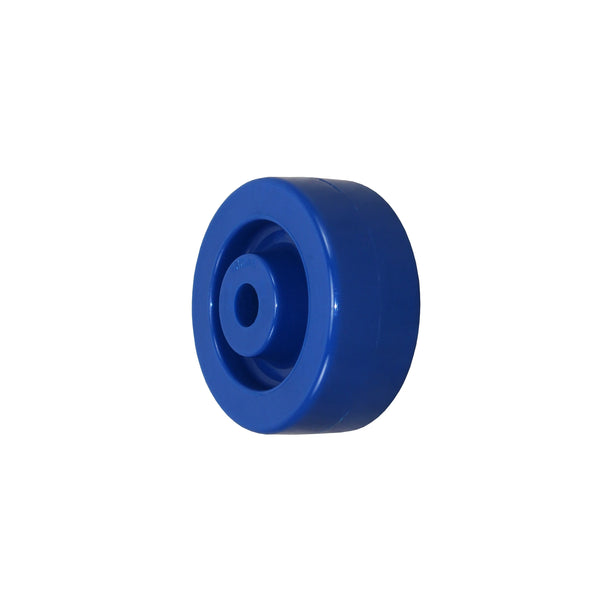

Durastar 3" x 1-1/4" Solid Polyurethane Wheel, 300 lbs Capacity and 1/2" Plain Bore Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyurethane Solid Industrial Replacement Wheel – 300 lb
Part # 314-SPU-83
from $23.00
Volume pricing available
Solid Polyurethane
Load rating
300 lbs
Diameter 3"
Capacity 300 lbs
Wheel Solid Polyurethane
More Details Less Details
Width 1-1/4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Durastar 3" x 1-1/4" Solid Polyurethane Wheel – 300 lbs Capacity, 1/2" Plain Bore...
Shop Product
