Hamilton textile casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

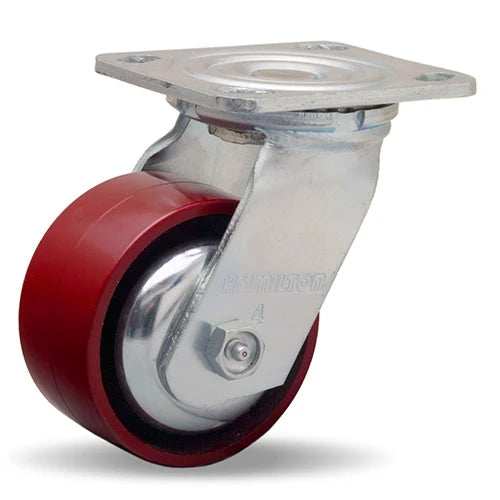

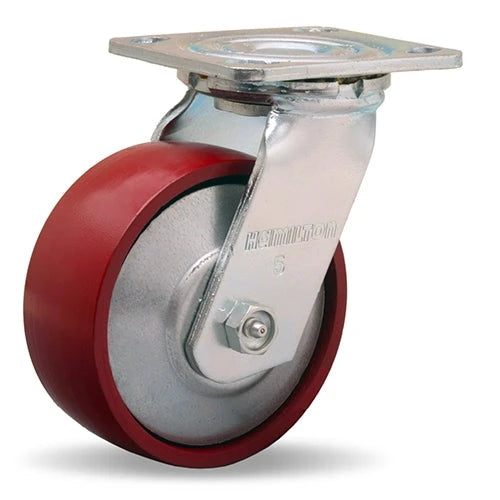

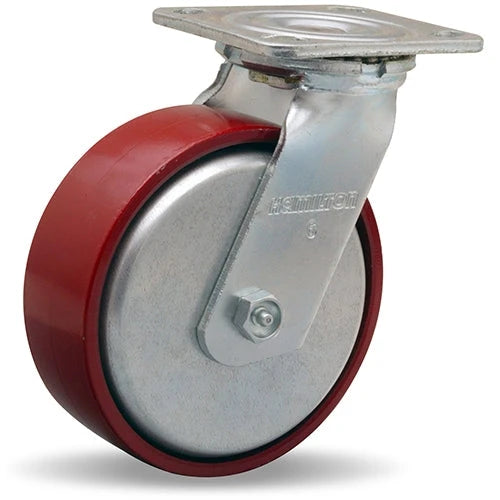

This collection holds Textile Casters with phenolic, metal and polyurethane wheels, built for shop carts, equipment, and material handling carts that move heavier loads. Casters in this collection range from 350 to 1,250 lb per caster. Wheels in this category range from 4 up to 8 inches in diameter with a 2 in tread width. The collection includes swivel and rigid models. Phenolic rolls easily on smooth floors and handles dry heat, oil, and grease, but it is not made for water or washdown. It suits warehouse carts, toolboxes, and tool carts, and it is loud on rough floors. Metal wheels roll with low effort and handle debris and heat. They are loud and can mark finished floors. Polyurethane (poly or urethane) treads are quiet, floor safe, and resist water and many chemicals. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Phenolic aisle: phenolic casters. Wheel hub: replacement wheels.

Hamilton textile casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

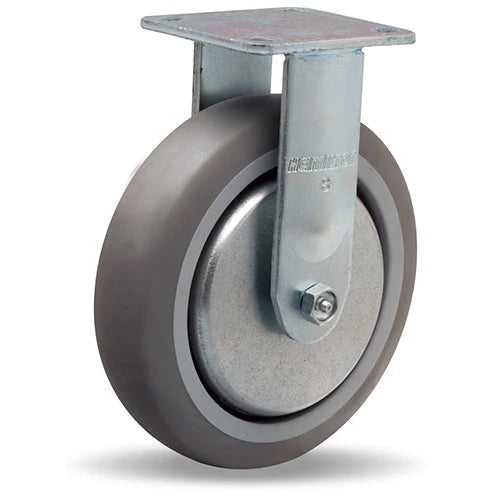

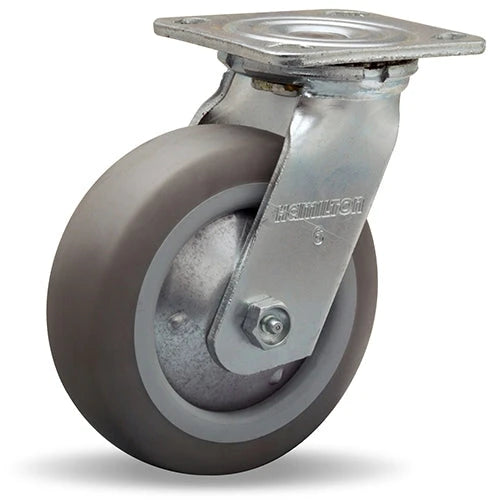

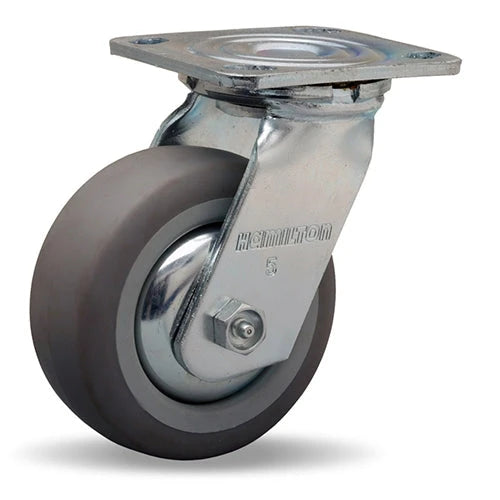

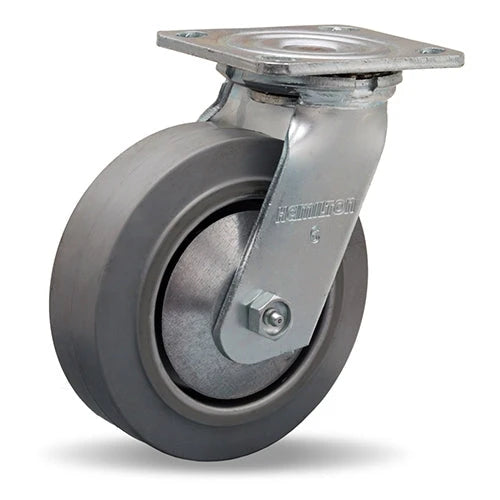

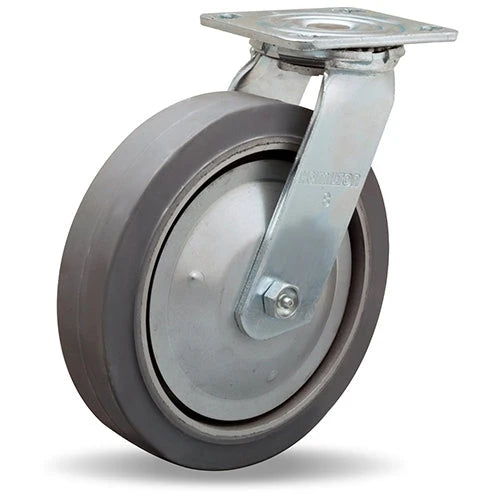

Rubber	Polyolefin and Aluminum	5, 6 and 8 in	350 to 500 lb	-40°F to 180°F	cushioned and quiet on finished floors

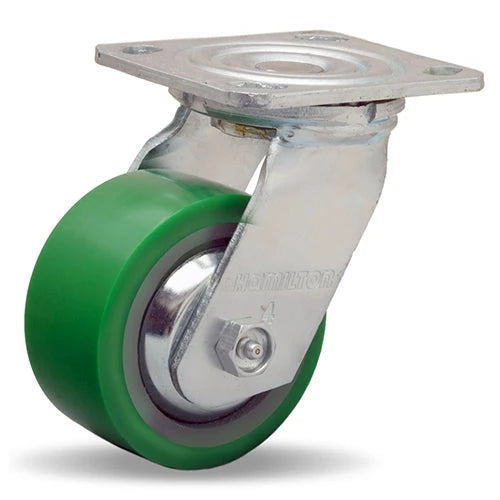

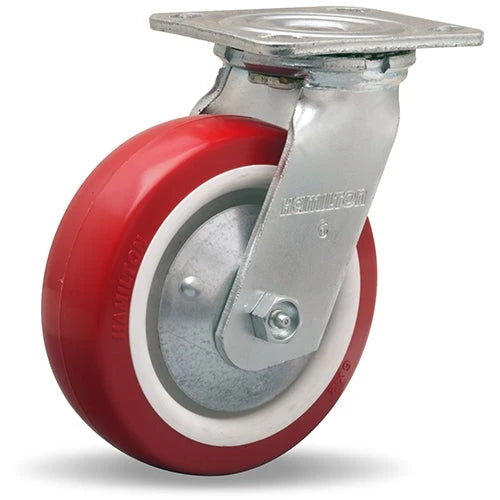

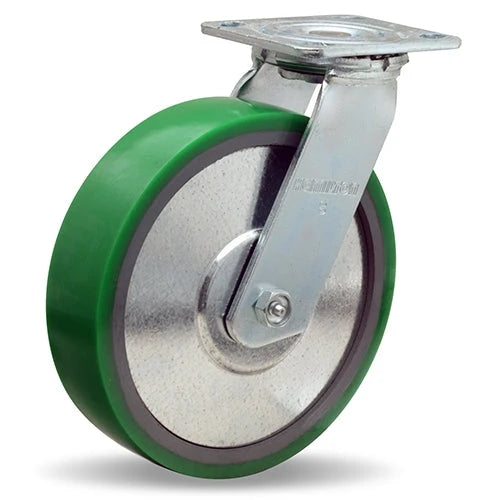

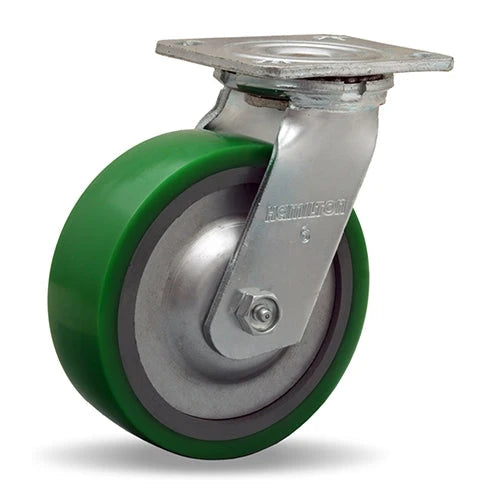

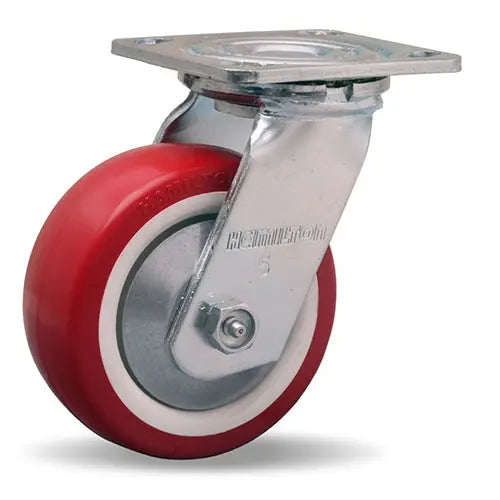

Polyurethane	Polyolefin and Cast iron	5, 6 and 8 in	600 to 1,250 lb	-30°F to 180°F	quiet, floor-friendly and long wearing

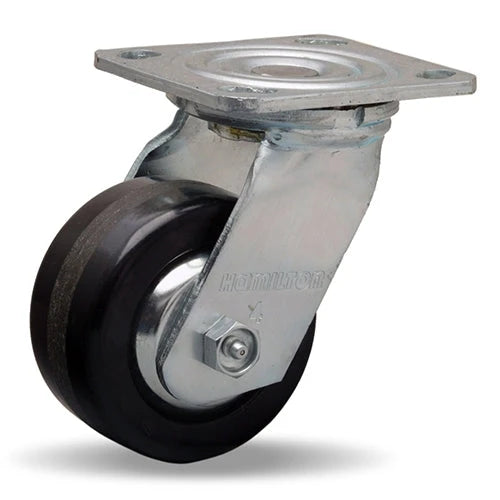

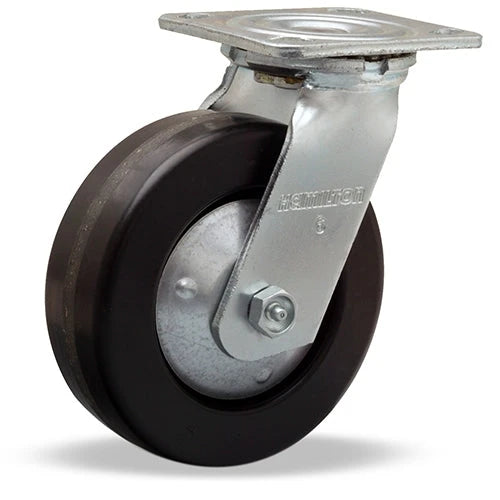

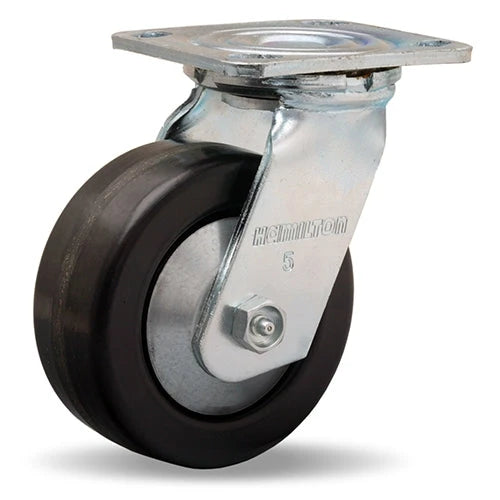

Phenolic		4, 5, 6 and 8 in	800 to 1,250 lb	Up to 250°F	hard and easy rolling on smooth, dry floors
Cast iron		4, 5, 6 and 8 in	1,000 to 1,250 lb	-40°F to 320°F	heat, chips and heavy loads on rough floors

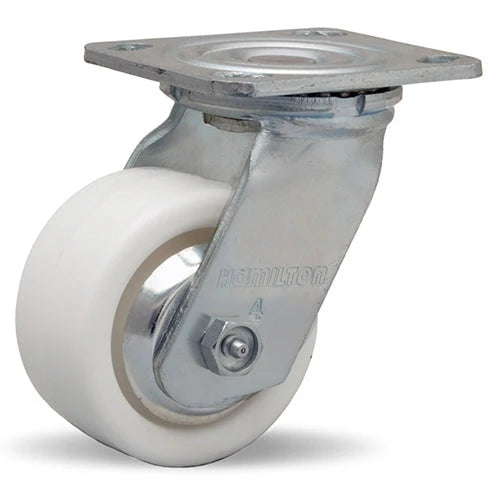

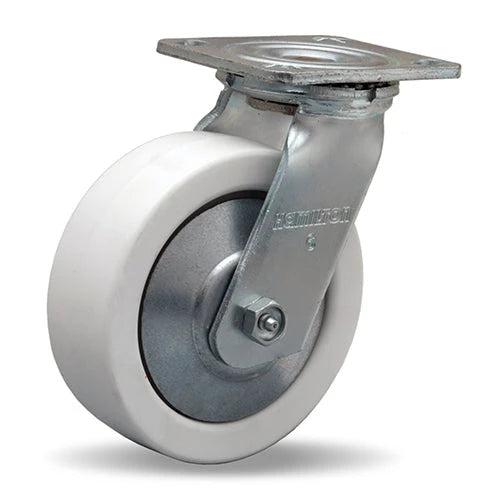

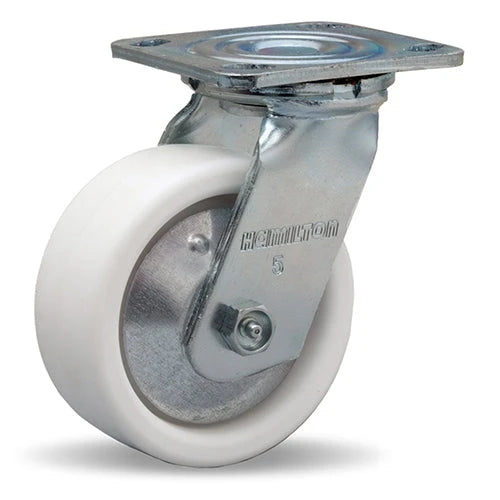

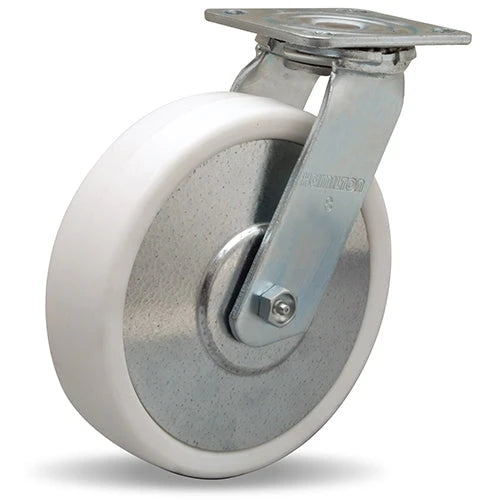

Polyolefin		4, 5, 6 and 8 in	550 to 900 lb	-20°F to 200°F	wet and chemical areas, light to medium loads

Ratings are for single casters of Hamilton textile casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
4 x 2 in	phenolic, cast iron and polyolefin	550 to 1,000 lb
5 x 2 in	rubber, phenolic and polyurethane	350 to 1,250 lb
6 x 2 in	rubber, polyurethane and phenolic	410 to 1,250 lb
8 x 2 in	rubber, polyurethane and phenolic	500 to 1,250 lb

Choosing Hamilton textile casters

Load: divide the loaded weight by three for a four-caster cart [S2]. Among Hamilton textile casters, a 1,200 lb caster then suits about 3,600 lb, and the strongest at 1,250 lb about 3,750 lb.
Mount: most Hamilton textile casters use a 4 x 4-1/2 in top plate; measure bolt hole centers on the old plate and compare.
Floor: on Hamilton textile casters, rubber and polyurethane are kinder to tile and finished floors; phenolic, cast iron and polyolefin roll easier under heavy loads on smooth concrete.
Rig: swivel and rigid Hamilton textile casters are listed.
Heat: among Hamilton textile casters, the highest listed range is -40°F to 320°F on cast iron; check the temperature field on each listing before oven or hot-room use.

Related to Hamilton textile casters: industrial casters.

Hamilton textile casters questions

How much weight can Hamilton textile casters carry?

Single Hamilton textile casters are rated 350 to 1,250 lb; most fall between 550 and 1,200 lb.

What top plate do Hamilton textile casters use?

Most Hamilton textile casters use 4 x 4-1/2 in.

What wheel material is most common on Hamilton textile casters?

Rubber leads on Hamilton textile casters, rated 350 to 500 lb per caster. Among Hamilton textile casters, polyurethane is next at 600 to 1,250 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
