The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

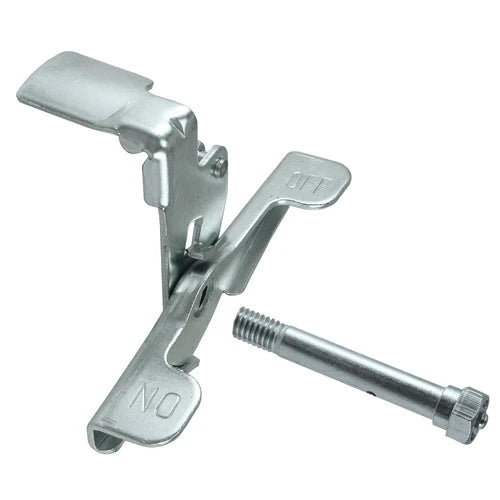

Top Lock Brake Casters

Diameter: 3 to 8 inTread: 1-1/4, 2 in

Top Lock Brake Casters for warehouse carts, racks, and everyday plant fixtures. Expect wheel diameters 3 to 8 in and plate-mount frames. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. These medium-duty options cover everyday warehouse carts, racks, and everyday plant fixtures without jumping to extreme forged series.
