All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.
Wheel = wheel diameter · capacity is per wheel.
























| Tread | Core | Wheel sizes | Rated per wheel | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyolefin | 3-1/2, 4, 5, 6 and 8 in | 240 to 500 lb | -40°F to 180°F | wet and chemical areas, light to medium loads | |
| Rubber | Polyolefin | 4, 5 and 6 in | 250 to 410 lb | -40°F to 180°F | cushioned and quiet on finished floors |
Ratings are for single wheels of Hamilton Versa-Tech wheels, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|

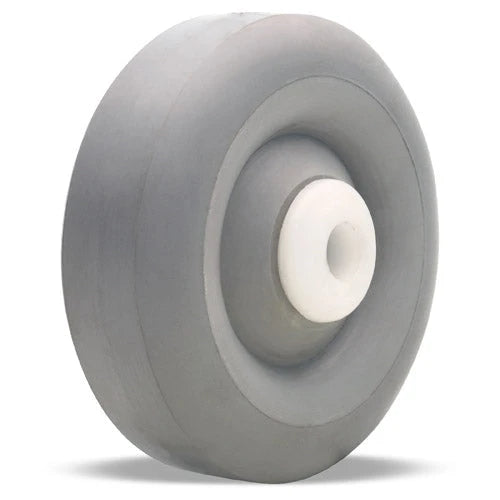

| 3-1/2 x 1-1/4 in | polyolefin | 240 lb |

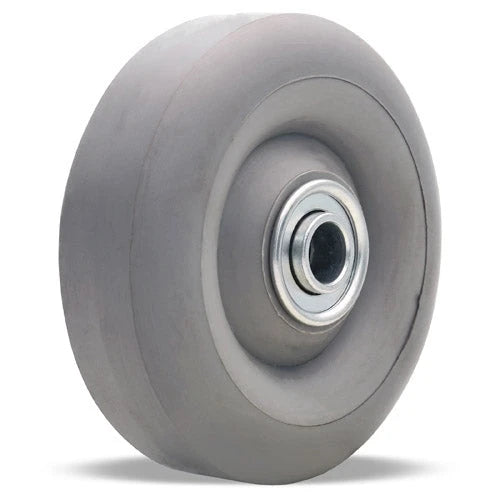

| 4 x 1-1/4 in | rubber and polyolefin | 250 to 275 lb |

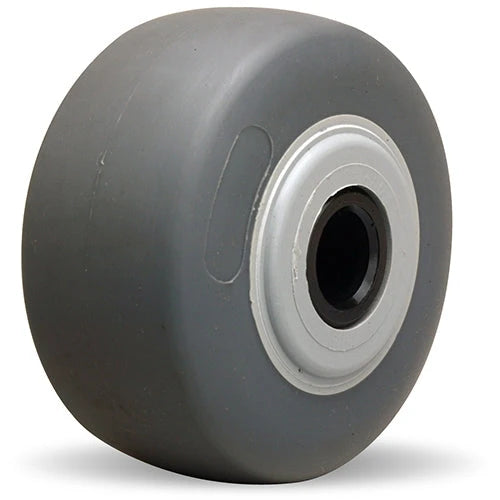

| 4 x 2 in | polyolefin | 300 lb |

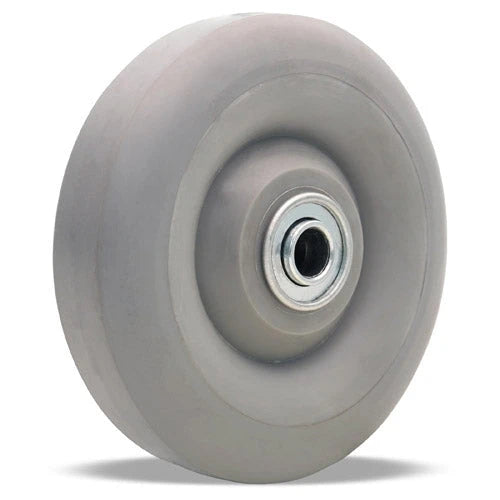

| 5 x 1-1/4 in | polyolefin and rubber | 275 lb |

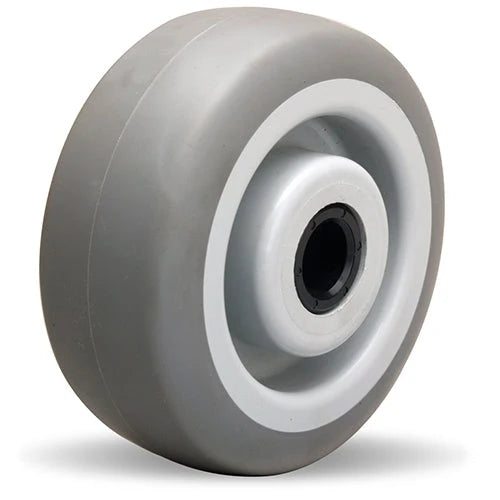

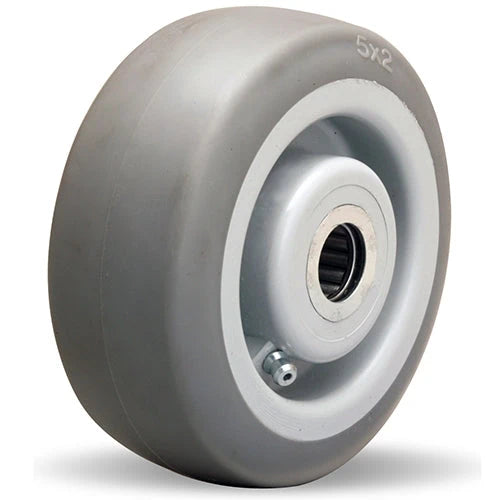

| 5 x 2 in | polyolefin | 350 lb |

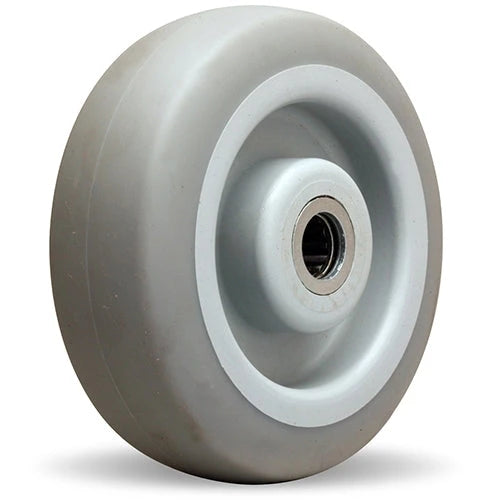

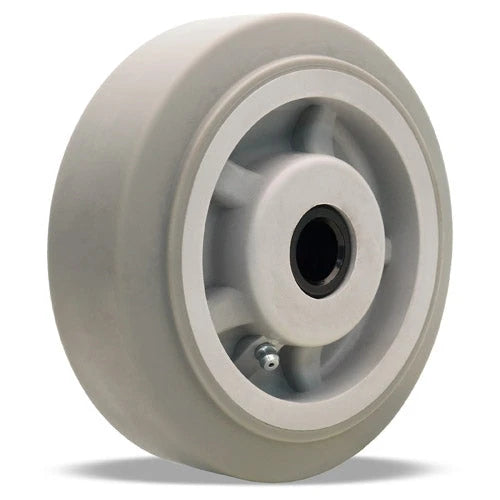

| 6 x 2 in | polyolefin and rubber | 410 lb |

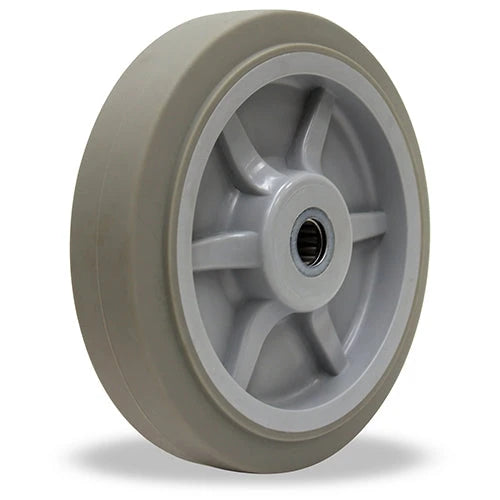

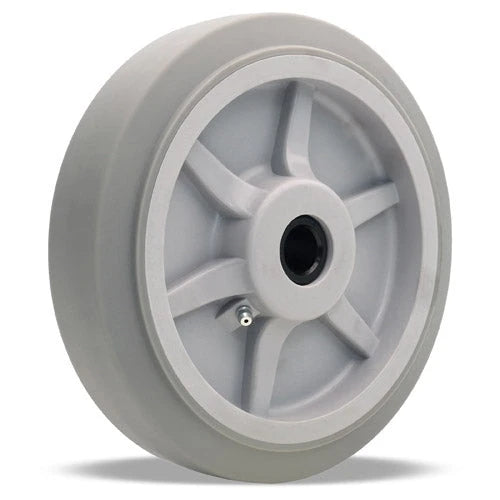

| 8 x 2 in | polyolefin | 500 lb |
Related to Hamilton Versa-Tech wheels: industrial casters, 3.5 x 1.25 in rubber wheels and 4 x 2 in rubber wheels.
Single Hamilton Versa-Tech wheels are rated 240 to 500 lb; most fall between 250 and 410 lb.
Polyolefin leads on Hamilton Versa-Tech wheels, rated 240 to 500 lb per wheel. Among Hamilton Versa-Tech wheels, rubber is next at 250 to 410 lb.
