10" x 3" Forged Steel Wheels

Diameter: 10 inTread: 3, 3-1/4, 4 inCapacity: up to 16,000 lb
This collection gathers industrial casters used on forging carts, aerospace fixtures, and multi-ton movers. You will see wheel diameters 10 in, steel treads, and capacities 2,500 to 16,000 lb across the SKUs listed below. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet.
3000 lbs
TieredPricing
Hamilton 10-Inch Diameter V-Grooved Metal Wheel - 3000 lbs Load Capacity, 3-Inch Face, 3 1/4-Inch Hub Length, 1-1/4-Inch Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 3" Metal V-Grooved Wheel – 3000 lb · Model W-10-V-1-1-4
Part # W-10-V-1-1-4
$401.00
Volume pricing available
Cast Iron
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton 10-Inch V-Grooved Metal Wheel: Durability Meets Precision Exceptional Load Capacity | Industrial-Grade Construction...
Shop Product
16000 lbs
TieredPricing
Hamilton 10" x 4" V-Groove Wheel with 1-1/4" Precision Tapered Roller Bearing - 16000 lbs Load Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 4" Forged Steel V-Grooved Wheel – 16000 lb
Part # W-1040-FVT-1-1-4
$764.00
Volume pricing available
Load rating
16000 lbs
Diameter 10"
Capacity 16000 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Boost Your Material Handling with Hamilton's Heavy-Duty V-Grooved WheelsShop Now & Save!Hamilton 10" x...
Shop Product
7500 lbs
TieredPricing
Hamilton 10" x 4" Forged Steel V-Grooved Wheel with 1-1/4" Roller Bearing - 7500 lbs Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 4" Forged Steel V-Grooved Wheel – 7500 lb · Model W-1040-FVH-1-1-4
Part # W-1040-FVH-1-1-4
$586.00
Volume pricing available
Load rating
7500 lbs
Diameter 10"
Capacity 7500 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Discover Robust & Efficient Hamilton Casters: Industrial-Grade Performance High-Load Capacity | Precision Design Hamilton...
Shop Product
8500 lbs
TieredPricing
Hamilton V-Grooved Forged Steel Wheel 10" x 4" - 8500 lbs Load Capacity with Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 4" Forged Steel V-Grooved Wheel – 8500 lb
Part # W-1040-FVB-1-1-4
$742.00
Volume pricing available
Load rating
8500 lbs
Diameter 10"
Capacity 8500 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton V-Grooved Forged Steel Wheel: Unmatched Quality for Industrial Performance High Load Capacity |...
Shop Product
4500 lbs
TieredPricing
Hamilton V-Grooved Forged Steel Wheel 10" x 3" | 4500 lbs Capacity | Precision Tapered Roller Bearing - W-1030-FVT-1-1/4 Hamilton
Made to Order · 4-6 Wk
Hamilton W-1030-FVT-1-1/4 10" x 3" Forged Steel Wheel – 4500 lb
Part # W-1030-FVT-1-1-4
$514.00
Volume pricing available
Load rating
4500 lbs
Diameter 10"
Capacity 4500 lbs
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Industrial Strength: Hamilton V-Grooved Forged Steel WheelsUnbeatable Performance at Unbeatable PricesBuilt to handle heavy-duty...
Shop Product
4500 lbs
TieredPricing

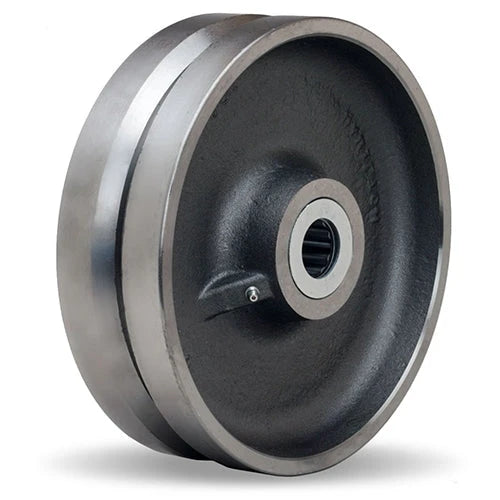

Hamilton 10" V-Grooved Forged Steel Wheel with 4500 lbs. Load Capacity and 1-1/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 3" Forged Steel Industrial Replacement Wheel – 4500 lb
Part # W-1030-FVH-1-1-4
$455.00
Volume pricing available
Load rating
4500 lbs
Diameter 10"
Capacity 4500 lbs
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Discover the Hamilton 10" V-Grooved Forged Steel Wheel - Ultimate Strength for Your Projects...
Shop Product
2500 lbs
TieredPricing
Hamilton V-Grooved Forged Steel Wheel 10" Diameter x 2 1/2" Face x 2 3/4" Hub - 2500 lbs. Load Capacity - 1-1/4" Precision Tapered Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 2 1/2" Forged Steel V-Grooved Wheel – 2500 lb · Model W-1025-VT-1-1-4
Part # W-1025-VT-1-1-4
$341.00
Volume pricing available
Cast Iron
Load rating
2500 lbs
Diameter 10"
Capacity 2500 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton V-Grooved Forged Steel Wheel: Unbeatable Performance and Durability 10" Diameter x 2 1/2"...
Shop Product
2500 lbs
TieredPricing
2500 lbs. Load Capacity Hamilton 10" V-Grooved Forged Steel Wheel with 1-1/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 2 1/2" Forged Steel V-Grooved Wheel – 2500 lb · Model W-1025-V-1-1-4
Part # W-1025-V-1-1-4
$264.00
Volume pricing available
Cast Iron
Load rating
2500 lbs
Diameter 10"
Capacity 2500 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Top-Quality Casters at Unbeatable Prices Exclusive Online Offers | Best Price Promise Hamilton 10"...
Shop Product
3000 lbs
TieredPricing

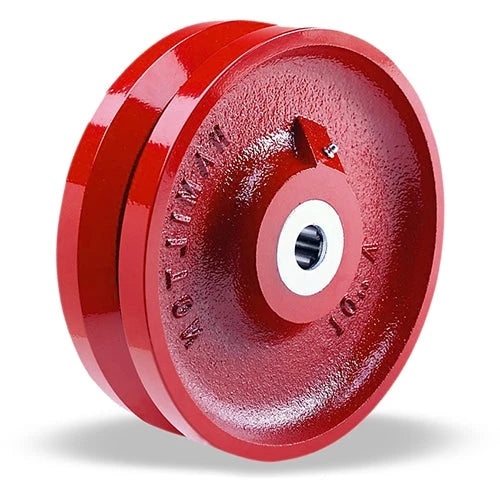

Hamilton 10" V-Grooved Metal Wheel with 3000 lbs. Load Capacity and Precision Tapered Roller Bearing - 3" x 3 1/4" Hub Length Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 3" V-Grooved Metal Wheel – 3000 lb · Model W-10-VT-1-1-4
Part # W-10-VT-1-1-4
$469.00
Volume pricing available
Cast Iron
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Cast Iron
More Details Less Details
Width 3-1/4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton 10" V-Grooved Metal Wheel: Exceptional Strength for Industrial Use 3000 lbs Load Capacity...
Shop Product
