6" x 3" Forged Steel Wheels - V-Groove 1" Roll

Diameter: 6 inTread: 3 inCapacity: up to 5,000 lb
Steel casters here serve V-groove track and guided rail systems. Expect wheel diameters 6 in, steel treads, and industrial frames. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete. These heavy-duty options cover everyday V-groove track and guided rail systems without jumping to extreme forged series.
2500 lbs
TieredPricing
Heavy-Duty 6" V-Grooved Metal Wheel - 2500lb Load Capacity, 2 3/4" Face, 3 1/4" Hub, 1" Straight Roller Bearing - Hamilton Iron Wheel Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 2 3/4" Iron V-Grooved Wheel – 2500 lb · Model W-626-V-1
Part # W-626-V-1
$132.00
Volume pricing available
Cast Iron
Load rating
2500 lbs
Diameter 6"
Capacity 2500 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton Iron Wheel - Heavy-Duty 6" V-Grooved Metal Wheel High-Load Capacity: 2500 lbs Key...
Shop Product
2250 lbs
TieredPricing
Hamilton V-Grooved Metal Wheel W-625-V-1, 6” Diameter, 2 1/2" Face, 3 1/4" Hub Length, 1" Straight Roller Bearing - Load Capacity 2250 lbs Hamilton
Made to Order · 4-6 Wk
Hamilton W-625-V-1 6" x 2 1/2" Metal V-Grooved Wheel – 2250 lb
Part # W-625-V-1
$166.00
Volume pricing available
Cast Iron
Load rating
2250 lbs
Diameter 6"
Capacity 2250 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton V-Grooved Metal Wheel W-625-V-1: Heavy-Duty Precision High Load Capacity | Robust Construction Exceptional...
Shop Product
5000 lbs
TieredPricing
Hamilton 5000 lb Capacity 6" Diameter x 3" Width Forged Steel Wheel with 3 1/4" Hub and 1" Tapered Roller Bearing - Heavy Duty V-Grooved Wheel for Industrial Applications Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 3" Forged Steel Wheel – 5000 lb
Part # W-630-FVT-1
$377.00
Volume pricing available
Load rating
5000 lbs
Diameter 6"
Capacity 5000 lbs
More Details Less Details
Temp Range Up to 800°F
Frame Zinc Plated Steel
Hamilton 5000 lb Forged Steel Wheel - Superior Strength and Durability Exclusive Deal |...
Shop Product
4500 lbs
TieredPricing

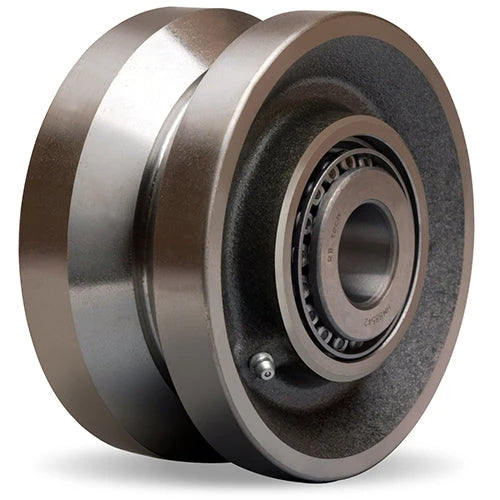

Hamilton W-630-FVH-1 6" x 3" Forged Steel V-Grooved Wheel with 1" Straight Roller Bearing - High Load Capacity 4500 lbs - Ideal for Heavy-Duty Casters Hamilton
Made to Order · 4-6 Wk
Hamilton W-630-FVH-1 6" x 3" Forged Steel V-Grooved Wheel – 4500 lb
Part # W-630-FVH-1
$350.00
Volume pricing available
Load rating
4500 lbs
Diameter 6"
Capacity 4500 lbs
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Discover Hamilton W-630-FVH-1: The Ultimate Heavy-Duty Caster Robust Construction | High Load Capacity Hamilton...
Shop Product
4500 lbs
TieredPricing
Hamilton 6" V-Grooved Forged Steel Wheel with 4500 lbs. Load Capacity and 1" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 3" Forged Steel V-Grooved Wheel – 4500 lb · Model W-630-FVB-1
Part # W-630-FVB-1
$360.00
Volume pricing available
Load rating
4500 lbs
Diameter 6"
Capacity 4500 lbs
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Discover Unmatched Deals on Hamilton Casters Exclusive Online Prices | Guaranteed Price Match Featured...
Shop Product
3000 lbs
TieredPricing
Hamilton 10-Inch Diameter V-Grooved Metal Wheel - 3000 lbs Load Capacity, 3-Inch Face, 3 1/4-Inch Hub Length, 1-Inch Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 10" x 3" V-Grooved Metal Wheel – 3000 lb · Model W-626-VT-1
Part # W-626-VT-1
$235.00
Volume pricing available
Load rating
3000 lbs
Diameter 6"
Capacity 3000 lbs
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton 6-Inch V-Grooved Metal Wheel: Superior Performance for Industrial Applications 3000 lbs Load Capacity...
Shop Product
2500 lbs
TieredPricing
Hamilton 6" V-Grooved Metal Wheel with 2500 lbs. Load Capacity and Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" V-Grooved Metal Industrial Replacement Wheel – 2500 lb
Part # W-626-VB-1
$313.00
Volume pricing available
Cast Iron
Load rating
2500 lbs
Capacity 2500 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Discover Great Deals on Hamilton 6" V-Grooved Metal Wheels Premium Quality at Competitive Prices...
Shop Product
2250 lbs
TieredPricing
Hamilton 6" V-Grooved Metal Wheel with 2250 lbs. Load Capacity and Precision Ball Bearing - 3 1/4" Hub Length Hamilton
Made to Order · 4-6 Wk
Hamilton 6" Metal V-Grooved Industrial Replacement Wheel – 2250 lb
Part # W-625-VB-1
$194.00
Volume pricing available
Cast Iron
Load rating
2250 lbs
Diameter 6"
Capacity 2250 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Hamilton 6" V-Grooved Metal Wheel: Top-Quality Industrial Equipment Enhancement Heavy-Duty Performance | Unmatched Durability...
Shop Product
1000 lbs
TieredPricing

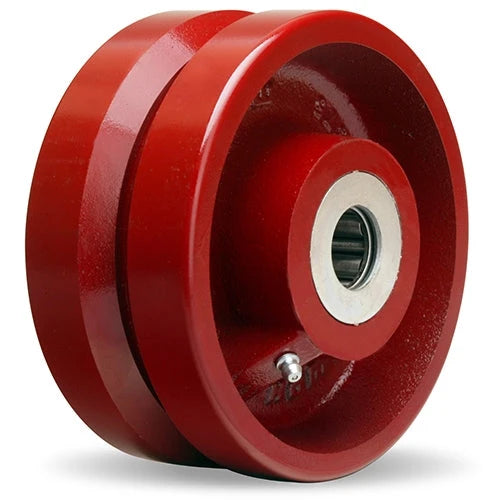

Hamilton 6" Diameter V-Grooved Metal Wheel - 1000 lbs Load Capacity, 2" Face, 2 1/4" Hub Length with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 2" V-Grooved Industrial Replacement Wheel – 1000 lb
Part # W-6-V-1
$95.00
Volume pricing available
Cast Iron
Load rating
1000 lbs
Diameter 6"
Capacity 1000 lbs
Wheel Cast Iron
More Details Less Details
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Discover Exceptional Value on Hamilton Casters Industry-Leading Quality | Competitive Pricing Hamilton 6" Diameter...
Shop Product
