The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

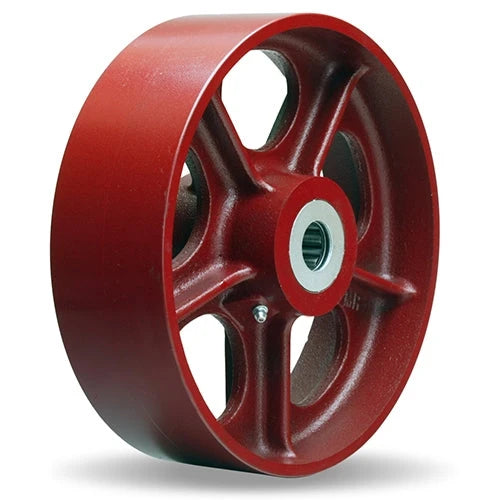

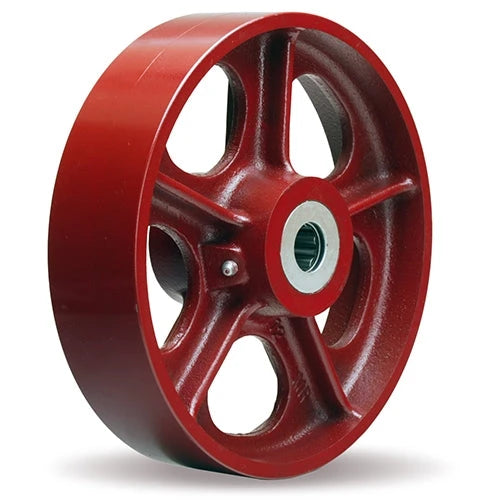

10" x 2-1/2" Stainless Steel Wheels

Diameter: 10 inTread: 3, 4 inCapacity: up to 7,000 lb

Steel and stainless casters here serve heavy warehouse carts, die carts, and plant fixtures. You will see wheel diameters 10 in, steel and stainless treads, and industrial frames across the SKUs listed below. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles.
