Albion Ergonomic Casters w/ 10" Wheels · 1,500–2,500 lb · Polyurethane

These Albion 38 series MAX Efficiency casters use 10 x 2 in wheels built for lower push force on heavy carts. Casters in this collection are rated 2,500 lb per caster. Swivel and rigid models come with ergonomic tread and swivel lock options. Lower push force helps operators start and steer heavy carts with less strain. Soft rubber or TPR tread is the better pick when the floor has chips or grit. Match plate size, bolt pattern, and overall height before you order. Choose swivel casters when the cart must turn in place, rigid casters for straight travel, and add a brake when the cart needs to stay put. Capacities below are per caster unless a listing says set. Confirm the load rating printed on the title before you order. Read the listing for the exact wheel size, overall height, and mount shown. Ergonomic aisle: ergonomic casters. Kingpinless aisle: kingpinless casters.

Albion 38 Series ergonomic casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits
Polyurethane	Aluminum	8 and 10 in	1,500 to 2,500 lb	-40°F to 180°F	quiet, floor-friendly and long wearing

Ratings are for single casters of Albion 38 Series ergonomic casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated

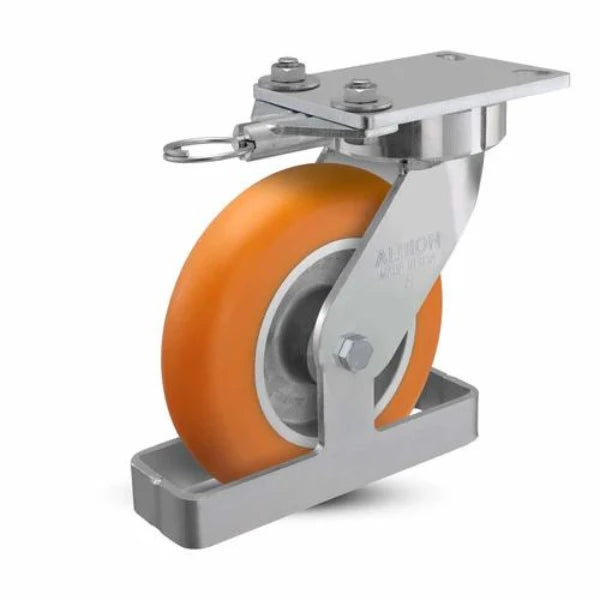

8 x 2 in	polyurethane	1,500 lb

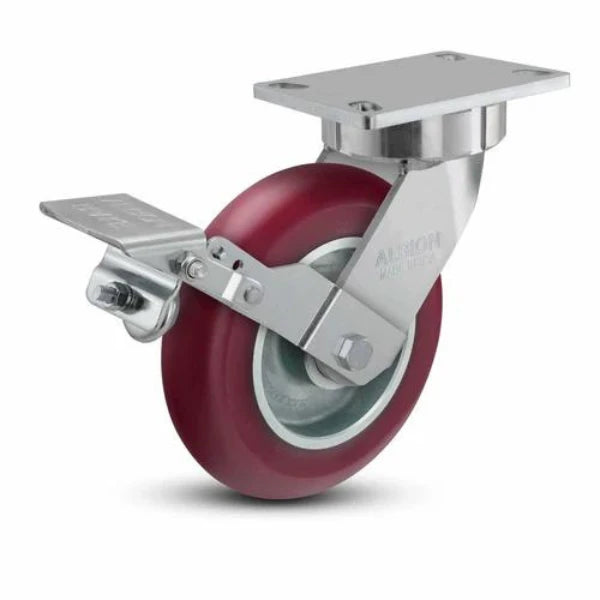

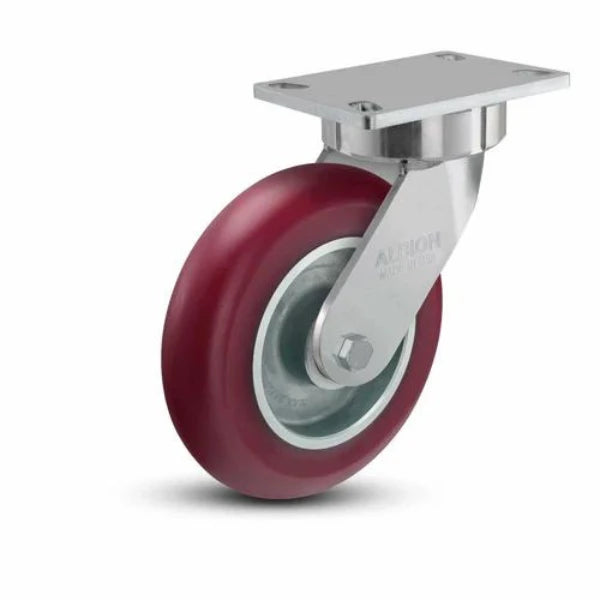

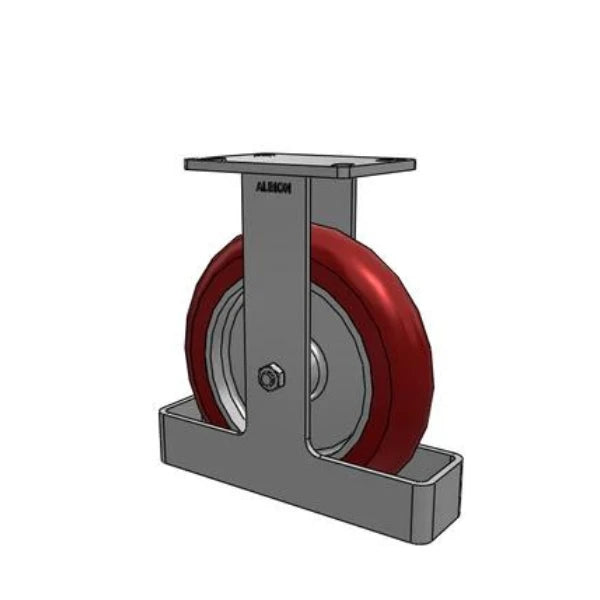

10 x 2 in	polyurethane	2,500 lb

Choosing Albion 38 Series ergonomic casters

Load: plan on three casters carrying a four-caster cart [S2]; Albion 38 Series ergonomic casters rated 2,500 lb each then carry about 7,500 lb.
Mount: most Albion 38 Series ergonomic casters use a 4-1/2 x 6-1/4 in top plate; match the bolt holes on your frame to the plate before ordering.
Floor: on Albion 38 Series ergonomic casters, polyurethane protects finished floors and runs quietly; check the rating if the cart also crosses rough concrete.
Rig: swivel and rigid Albion 38 Series ergonomic casters are listed, with face contact brake options.

Albion 38 Series ergonomic casters questions

How much weight can Albion 38 Series ergonomic casters carry?

Single Albion 38 Series ergonomic casters are rated 1,500 to 2,500 lb.

What top plate do Albion 38 Series ergonomic casters use?

Most Albion 38 Series ergonomic casters use 4-1/2 x 6-1/4 in.

What wheel material is most common on Albion 38 Series ergonomic casters?

Polyurethane leads on Albion 38 Series ergonomic casters, rated 1,500 to 2,500 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
