The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

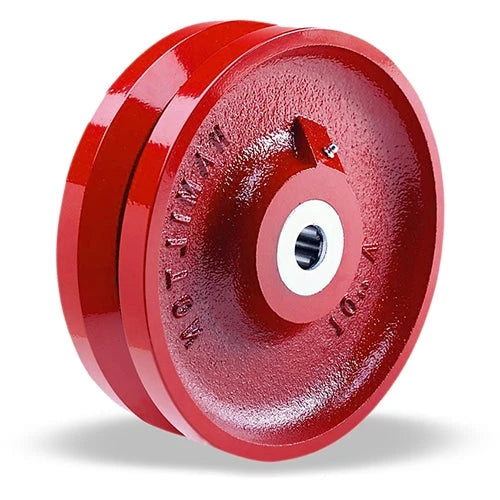

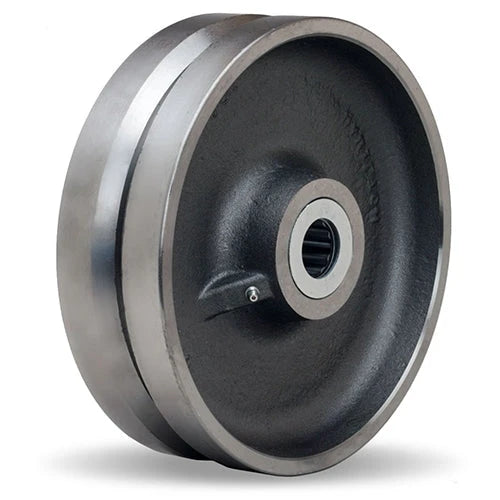

10" x 3" Forged Steel Wheels

Diameter: 10 inTread: 3, 3-1/4 inCapacity: up to 4,500 lb

This collection gathers industrial casters used on heavy warehouse carts, die carts, and plant fixtures. Typical builds show wheel diameters 10 in, steel treads, and capacities 2,500 to 4,500 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade.
