The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

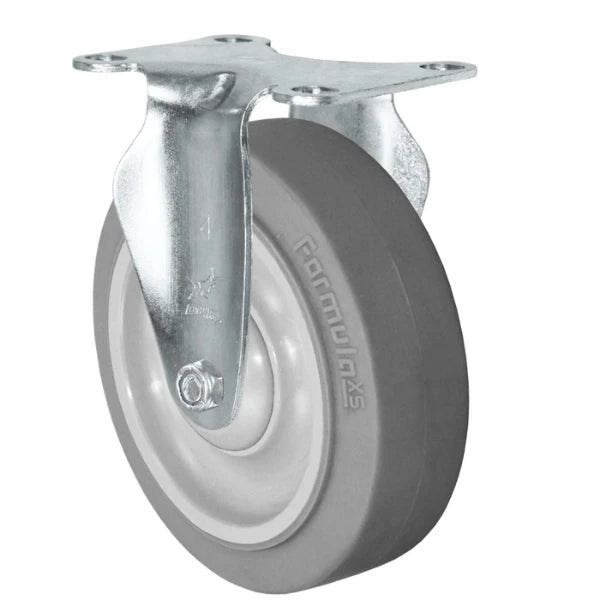

4" x 1-1/4" Thermoplastic Rubber Casters

Diameter: 4 inTread: 1-1/4 inCapacity: up to 300 lb

4" x 1-1/4" Thermoplastic Rubber Casters for finished floors and quiet institutional carts. Catalog chips cover wheel diameters 4 in, rubber treads, and plate-mount frames. Replace worn corners in matched sets when possible so the cart tracks straight under load. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. These light-duty options cover everyday finished floors and quiet institutional carts without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
