The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

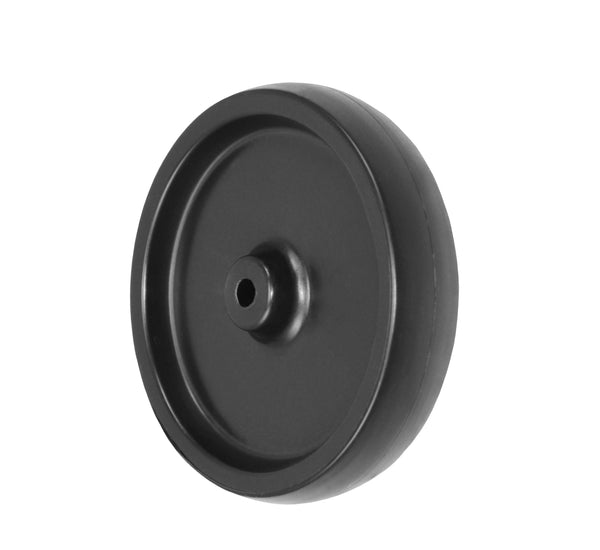

5" x 1-1/4" Polyolefin Wheels · 145-600 lb

Diameter: 5 inTread: 1, 1-1/4, 2 inCapacity: up to 600 lb

This collection gathers industrial casters used on light institutional and furniture-grade frames. Typical builds show wheel diameters 5 in, polyolefin treads, and capacities 145 to 600 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. These light-duty options cover everyday light institutional and furniture-grade frames without jumping to extreme forged series.
