The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

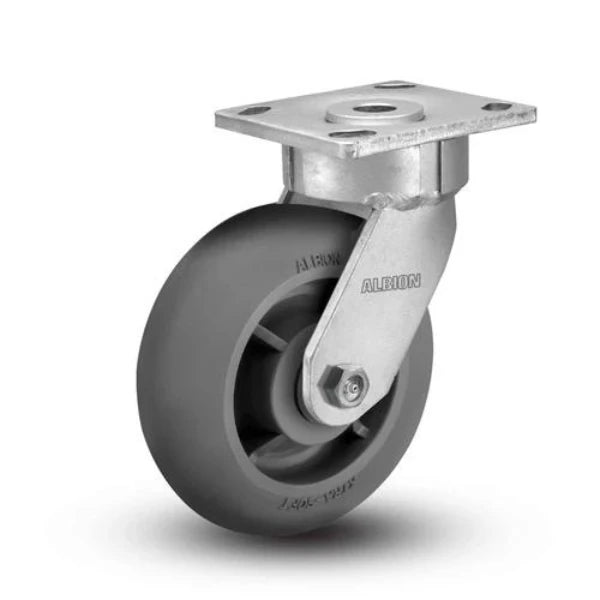

8" x 2" Rubber Casters

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 8 inTread: 2 inCapacity: up to 675 lb

Casters on the 4 x 4-1/2 plate pattern suit finished floors and quiet institutional carts. Typical builds show wheel diameters 8 in, rubber treads, and capacities 600 to 675 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. These light-duty options cover everyday finished floors and quiet institutional carts without jumping to extreme forged series.
