Up to 350 lbs
Up to 7,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
Shock absorbing
Outdoor / rough terrain
View All Specialty Casters
Browse all specialty caster types
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

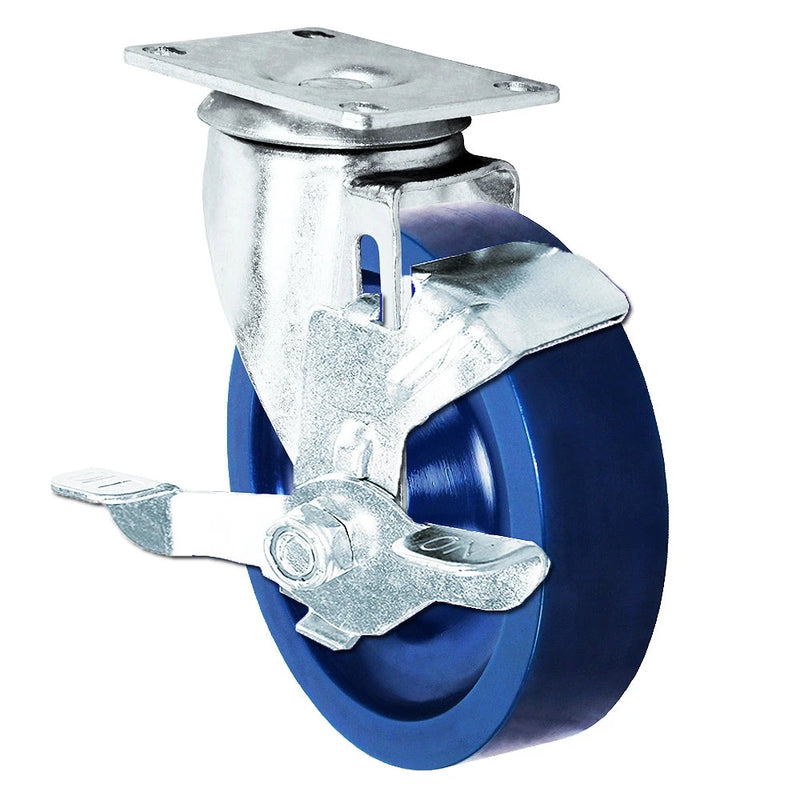

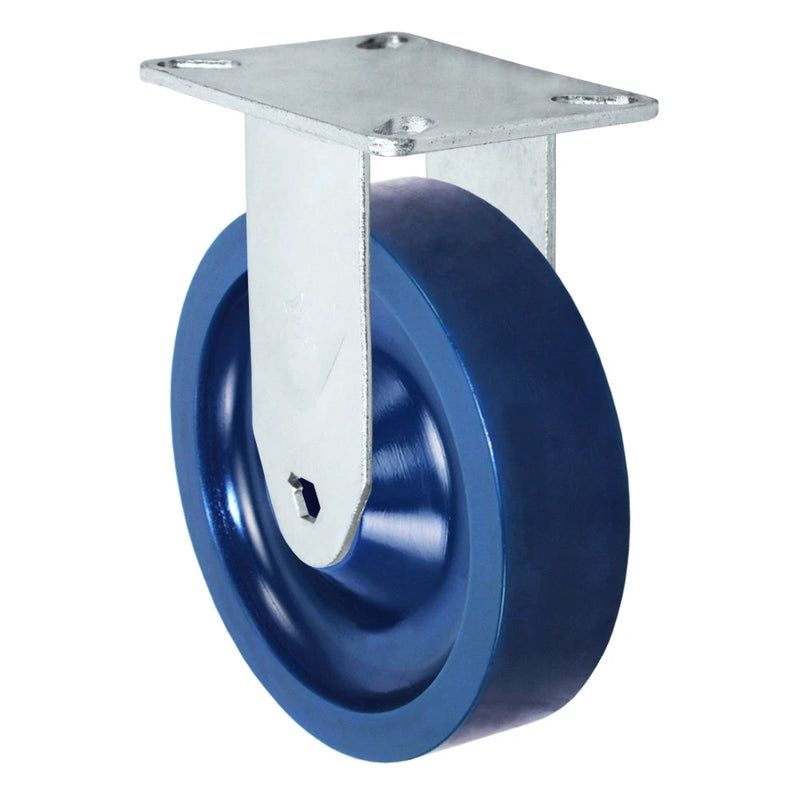

Solid polyurethane (blue) wheel casters for institutional, food processing, and light industrial equipment. Commonly specified for washdown environments and applications requiring non-marking, chemically resistant wheels with consistent rolling performance.
Solid polyurethane wheels are molded as a single piece, eliminating tread separation and improving durability in wet or corrosive environments. The material provides strong resistance to water, cleaning chemicals, oils, grease, and many solvents while maintaining non-marking floor contact.
These wheels are well-suited for washdown areas, food processing facilities, cleanrooms, and environments requiring steam cleaning. Performance will vary based on floor condition, load, and bearing selection. Verify temperature and chemical exposure requirements at the model level.
ANSI-tested designs · ICWM dimensional standards · NSF-listed models · RoHS-compliant materials · ISO 9001:2015 manufacturing partners
