Polyurethane Casters - DuraGlide Swivel

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 3 inCapacity: 3,000 to 4,700 lb per casterPlate sizes: 5-1/2 x 7-1/2, 6-1/8 x 7-1/2

The eight polyurethane casters here come from Hamilton with 6 to 12 in wheels, rated 3,000 to 4,700 lb each. Most use a 5-1/2 x 7-1/2 in top plate, with 6-1/8 x 7-1/2 in also offered, and you can pick swivel or rigid, with no brake options. Picks range from a Hamilton R-EHD-63GB95 6 x 3 in polyurethane rigid caster rated 3,000 lb to a Hamilton S-EHD-12GB95 12 x 3 in DuraGlide swivel caster rated 4,700 lb.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

3400 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 8" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-83GB95 8" x 3" DuraGlide Swivel Caster – 3400 lb

Part # S-EHD-83GB95

from $616.00

Volume pricing available

PolyurethanePlate

Load rating

3400 lbs

Size8" x 3"

Capacity3400 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 8" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

3000 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 6" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-63GB95 6" x 3" DuraGlide Swivel Caster – 3000 lb

Part # S-EHD-63GB95

from $536.00

Volume pricing available

PolyurethanePlate

Load rating

3000 lbs

Size6" x 3"

Capacity3000 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 8-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 6" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

4000 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-13GB95 10" x 3" DuraGlide Swivel Caster – 4000 lb

Part # S-EHD-13GB95

from $721.00

Volume pricing available

PolyurethanePlate

Load rating

4000 lbs

Size10" x 3"

Capacity4000 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

4700 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-12GB95 12" x 3" DuraGlide Swivel Caster – 4700 lb

Part # S-EHD-12GB95

from $798.00

Volume pricing available

PolyurethanePlate

Load rating

4700 lbs

Size12" x 3"

Capacity4700 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 14-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

3400 lbs

TieredPricing

Hamilton Extra Heavy Duty Rigid Caster with 8" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-83GB95 8" x 3" Polyurethane Rigid Caster – 3400 lb

Part # R-EHD-83GB95

$407.00

Volume pricing available

PolyurethanePlate

Load rating

3400 lbs

Size8" x 3"

Capacity3400 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 8" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

3000 lbs

TieredPricing

Hamilton Extra Heavy Duty Rigid Caster with 6" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-63GB95 6" x 3" Polyurethane Rigid Caster – 3000 lb

Part # R-EHD-63GB95

$342.00

Volume pricing available

PolyurethanePlate

Load rating

3000 lbs

Size6" x 3"

Capacity3000 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 8-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 6" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

4000 lbs

TieredPricing

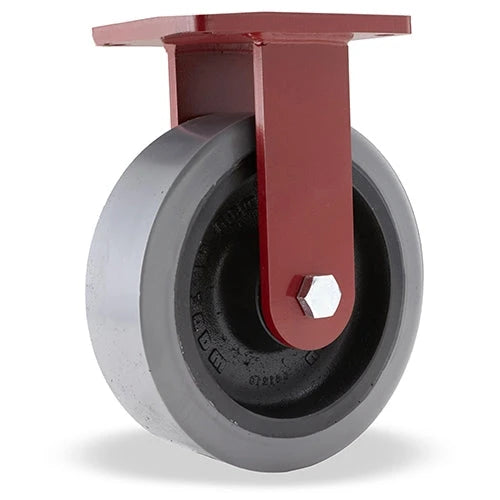

Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-13GB95 10" x 3" DuraGlide Rigid Caster – 4000 lb

Part # R-EHD-13GB95

$513.00

Volume pricing available

PolyurethanePlate

Load rating

4000 lbs

Size10" x 3"

Capacity4000 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

4700 lbs

TieredPricing

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" DuraGlide 1" Thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-12GB95 12" x 3" Polyurethane Rigid Caster – 4700 lb

Part # R-EHD-12GB95

$595.00

Volume pricing available

PolyurethanePlate

Load rating

4700 lbs

Size12" x 3"

Capacity4700 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 14-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" DuraGlide 1" Thick Polyurethane...

Shop Product

Extra Heavy Duty Caster Series with DuraGlide Polyurethane Wheels

For extra heavy loads requiring excellent rollability, higher speeds, and/or outdoor use, Hamilton’s new DuraGlide and Super DuraGlide are an excellent choice. 1”- 3” thick 95A tread offerings of dynamically responsive polyurethane that rolls up to 40% easier than most other poly wheels. Engineers also formulated DuraGlide to run much cooler than most polyurethanes resulting in an excellent wheel for higher speed applications.

DuraGlide is also essentially impervious to moisture and our top poly performer in moist or outdoor applications. DuraGlide’s thicker tread also reduces heat stress on the bond line. And because there’s more polyurethane to compress, the psi pressure is lower and therefore the urethane endures less stress fatigue for longer life. DuraGlide is medium gray poly molded to heavy duty black cast iron or forged steel centers.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
