Hamilton ForgeMaster FM Casters w/ DuraGlide Polyurethane Wheels · Up to 2,200 lb · 6"–10"

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 10 inTread: 3 inCapacity: 2,200 to 3,200 lb per casterPlate sizes: 5 x 7, 4-1/2 x 6-1/2

The six polyurethane casters here come from Hamilton with 6 to 10 in wheels, rated 2,200 to 3,200 lb each. The common top plate is 5 x 7 in, with 4-1/2 x 6-1/2 in also offered, with swivel and rigid versions and without brakes. Examples include a Hamilton S-FM-83GB95 8 x 3 in DuraGlide swivel caster rated 2,200 lb and a Hamilton R-FM-83GB95 8 x 3 in polyurethane rigid caster rated 3,200 lb.

Shop by type

2 types

Wheel = wheel diameter · capacity is per caster.

2200 lbs

TieredPricing

Hamilton ForgeMaster Swivel Caster with 8" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-83GB95 8" x 3" DuraGlide Swivel Caster – 2200 lb

Part # S-FM-83GB95

from $507.00

Volume pricing available

PolyurethanePlate

Load rating

2200 lbs

Size8" x 3"

Capacity2200 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 10-1/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 8" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

2200 lbs

TieredPricing

Hamilton ForgeMaster Swivel Caster with 6" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-63GB95 6" x 3" Polyurethane Swivel Caster – 2200 lb

Part # S-FM-63GB95

from $426.00

Volume pricing available

PolyurethanePlate

Load rating

2200 lbs

Size6" x 3"

Capacity2200 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 7-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 6" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

2200 lbs

TieredPricing

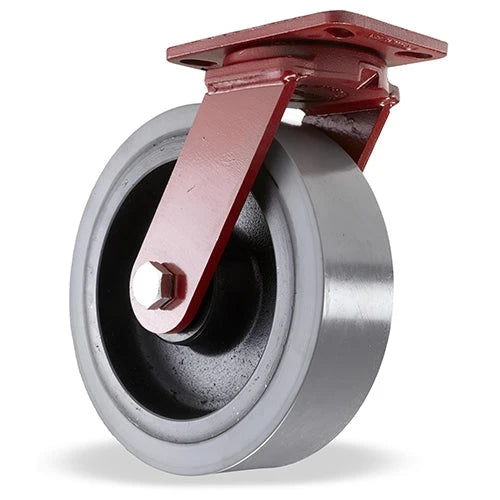

Hamilton ForgeMaster Swivel Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-13GB95 10" x 3" Polyurethane Swivel Caster – 2200 lb

Part # S-FM-13GB95

from $528.00

Volume pricing available

PolyurethanePlate

Load rating

2200 lbs

Size10" x 3"

Capacity2200 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 11-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

3200 lbs

TieredPricing

Hamilton ForgeMaster Rigid Caster with 8" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-FM-83GB95 8" x 3" Polyurethane Rigid Caster – 3200 lb

Part # R-FM-83GB95

$391.00

Volume pricing available

PolyurethanePlate

Load rating

3200 lbs

Size8" x 3"

Capacity3200 lbs

WheelPolyurethane

MountPlate 5" x 7"

TypeRigid

More Details Less Details

Width 3"

Height 10-1/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 8" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

3000 lbs

TieredPricing

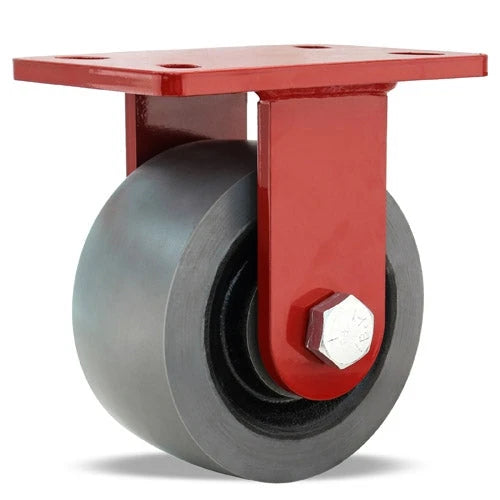

Hamilton ForgeMaster Rigid Caster with 6" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-FM-63GB95 6" x 3" DuraGlide Rigid Caster – 3000 lb

Part # R-FM-63GB95

$309.00

Volume pricing available

PolyurethanePlate

Load rating

3000 lbs

Size6" x 3"

Capacity3000 lbs

WheelPolyurethane

MountPlate 5" x 7"

TypeRigid

More Details Less Details

Width 3"

Height 7-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 6" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

3200 lbs

TieredPricing

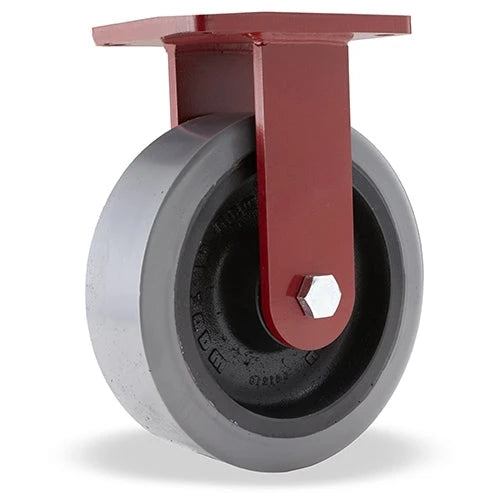

Hamilton ForgeMaster Rigid Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-FM-13GB95 10" x 3" Polyurethane Rigid Caster – 3200 lb

Part # R-FM-13GB95

$474.00

Volume pricing available

PolyurethanePlate

Load rating

3200 lbs

Size10" x 3"

Capacity3200 lbs

WheelPolyurethane

MountPlate 5" x 7"

TypeRigid

More Details Less Details

Width 3"

Height 11-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

ForgeMaster Caster Series with DuraGlide Polyurethane Wheels

For extra heavy loads requiring excellent rollability, higher speeds, and/or outdoor use, Hamilton’s new DuraGlide and Super DuraGlide are an excellent choice. 1”- 3” thick 95A tread offerings of dynamically responsive polyurethane that rolls up to 40% easier than most other poly wheels. Engineers also formulated DuraGlide to run much cooler than most polyurethanes resulting in an excellent wheel for higher speed applications.

DuraGlide is also essentially impervious to moisture and our top poly performer in moist or outdoor applications. DuraGlide’s thicker tread also reduces heat stress on the bond line. And because there’s more polyurethane to compress, the psi pressure is lower and therefore the urethane endures less stress fatigue for longer life. DuraGlide is medium gray poly molded to heavy duty black cast iron or forged steel centers.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
