8" x 3" Polyurethane Casters

Diameter: 6, 8, 10 inTread: 3 inCapacity: up to 2,400 lb

This collection gathers plate-mount casters used on warehouse carts on epoxy and smooth concrete. You will see wheel diameters 6, 8, 10 in, polyurethane treads, and capacities 2,200 to 2,400 lb across the SKUs listed below. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

2400 lbs

TieredPricing

Hamilton Extended Service Swivel Caster with 8" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-ES-83DB70 8" x 3" Duralast XC Swivel Caster – 2400 lb

Part # S-ES-83DB70

from $480.00

Volume pricing available

Cast IronPlate

Load rating

2400 lbs

Diameter 8"

Capacity 2400 lbs

Wheel Cast Iron

Mount Plate

Plate Size 4-1/2" x 6-1/2"

More Details Less Details

Width 3"

Height 10-1/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Hamilton Extended Service Swivel Caster with 8" x 3" Duralast XC Polyurethane (70D) on...

Shop Product

2200 lbs

TieredPricing

Hamilton Extended Service Swivel Caster with 6" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-ES-63DB70 6" x 3" Duralast XC Swivel Caster – 2200 lb

Part # S-ES-63DB70

from $402.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Diameter 6"

Capacity 2200 lbs

Wheel Cast Iron

Mount Plate

Plate Size 4-1/2" x 6-1/2"

More Details Less Details

Width 3"

Height 7-3/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Hamilton Extended Service Swivel Caster with 6" x 3" Duralast XC Polyurethane (70D) on...

Shop Product

2400 lbs

TieredPricing

Hamilton Extended Service Swivel Caster with 10" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-ES-13DB70 10" x 3" Duralast XC Swivel Caster – 2400 lb

Part # S-ES-13DB70

from $535.00

Volume pricing available

Cast IronPlate

Load rating

2400 lbs

Diameter 10"

Capacity 2400 lbs

Wheel Cast Iron

Mount Plate

Plate Size 4-1/2" x 6-1/2"

More Details Less Details

Width 3"

Height 12-1/16"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -20°F to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Hamilton Extended Service Swivel Caster with 10" x 3" Duralast XC Polyurethane (70D) on...

Shop Product

2400 lbs

TieredPricing

Hamilton Extended Service Rigid Caster with 8" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-ES-83DB70 8" x 3" Duralast XC Rigid Caster – 2400 lb

Part # R-ES-83DB70

$344.00

Volume pricing available

Cast IronPlate

Load rating

2400 lbs

Diameter 8"

Capacity 2400 lbs

Wheel Cast Iron

Mount Plate

Plate Size 5" x 7"

More Details Less Details

Width 3"

Height 10-1/4"

Bolt Pattern 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Hamilton Extended Service Rigid Caster with 8" x 3" Duralast XC Polyurethane (70D) on...

Shop Product

2200 lbs

TieredPricing

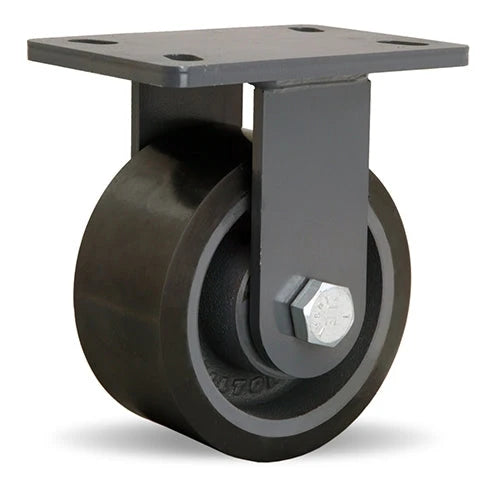

Hamilton Extended Service Rigid Caster with 6" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-ES-63DB70 6" x 3" Duralast XC Rigid Caster – 2200 lb

Part # R-ES-63DB70

$281.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Diameter 6"

Capacity 2200 lbs

Wheel Cast Iron

Mount Plate

Plate Size 5" x 7"

More Details Less Details

Width 3"

Height 7-3/4"

Bolt Pattern 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Hamilton Extended Service Rigid Caster with 6" x 3" Duralast XC Polyurethane (70D) on...

Shop Product

2400 lbs

TieredPricing

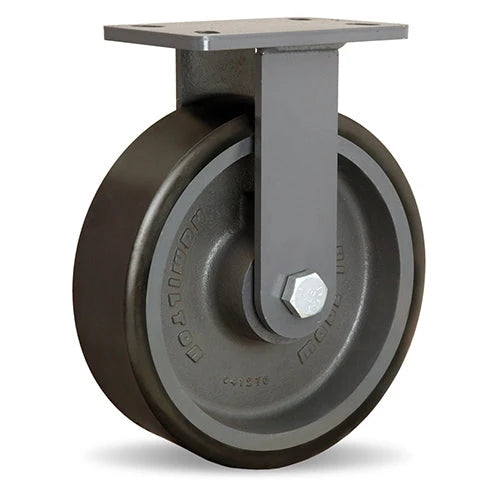

Hamilton Extended Service Rigid Caster with 10" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-ES-13DB70 10" x 3" Duralast XC Rigid Caster – 2400 lb

Part # R-ES-13DB70

$418.00

Volume pricing available

Cast IronPlate

Load rating

2400 lbs

Diameter 10"

Capacity 2400 lbs

Wheel Cast Iron

Mount Plate

Plate Size 5" x 7"

More Details Less Details

Width 3"

Height 12-1/16"

Bolt Pattern 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -20°F to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Hamilton Extended Service Rigid Caster with 10" x 3" Duralast XC Polyurethane (70D) on...

Shop Product

Extended Service Caster Series with Duralast XC Polyurethane Wheels

Are you looking for improved rollability and extra capacity in a resilient tread wheel? If so, Hamilton's 70 durometer polyurethane (Shore D) wheels will deliver. Because the polyurethane is harder than standard 95A poly, these wheels roll more easily and carry up to 30% more capacity - thus the suffix XC, as in eXtra Capacity! In addition, they effectively repel foreign objects and debris. Duralast XC's harder tread is best suited for smooth floors. For rough floors, we recommend our Ergo-Glide™ Wheels.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
