5" x 2" Polyurethane Casters

Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 2,200 lb
This collection gathers plate-mount casters used on warehouse carts on epoxy and smooth concrete. Expect wheel diameters 4, 5, 6, 8 in, polyurethane treads, and capacities 975 to 2,200 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2200 lbs
TieredPricing
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Swivel Caster with 5" x 2" Duralast XC (70D) Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-ZFWH-5DB70 5" x 2" Duralast XC Swivel Kingpinless Caster – 2200 lb
Part # S-ZFWH-5DB70
from $296.00
Volume pricing available
PolyurethanePlate
Load rating
2200 lbs
Diameter 5"
Capacity 2200 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Swivel Caster with 5" x 2" Duralast XC...
Shop Product
975 lbs
TieredPricing
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Swivel Caster with 4" x 2" Duralast XC (70D) Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-ZFWH-4DB70 4" x 2" Duralast XC Swivel Kingpinless Caster – 975 lb
Part # S-ZFWH-4DB70
from $282.00
Volume pricing available
PolyurethanePlate
Load rating
975 lbs
Diameter 4"
Capacity 975 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Swivel Caster with 4" x 2" Duralast XC...
Shop Product
1950 lbs
TieredPricing
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Rigid Caster with 8" x 2" Duralast XC (70D) Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-ZFWH-8DB70 8" x 2" Duralast XC Rigid Kingpinless Caster – 1950 lb
Part # R-ZFWH-8DB70
from $218.00
Volume pricing available
PolyurethanePlate
Load rating
1950 lbs
Diameter 8"
Capacity 1950 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spinfinity Maintenance-Free Kingpinless ZFWH Series Rigid Caster with 8" x 2" Duralast XC...
Shop Product
2200 lbs
TieredPricing

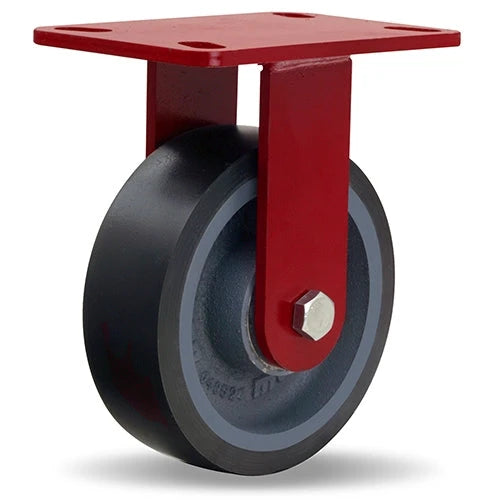

Hamilton ZFWH Series Rigid Caster with 6" x 2" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-ZFWH-6DB70 6" x 2" Duralast XC Rigid Caster – 2200 lb
Part # R-ZFWH-6DB70
from $182.00
Volume pricing available
Cast IronPlate
Load rating
2200 lbs
Diameter 6"
Capacity 2200 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ZFWH Series Rigid Caster with 6" x 2" Duralast XC Polyurethane (70D) on...
Shop Product
1360 lbs
TieredPricing

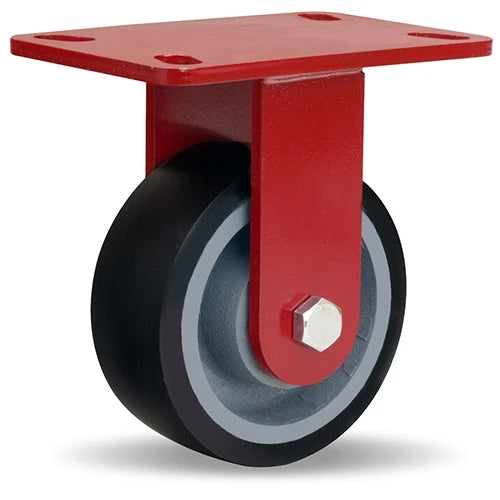

Hamilton ZFWH Series Rigid Caster with 5" x 2" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-ZFWH-5DB70 5" x 2" Duralast XC Rigid Caster – 1360 lb
Part # R-ZFWH-5DB70
from $160.00
Volume pricing available
Cast IronPlate
Load rating
1360 lbs
Diameter 5"
Capacity 1360 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ZFWH Series Rigid Caster with 5" x 2" Duralast XC Polyurethane (70D) on...
Shop Product
975 lbs
TieredPricing

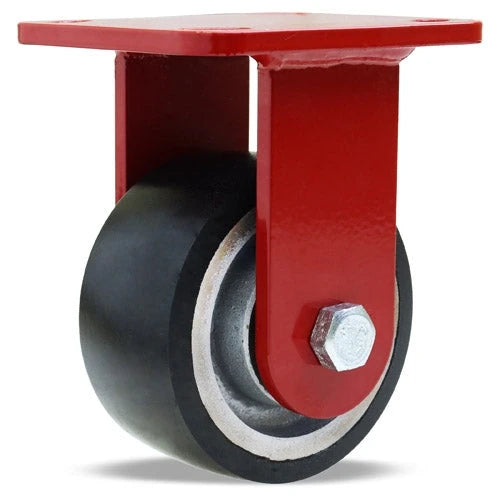

Hamilton ZFWH Series Rigid Caster with 4" x 2" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-ZFWH-4DB70 4" x 2" Duralast XC Rigid Caster – 975 lb
Part # R-ZFWH-4DB70
from $159.00
Volume pricing available
Cast IronPlate
Load rating
975 lbs
Diameter 4"
Capacity 975 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8"
Core Cast Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ZFWH Series Rigid Caster with 4" x 2" Duralast XC Polyurethane (70D) on...
Shop Product

Spinfinity ZFWH Caster Series with Duralast XC Polyurethane Wheels

Are you looking for improved rollability and extra capacity in a resilient tread wheel? If so, Hamilton's 70 durometer polyurethane (Shore D) wheels will deliver. Because the polyurethane is harder than standard 95A poly, these wheels roll more easily and carry up to 30% more capacity - thus the suffix XC, as in eXtra Capacity! In addition, they effectively repel foreign objects and debris. Duralast XC's harder tread is best suited for smooth floors. For rough floors, we recommend our Ergo-Glide™ Wheels.
