Polyurethane Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 4, 5, 6 inTread: 2 inCapacity: up to 1,200 lb

This collection gathers plate-mount casters used on warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 4, 5, 6 in, polyurethane and cast iron treads, and capacities 980 to 1,200 lb. Harder poly rolls easier on smooth epoxy; softer poly cushions vibration on uneven slabs. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1200 lbs

TieredPricing

Hamilton 8" Heavy-Duty Swivel Caster - 980 lbs Load Capacity, Ergo-Glide Polyurethane on Cast Iron Wheel, Aerospace Spring Loaded, 1/2" Sealed Precision Ball Bearings - S-AEZFHS-8SPB-1 Hamilton

Made to Order · 4-6 Wk

Hamilton S-AEZFHS-8SPB-1 8" x 2" Ergo-Glide Spring Loaded Caster – 1200 lb

Part # S-AEZFHS-8SPB-1

$1,125.00

Volume pricing available

PolyurethanePlate

Load rating

1200 lbs

Size8" x 2"

Capacity1200 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 10-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton 8" Aerospace Heavy-Duty Swivel Caster S-AEZFHS-8SPB-1 980 lbs Load Capacity | Aerospace Engineered...

Shop Product

960 lbs

TieredPricing

Hamilton Aerospace S-AEZFHS-6SPB-1: Heavy Service Swivel Caster with 6" x 2" Ergo-Glide Polyurethane Wheel for Aerospace Applications Hamilton

Made to Order · 4-6 Wk

Hamilton S-AEZFHS-6SPB-1 6" x 2" Ergo-Glide Swivel Spring Loaded Caster – 960 lb

Part # S-AEZFHS-6SPB-1

from $1,159.00

Volume pricing available

PolyurethanePlate

Load rating

960 lbs

Size6" x 2"

Capacity960 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 8-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Aerospace S-AEZFHS-6SPB-1 Spring Loaded Heavy Service Swivel Caster 6" x 2" Ergo-Glide Polyurethane...

Shop Product

840 lbs

TieredPricing

Hamilton Aerospace Spring Loaded Swivel Caster - S-AEZFHS-5SPB-1 - 5" x 2" Ergo-Glide Polyurethane on Cast Iron - Heavy Service for Aerospace Applications Hamilton

Made to Order · 4-6 Wk

Hamilton S-AEZFHS-5SPB-1 5" x 2" Ergo-Glide Swivel Spring Loaded Caster

Part # S-AEZFHS-5SPB-1

from $1,155.00

Volume pricing available

PolyurethanePlate

Load rating

840 lbs

Size5" x 2"

Capacity840 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 8"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

S-AEZFHS-5SPB-1 Hamilton Aerospace Spring Loaded Heavy Service Swivel Caster 5" x 2" Ergo-Glide Polyurethane...

Shop Product

600 lbs

TieredPricing

Hamilton S-AEZFHS-4SPB-1 Aerospace Swivel Caster - 4" x 2" Ergo-Glide Polyurethane Wheel on Cast Iron - Heavy Service with 1/2" Sealed Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-AEZFHS-4SPB-1 4" x 2" Ergo-Glide Spring Loaded Swivel Caster

Part # S-AEZFHS-4SPB-1

from $1,149.00

Volume pricing available

PolyurethanePlate

Load rating

600 lbs

Size4" x 2"

Capacity600 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 7-3/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

S-AEZFHS-4SPB-1 Hamilton Aerospace Spring Loaded Heavy Service Swivel Caster 4" x 2" Ergo-Glide Polyurethane...

Shop Product

1200 lbs

TieredPricing

Hamilton 8" Heavy-Duty Rigid Caster - 980 lbs Load Capacity, Ergo-Glide Polyurethane on Cast Iron Wheel, Aerospace Spring Loaded, 1/2" Sealed Precision Ball Bearings - R-AEZFHS-8SPB-1 Hamilton

Made to Order · 4-6 Wk

Hamilton R-AEZFHS-8SPB-1 8" x 2" Poly on Cast Iron Rigid Spring Loaded Caster – 1200 lb

Part # R-AEZFHS-8SPB-1

$1,111.00

Volume pricing available

PolyurethanePlate

Load rating

1200 lbs

Size8" x 2"

Capacity1200 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 10-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton 8" Aerospace Heavy-Duty Rigid Caster R-AEZFHS-8SPB-1 980 lbs Load Capacity | Aerospace Engineered...

Shop Product

960 lbs

TieredPricing

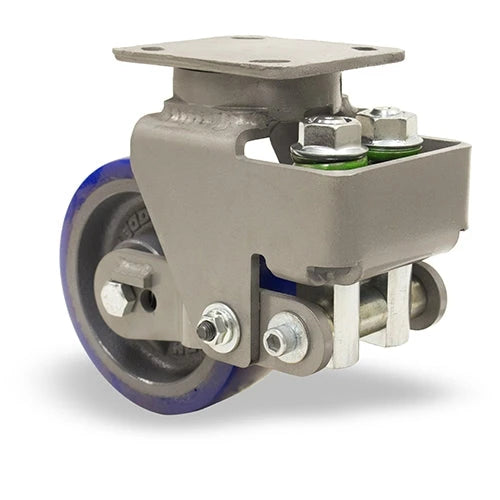

Hamilton Aerospace R-AEZFHS-6SPB-1: Heavy Service Rigid Caster with 6" x 2" Ergo-Glide Polyurethane Wheel for Aerospace Applications Hamilton

Made to Order · 4-6 Wk

Hamilton R-AEZFHS-6SPB-1 6" x 2" Ergo-Glide Rigid Spring Loaded Caster – 960 lb

Part # R-AEZFHS-6SPB-1

from $1,159.00

Volume pricing available

PolyurethanePlate

Load rating

960 lbs

Size6" x 2"

Capacity960 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 8-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Aerospace R-AEZFHS-6SPB-1 Spring Loaded Heavy Service Rigid Caster 6" x 2" Ergo-Glide Polyurethane...

Shop Product

840 lbs

TieredPricing

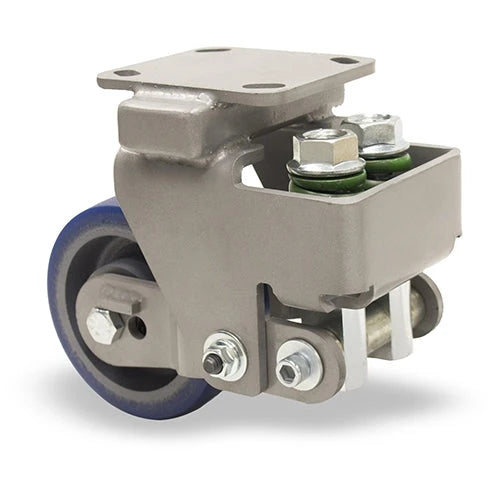

Hamilton Aerospace Spring Loaded Rigid Caster - R-AEZFHS-5SPB-1 - 5" x 2" Ergo-Glide Polyurethane on Cast Iron - Heavy Service for Aerospace Applications Hamilton

Made to Order · 4-6 Wk

Hamilton R-AEZFHS-5SPB-1 5" x 2" Polyurethane Rigid Spring Loaded Caster

Part # R-AEZFHS-5SPB-1

from $1,002.00

Volume pricing available

PolyurethanePlate

Load rating

840 lbs

Size5" x 2"

Capacity840 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 8"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

R-AEZFHS-5SPB-1 Hamilton Aerospace Spring Loaded Heavy Service Rigid Caster 5" x 2" Ergo-Glide Polyurethane...

Shop Product

600 lbs

TieredPricing

Hamilton R-AEZFHS-4SPB-1 Aerospace Rigid Caster - 4" x 2" Ergo-Glide Polyurethane Wheel on Cast Iron - Heavy Service with 1/2" Sealed Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-AEZFHS-4SPB-1 4" x 2" Polyurethane Rigid Spring Loaded Caster

Part # R-AEZFHS-4SPB-1

from $1,000.00

Volume pricing available

PolyurethanePlate

Load rating

600 lbs

Size4" x 2"

Capacity600 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 7-3/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

R-AEZFHS-4SPB-1 Hamilton Aerospace Spring Loaded Heavy Service Rigid Caster 4" x 2" Ergo-Glide Polyurethane...

Shop Product

Hamilton Spring Loaded | AEZFHS Casters with Ergo-Glide Wheels

Premium Spring Loaded Design | Innovative Ergo-Glide Wheels Technology

Top-rated Hamilton Spring Loaded Casters

Discover the Hamilton AEZFHS Casters with Ergo-Glide Wheels – the industry benchmark for quality and efficiency. Our spring-loaded casters are not only designed to absorb shocks and protect cargo, but they also ensure silent movement, making them ideal for sensitive environments. Enhanced by our state-of-the-art Ergo-Glide Wheels, these casters guarantee superior performance, durability, and ease of use, ensuring top placement in e-commerce listings and the hearts of users.

The Pinnacle of Mobility - AEZFHS Casters

Opt for Hamilton's AEZFHS series for a next-level mobility experience. Recognized for exceptional engineering and design, these casters stand out in the bustling e-commerce space. With their spring-loaded mechanism and Ergo-Glide Wheels, they're the epitome of innovation, making them a sought-after choice for discerning professionals and everyday users alike.

Need Caster Guidance? Rely on Hamilton Expertise

Thinking of integrating the Hamilton AEZFHS Casters with Ergo-Glide Wheels into your setup? Let our dedicated Caster Specialists assist you. Reach out on weekdays for top-tier caster solutions, ensuring you get the best product match for your needs. Shop now and elevate your mobility experience.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes
