Industrial Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 4 to 8 inTread: 2 inCapacity: 600 to 1,200 lb per casterPlate sizes: 4 x 4-1/2, 4 x 5

The eight polyurethane casters here come from Hamilton with 4 to 8 in wheels, rated 600 to 1,200 lb each. Most mount on a 4 x 4-1/2 in plate, with 4 x 5 in also offered, in both swivel and rigid, with no brake options. Two examples are a Hamilton R-WH-4SPB 4 x 2 in Ergo-Glide rigid caster rated 600 lb and a Hamilton S-WH-8SPB 8 x 2 in Ergo-Glide swivel caster rated 1,200 lb.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1200 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 8" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-8SPB 8" x 2" Ergo-Glide Swivel Caster – 1200 lb

Part # S-WH-8SPB

from $296.00

Volume pricing available

PolyurethanePlate

Load rating

1200 lbs

Size8" x 2"

Capacity1200 lbs

WheelPolyurethane

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 8" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

940 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 6" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-6SPB 6" x 2" Ergo-Glide Swivel Caster – 940 lb

Part # S-WH-6SPB

from $265.00

Volume pricing available

PolyurethanePlate

Load rating

940 lbs

Size6" x 2"

Capacity940 lbs

WheelPolyurethane

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 6" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

840 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 5" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-5SPB 5" x 2" Ergo-Glide Swivel Caster – 840 lb

Part # S-WH-5SPB

from $260.00

Volume pricing available

PolyurethanePlate

Load rating

840 lbs

Size5" x 2"

Capacity840 lbs

WheelPolyurethane

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 5" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

600 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 4" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-4SPB 4" x 2" Ergo-Glide Swivel Caster – 600 lb

Part # S-WH-4SPB

from $241.00

Volume pricing available

PolyurethanePlate

Load rating

600 lbs

Size4" x 2"

Capacity600 lbs

WheelPolyurethane

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 4" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

1200 lbs

TieredPricing

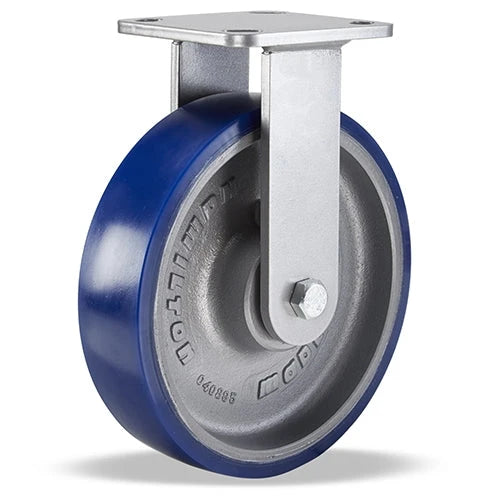

Hamilton Workhorse Rigid Caster with 8" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-8SPB 8" x 2" Ergo-Glide Rigid Caster – 1200 lb

Part # R-WH-8SPB

from $186.00

Volume pricing available

PolyurethanePlate

Load rating

1200 lbs

Size8" x 2"

Capacity1200 lbs

WheelPolyurethane

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 8" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

960 lbs

TieredPricing

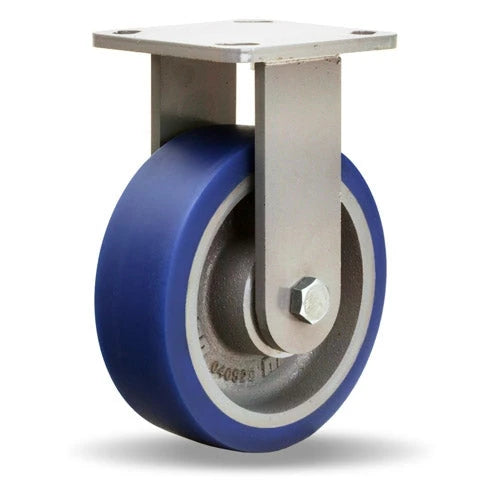

Hamilton Workhorse Rigid Caster with 6" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-6SPB 6" x 2" Ergo-Glide Rigid Caster – 960 lb

Part # R-WH-6SPB

from $158.00

Volume pricing available

PolyurethanePlate

Load rating

960 lbs

Size6" x 2"

Capacity960 lbs

WheelPolyurethane

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 6" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

840 lbs

TieredPricing

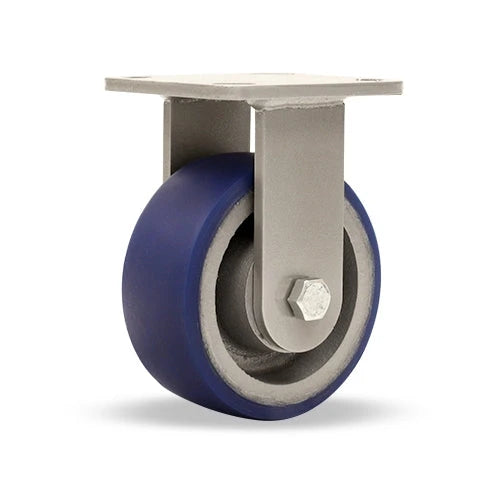

Hamilton Workhorse Rigid Caster with 5" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-5SPB 5" x 2" Ergo-Glide Rigid Caster – 840 lb

Part # R-WH-5SPB

from $153.00

Volume pricing available

PolyurethanePlate

Load rating

840 lbs

Size5" x 2"

Capacity840 lbs

WheelPolyurethane

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 5" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

600 lbs

TieredPricing

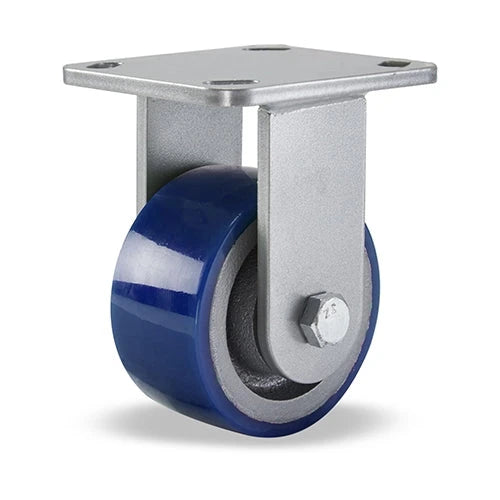

Hamilton Workhorse Rigid Caster with 4" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-4SPB 4" x 2" Ergo-Glide Rigid Caster – 600 lb

Part # R-WH-4SPB

from $138.00

Volume pricing available

PolyurethanePlate

Load rating

600 lbs

Size4" x 2"

Capacity600 lbs

WheelPolyurethane

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 4" x 2" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

Workhorse Caster Series with Ergo-Glide Wheels

As the name infers, the Ergo-Glide® wheel (formerly named Poly-Soft®) is well suited for ergonomic applications due to it's low startup and maintain push/pull force. This wheel is also the employee favorite and our wheel of choice for internal operations for it's balance of excellent rollability and durability. Other ergonomic wheels may roll slightly better, but the Ergo-Glide's heavy duty cast iron center and high tensile strength poly will likely outlast the others in its class. If a low push/pull force is top priority and durability is of lesser value, check out our Ergo-Tech™ wheels.

The Ergo-Glide® (formerly named Poly-Soft®) wheel is formulated for a quieter operation and greater resistance to foreign objects and debris (F.O.D.). Ergo-Glide® wheels have a softer tread hardness measuring 82-85 (Shore A scale) vs. the harder Duralast® 90-95 (Shore A) and is is well suited for rougher floors. The wheel has found popularity among automotive plants and those customers wanting to increase rollability, lower factory noise levels, and improve floor protection.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
