Hamilton Spring-Loaded AEZFHS Heavy Service Casters w/ Ergo-Glide XT Wheels · Up to 1,200 lb · 6"–8"

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Plate sizes: 4-1/2 x 6-1/2Diameter: 6, 8 inTread: 2 inCapacity: up to 1,200 lb

4-1/2 x 6-1/2 inch top-plate casters for heavy warehouse carts, die carts, and plant fixtures. Expect wheel diameters 6, 8 in and capacities 980 to 1,200 lb. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. Larger plates spread bolt stress on thick frames under continuous tow abuse. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade.

Shop by type

2 types

Wheel = wheel diameter · capacity is per caster.

1650 lbs

TieredPricing

Hamilton Aerospace 8" Swivel Caster - 1200 lbs Load Capacity - Spring Loaded Heavy Service - Ergo-Glide XT Wheel - 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton 8" x 2" Ergo-Glide XT Swivel Spring Loaded Caster – 1650 lb · Model S-AEZFHS-8EGB-2

Part # S-AEZFHS-8EGB-2

from $1,142.00

Volume pricing available

PolyurethanePlate

Load rating

1650 lbs

Size8" x 2"

Capacity1650 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 10.5"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Aerospace 8" Swivel Caster - 1200 lbs Load Capacity Heavy-Duty Performance | Aerospace...

Shop Product

1325 lbs

TieredPricing

Hamilton Aerospace 8" Spring Loaded Heavy Service Swivel Caster - 980 lbs Load Capacity - Ergo-Glide XT Wheel with Sealed Precision Ball Bearings - S-AEZFHS-8EGB-1 Hamilton

Made to Order · 4-6 Wk

Hamilton S-AEZFHS-8EGB-1 8" x 2" Ergo-Glide XT Swivel Spring Loaded Caster – 1325 lb

Part # S-AEZFHS-8EGB-1

from $1,172.00

Volume pricing available

PolyurethanePlate

Load rating

1325 lbs

Size8" x 2"

Capacity1325 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 10-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Aerospace Spring Loaded Heavy Service Swivel Caster - S-AEZFHS-8EGB-1 980 lbs Load Capacity...

Shop Product

1300 lbs

TieredPricing

Hamilton Aerospace Heavy Service Swivel Caster S-AEZFHS-6EGB-1 with Ergo-Glide XT Wheel - 6" x 2" with 1/2" Precision Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-AEZFHS-6EGB-1 6" x 2" Ergo-Glide XT Swivel Spring Loaded Caster – 1300 lb

Part # S-AEZFHS-6EGB-1

from $1,119.00

Volume pricing available

PolyurethanePlate

Load rating

1300 lbs

Size6" x 2"

Capacity1300 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2"

Height 8-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

S-AEZFHS-6EGB-1 Hamilton Aerospace Spring Loaded Heavy Service Swivel Caster 6" x 2" Ergo-Glide XT...

Shop Product

1650 lbs

TieredPricing

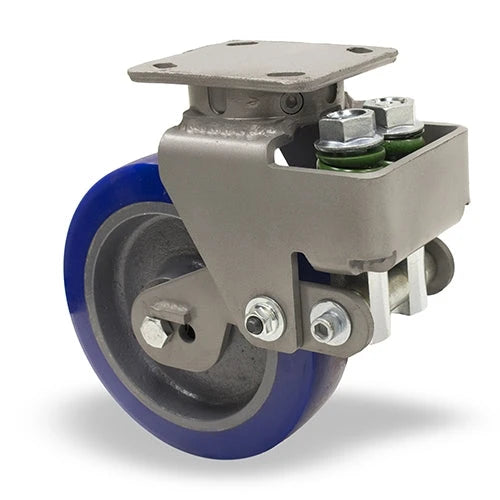

Hamilton Aerospace 8" Rigid Caster - 1200 lbs Load Capacity - Spring Loaded Heavy Service - Ergo-Glide XT Wheel - 1/2" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton 8" x 2" Ergo-Glide XT Rigid Spring Loaded Caster – 1650 lb · Model R-AEZFHS-8EGB-2

Part # R-AEZFHS-8EGB-2

$1,292.00

Volume pricing available

PolyurethanePlate

Load rating

1650 lbs

Size8" x 2"

Capacity1650 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 10.5"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Aerospace 8" Rigid Caster - 1200 lbs Load Capacity Heavy-Duty Performance | Aerospace...

Shop Product

1325 lbs

TieredPricing

Hamilton Aerospace 8" Spring Loaded Heavy Service Rigid Caster - 980 lbs Load Capacity - Ergo-Glide XT Wheel with Sealed Precision Ball Bearings - R-AEZFHS-8EGB-1 Hamilton

Made to Order · 4-6 Wk

Hamilton R-AEZFHS-8EGB-1 8" x 2" Ergo-Glide XT Rigid Spring Loaded Caster – 1325 lb

Part # R-AEZFHS-8EGB-1

$1,152.00

Volume pricing available

PolyurethanePlate

Load rating

1325 lbs

Size8" x 2"

Capacity1325 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 10-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Aerospace Spring Loaded Heavy Service Rigid Caster - R-AEZFHS-8EGB-1 980 lbs Load Capacity...

Shop Product

1300 lbs

TieredPricing

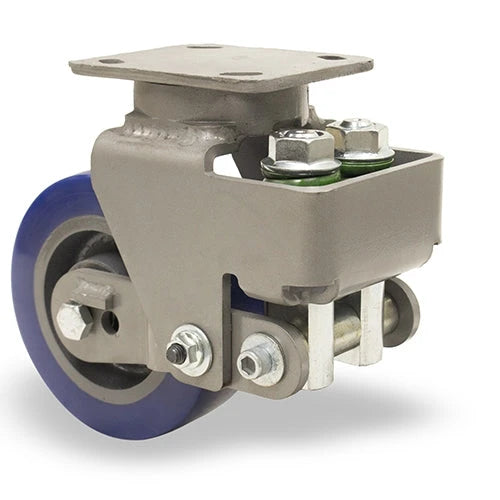

Hamilton Aerospace Heavy Service Rigid Caster R-AEZFHS-6EGB-1 with Ergo-Glide XT Wheel - 6" x 2" with 1/2" Precision Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-AEZFHS-6EGB-1 6" x 2" Ergo-Glide XT Rigid Spring Loaded Caster

Part # R-AEZFHS-6EGB-1

from $1,035.00

Volume pricing available

PolyurethanePlate

Load rating

1300 lbs

Size6" x 2"

Capacity1300 lbs

WheelPolyurethane

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 8-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

R-AEZFHS-6EGB-1 Hamilton Aerospace Spring Loaded Heavy Service Rigid Caster 6" x 2" Ergo-Glide XT...

Shop Product

Hamilton Spring Loaded | AEZFHS Casters with Ergo-Glide XT Wheels

Premium Spring-Loaded Technology | Optimized with Ergo-Glide XT Wheel System

The Ultimate in Caster Efficiency and Durability

Discover the seamless blend of cutting-edge technology and unmatched durability with the Hamilton Spring Loaded AEZFHS Casters. Enhanced with the groundbreaking Ergo-Glide XT Wheels, experience smooth maneuverability, even under demanding conditions. These casters are the embodiment of Hamilton's commitment to superior engineering and performance.

Why Choose Hamilton's AEZFHS Casters?

Opting for the Hamilton's AEZFHS series means investing in casters that prioritize user safety and ergonomic design. The spring-loaded feature compensates for uneven surfaces, ensuring a stable and reliable movement. Combined with the supreme grip and resilience of the Ergo-Glide XT Wheels, it's the top choice for professionals seeking optimal caster performance.

Need Assistance? Hamilton's Expert Team is Ready to Help

Unsure about the best caster solution for your needs? Hamilton's dedicated team of experts is available to guide you. Contact us on weekdays from 8 am - 5 pm for bespoke caster solutions, tailored to your specific requirements.
