Polyurethane Casters

Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 2,000 lb
This collection gathers plate-mount casters used on warehouse carts on epoxy and smooth concrete. Expect wheel diameters 4, 5, 6, 8 in, polyurethane treads, and capacities 450 to 2,000 lb. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

600 lbs
TieredPricing
Hamilton Workhorse Rigid Caster with 5" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-52EMB 5" x 2" Ergo-Tech Rigid Caster – 600 lb
Part # R-WH-52EMB
from $104.00
Volume pricing available
PolyurethanePlate
Load rating
600 lbs
Diameter 5"
Capacity 600 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Rigid Caster with 5" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
1000 lbs
TieredPricing
Hamilton Workhorse Swivel Caster with 8" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-82EMB 8" x 2" Ergo-Tech Swivel Caster – 1000 lb
Part # S-WH-82EMB
from $290.00
Volume pricing available
PolyurethanePlate
Load rating
1000 lbs
Diameter 8"
Capacity 1000 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Swivel Caster with 8" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
800 lbs
TieredPricing
Hamilton Workhorse Swivel Caster with 6" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-62EMB 6" x 2" Polyurethane Swivel Caster – 800 lb
Part # S-WH-62EMB
from $236.00
Volume pricing available
PolyurethanePlate
Load rating
800 lbs
Diameter 6"
Capacity 800 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Swivel Caster with 6" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
2000 lbs
TieredPricing
Hamilton Workhorse Swivel Caster with 5" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-52EMB 5" x 2" Ergo-Tech Swivel Caster – 2000 lb
Part # S-WH-52EMB
from $164.00
Volume pricing available
PolyurethanePlate
Load rating
2000 lbs
Diameter 5"
Capacity 2000 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Swivel Caster with 5" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
450 lbs
TieredPricing

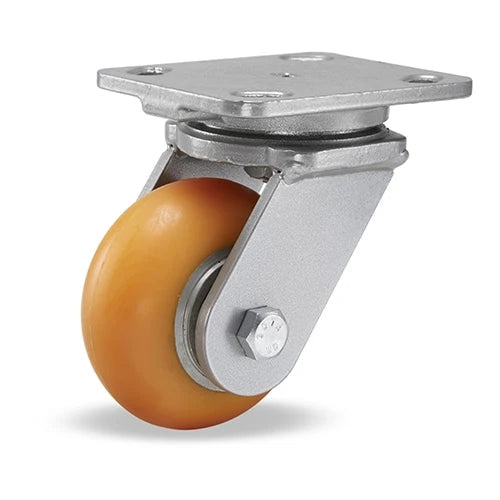

Hamilton Workhorse Swivel Caster with 4" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-42EMB 4" x 2" Polyurethane Swivel Ergonomic Caster – 450 lb
Part # S-WH-42EMB
from $527.00
Volume pricing available
PolyurethanePlate
Load rating
450 lbs
Diameter 4"
Capacity 450 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Swivel Caster with 4" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
1000 lbs
TieredPricing

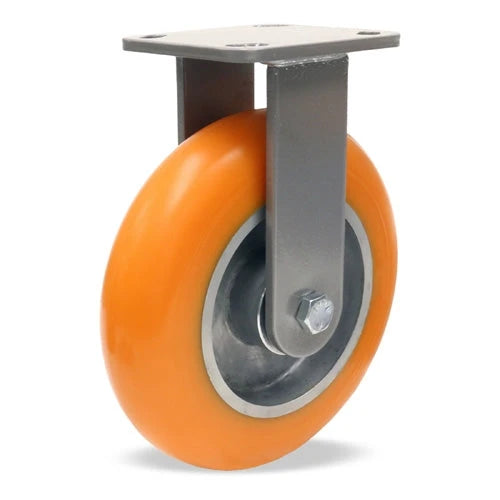

Hamilton Workhorse Rigid Caster with 8" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-82EMB 8" x 2" Polyurethane Rigid Caster – 1000 lb
Part # R-WH-82EMB
from $183.00
Volume pricing available
PolyurethanePlate
Load rating
1000 lbs
Diameter 8"
Capacity 1000 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Rigid Caster with 8" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
800 lbs
TieredPricing

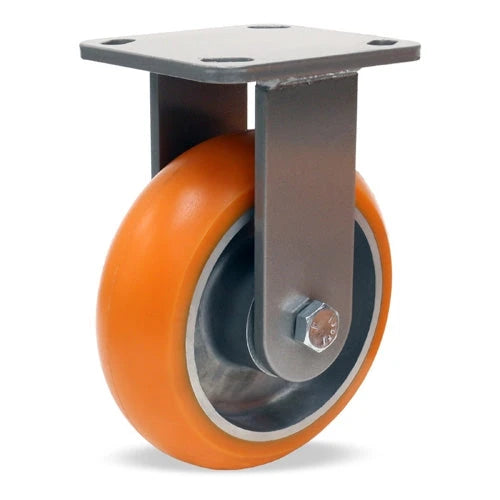

Hamilton Workhorse Rigid Caster with 6" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-62EMB 6" x 2" Polyurethane Rigid Caster – 800 lb
Part # R-WH-62EMB
from $128.00
Volume pricing available
PolyurethanePlate
Load rating
800 lbs
Diameter 6"
Capacity 800 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Rigid Caster with 6" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
450 lbs
TieredPricing
Hamilton Workhorse Rigid Caster with 4" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on Aluminum Wheel with 1/2" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-42EMB 4" x 2" Polyurethane Rigid Caster – 450 lb
Part # R-WH-42EMB
from $105.00
Volume pricing available
PolyurethanePlate
Load rating
450 lbs
Diameter 4"
Capacity 450 lbs
Wheel Polyurethane
Mount Plate
More Details Less Details
Width 2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse Rigid Caster with 4" x 2" Ergo-Tech Donut Tread Polyurethane (87A) on...
Shop Product
