Hamilton ForgeMaster FM Casters w/ Forged Steel Wheels · Up to 2,200 lb · 6"–8"

Diameter: 6, 8 inTread: 2-1/2, 3 inCapacity: up to 3,200 lb
Steel casters here serve heavy warehouse carts, die carts, and plant fixtures. Catalog chips cover wheel diameters 6, 8 in, steel treads, and plate-mount frames. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. These heavy-duty options cover everyday heavy warehouse carts, die carts, and plant fixtures without jumping to extreme forged series.

Shop by type

2 types

Wheel = wheel diameter · capacity is per caster.

2200 lbs
TieredPricing
Hamilton ForgeMaster Swivel Caster with 8" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-FM-83FSB 8" x 3" Forged Steel Swivel Caster – 2200 lb
Part # S-FM-83FSB
from $520.00
Volume pricing available
SteelPlate
Load rating
2200 lbs
Diameter 8"
Capacity 2200 lbs
Wheel Steel
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 10-1/4"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Steel
Temp Range Up to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton ForgeMaster Swivel Caster with 8" x 3" Forged Steel Wheel with 3/4" Sealed...
Shop Product
2200 lbs
TieredPricing
Hamilton ForgeMaster Swivel Caster with 6" x 2 1/2" Forged Steel Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-FM-6FSH 6" x 2 1/2" Forged Steel Swivel Caster – 2200 lb
Part # S-FM-6FSH
from $443.00
Volume pricing available
PolyurethanePlate
Load rating
2200 lbs
Diameter 6"
Capacity 2200 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2-1/2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton ForgeMaster Swivel Caster with 6" x 2 1/2" Forged Steel Wheel with 1"...
Shop Product
2200 lbs
TieredPricing
Hamilton ForgeMaster Swivel Caster with 6" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-FM-63FSB 6" x 3" Forged Steel Swivel Caster – 2200 lb
Part # S-FM-63FSB
from $504.00
Volume pricing available
SteelPlate
Load rating
2200 lbs
Diameter 6"
Capacity 2200 lbs
Wheel Steel
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton ForgeMaster Swivel Caster with 6" x 3" Forged Steel Wheel with 3/4" Sealed...
Shop Product
3200 lbs
TieredPricing
Hamilton ForgeMaster Rigid Caster with 8" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-FM-83FSB 8" x 3" Forged Steel Rigid Caster – 3200 lb
Part # R-FM-83FSB
$406.00
Volume pricing available
SteelPlate
Load rating
3200 lbs
Diameter 8"
Capacity 3200 lbs
Wheel Steel
Mount Plate
Plate Size 5" x 7"
More Details Less Details
Width 3"
Height 10-1/4"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ForgeMaster Rigid Caster with 8" x 3" Forged Steel Wheel with 3/4" Sealed...
Shop Product
2200 lbs
TieredPricing

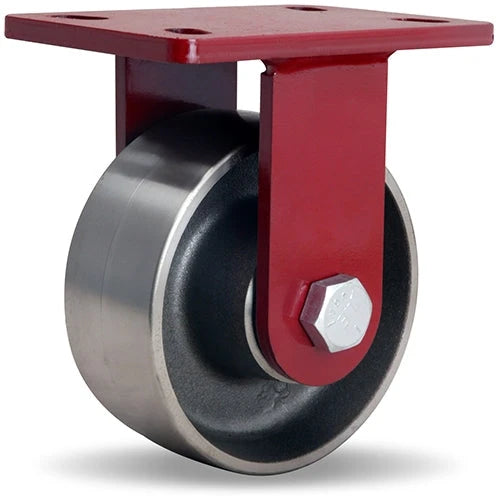

Hamilton ForgeMaster Rigid Caster with 6" x 2 1/2" Forged Steel Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-FM-6FSH 6" x 2 1/2" Forged Steel Rigid Caster – 2200 lb
Part # R-FM-6FSH
$309.00
Volume pricing available
SteelPlate
Load rating
2200 lbs
Diameter 6"
Capacity 2200 lbs
Wheel Steel
Mount Plate
Plate Size 5" x 7"
More Details Less Details
Width 2-1/2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ForgeMaster Rigid Caster with 6" x 2 1/2" Forged Steel Wheel with 1"...
Shop Product
3200 lbs
TieredPricing

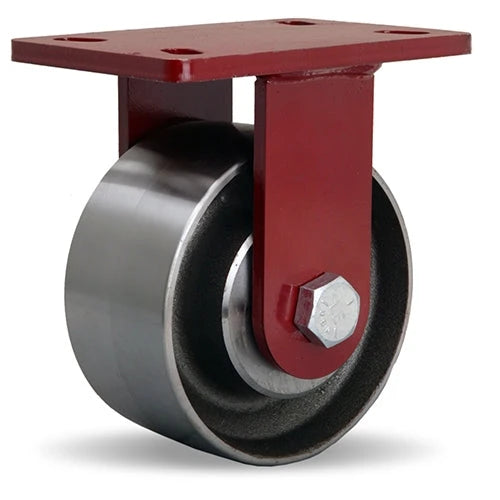

Hamilton ForgeMaster Rigid Caster with 6" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-FM-63FSB 6" x 3" Forged Steel Rigid Caster – 3200 lb
Part # R-FM-63FSB
$388.00
Volume pricing available
SteelPlate
Load rating
3200 lbs
Diameter 6"
Capacity 3200 lbs
Wheel Steel
Mount Plate
Plate Size 5" x 7"
More Details Less Details
Width 3"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton ForgeMaster Rigid Caster with 6" x 3" Forged Steel Wheel with 3/4" Sealed...
Shop Product

ForgeMaster Caster Series with Forged Steel Wheels

Forging technology produces the ultimate tensile strength in industrial wheels. Coupled with solid billet design, this makes Hamilton Forged Steel Wheels virtually indestructible. Consequently, load limits are governed by bearing capacity.

Wheel treads are machined smooth and concentric, with a slight crown that lessens energy requirements by aiding turnability under heavy loads.
