Forged Steel Casters

Diameter: 8, 10, 12 inTread: 3, 4 inCapacity: up to 36,800 lb
Steel casters here serve forging carts, aerospace fixtures, and multi-ton movers. You will see wheel diameters 8, 10, 12 in, steel treads, and plate-mount frames across the SKUs listed below. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. Replace worn corners in matched sets when possible so the cart tracks straight under load. These extreme-duty options cover everyday forging carts, aerospace fixtures, and multi-ton movers without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

27200 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 8" x 4" Forged Steel Wheel with 1 1/2" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-UMD2-84FST 8" x 4" Forged Steel Dual Wheel Swivel Caster – 27200 lb
Part # S-UMD2-84FST
Up to 350 Ibs. Economical, Zinc
$7,923.00
Volume pricing available
SteelPlate
Load rating
27200 lbs
Size8" x 4"
Capacity27200 lbs
WheelSteel
MountPlate 14" x 14"
TypeSwivel
More Details Less Details
Width 4"
Height 12-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range Up to 800°F
Rig Type Swivel
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 8" x 4" Forged Steel Wheel with...
Shop Product
22400 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 8" x 3" Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-UMD2-83FST 8" x 3" Forged Steel Dual Wheel Swivel Caster – 22400 lb
Part # S-UMD2-83FST
Up to 210 Ibs. Gate Mount & Spring
$7,055.00
Volume pricing available
SteelPlate
Load rating
22400 lbs
Size8" x 3"
Capacity22400 lbs
WheelSteel
MountPlate 14" x 14"
TypeSwivel
More Details Less Details
Width 3"
Height 12-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 8" x 3" Forged Steel Wheel with...
Shop Product
36800 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 12" x 4" Forged Steel Wheel with 1 1/2" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-UMD2-124FST 12" x 4" Forged Steel Dual Wheel Swivel Caster – 36800 lb
Part # S-UMD2-124FST
$9,209.00
Volume pricing available
SteelPlate
Load rating
36800 lbs
Size12" x 4"
Capacity36800 lbs
WheelSteel
MountPlate 14" x 14"
TypeSwivel
More Details Less Details
Width 4"
Height 16-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 12" x 4" Forged Steel Wheel with...
Shop Product
28800 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 10" x 4" Forged Steel Wheel with 1 1/2" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-UMD2-104FST 10" x 4" Forged Steel Dual Wheel Swivel Caster – 28800 lb
Part # S-UMD2-104FST
$8,486.00
Volume pricing available
SteelPlate
Load rating
28800 lbs
Size10" x 4"
Capacity28800 lbs
WheelSteel
MountPlate 14" x 14"
TypeSwivel
More Details Less Details
Width 4"
Height 14-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Swivel Caster with 10" x 4" Forged Steel Wheel with...
Shop Product
27200 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 8" x 4" Forged Steel Wheel with 1 1/2" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-UMD2-84FST 8" x 4" Forged Steel Rigid Dual Wheel Caster – 27200 lb
Part # R-UMD2-84FST
$4,759.00
Volume pricing available
SteelPlate
Load rating
27200 lbs
Size8" x 4"
Capacity27200 lbs
WheelSteel
MountPlate 14" x 14"
TypeRigid
More Details Less Details
Width 4"
Height 12-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 8" x 4" Forged Steel Wheel with...
Shop Product
22400 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 8" x 3" Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-UMD2-83FST 8" x 3" Forged Steel Dual Wheel Rigid Caster – 22400 lb
Part # R-UMD2-83FST
$2,775.00
Volume pricing available
SteelPlate
Load rating
22400 lbs
Size8" x 4"
Capacity22400 lbs
WheelSteel
MountPlate 14" x 14"
TypeRigid
More Details Less Details
Width 4"
Height 12-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 8" x 3" Forged Steel Wheel with...
Shop Product
36800 lbs
TieredPricing
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 12" x 4" Forged Steel Wheel with 1 1/2" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-UMD2-124FST 12" x 4" Forged Steel Rigid Dual Wheel Caster – 36800 lb
Part # R-UMD2-124FST
$5,237.00
Volume pricing available
SteelPlate
Load rating
36800 lbs
Size12" x 4"
Capacity36800 lbs
WheelSteel
MountPlate 14" x 14"
TypeRigid
More Details Less Details
Width 4"
Height 16-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 12" x 4" Forged Steel Wheel with...
Shop Product
28800 lbs
TieredPricing

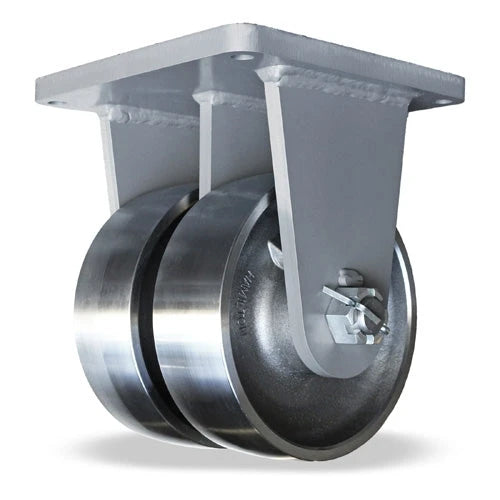

Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 10" x 4" Forged Steel Wheel with 1 1/2" Precision Tapered Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-UMD2-104FST 10" x 4" Forged Steel Dual Wheel Rigid Caster – 28800 lb
Part # R-UMD2-104FST
$3,464.00
Volume pricing available
SteelPlate
Load rating
28800 lbs
Size10" x 4"
Capacity28800 lbs
WheelSteel
MountPlate 14" x 14"
TypeRigid
More Details Less Details
Width 4"
Height 14-7/16"
Bolt Pattern 12" x 12"
Core Steel
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Enamel
Hamilton Ultra Maxi-Duty Dual-Wheel Rigid Caster with 10" x 4" Forged Steel Wheel with...
Shop Product

Ultra Maxi-Duty Caster Series with Forged Steel Wheels

Forging technology produces the ultimate tensile strength in industrial wheels. Coupled with solid billet design, this makes Hamilton Forged Steel Wheels virtually indestructible. Consequently, load limits are governed by bearing capacity.

Wheel treads are machined smooth and concentric, with a slight crown that lessens energy requirements by aiding turnability under heavy loads.
