Up to 350 lbs
Up to 7,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
Shock absorbing
Outdoor / rough terrain
View All Specialty Casters
Browse all specialty caster types
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

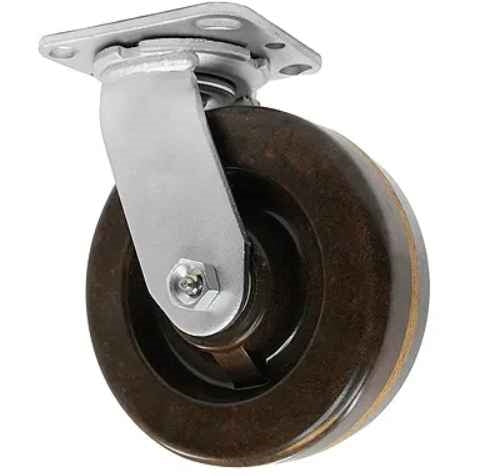

Hi-Temp Glass-Filled Nylon wheels are meant for high temperatures such as bakeries and ovens. These Wheels can withstand up to 550F intermittent (1 hour), and 475F continuous. These wheels are impervious to most chemicals, solvents, oils, salt, alkaline, and water. Glass Filled Nylon are made for Wet and Corrosive environments where Water or Harsh Cleaning Chemicals include some mild acids are used. These wheels are very light but have a heavy load capacity due to the strength of nylon. Hi-Temp Glass Filled Nylon Wheels are reinforced with glass fibers for added strength. Please select either a plain bore or a stainless bearing for applications that include steam cleaning, wash down, grease, oil, or exposure to blood, salt, or any type of solvents. We typically sell these to any type of laboratory applications as well as animal clinics. These are used in Surgical rooms as well during operations where chemicals and blood are commonly exposed. You can also find these types of wheels being used in Schools, Cafeterias, and many Food Service Industries, Medical Industry Carts, Hospitals, Labs, and Bakeries.
