Industrial Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 4 to 8 inTread: 2 inCapacity: 1,000 to 2,000 lb per casterPlate sizes: 4 x 4-1/2, 4 x 5

The eight cast iron casters here come from Hamilton with 4 to 8 in wheels, rated 1,000 to 2,000 lb each. Most use a 4 x 4-1/2 in top plate, with 4 x 5 in also offered, in both swivel and rigid, with no brake options. Picks range from a Hamilton R-WH-5MB 5 x 2 in metal rigid caster rated 1,300 lb to a Hamilton S-WH-8MB 8 x 2 in metal swivel caster rated 2,000 lb. Listed temperature ratings are mostly -22°F to 750°F.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2000 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 8" x 2" Metal Wheel with 1/2" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-8MB 8" x 2" Metal Swivel Caster – 2000 lb

Part # S-WH-8MB

from $242.00

Volume pricing available

Cast IronPlate

Load rating

2000 lbs

Size8" x 2"

Capacity2000 lbs

WheelCast Iron

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 8" x 2" Metal Wheel with 1/2" Sealed Precision...

Shop Product

1400 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 6" x 2" Metal Wheel with 1/2" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-6MB 6" x 2" Metal Swivel Sealed Caster – 1400 lb

Part # S-WH-6MB

from $218.00

Volume pricing available

Cast IronPlate

Load rating

1400 lbs

Size6" x 2"

Capacity1400 lbs

WheelCast Iron

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 6" x 2" Metal Wheel with 1/2" Sealed Precision...

Shop Product

1300 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 5" x 2" Metal Wheel with 1/2" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-5MB 5" x 2" Metal Swivel Caster – 1300 lb

Part # S-WH-5MB

from $212.00

Volume pricing available

Cast IronPlate

Load rating

1300 lbs

Size5" x 2"

Capacity1300 lbs

WheelCast Iron

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 5" x 2" Metal Wheel with 1/2" Sealed Precision...

Shop Product

1000 lbs

TieredPricing

Hamilton Workhorse Swivel Caster with 4" x 2" Metal Wheel with 1/2" Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-WH-4MB 4" x 2" Metal Swivel Caster – 1000 lb

Part # S-WH-4MB

from $203.00

Volume pricing available

Cast IronPlate

Load rating

1000 lbs

Size4" x 2"

Capacity1000 lbs

WheelCast Iron

MountPlate 4" x 5"

TypeSwivel

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Swivel Caster with 4" x 2" Metal Wheel with 1/2" Precision Ball...

Shop Product

2000 lbs

TieredPricing

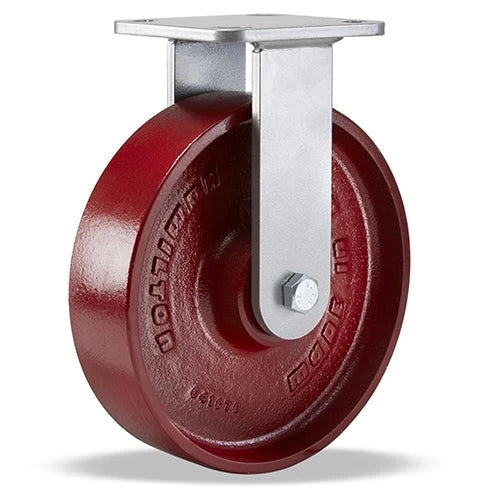

Hamilton Workhorse Rigid Caster with 8" x 2" Metal Wheel with 1/2" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-8MB 8" x 2" Metal Rigid Caster – 2000 lb

Part # R-WH-8MB

from $141.00

Volume pricing available

Cast IronPlate

Load rating

2000 lbs

Size8" x 2"

Capacity2000 lbs

WheelCast Iron

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 8" x 2" Metal Wheel with 1/2" Sealed Precision...

Shop Product

1400 lbs

TieredPricing

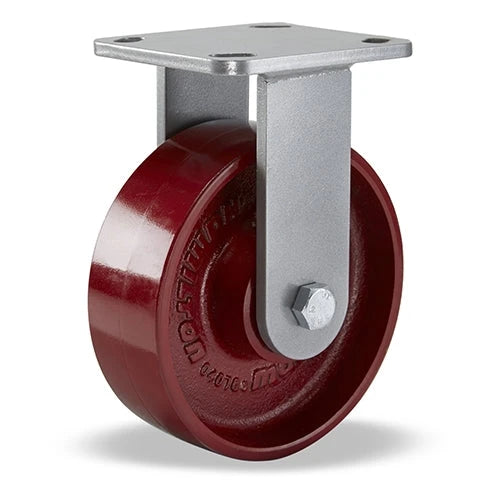

Hamilton Workhorse Rigid Caster with 6" x 2" Metal Wheel with 1/2" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-6MB 6" x 2" Metal Rigid Caster – 1400 lb

Part # R-WH-6MB

from $120.00

Volume pricing available

Cast IronPlate

Load rating

1400 lbs

Size6" x 2"

Capacity1400 lbs

WheelCast Iron

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 6" x 2" Metal Wheel with 1/2" Sealed Precision...

Shop Product

1300 lbs

TieredPricing

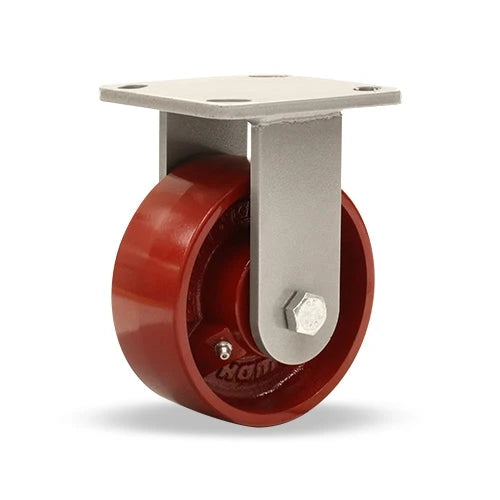

Hamilton Workhorse Rigid Caster with 5" x 2" Metal Wheel with 1/2" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-5MB 5" x 2" Metal Rigid Caster – 1300 lb

Part # R-WH-5MB

from $110.00

Volume pricing available

Cast IronPlate

Load rating

1300 lbs

Size5" x 2"

Capacity1300 lbs

WheelCast Iron

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 5" x 2" Metal Wheel with 1/2" Sealed Precision...

Shop Product

1000 lbs

TieredPricing

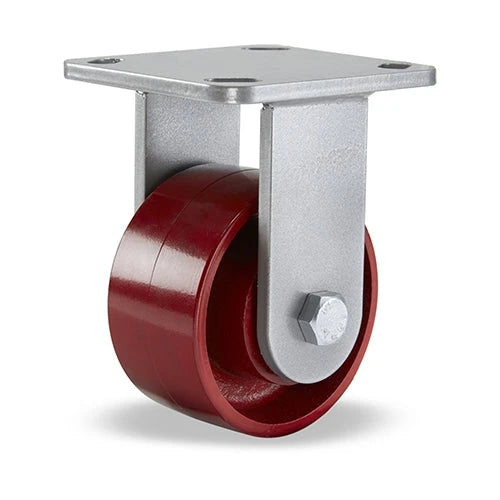

Hamilton Workhorse Rigid Caster with 4" x 2" Metal Wheel with 1/2" Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-WH-4MB 4" x 2" Metal Rigid Caster – 1000 lb

Part # R-WH-4MB

from $99.00

Volume pricing available

Cast IronPlate

Load rating

1000 lbs

Size4" x 2"

Capacity1000 lbs

WheelCast Iron

MountPlate 4" x 4-1/2"

TypeRigid

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"

Core Cast Iron

Temp Range -22°F to 750°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Workhorse Rigid Caster with 4" x 2" Metal Wheel with 1/2" Precision Ball...

Shop Product

Workhorse Caster Series with Metal Wheels

With one of the industry's largest lines of metal wheels (most are cast iron, a few of the smaller sizes sintered iron), Hamilton has come to be known as the first place to go for new or replacement metal wheels. In the last three years, the most popular metal wheel sizes have been upgraded with larger hubs and less scrap metal content to represent the most durable and highest quality metal wheels in the industry.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
