Nylon Casters - Nylast Swivel

Diameter: 6, 8, 10, 12 inTread: 3, 4 inCapacity: up to 10,000 lb
This collection gathers plate-mount casters used on chemical, food-contact, and washdown carts. Typical builds show wheel diameters 6, 8, 10, 12 in, nylon treads, and capacities 5,400 to 10,000 lb. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. Replace worn corners in matched sets when possible so the cart tracks straight under load.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

7200 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 8" x 3" Nylast™ Wheel with 1 1/4" Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-83NYB 8" x 3" Nylast Swivel Caster – 7200 lb
Part # S-MD-83NYB
from $1,196.00
Volume pricing available
NylonPlate
Load rating
7200 lbs
Diameter 8"
Capacity 7200 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 11"
Bolt Pattern 7" x 7"
Hamilton Maxi-Duty Swivel Caster with 8" x 3" Nylast™ Wheel with 1 1/4" Precision...
Shop Product
5400 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 6" x 3" Nylast™ Wheel with 1 1/4" Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-63NYB 6" x 3" Nylast Swivel Caster – 5400 lb
Part # S-MD-63NYB
from $1,062.00
Volume pricing available
NylonPlate
Load rating
5400 lbs
Diameter 6"
Capacity 5400 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 10"
Bolt Pattern 7" x 7"
Hamilton Maxi-Duty Swivel Caster with 6" x 3" Nylast Wheel with 1 1/4" Precision...
Shop Product
10000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 12" x 4" Nylast Wheel with 1 1/4" Precision Roller Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-124NYB 12" x 4" Nylast Swivel Caster – 10000 lb
Part # S-MD-124NYB
from $1,885.00
Volume pricing available
NylonPlate
Load rating
10000 lbs
Diameter 12"
Capacity 10000 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 15-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 12" x 4" Nylast Wheel with 1 1/4" Precision...
Shop Product
8200 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 10" x 4" Nylast Wheel with 1 1/4" Precision Roller Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-104NYB 10" x 4" Nylast Swivel Caster – 8200 lb
Part # S-MD-104NYB
from $1,538.00
Volume pricing available
NylonPlate
Load rating
8200 lbs
Diameter 10"
Capacity 8200 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 13"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 10" x 4" Nylast Wheel with 1 1/4" Precision...
Shop Product
8200 lbs
TieredPricing

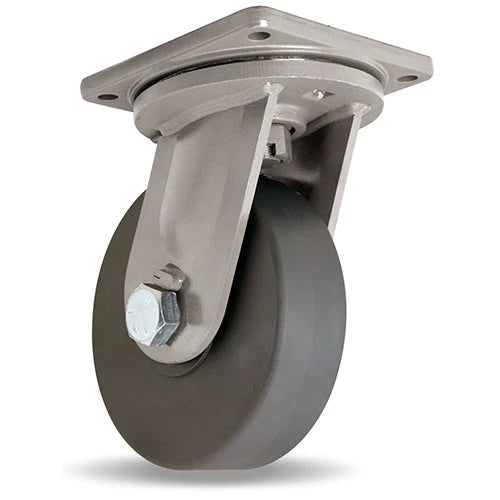

Hamilton Maxi-Duty Swivel Caster with 10" x 3" Nylast Wheel with 1 1/4" Precision Roller Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-103NYB 10" x 3" Nylast Swivel Caster – 8200 lb
Part # S-MD-103NYB
from $1,336.00
Volume pricing available
NylonPlate
Load rating
8200 lbs
Diameter 10"
Capacity 8200 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 13"
Bolt Pattern 7" x 7"
Temp Range -40°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 10" x 3" Nylast Wheel with 1 1/4" Precision...
Shop Product
7200 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 8" x 3" Nylast Wheel with 1 1/4" Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-83NYB 8" x 3" Nylast Rigid Caster – 7200 lb
Part # R-MD-83NYB
$780.00
Volume pricing available
NylonPlate
Load rating
7200 lbs
Diameter 8"
Capacity 7200 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 11"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 8" x 3" Nylast Wheel with 1 1/4" Precision...
Shop Product
5400 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 6" x 3" Nylast™ Wheel with 1 1/4" Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-63NYB 6" x 3" Nylast Rigid Caster – 5400 lb
Part # R-MD-63NYB
$646.00
Volume pricing available
NylonPlate
Load rating
5400 lbs
Diameter 6"
Capacity 5400 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 10"
Bolt Pattern 7" x 7"
Hamilton Maxi-Duty Rigid Caster with 6" x 3" Nylast Wheel with 1 1/4" Precision...
Shop Product
10000 lbs
TieredPricing

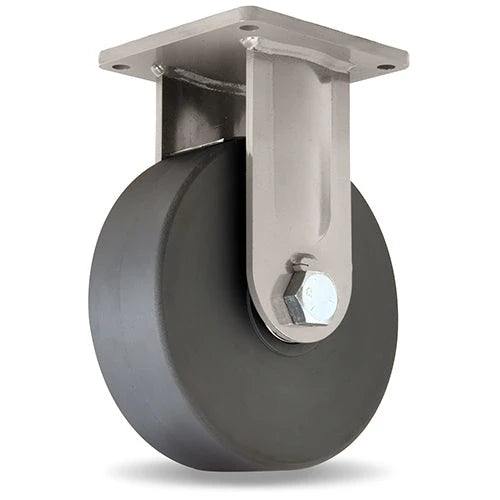

Hamilton Maxi-Duty Rigid Caster with 12" x 4" Nylast Wheel with 1 1/4" Precision Roller Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-124NYB 12" x 4" Nylast Rigid Caster – 10000 lb
Part # R-MD-124NYB
$1,481.00
Volume pricing available
NylonPlate
Load rating
10000 lbs
Diameter 12"
Capacity 10000 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 15-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 12" x 4" Nylast Wheel with 1 1/4" Precision...
Shop Product
8200 lbs
TieredPricing

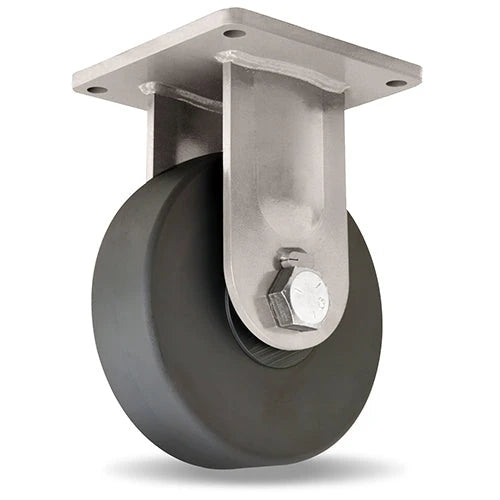

Hamilton Maxi-Duty Rigid Caster with 10" x 4" Nylast Wheel with 1 1/4" Precision Roller Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-104NYB 10" x 4" Nylast Rigid Caster – 8200 lb
Part # R-MD-104NYB
$1,218.00
Volume pricing available
NylonPlate
Load rating
8200 lbs
Diameter 10"
Capacity 8200 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 13"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 10" x 4" Nylast Wheel with 1 1/4" Precision...
Shop Product
8200 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 10" x 3" Nylast Wheel with 1 1/4" Precision Roller Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-103NYB 10" x 3" Nylast Rigid Caster – 8200 lb
Part # R-MD-103NYB
$950.00
Volume pricing available
NylonPlate
Load rating
8200 lbs
Diameter 10"
Capacity 8200 lbs
Wheel Nylon
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 13"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 10" x 3" Nylast Wheel with 1 1/4" Precision...
Shop Product

Maxi-Duty Caster Series with Nylast Nylon Wheels

Hamilton's Nylast wheel is made from solid cast high performance nylon. Nylast is of cast nylon, and has superior impact strength and resilience compared to conventional injection-molded nylon wheels. The Hamilton Nylast material is also specially formulated with finely divided particles of molybdenum disulphide (MoS2) to enhance its load bearing capability while maintaining the impact resistance inherent to nylon.

Other key properties of Nylast include resistance to moisture and chemicals plus floor protection resulting in a wheel well-suited for corrosive environments or applications where sanitary conditions are important. If the wheel will come in contact with specific chemicals, check out the Nylast Chemical Resistance Chart to learn if the chemicals will play nice with Nylast.
