Phenolic Casters - Swivel

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 10 inTread: 2-1/2 inCapacity: 1,800 to 2,500 lb per casterPlate sizes: 5-1/2 x 7-1/2, 6-1/8 x 7-1/2

The six phenolic casters here come from Hamilton with 6 to 10 in wheels, rated 1,800 to 2,500 lb each. Most use a 5-1/2 x 7-1/2 in top plate, with 6-1/8 x 7-1/2 in also offered, in both swivel and rigid, with no brake options. Two examples are a Hamilton R-EHD-8PH 8 x 2 1/2 in phenolic rigid caster rated 2,000 lb and a Hamilton S-EHD-10PH 10 x 2 1/2 in phenolic swivel caster rated 2,500 lb. Listed temperature ratings are mostly up to 250°F.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

2000 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 8" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-8PH 8" x 2 1/2" Plastex Phenolic Swivel Caster – 2000 lb

Part # S-EHD-8PH

from $395.00

Volume pricing available

PhenolicPlate

Load rating

2000 lbs

Size8" x 2-1/2"

Capacity2000 lbs

WheelPhenolic

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 10-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Phenolic

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 8" x 2 1/2" Plastex Phenolic Wheel...

Shop Product

1800 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 6" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-6PH 6" x 2 1/2" Phenolic Swivel Caster – 1800 lb

Part # S-EHD-6PH

from $398.00

Volume pricing available

PhenolicPlate

Load rating

1800 lbs

Size6" x 2-1/2"

Capacity1800 lbs

WheelPhenolic

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 8-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Phenolic

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 6" x 2 1/2" Plastex Phenolic Wheel...

Shop Product

2500 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 10" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-10PH 10" x 2 1/2" Phenolic Swivel Caster – 2500 lb

Part # S-EHD-10PH

from $443.00

Volume pricing available

PhenolicPlate

Load rating

2500 lbs

Size10" x 2-1/2"

Capacity2500 lbs

WheelPhenolic

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Phenolic

Temp Range Up to 250°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 10" x 2 1/2" Plastex Phenolic Wheel...

Shop Product

2000 lbs

TieredPricing

Hamilton Extra Heavy Duty Rigid Caster with 8" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-8PH 8" x 2 1/2" Phenolic Rigid Caster – 2000 lb

Part # R-EHD-8PH

$210.00

Volume pricing available

PhenolicPlate

Load rating

2000 lbs

Size8" x 2-1/2"

Capacity2000 lbs

WheelPhenolic

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 10-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 8" x 2 1/2" Plastex Phenolic Wheel...

Shop Product

1800 lbs

TieredPricing

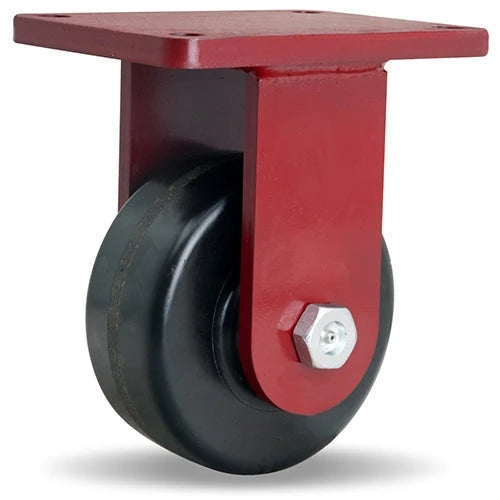

Hamilton Extra Heavy Duty Rigid Caster with 6" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-6PH 6" x 2 1/2" Plastex Phenolic Rigid Caster – 1800 lb

Part # R-EHD-6PH

$159.00

Volume pricing available

PhenolicPlate

Load rating

1800 lbs

Size6" x 2-1/2"

Capacity1800 lbs

WheelPhenolic

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 8-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 6" x 2 1/2" Plastex Phenolic Wheel...

Shop Product

2500 lbs

TieredPricing

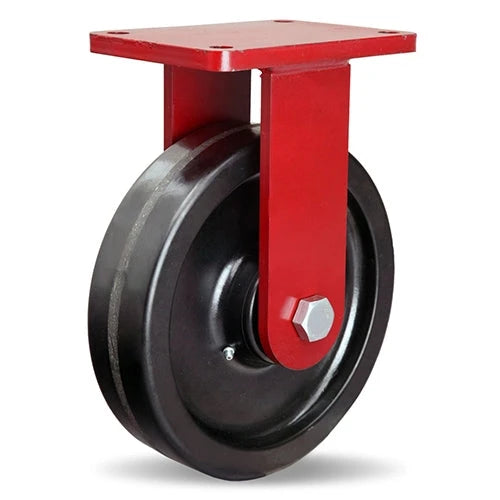

Hamilton Extra Heavy Duty Rigid Caster with 10" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-10PH 10" x 2 1/2" Phenolic Rigid Caster – 2500 lb

Part # R-EHD-10PH

$206.00

Volume pricing available

PhenolicPlate

Load rating

2500 lbs

Size10" x 2-1/2"

Capacity2500 lbs

WheelPhenolic

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Phenolic

Temp Range Up to 250°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 10" x 2 1/2" Plastex Phenolic Wheel...

Shop Product

Extra Heavy Duty Caster Series with Plastex Phenolic Wheels

Fiber-filled phenolic resin, molded under extreme pressure, gives Hamilton Plastex wheels the ability to carry heavy loads without damaging floors in intermittent service. They are non-marking, resist corrosion from oil, water, grease and commonly used acids or solvents, and will not spark. They can be operated continuously in temperatures ranging from -50° to 260° F and intermittently to 300° F.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
