Phenolic Casters — Workhorse Swivel Hamilton

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 3-1/4 to 8 inTread: 2 inCapacity: 700 to 1,400 lb per casterPlate sizes: 4 x 4-1/2, 4 x 5
This page lists ten phenolic casters with 3-1/4 to 8 in wheels, rated 700 to 1,400 lb each, made by Hamilton. Most use a 4 x 4-1/2 in top plate, with 4 x 5 in also offered, with swivel and rigid versions, with no brake options. Examples include a Hamilton R-WH-3P 3 1/4 x 2 in phenolic rigid caster rated 700 lb and a Hamilton S-WH-8P 8 x 2 in Plastex phenolic swivel caster rated 1,400 lb. The usual temperature rating here is up to 250°F.

Shop by type

5 types

Wheel = wheel diameter · capacity is per caster.

1400 lbs
TieredPricing
Hamilton Workhorse Swivel Caster with 8" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-8P 8" x 2" Plastex Phenolic Swivel Caster – 1400 lb
Part # S-WH-8P
from $198.00
Volume pricing available
PhenolicPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelPhenolic
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Swivel Caster with 8" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
1200 lbs
TieredPricing
Hamilton Workhorse Swivel Caster with 6" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-6P 6" x 2" Phenolic Swivel Caster – 1200 lb
Part # S-WH-6P
from $186.00
Volume pricing available
PhenolicPlate
Load rating
1200 lbs
Size6" x 2"
Capacity1200 lbs
WheelPhenolic
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Swivel Caster with 6" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
1000 lbs
TieredPricing
Hamilton Workhorse Swivel Caster with 5" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-5P 5" x 2" Plastex Phenolic Swivel Caster – 1000 lb
Part # S-WH-5P
from $181.00
Volume pricing available
PhenolicPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelPhenolic
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Swivel Caster with 5" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
800 lbs
TieredPricing

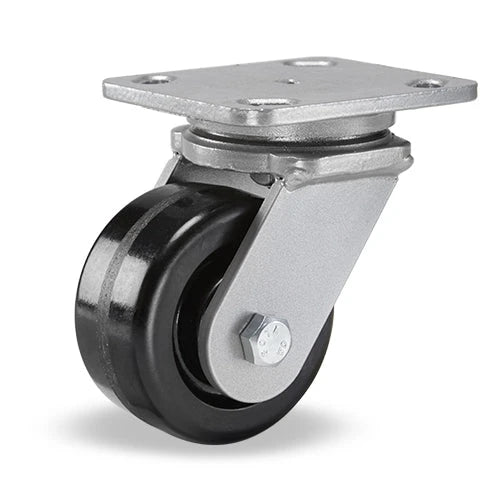

Hamilton Workhorse Swivel Caster with 4" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-4P 4" x 2" Plastex Phenolic Swivel Caster – 800 lb
Part # S-WH-4P
from $180.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Size4" x 2"
Capacity800 lbs
WheelPhenolic
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Swivel Caster with 4" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
700 lbs
TieredPricing

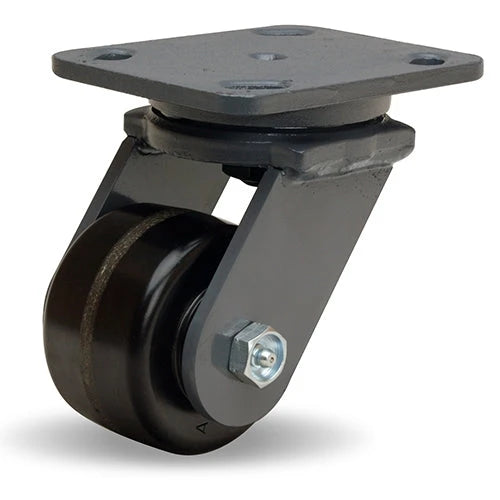

Hamilton Workhorse Swivel Caster with 3 1/4" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-WH-3P 3 1/4" x 2" Plastex Phenolic Swivel Caster – 700 lb
Part # S-WH-3P
from $172.00
Volume pricing available
PhenolicPlate
Load rating
700 lbs
Size3-1/4" x 2"
Capacity700 lbs
WheelPhenolic
MountPlate 4" x 5"
TypeSwivel
More Details Less Details
Width 2"
Height 5-1/4"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Swivel Caster with 3 1/4" x 2" Plastex Phenolic Wheel with 3/4"...
Shop Product
1400 lbs
TieredPricing

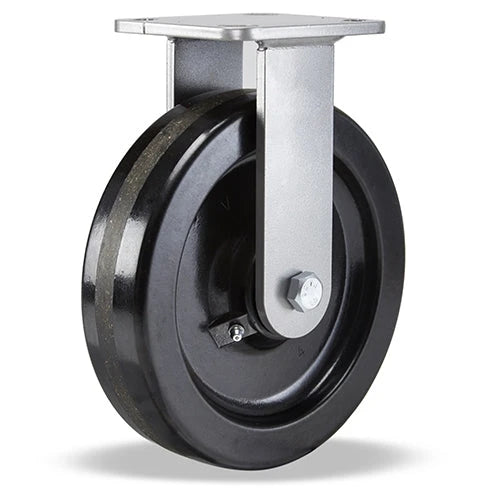

Hamilton Workhorse Rigid Caster with 8" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-8P 8" x 2" Plastex Phenolic Rigid Caster – 1400 lb
Part # R-WH-8P
from $95.00
Volume pricing available
PhenolicPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelPhenolic
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Rigid Caster with 8" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
1200 lbs
TieredPricing

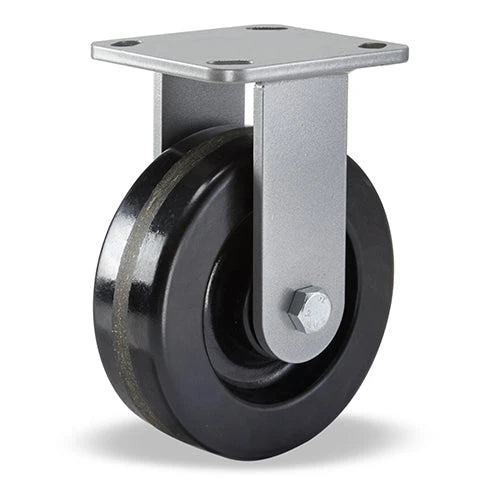

Hamilton Workhorse Rigid Caster with 6" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-6P 6" x 2" Plastex Phenolic Rigid Caster – 1200 lb
Part # R-WH-6P
from $83.00
Volume pricing available
PhenolicPlate
Load rating
1200 lbs
Size6" x 2"
Capacity1200 lbs
WheelPhenolic
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Rigid Caster with 6" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
1000 lbs
TieredPricing

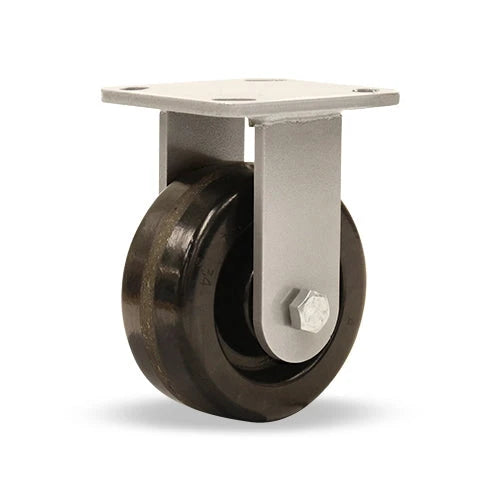

Hamilton Workhorse Rigid Caster with 5" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-5P 5" x 2" Plastex Phenolic Rigid Caster – 1000 lb
Part # R-WH-5P
from $82.00
Volume pricing available
PhenolicPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelPhenolic
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Rigid Caster with 5" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
800 lbs
TieredPricing

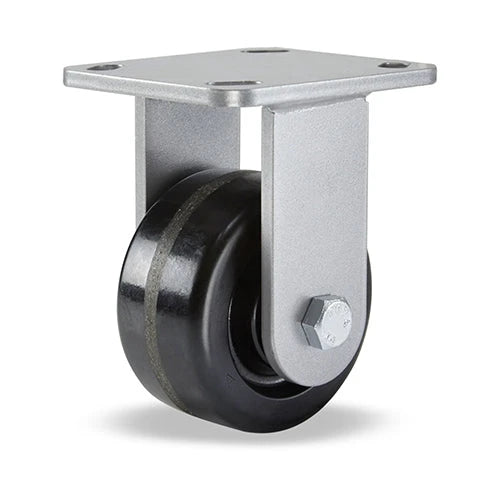

Hamilton Workhorse Rigid Caster with 4" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-4P 4" x 2" Plastex Phenolic Rigid Caster – 800 lb
Part # R-WH-4P
from $69.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Size4" x 2"
Capacity800 lbs
WheelPhenolic
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Rigid Caster with 4" x 2" Plastex Phenolic Wheel with 3/4" Straight...
Shop Product
700 lbs
TieredPricing

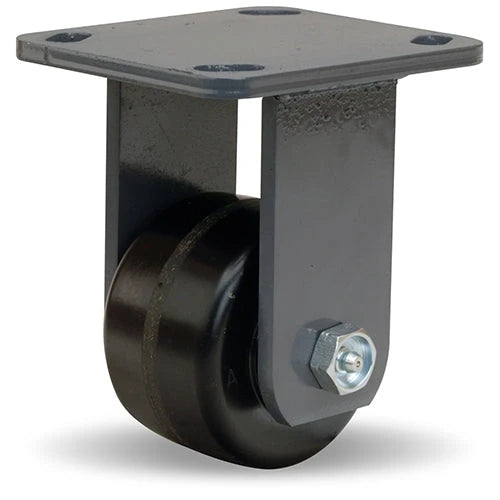

Hamilton Workhorse Rigid Caster with 3 1/4" x 2" Plastex Phenolic Wheel with 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-WH-3P 3 1/4" x 2" Phenolic Rigid Caster – 700 lb
Part # R-WH-3P
from $80.00
Volume pricing available
PhenolicPlate
Load rating
700 lbs
Size3-1/4" x 2"
Capacity700 lbs
WheelPhenolic
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 5-1/4"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Phenolic
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Workhorse Rigid Caster with 3 1/4" x 2" Plastex Phenolic Wheel with 3/4"...
Shop Product

Workhorse Caster Series with Plastex Phenolic Wheels

Fiber-filled phenolic resin, molded under extreme pressure, gives Hamilton Plastex wheels the ability to carry heavy loads without damaging floors in intermittent service. They are non-marking, resist corrosion from oil, water, grease and commonly used acids or solvents, and will not spark. They can be operated continuously in temperatures ranging from -50° to 260° F and intermittently to 300° F.

Search
